Efficient Networks Macintosh Efficient Networks 5260 Manuel utilisateur

Part Number: 52609X02

Version 1.2

READ ME FIRST

Windows® 95/98/Me/2000

*DSL Equipment Installation Guide:

Efficient Networks® 5260

*Digital Subscriber Line

Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000 Page 1

Table of Contents

Follow Steps 1 through 8 to complete the DSL Equipment Installation

Step 1: Verify Your System Requirements and Documents 2

Step 2: Verify the Contents of Your DSL Equipment Kit 3

Step 3: Install a Telephone Filter on Every Telephone Line 4

Step 4: Choose Your Modem and Minimum Requirements Check 8

Step 5: Installing the Ethernet Hardware 13

DESKTOP Systems - Installing the Ethernet Adapter 14

LAPTOP Systems - Installing the Ethernet Adapter 16

Step 6: Install the Efficient Networks® DSL Modem 17

Step 7: Finish Configuring your System 19

Step 8: Follow Internet Service Provider Instructions 20

APPENDICES 21

Having Trouble? 22

Uninstalling/Reinstalling the Ethernet Adapter 23

Troubleshooting SBC Express 25

For Support:

•Review the troubleshooting in this guide on page 22

•Call your Internet Service Provider 'help desk' for further information on Internet Service

Provider connection, and registration.

IMPORTANT NOTE: This guide portrays the typical flow for the installation process.

Please follow the instructions, including running the SBC Express software BEFORE

installing any NIC cards or modems. Some computer or network configurations may cause

software windows to appear that are not depicted in this guide. Please read and follow the

instructions on those screens to continue the installation process.

Verify that you are installing your DSL equipment AFTER the “Service Completion Date”

given to you when you ordered your DSL Internet Service.

SBC Advanced Solutions, Inc. and affiliates have no responsibility for any personal injury

or property damage which may result from your installation of DSL Equipment as

discussed in this Guide. SBC Advanced Solutions, Inc. and its affiliates specifically

disclaim any liability for such injury or damage. By proceeding with this installation, you

assume all risk of personal injury or property damage. Please consult the documentation

provided by your PC vendor to identify any impacts to your warranty. SBC, SBC

EXPRESS and the SBC Logo are registered trademarks of SBC Communications, Inc.

Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000 Page 2

Step 1: Verify Your System Requirements and Documents

This Installation Guide is for Windows® 95/98/2000/ME

users only.

The SBC Express software will ensure that you meet the following minimum requirements.

You will not be able to complete the installation without meeting these requirements.

•PC with a Pentium-class processor, CD-ROM Drive, 166 MHz, 25 Mb free disk space,

32 Mb RAM and any one of the following:

a) An available PCI slot (for desktop installations)*

b) An available PCMCIA slot (for laptop installations)

c) A built-in Ethernet port (consult your system’s documentation for details)

*Please note: many PC systems already have a Network Interface Card installed. The SBC

Express software will detect if you have a Network Interface Card installed. If your system

already has a card installed, you DO NOT need to install an additional one. If you have any

questions, please consult the information that came with your PC system.

Other items you may need during the installation process:

•Your system manufacturer Owner’s Manual.

•Documentation and/or software from your Internet Service Provider.

Call your Internet Service Provider if you have questions regarding System Requirements

or System Documentation.

Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000 Page 3

Step 2: Verify the Contents of Your DSL Equipment Kit

Your DSL Equipment Kit Contains:

A: This Installation Guide and the SBC Express CD.

B: 1 Efficient Networks®5260 DSL Modem with Ethernet cable (connects to Adapter, below) and

power cable.

C: 1 Filter Pack containing: 5 in-line filters, 1 wall-mount filter, 1 two-way adapter, and 1 data cable.

D: 1 Ethernet Adapter for Desktop PC (if included in initial order)

--OR--

E: 1 Ethernet Adapter for Laptop PC (if included in initial order)

Note: Internet Software and/or instructions may be provided in this box or separately by your

Internet Service Provider.

Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000 Page 4

Step 3: Install a Telephone Filter on Every Telephone Line

3-1 Set up the phone jack where your DSL modem will go.

1) Locate the phone

ack where you want

to connect your DSL

2) Insert the 2-way

adapter in the phone

ack

3) Connect a filter to

one side of the 2-way

adapter

Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000 Page 5

5) Connect the data

cable that will go to

your DSL modem to

the unfiltered side of

the 2-way adapter

4) If you have a

phone, fax machine,

analog modem or

other phone device at

this location, connect

it to the filter

To the DSL mode

to be installed in

step 6.

Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000 Page 6

3-2 Install a filter on all other phones and phone devices.

Why do I need a filter on all my other phones and phone devices?

Converting your regular phone line into a high-speed Digital Subscriber Line (DSL) can

cause audible noise (high pitched tones and static) when you talk on the phone. You

need to install a filter on every telephone or device that shares the same phone number as

your DSL line to eliminate this noise.

Wall mount filter

Remember! Don’t install a filter on the data cable that you are

connecting to your DSL modem.

Fax machines

Answering machines Caller ID boxes

Other phones

Use the wall mount filter shown

Analog computer modems Wall mount phones

filter filter

filter

Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000 Page 7

3-3 Other filters you may encounter in your DSL Equipment Kit.

Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000 Page 8

Step 4: Choose Your Modem and Minimum Requirements Check

4-1 Insert the SBC Express CD into your CD-ROM drive. SBC Express should start

automatically. If not, select Run from the Windows Start menu. Type “D:\Launch.exe”.

(Substitute the appropriate letter of your CD-ROM drive for “D”.)

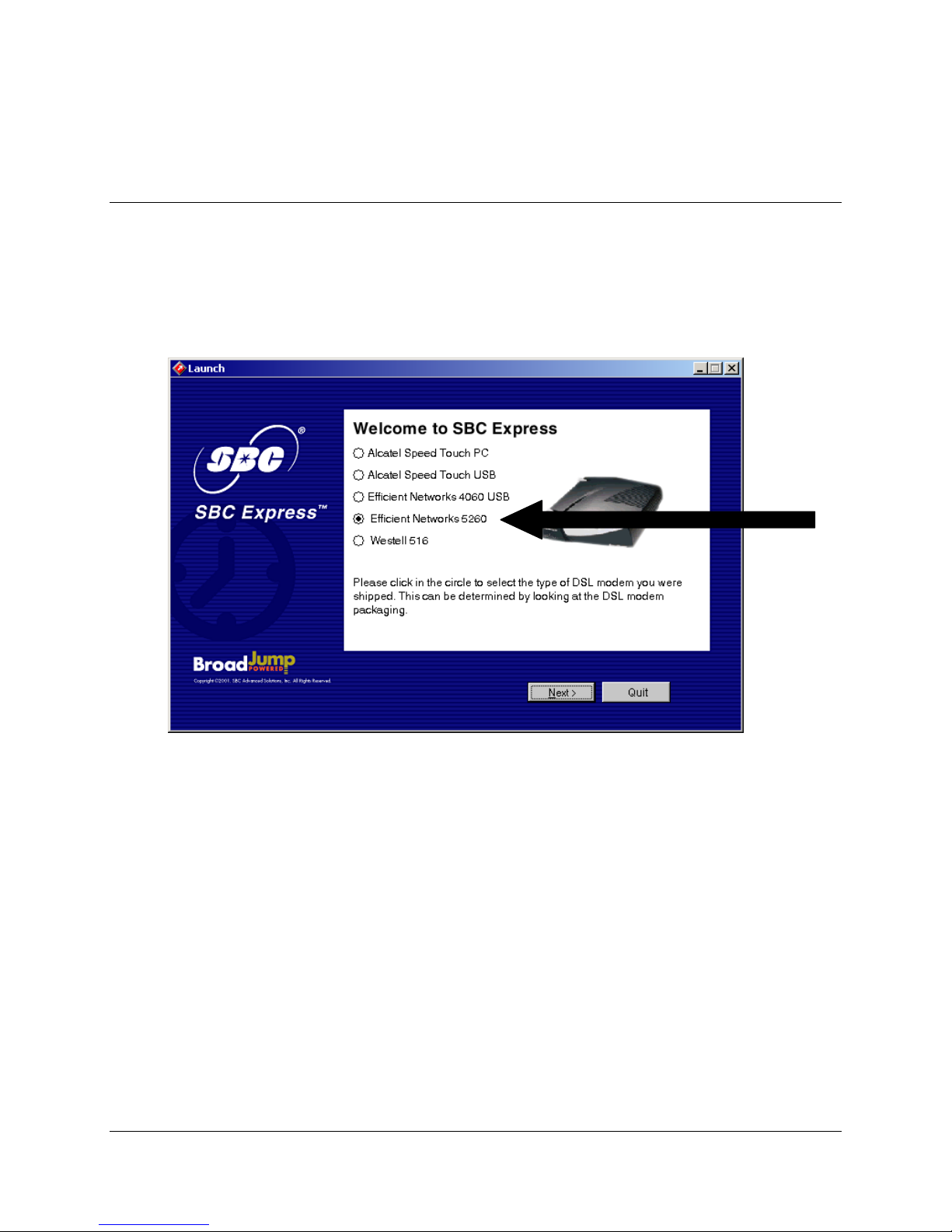

4-2 Select Efficient Networks 5260 and click Next.

Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000 Page 9

4-3 SBC Express displays the Welcome screen. Click Next to proceed.

4-4 SBC Express displays the license agreement. If you agree to the terms, click Accept. If

you do not accept, installation cannot continue.
