Effekta THOR RM Manuel utilisateur

Uninterruptible Power Systems

10~50kVA

Operation Manual

4256-8504 A

The information in this document is subject to change without notice.

Publish statement

Thank you for purchasing this series UPS.

This series UPS is an intelligent, three phase in Three phase out, high frequency online

UPS designed by our R&D team who is with years of designing experiences on UPS.

With excellent electrical performance, perfect intelligent monitoring and network

functions, smart appearance, complying with EMC and safety standards, The UPS

meets the world’s advanced level.

Read this manual carefully before installation

This manual provides technical support to the operator of the equipment.

1

Contents
1. Safety.............................................................................................................................................. 2
1.1 Safety notes............................................................................................................................ 2
1.2 Symbols used in this guide .................................................................................................. 2
2. Main Features................................................................................................................................. 3
2.1 Summarization........................................................................................................................ 3
2.2 Functions and Features ........................................................................................................ 3
3. Installation...................................................................................................................................... 4
3.1 Sub Rack UPS......................................................................................................................... 4
3.2 Tower UPS............................................................................................................................... 5
3.3 Cabinet Outlook ..................................................................................................................... 6
3.3 LCD control panel.................................................................................................................. 9
3.4 Installation notes.................................................................................................................... 9
3.5 External Protective Devices.................................................................................................10
3.6 Power Cables.........................................................................................................................10
3.7 Power cable connect ............................................................................................................12
3.8 Battery connection................................................................................................................15
3.9 UPS parallel Installation.......................................................................................................16
3.10 LBS installation...................................................................................................................17
3.11 Computer access ................................................................................................................19
4. Operation.......................................................................................................................................21
4.1 OperationModes...................................................................................................................21
4.2 Turn on/off UPS.....................................................................................................................25
4.3 The LCD Display....................................................................................................................30
4.4 Display Messages/Troubleshooting....................................................................................39
4.5 Options...................................................................................................................................42
Appendix 1 Specifications.................................................................................................................44
Appendix 2 Problems and Solution..................................................................................................46
Appendix 3 USB communication port definition............................................................................47
Appendix 4 RS232 communication port definition.........................................................................48
Appendix 5 RS485 communication port definition.........................................................................49
Appendix 6 Dry contact port definition............................................................................................50
Appendix 7 Backfeed protection port definition.............................................................................50
Appendix 8 Optional port definition.................................................................................................51
Appendix 9 REPO instruction...........................................................................................................51
Appendix 10 Sub rack UPS dimension............................................................................................52
Appendix 11 Tower UPS dimension.................................................................................................53

Safety

Important safety instructions - Save these instructions

There exists dangerous voltage and high temperature inside the UPS. During the

installation, operation and maintenance, please abide the local safety instructions and relative

laws, otherwise it will result in personnel injury or equipment damage. Safety instructions in this

manual act as a supplementary for the local safety instructions. Our company will not assume

the liability that caused by disobeying safety instructions.

1.1 Safety notes

1. Even no connection with utility power, 220/230/240VAC voltage may still exist at UPS

terminal!

2. For the sake of human being safety, please well earth the UPS before starting it.

3. Don’t open or damage battery, for the liquid spilled from the battery is strongly poisonous

and do harmful to body!

4. Please avoid short circuit between anode and cathode of battery, otherwise, it will cause

spark or fire!

5. Don’t disassemble the UPS cover, or there may be an electric shock!

6．Check if there exists high voltage before touching the battery

7. Working environment and storage way will affect the lifetime and reliability of the UPS. Avoid

the UPS from working under following environment for long time

◆Area where the humidity and temperature is out of the specified range(temperature 0

to 40℃, relative humidity 5%-95%)

◆Direct sunlight or location nearby heat

◆Vibration Area with possibility to get the UPS crashed.

◆Area with erosive gas, flammable gas, excessive dust, etc

8. Keep ventilations in good conditions otherwise the components inside the UPS will be

over-heated which may affect the life of the UPS.

1.2 Symbols used in this guide

WARNING!

Risk of electric shock

CAUTION!

Read this information to avoid equipment damage

2.1 Summarization

Main Features

This series UPS is a kind of three-in-three-out high frequency online UPS.

The UPS can solve most of the power supply problems, such as blackout, over-voltage,

under-voltage, voltage sudden drop, oscillating of decreasing extent, high voltage pulse, voltage

fluctuation, surge, inrush current, harmonic distortion (THD), noise interference, frequency

fluctuation, etc..

This UPS can be applied to different applications from computer device, automatic equipment,

communication system to industry equipment.

2.2 Functions and Features

◆Integrated solution for data center

UPS can be integrated with battery cabinet, PDU external maintenance bypass, offering

excellent choice for data center.

◆3Phase In/3Phase Out UPS

It is 3Phase In/3Phase Out high-density UPS system, of which input current is kept in balance.

No unbalance problem might occur.

◆Digital Control

This series UPS is controlled by Digital Signal Processor (DSP); enhance, it increases

reliability, performance, self-protection, and self-diagnostics and so on.

◆Battery Configurable

From 30 blocks to 50 blocks, the battery voltage of this series UPS can be configured at 30

blocks, 32 blocks, 34 blocks, 36 blocks, 38 blocks, 40 blocks, 42 blocks, 44 blocks, 46 blocks, 48

blocks or 50 blocks according to your convenience.

◆Charging Current is configurable

Via setting tool, the user may set the capacity of the batteries as well as reasonable charging

current as well as maximum charging current. Constant voltage mode, constant current mode or

floating mode can be switched automatically and smoothly.

◆Intelligent Charging Method

The series UPS adopts advanced three-stage charging method—

1st stage: high current constant current charging

to guarantee to charge back to 90%;

2nd-stage: Constant Voltage

In order to vitalize battery and make sure batteries are fully charged

3rd stage: floating mode.

With this 3-stage charging method, it extends the life of the batteries and guarantees fast charging.

◆LCD Display

With LCD plus LED displays, the user may easily get UPS status and its operational

parameters, such as input/output voltage, frequency & load%, battery % and ambient

temperature, etc...

◆Intelligent Monitoring Function

Via optional SNMP Card, you may remotely control and monitor the UPS.

◆EPO Function

The series UPS may be completely shut off when the EPO is pressed. REPO function

(Remote EPO) is also available in this series UPS.

Installation

3.1 Sub Rack UPS

3.1.1

Appearance of UPS

10/15/20/25/30kVA 40/50kVA

3.1.2

Installation

Adjust the length of the rails according to the following figure according to the

distance of the cabinet and fix the rails.

Fix the rails to the cabinet.

10/15/20/25/30kVA 40/50kVA

After installing the rails, install the floating screw according to the front panel

of the UPS, then insert the UPS into the cabinet on the rails and fix the screws.

10/15/20/25/30kVA 40/50kVA

3.2 Tower UPS

3.2.1

Appearance of UPS

10/15/20/25/30kVA 40/50kVA

3.2.2

Installation

Remove the fix handles of the UPS

10/15/20/25/30kVA

40/50kVA

Assemb the bracket, according to the size of the UPS, and then the UPS can be

directly placed on the bracket.

10/15/20/25/30kVA 40/50kVA

3.3 Cabinet Outlook

10/15/20/25/30kVA:

Front View

Rear View

(1) LCD panel

(2) Backfeed protection port

(3) MAINTAIN-AUXSWS port

(4) Output breaker aux contactor

(5) USB port

(6) Cold-start button

(7) Terminal block for Input, output & battery

(8) Dry contact port

(9) Parallel port 1

(10) Parallel port 2

(11) EPO port

(12) Temperature sensor port (for NTC)

(13) RS485 port

(14) RS232 port

(15) Intelligent Slot (SNMP card)

(16) Remote LCD port

40/50kVA:

Front View

Rear View

(1) LCD panel

(2) EPO port

(3) Cold-start button

(4) Output breaker aux contactor

(5) Intelligent Slot (SNMP card/ Relay card)

(6) Parallel port 1&2

(7) LBS port

(8) MAINTAIN-AUXSWS port (Need to set the

LCD disable to enable when use the port) and

REPO port

(9) Optional port (Port for backfeed protection,

or for battery breaker driver to prevent battery

over-drain after UPS shuts down, (need to set

the LCD disable to enable when use the port))

(10) BAT_SW : detect battery switch status

(Need to set the LCD disable to enable when

use the port)

(11) RS232

(12) USB port

(13) RS485 port

(14) Temperature sensor port (for NTC)

(15) Terminal cover

(16) Terminal

Table des matières

Autres manuels Effekta UPS

Effekta

Effekta ME 1000 Manuel utilisateur

Effekta

Effekta OFFICE-RM 600 Manuel utilisateur

Effekta

Effekta ADIRA T Manuel utilisateur

Effekta

Effekta THOR II T50 Manuel utilisateur

Effekta

Effekta MT 3200 Manuel utilisateur

Effekta

Effekta ACX11MKR2K000000 Manuel utilisateur

Effekta

Effekta ADIRA Series Manuel utilisateur

Effekta

Effekta MI-Series Manuel de la liste des pièces

Effekta

Effekta MH RM 6000 Manuel utilisateur

Effekta

Effekta ME 400 Manuel utilisateur

Effekta

Effekta MH6000 Manuel utilisateur

Effekta

Effekta MKD 700 RT XL Manuel utilisateur

Effekta

Effekta ME 1500 Manuel utilisateur

Effekta

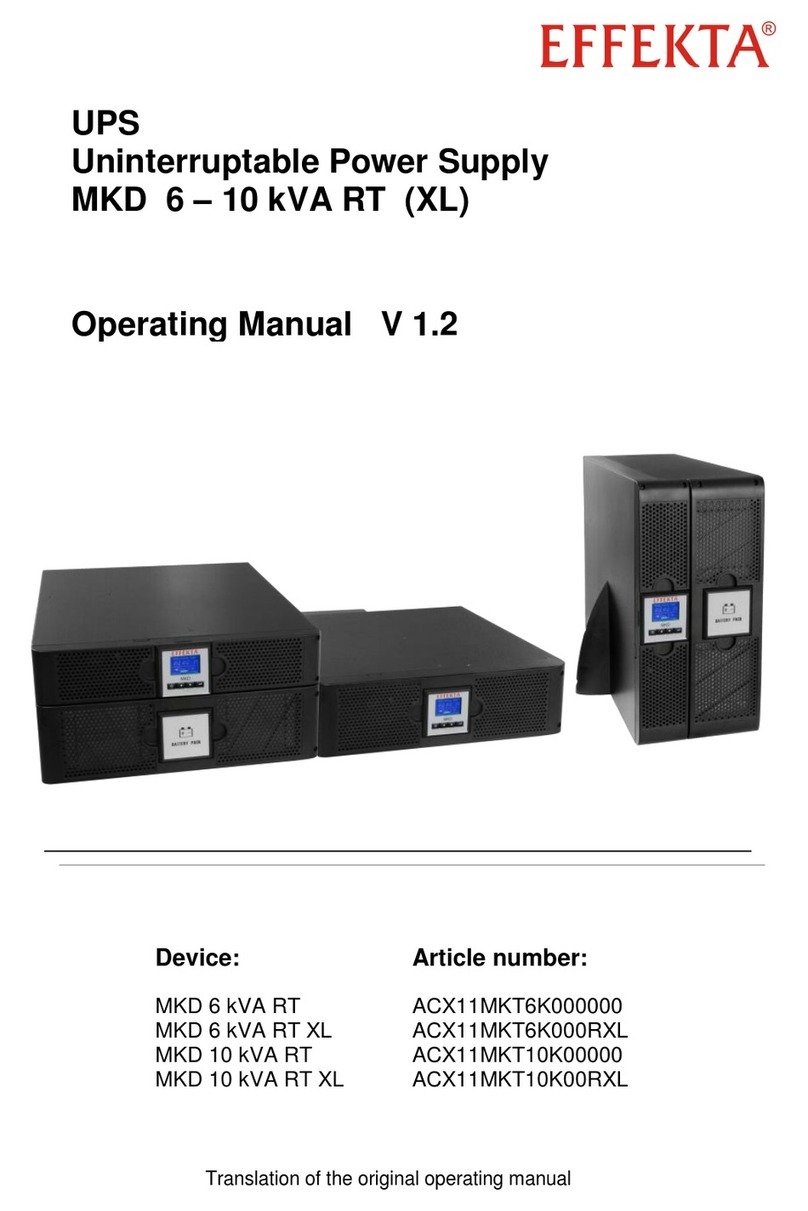

Effekta MKD 6 kVA RT Manuel utilisateur
