Edimax SP-1101W Manuel utilisateur

SP-1101W /SP-2101W

Quick Installation Guide

05-2014 / v1.0

I. Product Information

I-1. Package Contents

I-2. Front Panel

Switch Status Button & LED

Reset Button

Power LED

Network LED

Smart Plug Switch

Quick Installation Guide

CD with Quick

Installation Guide

I-3. LED Status

After setup, the network LED must display on and green in order

for the EdiPlug app to function remotely i.e. from a different

Internet connection to your smart plug.

I-4. Switch Status Button

The switch status button, located on the front of your smart plug (see I-2.),

switches on/off your smart plug’s output power socket. You can switch any

device connected to your smart plug on or off with this button. The button

will light up green to indicate on (see I-3).

LED

Color

Status

Description

Switch

Status

Green

Smart plug output power socket is on.

Off

Smart plug output power socket is

off.

Power

Green

Smart plug is powered on.

Off

Smart plug is off.

Network

Red

Quick Flashing

Smart plug is starting up or restarting.

Slow Flashing (1

x per second)

Smart plug is in installation mode and

ready for setup.

Green

Smart plug is connected to wireless

network and cloud.

Slow Flashing (1

x per second)

Smart plug is connected to wireless

network but not cloud.

Orange

Flashing

Alert: Budget/power quota exceeded.

Off

No network connection.

I-5. Product Label

The product label, which is located on the back of the smart plug switch,

displays the input/output power and the default password of your smart plug.

The password should be changed when you have finished the installation

process for security purposes. The password is required to access the smart

plug switch remotely.

I-6. Reset

If you experience problems with your smart plug,

you can reset the plug back to its factory default

settings. This resets all settings, including the

smart plug’s password, back to default.

1. Press and hold the reset button found on the

front of the plug for at least 10 seconds

2. Release the button when the network LED is

flashing quickly red.

3. Wait for the smart plug to restart. The plug is

ready when the network LED is flashing slowly

red to indicate installation mode.

II. Hardware Installation

Follow the instructions below to ensure your smart plug is properly connected

and ready for setup.

If you have multiple smart plugs to set up, please only plug in and

set up one smart plug at a time.

1. Plug the smart plug into a power socket.

2. Wait a few moments for the smart plug to start up. The smart plug is ready

for setup when the network LED is flashing slowly red to indicate

installation mode.

If your smart plug’s network LED does not indicate installation

mode, try resetting the smart plug (see I-6).

3. When you see the smart plug’s network LED indicate installation mode,

please continue to III. Smart Plug Setup to set up your smart plug using

the free EdiPlug smartphone app.

III. Smart Plug Setup

To set up your smart plug with the free EdiPlug smartphone app, please

download the EdiPlug app and then follow the setup instructions for iOS or

Android. After setup, you can use the EdiPlug app to switch your smart plug

switch on/off remotely from any smartphone with an Internet connection, as

well as set up automated schedule and email notifications.

1. Search the Apple App Store or Google Play for “EdiPlug”.

2. Download and install the app.

3. Follow the appropriate instructions below for iOS or Android.

III-1. iOS

Follow the instructions below to add a new smart plug to the EdiPlug app on

iOS:

You must be within Wi-Fi range of the smart plug. If you have

multiple smart plugs, please only plug in and set up one plug at a

time.

1. Search for a Wi-Fi network named “EdiPlug.Setup” and connect to it, as

shown below:

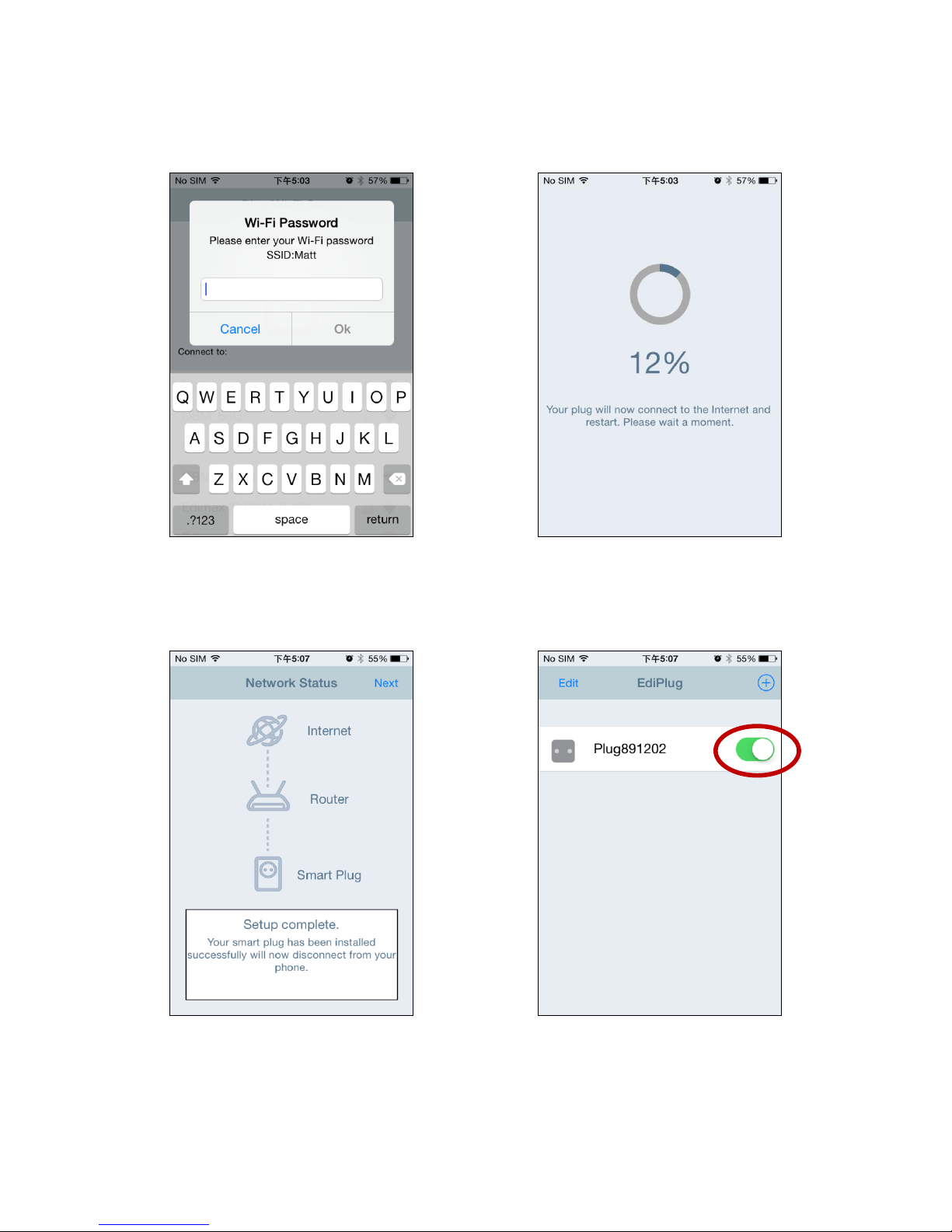

2. Open the EdiPlug app and select your Wi-Fi network from the list, as

shown below:

3. Enter your Wi-Fi password and tap “OK”, then wait a moment for your plug

to restart.

4. The next screen will indicate that setup is complete. Your smart plug will

now be displayed on the EdiPlug main screen. Tap the switch to switch your

smart plug (and any electrical device you plug into it) on or off.

5. The smart plug’s network LED should display on and green to indicate a

successful network and cloud connection. You can use the EdiPlug app to

control your smart plug remotely from any Internet connection.

III-1-1. Change Smart Plug Name & Password

1. Select “Edit” from the EdiPlug main screen and then select the smart plug

which you wish to edit from the list.

2. Enter a new name and password for your smart plug and then tap “Back”

to go back to the main screen. Your smart plug will now be displayed under

its new name.

Features such as scheduling, budget control and email

notifications can also be set up in the “Plug Settings” menu.

III-1-2. Add an Existing Smart Plug to the Main Screen

1. From the EdiPlug main screen, click the “+” icon in the top-right corner and

select a plug from the list.

2. Enter your smart plug’s password and tap “OK”. Click the check icon by

your smart plug’s name on the next screen to finish.

The default password is 1234.
