Edimax ES-3305P V2 Manuel du propriétaire
5-Port Fast Ethernet Desktop Switch
ES-3305P V2
Description
The ES-3305P V2 is a 10/100 Mbps unmanaged Ethernet desktop switch designed to enhance network
performance. It’s compact, sleek design offers outstanding performance and high efficiency, using store and
forward packet-switching technology to provide reliable data transfers, ideal for network connectivity in the
SOHO environment.
To extend home networks or meet online gaming, multimedia transfer or streaming requirements the ES-3305P
V2 is a cost-effective Fast Ethernet solution. The plug-and-play design ensures users can easily connect network
devices such as PCs, network-attached storage or print servers to a home network with no manual configuration
necessary.
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com

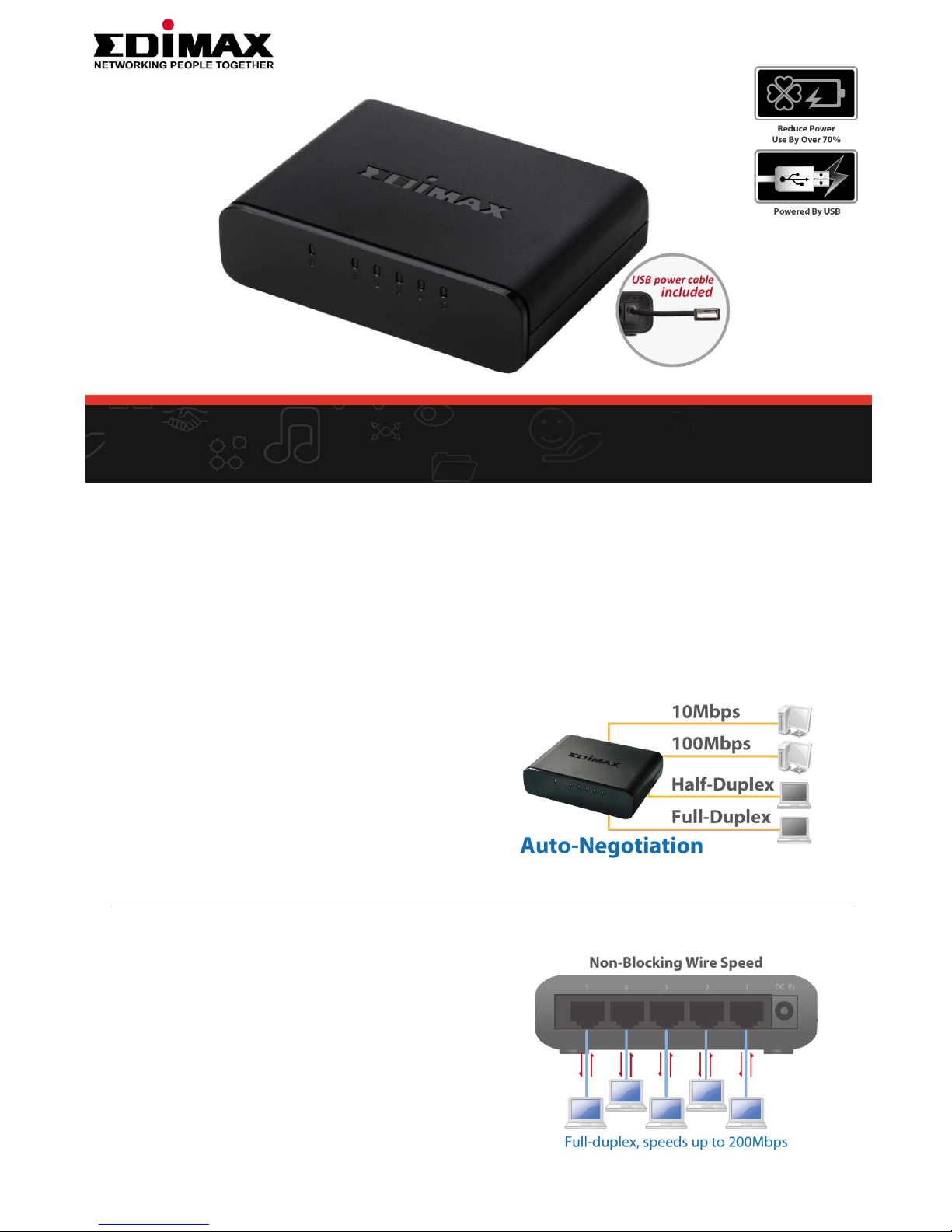

Supports Auto-Negotiation
Each of the ES-3305P V2’s ports automatically detect
whether connected network devices are running at
10Mbps or 100Mbps and half-duplex or full-duplex
mode, and adjusts the speed and mode accordingly
ensuring easy and hassle-free operation.
Supports Non-Blocking Wire Speed
The ES-3305P V2 forwards and receives traffic
seamlessly with its non-blocking wire-speed. Every port
of the ES-3305P V2 supports speeds up to 200Mbps in
full-duplex mode simultaneously, providing full wire
speed to connected devices and allowing you to run a
high speed network smoothly.
ES-3305P V2
www.edimax.com
5-Port Fast Ethernet Desktop Switch
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com

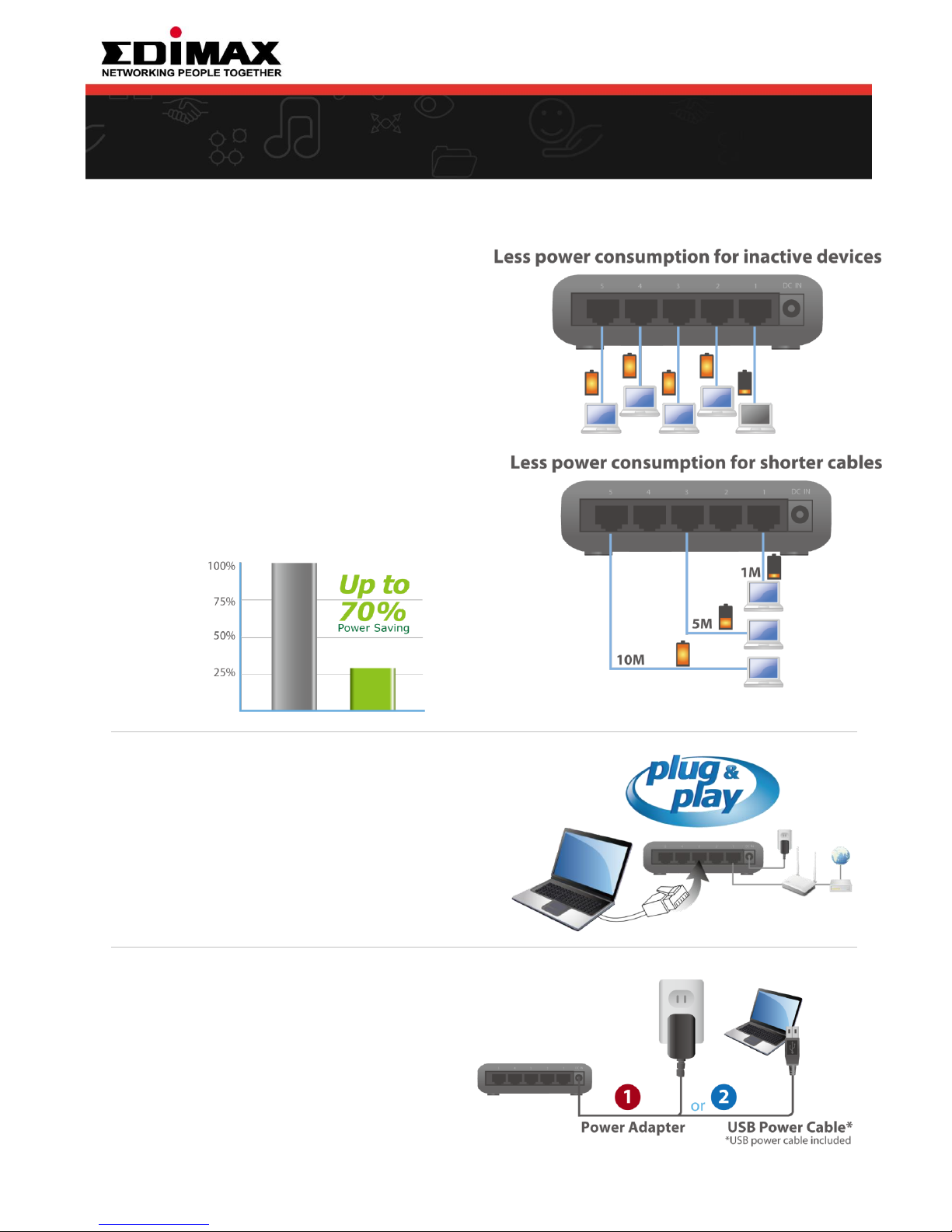

IEEE Energy Efficient Ethernet (EEE) Compliance
Along with the Fast Ethernet speeds critical for next-
generation network applications, the ES-3305P V2 offers
environmental efficiency . To comply with the
IEEE802.3az standard, the ES-3305P V2 provides power
saving functionality to reduce energy consumption and
save costs:
•Inactive Link Detection
When a network device is shut down and/or an inactive
link is detected, the power usage adjustment feature
automatically reduces power usage. The switch’s power
consumption will be dynamically adjusted according to
the link status and the number of active network devices.
•Cable Length Detection
Devices equipped with this feature automatically detect
the length of connected Ethernet cables and adjust
power usage accordingly. The shorter the cable length,
the less power it consumes.
Optional Power Supply
The ES-3305P V2 can be powered either through a
PC’ s or any other devices’ USB port to eliminate
the need for an additional power outlet, or
through the AC power supply. (*USB power cable
included.)
Easy to Use
The ES-3305P V2 is plug-and-play and supports a wide
range of network protocols. Installation and network
management is quick and straightforward, and clear and
convenient LED indicators display easy to read port and
switch status.
ES-3305P V2
www.edimax.com
5-Port Fast Ethernet Desktop Switch
Standards Features Filtering / Forwarding Rates
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient
Ethernet
RJ-45 Port: 5
MAC Address: 1K
Buffer Memory: 56K
Transmission Method: Store and
Forward
100Mbps Port –148,800pps
10Mbps Port –14,880pps
Transmission Media LED Indicators Power Requirement
10BASE-T Cat. 3, 4, 5 UTP/STP
100BASE-TX Cat. 5 UTP/STP
Per Port: Link/Act
Per Unit: Power
DC 5V 0.6A
Temperature Humidity Power Consumption
Operating: 0 to 40℃
Storage: -20 to 70℃
Operating: 10 to 90% RH (Non-
condensing)
Storage: 5 to 90% RH (Non-
condensing)
1.07 Watts (Max)
Dimensions Weight Certifications
98×71 ×25.5 mm (L x W x H) 92 g CE
FCC Class B

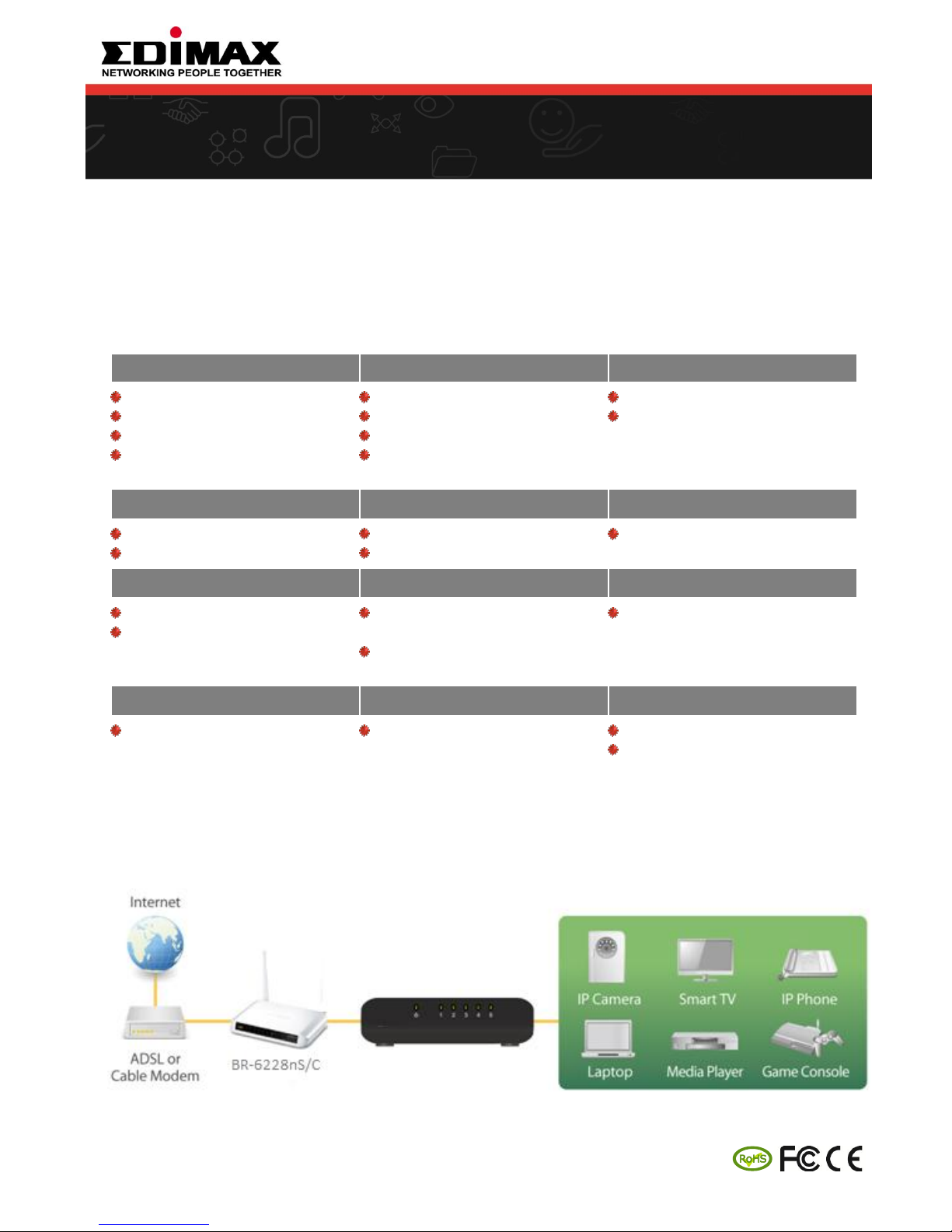

APPLICATION DIAGRAM
• Connect the ES-3305P V2 to your router or cable/xDSL modem
• Connect a print server, NAS, smart TV, laptop, media player, game console and/or IP Camera to the ES-3305P V2.
Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice.
Copyright © 2013 Edimax Technology Co. Ltd. All rights reserved. www.edimax.com
ES-3305P V2
FEATURES
•Complies with IEEE802.3, IEEE802.3u standards
•Supports auto MDI/MDI-X crossover detecting and auto correction
•Wire-speed packet filtering and forwarding rate
•Store-and-forward architecture filters fragment & CRC error packets
•Supports IEEE802.3az energy efficient Ethernet function
TECHNICAL SPECIFICATIONS
