Edimax EW-7612PIn Manuel utilisateur

Multi-Language QIG in Driver CD

================================================

Český: Českého průvodce rychlou instalací naleznete na

přiloženém CD s ovladači

Deutsch: Finden Sie bitte das deutsche QIG beiliegend in der

Treiber CD

Español: Incluido en el CD el QIG en Español

Français: Veuillez trouver l’français QIG ci-joint dans le CD

Italiano: Incluso nel CD il QIG in Italiano

Magyar: A magyar telepítési útmutató megtalálható a mellékelt

CD-n

Nederlands: De nederlandse QIG treft u aan op de bijgesloten

Polski: Skrócona instrukcja instalacji w języku polskim znajduje

sięna załączonej płycie CD

Português: Incluído no CD o QIG em Portugues

Русский: Найдите QIG на pусскoмязыке на приложеном CD

Romana: Cd-ul cuprinde Ghid de instalare rapida in limba

romana

Slovensky: Anglického sprievodcu rýchlou inštaláciou nájdete

na priloženom CD s ovládačmi.

Türkçe: Ürün ile beraber gelen CD içinde Türkçe Hızlı Kurulum

Kılavuzu'nu bulabilirsiniz

简体中文

简体中文简体中文

简体中文: 产品包装 CD 光盘中含有简体中文版快速安装手冊

繁體中文

繁體中文繁體中文

繁體中文: 產品包裝隨附 CD 中含有繁體中文版之快速安裝指南

this publication may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical,

chemical, manual or otherwise, without the prior written permission of this

company.

This company makes no representations or warranties, either expressed

or implied, with respect to the contents hereof and specifically disclaims

any warranties, merchantability or fitness for any particular purpose. Any

software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not this

company, its distributor, or its dealer) assumes the entire cost of all

necessary servicing, repair, and any incidental or consequential damages

resulting from any defect in the software. Further, this company reserves

the right to revise this publication and to make changes from time to time

in the contents hereof without obligation to notify any person of such

revision or changes.

The product you have purchased and the setup screen may appear

slightly different from those shown in this QIG. For more detailed

information about this product, please refer to the User's Manual on the

CD-ROM. The software and specifications are subject to change without

notice. Please visit our web site www.edimax.com for the update. All right

reserved including all brand and product names mentioned in this manual

are trademarks and/or registered trademarks of their respective holders.

Product Information

Main Features



Complies with 802.11n, 802.11g and 802.11b standards.



Supports PCI Express base specification Rev. 1.0a



Supports WMM, WMM-PS (IEEE 802.11e QoS standard).



Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x),WPA2 (AES

with IEEE 802.1x) for high security level.



Supports operating system: Windows OS XP/Vista/7, and Linux

1. Package Contents

Before you starting to use this wireless network card, please check if

there's anything missing in the package, and contact your dealer of

purchase to claim for missing items:

EW-7612PIn

□Wireless PCI-e Adapter x1

□3dBi Antenna x 2

□Quick Installation Guide x1

□CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

2. Network Card Installation

Please follow the following instructions to install your new wireless

network card:

2.1 Hardware Installation

1. SWITCH THE COMPUTER OFF, remove the cover and insert the

wireless network card into an empty PCI Express slot of your

computer.

2. Fasten the antennas to the antenna connectors on the network card by

clockwise direction.

3. You can bend the antenna to fit actual needs.

4. Switch the computer on, the following message will appear on your

computer, please click ‘cancel’.

2.2 Software Installation

This wizard can be run in Windows XP/Vista/7.

You can install the Wireless Adapter by EZMAX Setup Wizard in the

CD-ROM including in the package. The wizard is an easy and quick

configuration tool for internet connection with series process. When you

start EZMAX Setup Wizard, you will get the following welcome screen.

Please choose the language to start the configuration. The wizard will

guide you to finish your network connection. We will not provide any

instruction for the EZMAX Setup Wizard here.

If you lose the CD ROM or you prefer the traditional setup procedure,

please follow the instruction as following step in this quick

installation guide.

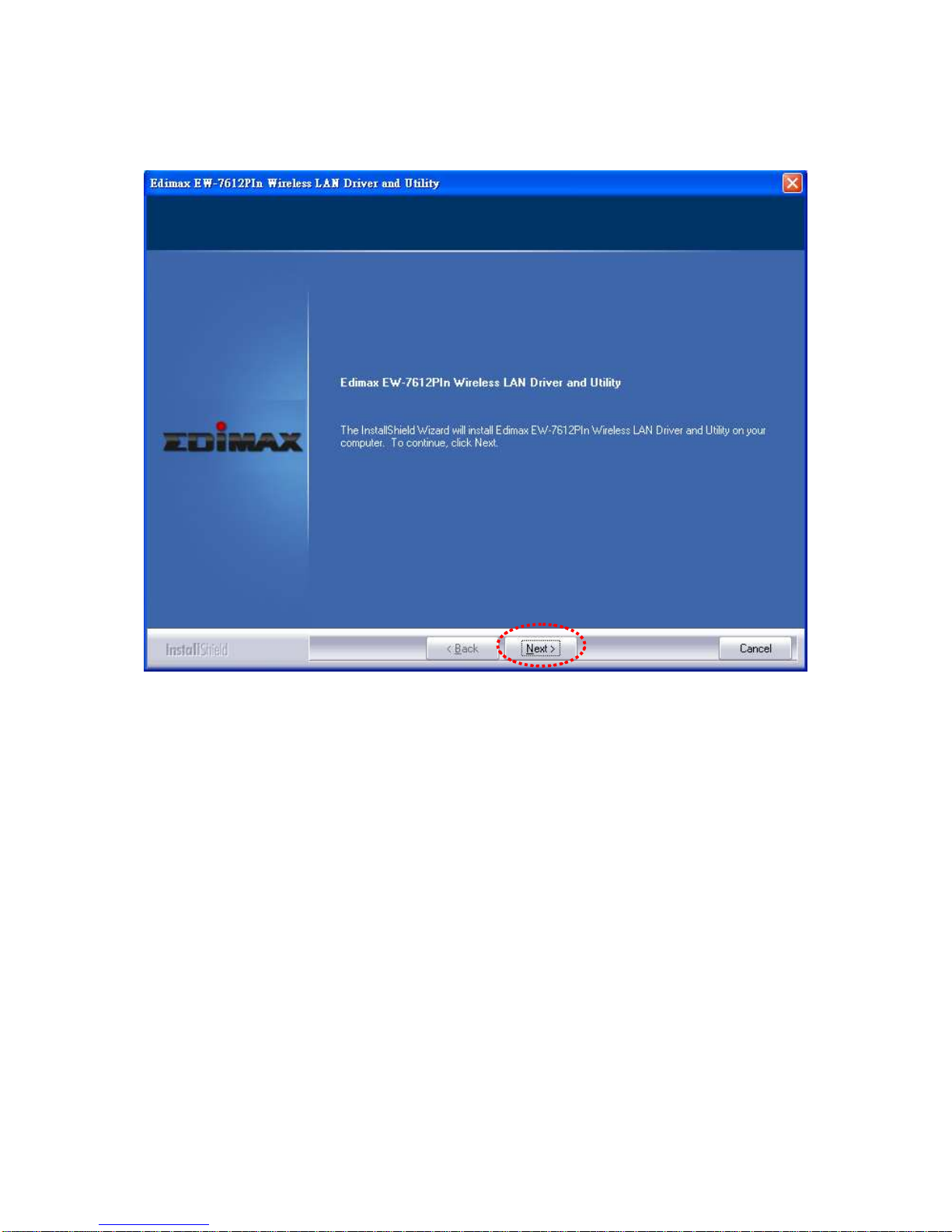

2.2.1 Please execute ‘ Utility \ Setup.exe ’ program to install your wireless

adapter.

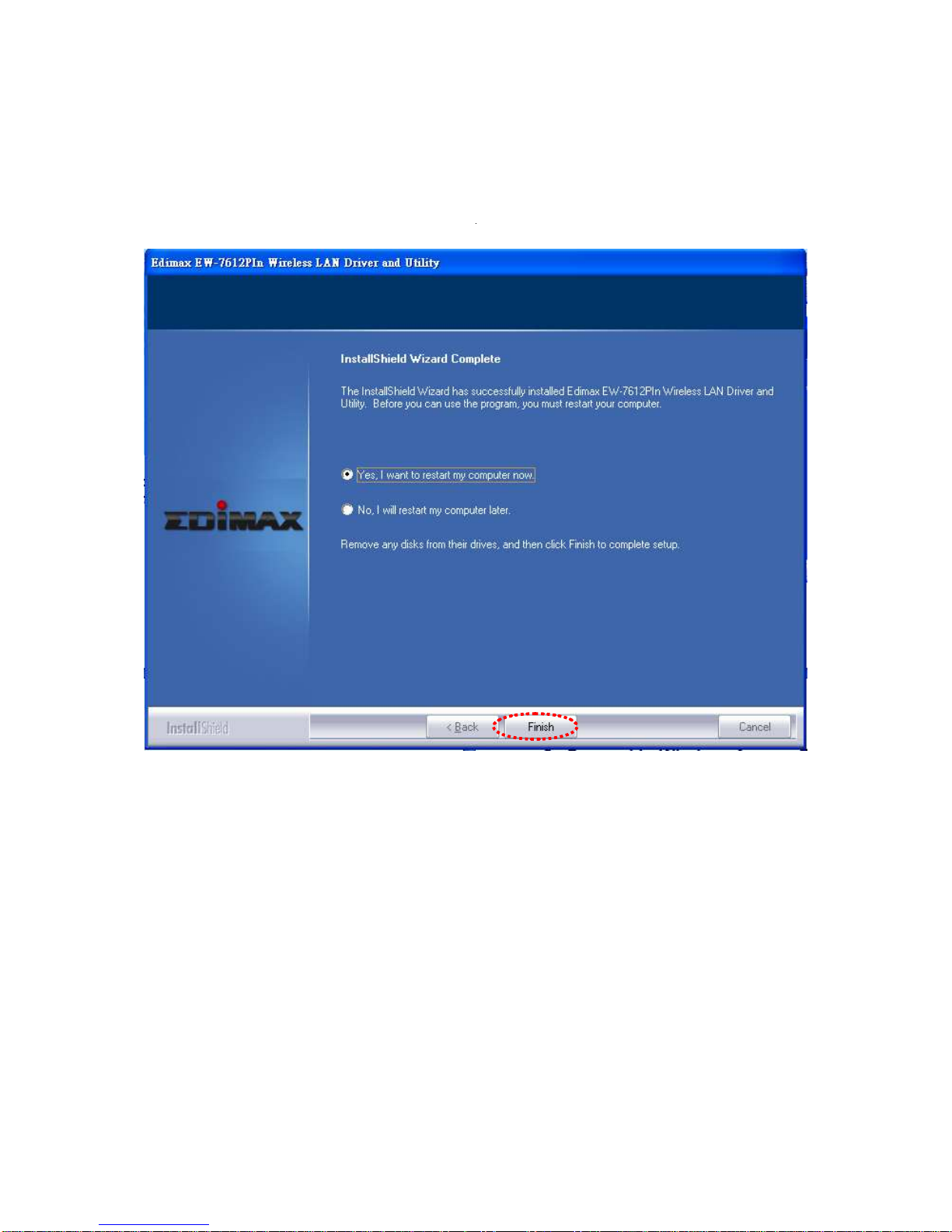

2.2.2 When you see this message, please click ‘Finish’ to complete the

driver installation process.

3. Connect to Wireless Access Point

Using Configuration Utility to Connect to Wireless Access Point

3.1 After installation is complete, wireless configuration utility will be

shown as an icon at the lower-right corner of your windows desktop.

Please click the icon by right mouse key, and select ‘Open Config

Utility’

Configuration utility will scan for wireless access points

automatically, and all found access points will be displayed. Please

select an access point you wish to connect, and click ‘Connect’.

If the wireless access point you want to connect does not show here,

please click ‘Rescan’

3.2 If the wireless access point uses encryption, you have to input WEP

passphrase or WPA preshared key. Please ask the owner of the

wireless access point you want to connect, and input the correct

passphrase / preshared key here, then click ‘OK’. If the value you

inputted here is wrong, you will not be able to connect to wireless

access point.

Authentication type is selected automatically, please don’t change

it.
