Edimax EU-4206 Manuel utilisateur

USB2.0 to Ethernet adapter

Version 1.0 July, 2006

-L

Če

ký

ý: Anglického průvodce rychlou instalací

naleznete na přiloženém CD s ovladači

: Finden Sie bitte das englische QIG

beiliegend in der Treiber CD (German)

añ

ño

l: Incluido en el CD el QIG en Ingles.

nç

ça

:Veuillez trouver l’anglais QIG ci-joint dans

le CD driver

: Incluso nel CD il QIG in Inglese.

Az angol telepítési útmutató megtalálható a

mellékelt CD-n

s: De engelstalige QIG treft u aan op de

bijgesloten CD

i: Skrócona instrukcja instalacji w języku

angielskim znajduje sięna załączonej płycie CD

uê

ês

s: Incluído no CD o QIG em inglês.

Ру

ус

сс

ск

ки

ий

й:

Найдите QIG на анлийском языке на

приложеном CD

Tü

ür

kç

çe

:Ürün ile beraber gelen CD içinde Türkçe Hızlı

Kurulum Kılavuzu'nu bulabilirsiniz

English

Introduction

Thank you for purchasing the USB2.0 10/100Mbps to Fast Ethernet

Adapter. This unique cable adapter allows you to connect your computer

into Internet in the fast and easy way.

Specifications

Standards

zIEEE 802.3 10Base-T and 802.3u 100Base-TX Compliant

zUSB specification 1.0 /1.1 and 2.0 compliant

Connection Mode

zFull or Half duplex for both 10Mbps and 100Mbps

Media Supported

zCategory-3, 4, 5 for 10Base-T and Category 5 for 100Base-TX

LEDs

zLink/Active LED indicator

Feature

zUSB specification revision 1.0/1.1 and 2.0 full speed compliant

zComplies with IEEE 802.3 10Based-T and 802.3u 100Base-TX

zUSB interface to desktop/notebook PC without power adapter

zRJ-45 connector to 10Mbps or 100Mbps Ethernet networks

10/100Mbps Auto-Sense

zFull/Half Duplex auto-negotiation for both 10Base-T and 100Base-TX

zCompatible with Windows 98SE / ME / 2000 / XP

Device Installation Guide

Follow the steps below on installing the USB2.0 10/100 Fast Ethernet

adapter cable:

Step1.

Please connect the male B-connector of 1.5M USB2.0 cable to the female

USB B-connector of USB2.0 Fast Ethernet Adapter and RJ-45 connector

of networking cable to another end of USB2.0 Fast Ethernet Adapter.

Step2.

Connect the male A-connector of 1.5M USB2.0 cable to an available

USB2.0 port on the computer or an available USB2.0 port on the USB2.0

HUB plugged into the computer.

Step1. Power on the computer. “New Hard Ware Found” window comes

up to request you to insert the driver diskette, and click “OK”.

Step2. Select “Search the proper files of driver”, and click “Next”.

Step3. Insert the driver disc into the computer. Select “CD-ROM Devices”

or “specify a Location” link D:\Driver\EU-4206, and click “Next”.

Step4. The driver will be found, and click “Next” to proceed.

Step5. The system will ask windows 98SE original disk.

Step6. Please insert the disk, and the system will install driver

automatically.

Step7. Click “Finished” completing installation.

Step8. Windows 98SE / Me will find the driver and automatically

configure the USB Fast Ethernet Adapter.

Step9. Reboot the computer and remove the driver disc. The driver will

take effect.

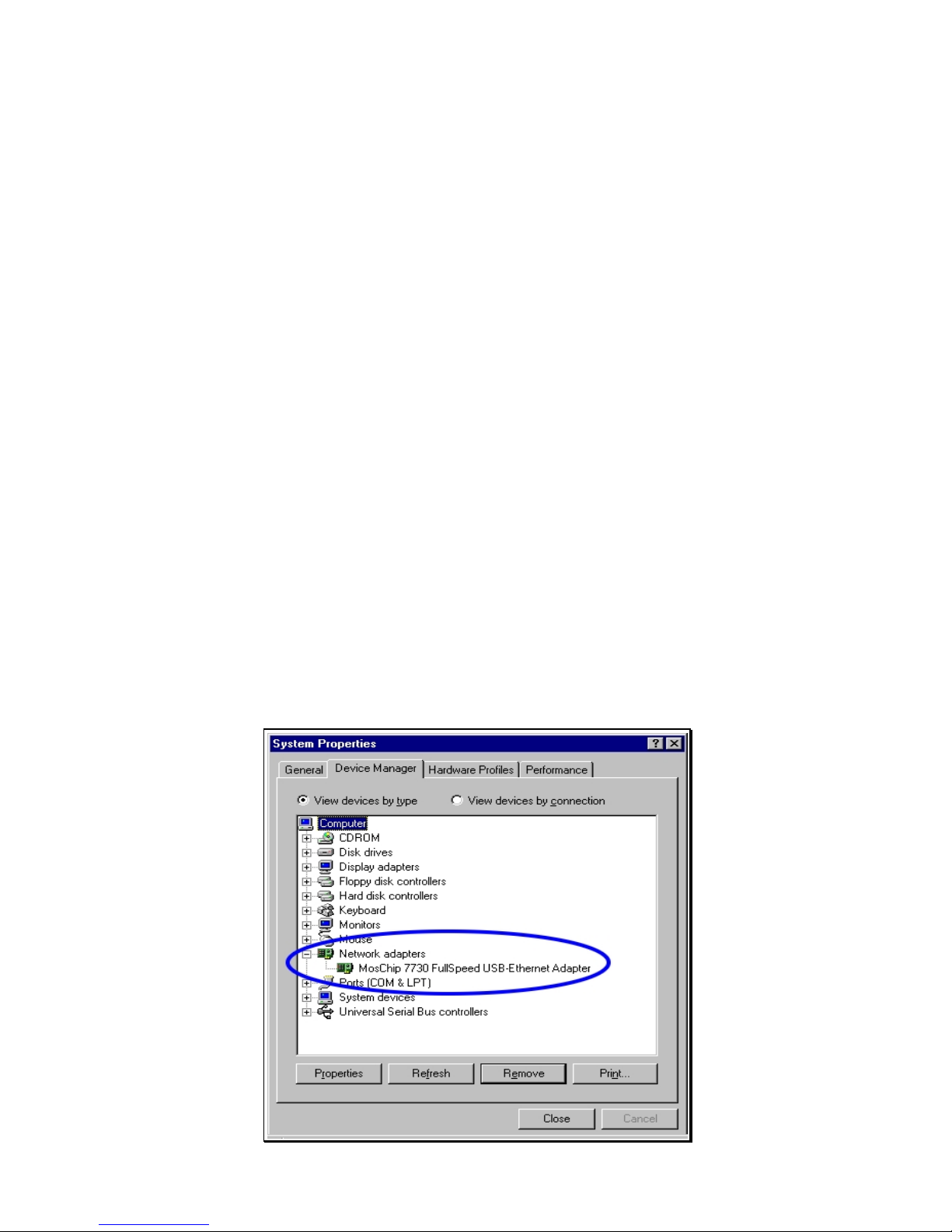

Step10. Check if the device is complete install in your computer“My

Computer →(right key on the mouse) content →Hardware →

Device Manager.

Step1. Power on the computer. When the “New Hardware Found Wizard”

window comes up, click “Next” to install the driver.

Step2. Select “Search the proper files of driver”, and click “Next”.

Step3. Insert the driver disc into the computer. Select “CD-ROM Devices”

or “specify a Location” link D:\Driver/EU-4206, and click “Next”.

Step4. The driver will be found, and click “Next” to proceed.

Step5. Click “Finished” to complete installation.

Step6. Windows 2000 will automatically configure the USB Fast Ethernet

Adapter.

Step7. Reboot the computer and remove the driver disc. The driver will

take effect.

Step8. Check if the device is complete install in your computer “My

Computer →(right key on the mouse) content →Hardware →

Device Manager.

Step1. Power on the computer. When the “New Hardware Found Wizard”

windows comes up, select “install from a list or a specific location

(Advanced)”, and click “Next”.

Step2. Insert the driver disc into the computer. Select “CD-ROM Devices”

or “specify a Location” link D:\Driver/EU-4206, and click “Next”.

Step3. Windows XP will find the driver and request to continue installing

and copying needed files”.

Step4. Click “Finished” to complete the installation.

Step5. A dialogue box will appear above the taskbar showing “New

network device installed”.

Step6. Reboot the computer and remove the driver disc. The driver will

take effect.

Step7. Check if the device is complete install in your computer“Star →

My Computer →(right key on the mouse) content →Hardware →

Device Manager
