Edimax EW-7608Pg Manuel utilisateur

Version 1.0 January, 2006

-L

Če

ký

ý:Anglického průvodce rychlou instalací naleznete

na přiloženém CD s ovladači

:Finden Sie bitte das englische QIG beiliegend

in der Treiber CD (German)

añ

ño

l:Incluido en el CD el QIG en Ingles.

nç

ça

:Veuillez trouver l’anglais QIG ci-joint dans le

CD driver

:Incluso nel CD il QIG in Inglese.

Az angol telepítési útmutató megtalálható a

mellékelt CD-n

s: De engelstalige QIG treft u aan op de

bijgesloten CD

i: Skrócona instrukcja instalacji w języku angielskim

znajduje się na załączonej płycie CD

uê

ês

s:Incluído no CD o QIG em inglês.

Ру

ус

сс

ск

ки

ий

й:

Найдите QIG на анлийском языке на

приложеном CD

Tü

ür

kç

çe

:Ü rün ile beraber gelen CD içinde Türkçe Hızlı

Kurulum Kılavuzu'nu bulabilirsiniz

*Driver for Windows 98SE/Me/2000/XP:

I. Install the Hardware

Note. This step is for EW-7628Ig PCI card only, if you are going

to setting EW-7608Pg Cardbus, please jump to chapter II.

directly and do not install the adaptor into your computer

before installing the software program from the CD.

Installation Procedure

1. Turn off your computer and remove its cover.

2. Insert the PCI card to an available PCI slot firmly.

3. Secure this card to the rear of the computer chassis and put

back the cover.

4. Secure the antenna to the antenna connector of the card.

5. Turn on the computer.

Guidelines for the Hardware Installation

Please observe the following guidelines when you are installing

the PCI card to the Desktop PC:

Avoid placing the PC close to obstacles

Obstructions such as concrete walls and thick metals limit radio

signal penetration and reduce the throughput and the coverage

range of the PCI card and Place the PC as high as possible

The higher the PC is placed, the better the performance.

Adjust the antenna position

The card has two antennas for signal reception and one antenna

for high power signal transmission. The antennas on the right

and left side are for signal reception and should be set

perpendicular (90 degrees) to each other. The central one is for

signal transmission and should be pulled up about 45 degree.

Please refer to the illustration below:

“Found New Hardware Wizard”is displayed after the PCI card is

installed and the computer is restarted. Click “Cancel”.

The following installation operates under Windows XP.

Procedures are similar for Windows 98SE/Me/2000.

II. Install the Driver and Utility

Insert the Installation CD to your CD-ROM drive, the setup

programs will appear. Click the model name

Then execute the “Product Utility”

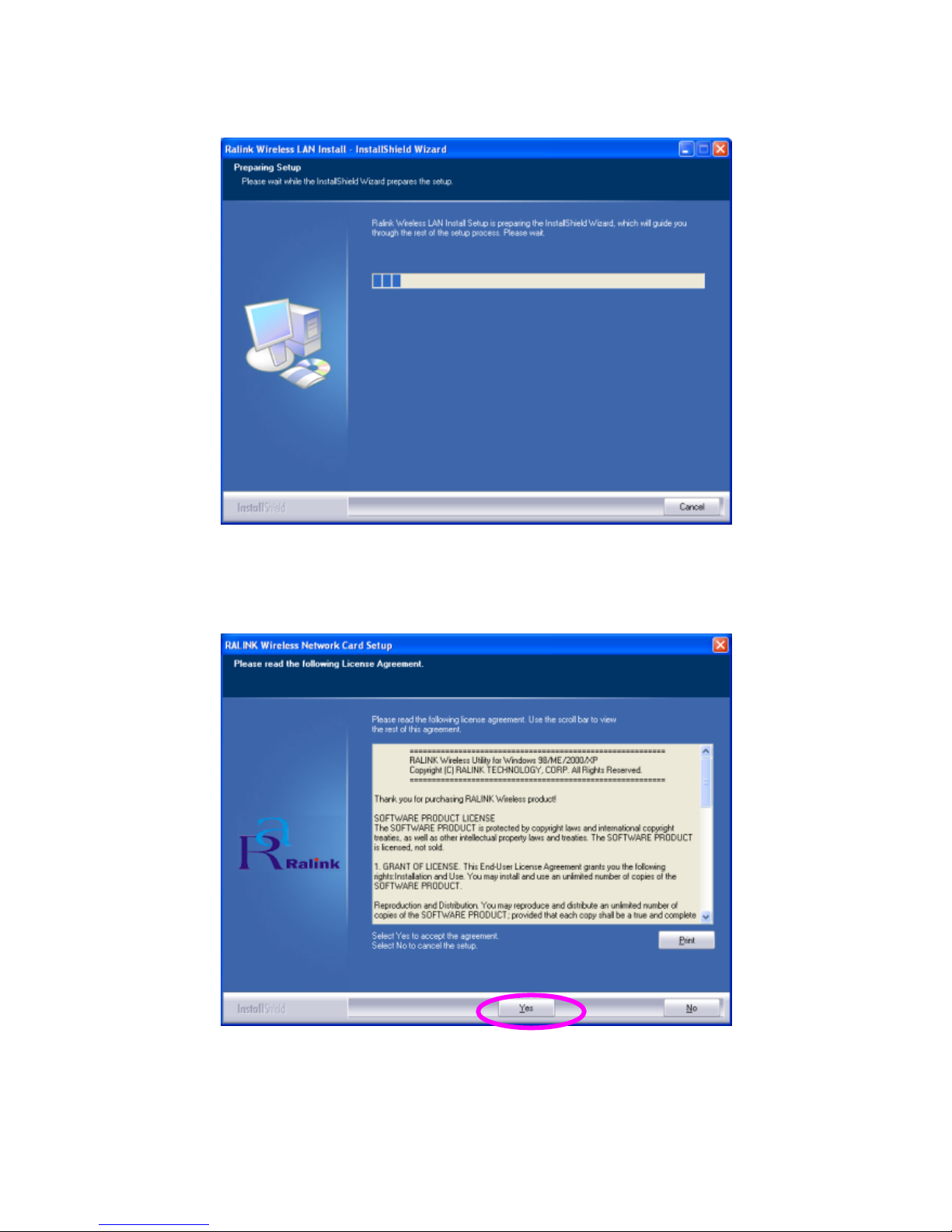

The setup programs will be start

Click “Yes”to process the installation if you accept the license

agreement.

In Windows XP, there is a “Windows Zero Configuration Tool”for

you to setup the wireless adaptor. You can choose to configure

the adaptor through the Windows Zero Configuration Tool or the

Ralink Configuration Tool for the adaptor. It is recommended to

choose the Ralink Configuration Tool for the adaptor.

Click “Next”to continue.

If you need the adaptor to operate with better performance,

please choose the “Optimize for performance”to enable the Tx

Burst mode. Or you can choose “Optimize for Wi-Fi mode”to let

the adaptor run in standard wireless network.

The system starts to install the software of the adaptor. Please

follow the instructions of the program to plug in the adaptor into

your computer. And the system will automatically detect the

adaptor.

Please click “Finish”to complete the installation.

III. Use the Ralink Configuration Utility

When the adaptor is installed, the Ralink configuration utility will

be displayed automatically. This adaptor will auto connect to

wireless device which has better signal strength and no wireless

security setting.

There will be an icon displayed in the system tray. You can

double click the icon in the system tray to open the Ralink

configuration utility.

In Windows XP, there is a “Windows Zero Configuration Tool”for

you to setup wireless clients. If you want to switch to use Ralink

configuration utility, please follow one of the ways as below.

First Way

Right click the icon in the system tray and select “Use RaConfig

as Configuration utility”.

Second Way

Right-click the icon and select “View Available Wireless

Networks”.

Click “Advanced”.
