Edge-Core ECS4110-28T Manuel utilisateur

– 1 –

Quick Start Guide

L2 Gigabit Ethernet Switch

ECS4110-28T

The ECS4110-28T is a high-performance enterprise Layer 2 switch that provides 24

10/100/1000BASE-T RJ-45 ports and four Small Form Factor Pluggable (SFP) Gigabit

slots that support 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, 100BASE-FX

and1000BASE-T transceivers.

OTE

For detailed switch installation information, refer to the Installation Guide,

which is on the Documentation CD included with the switch.

OTE

For Safety and Regulatory information, refer to the Safety and Regulatory

Information document included with the switch.

The switch is designed to be installed in a standard 19-inch equipment rack.

However, you can also install the switch on any flat surface, such as a desktop.

Follow the steps in this guide to install the switch in your network.

1. Unpack the Switch Unpack the switch and check the package contents.

◆ECS4110-28T L2 Gigabit Ethernet Switch

◆Bracket Mounting Kit containing two brackets and eight screws for attaching

the brackets to the switch

◆Four adhesive foot pads

◆Power cord—either US, Continental Europe or UK

◆Console cable (RJ-45 to DB-9)

◆Quick Start Guide (this document)

◆Regulatory and Safety Information

◆Documentation CD — includes Installation Guide and Management Guide

E032013-KS-R02

150200000586A

www.edge-core.com

Quick Start Guide

– 2 –

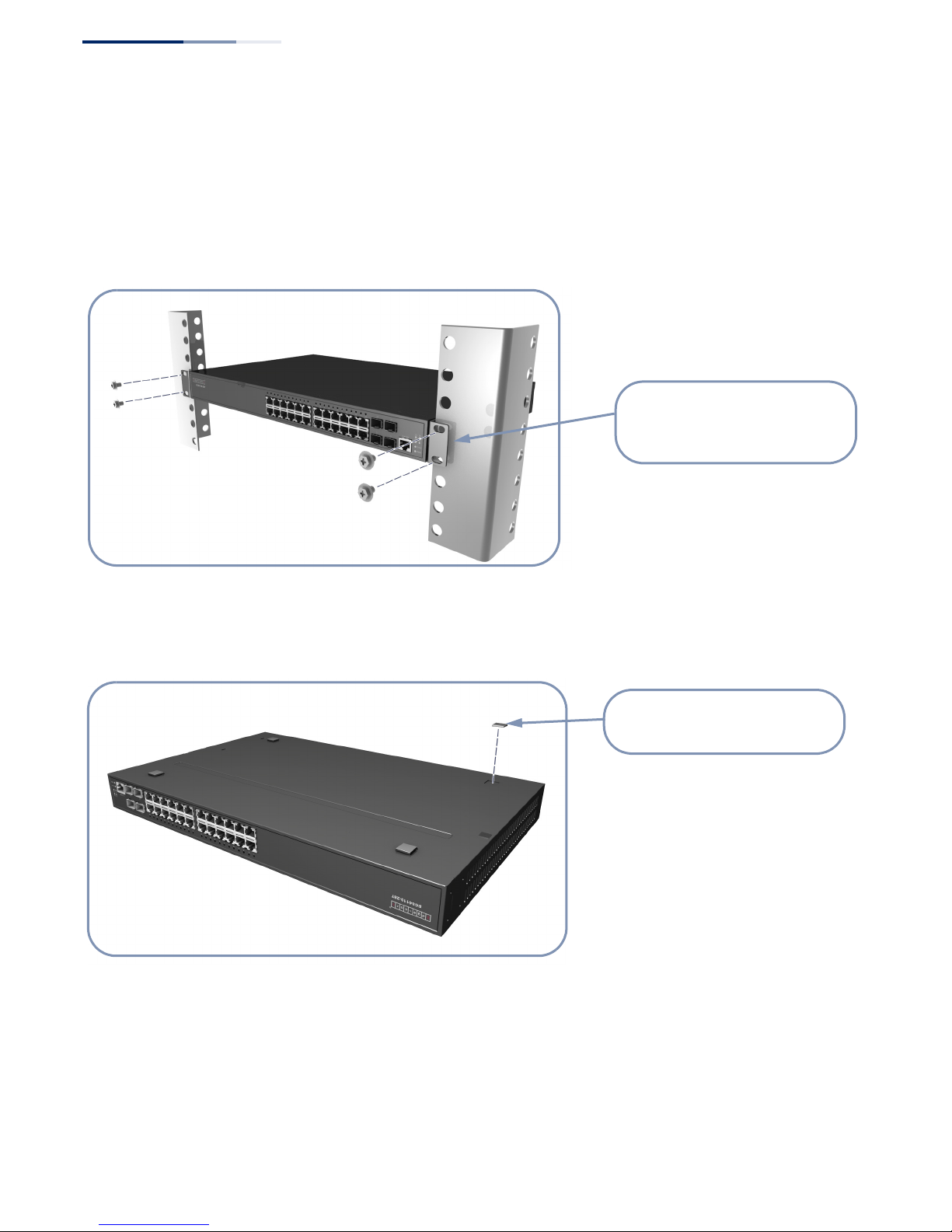

2. Install the Switch The switch can be mounted in a standard 19-inch rack or on a desktop or shelf.

Rack Mounting

—Following your rack plan, mark the holes in the rack where the

switch will be installed. One person should lift the switch into the rack so that it is

aligned with the marked holes. A second person should secure the switch in the

rack, using four rack-mounting screws (not provided).

Desktop or Shelf Mounting

—Attach the four adhesive feet to the bottom of the

switch, then set the device on a desktop, shelf, or other flat surface.

Attach the brackets to the switch,

then use the rack mounting screws

supplied with the rack to secure the

switch in the rack.

Attach the four adhesive rubber foot

pads to the recessed areas on the

bottom of the switch.

Quick Start Guide

– 3 –

3. Connect Power To supply AC power to the ECS4110-28T switch, first verify that the external AC

power supply can provide 100 to 240 VAC, 50-60 Hz and 0.90 A.

To connect AC power, plug the power cord into a grounded, 3-pin, AC power source

and then into the AC socket on the rear of the switch.

Caution:

Use the AC power cord supplied with the switch. For international users

that may need to change the AC power cord, you must use a cord set that has been

approved for the socket type in your country.

4. Verify Switch

Operation

Verify basic switch operation by checking the system LEDs.

When operating normally, the PWR and DIAG LEDs should be on green.

Plug the AC power cord into the

socket on the rear of the switch.

System Status LEDs

Quick Start Guide

– 4 –

5. Make Initial

Configuration

Changes

At this point you may need to make a few basic switch configuration changes

before connecting to the network. It is suggested to connect to the switch console

port to perform this task.

The serial port’s configuration requirements are as follows: 115200 bps, 8

characters, no parity, one stop bit, 8 data bits, and no flow control.

You can log in to the command-line interface (CLI) using default settings: User

name “admin” with password “admin.”

For information on initial switch configuration, refer to the Management Guide,

which is on the Documentation CD included with the switch.

6. Connect Network

Cables

Connect network cables to port interfaces:

◆For the RJ-45 ports, use 100-ohm Category 5, 5e or better cable for 1000BASE-T

connections, or Category 5 or better for 100BASE-TX connections.

Console Port

Connect Category 5 or better cables

with RJ-45 plugs to the RJ-45 ports.

Quick Start Guide

– 5 –

◆For the SFP slots, first install SFP transceivers and then connect cabling to the

transceiver ports.

The SFP slots support the following transceiver types: 1000BASE-SX, 1000BASE-LX,

1000BASE-LH, 100BASE-FX, and 1000BASE-T.

As connections are made, check the port status LEDs to be sure the links are valid.

OTE

For further switch configuration information, refer to the Management

Guide,which is on the Documentation CD included with the switch.

For fiber transceivers connect 62.5/

125 or 50/125 multimode or 9/125

single-mode fiber with LC connectors.

Quick Start Guide

– 6 –

Hardware Specifications

Item Specification

Chassis Specifications

SIze (W x D x H) 44.0 x 28.0 x 4.4 cm (17.32 x 11.00 x 1.73 in)

Weight 2.70 kg (5.95 lbs)

Temperature Operating: 0° C to 50° C (32° F to 122° F)

Storage: -40° C to 70° C (-40° F to 158° F)

Humidity Operating: 10% to 90% (non-condensing)

Power Specifications

AC Input AC 100-240 V, 50-60 Hz 0.90 A

Power Consumption 30 W Maximum

Maximum Current 0.90 A @ 100 VAC or 0.60 A @ 200 VAC

Regulatory Compliances

Emissions CE Mark

◆EN 55024

◆EN 55022, Class A

◆EN 61000-3-2

◆EN 61000-3-3

FCC Class A

VCCI Class A

RoHS DIrective 2002/95/ec of the European Parliament and of the

Council, WEEE Directive 2002/96/EC

Immunity IEC 61000-4-2/3/4/5/6/8/11

Safety UL/CUL (UL60950, CSA 22.2.No 60950)

EN 60950-1:2006+A11:2009+A1:2010+A12:2011 / IEC 60950-1:2005;

Am1:2009; CSA22.2 No. 60950-1-07 2nd; UL 60950-1 2nd

Certification Body (CB, IECEE)
