Edge-Core ECS4110-28P Manuel utilisateur

Installation Guide

www.edge-core.com

ECS4110-28P

28-Port Layer 2

Gigabit Ethernet PoE Switch

Installation Guide

ECS4110-28P Gigabit Ethernet PoE Switch

Layer 2 Gigabit Ethernet Switch,

with 24 10/100/1000BASE-T (RJ-45) PoE Ports,

and 4 Gigabit SFP Ports

E112015-AP-R02

150200000928A

– 3 –

How to Use This Guide

This guide includes detailed information on the switch hardware, including

network ports, power, cabling requirements, as well as plug-in modules and

transceivers. This guide also provides general installation guidelines and

recommended procedures.

Who Should Read This

Guide?

This guide is for network administrators and support personnel that install, operate,

and maintain network equipment. The guide assumes a basic working knowledge

of Layer 2 and Layer 3 switching and routing.

How This Guide is

Organized

The organization of this guide is based on the switch’s main hardware components.

Each chapter includes information about a specific component with relevant

specifications and installation procedures. A switch overview section is also

provided.

To deploy this switch effectively and ensure trouble-free operation, it is

recommended that you read each chapter of this guide in sequence while

installing the switch.

The guide includes these chapters:

◆Chapter 1 - Switch Description — Includes a switch overview, key component

identification, and key technical specifications.

◆Chapter 2 - Installation Overview — Includes details of the package contents

and an outline of switch installation tasks.

◆Chapter 3 - Switch Chassis — Includes switch chassis rack installation and

system cooling requirements.

◆Chapter 4 - Power and Grounding — Includes information on AC power

requirements, switch grounding, and powering on the switch.

◆Chapter 5 - Switch Management — Connecting to the switch for management,

and information on the system status LEDs.

◆Chapter 6 - Port Connections — Includes information on network interfaces,

installing optional transceivers, and cabling specifications.

◆Appendix A - Troubleshooting — Information for troubleshooting switch

installation and operation.

How to Use This Guide

– 4 –

Documentation

This guide focuses on switch hardware and installation, it does not cover software

configuration of the switch. For specific information on how to operate and use the

management functions of the switch, see the following guide:

Management Guide

For all safety information and regulatory statements, see the following document:

Quick Start Guide

Safety and Regulatory Information

Conventions The following conventions are used throughout this guide to show information:

Note:

Emphasizes important information or calls your attention to related features

or instructions.

Caution:

Alerts you to a potential hazard that could cause loss of data, or damage

the system or equipment.

Warning:

Alerts you to a potential hazard that could cause personal injury.

Revision History This section summarizes the changes in each revision of this guide.

November 2015 Revision

This is the second revision of this guide. This revision includes the following

change:

◆Updated specificaton information.

June 2014 Revision

This is the first revision of this guide.

– 5 –

Contents

How to Use This Guide 3

Contents 5

Figures 7

Tables 8

1 Switch Description 9

System Overview 9

Power-over-Ethernet 9

Hardware Components 9

Key Technical Specifications 11

2 Installation Overview 12

Package Contents 12

General Installation Guidelines 13

Installation Precautions 13

Switch Installation Tasks 14

3 Switch Chassis 15

Rack Mount Guidelines 15

Switch Cooling Requirements 16

Rack/Cabinet Cooling 16

How to Install the Switch in a Rack 17

How to Install the Switch on a Desktop or Shelf 18

How to Install an SFP Transceiver 19

4 Power and Grounding 21

About the Switch Power Supply 21

How to Ground the Chassis 22

How to Connect to AC Power 23

Contents

– 6 –

5 Switch Management 24

Management Overview 24

Understanding the Switch Status LEDs 25

How to Connect to the Console Port 26

How to Reset the Switch 29

6 Port Connections 30

Cable Labeling and Connection Records 30

Copper Cabling Guidelines 31

10/100BASE-TX Pin Assignments 32

1000BASE-T Assignments 32

Power-over-Ethernet Guidelines 33

Fiber Cabling Guidelines 34

How to Connect to Twisted-Pair Copper Ports 35

How to Connect to SFP Fiber Optic Ports 36

A Troubleshooting 37

Diagnosing LED Indicators 37

System Self-Diagnostic Test Failure 37

Power Problems 38

Installation 38

In-Band Access 38

Index 39

– 7 –

Figures

Figure 1: Front Panel 9

Figure 2: Rear Panel 10

Figure 3: Switch Cooling 16

Figure 4: Attaching the Brackets 17

Figure 5: Installing the Switch in a Rack 18

Figure 6: Attaching the Adhesive Feet 18

Figure 7: Inserting an SFP Transceiver into a Slot 20

Figure 8: AC Power Supply Socket 21

Figure 9: Grounding Terminal 22

Figure 10: AC Power Cord and Power Socket 23

Figure 11: System and Port Status LEDs 25

Figure 12: Console Port 26

Figure 13: Console Port Connection 27

Figure 14: Reset Button 29

Figure 15: RJ-45 Connector 32

Figure 16: Making Twisted-Pair Connections 35

Figure 17: Making a Connection to an SFP Port 36

– 8 –

Tables

Table 1: Switch Specifications 11

Table 2: Switch Installation Tasks 14

Table 3: AC Power Supply Specifications 21

Table 4: System Status LEDs 25

Table 5: Port Status LEDs 25

Table 6: Console Cable Wiring 27

Table 7: Using the Reset Button 29

Table 8: Maximum Twisted-Pair Copper Cable Lengths 31

Table 9: 10/100BASE-TX MDI and MDI-X Port Pinouts 32

Table 10: 1000BASE-T MDI and MDI-X Port Pinouts 33

Table 11: Maximum Gigabit Ethernet Fiber Cable Lengths 34

Table 12: Maximum Fast Ethernet Fiber Cable Lengths 34

Table 13: Troubleshooting Chart 37

– 9 –

1Switch Description

This chapter includes these sections:

◆“System Overview” on page 9

◆“Key Technical Specifications” on page 11

System Overview

The ECS4110-28P is a Gigabit Ethernet Layer 2 switch with 24 10/100/1000BASE-T

Power-over-Ethernet (PoE) ports, and four Small Form Factor Pluggable (SFP)

transceiver slots for fiber connectivity.

The switch also includes an SNMP-based management agent, which provides both

in-band and out-of-band access for managing the switch.

Power-over-Ethernet All of the 10/100/1000 Mbps ports on the switch support both the IEEE 802.3af and

IEEE 802.3at-2009 PoE standards that enable DC power to be supplied to attached

devices using wires in the connecting Ethernet cable.

Hardware

Components

Each chapter in this manual describes related switch components together with

their installation requirements and procedures. To understand each component in

detail, refer to the relevant chapter.

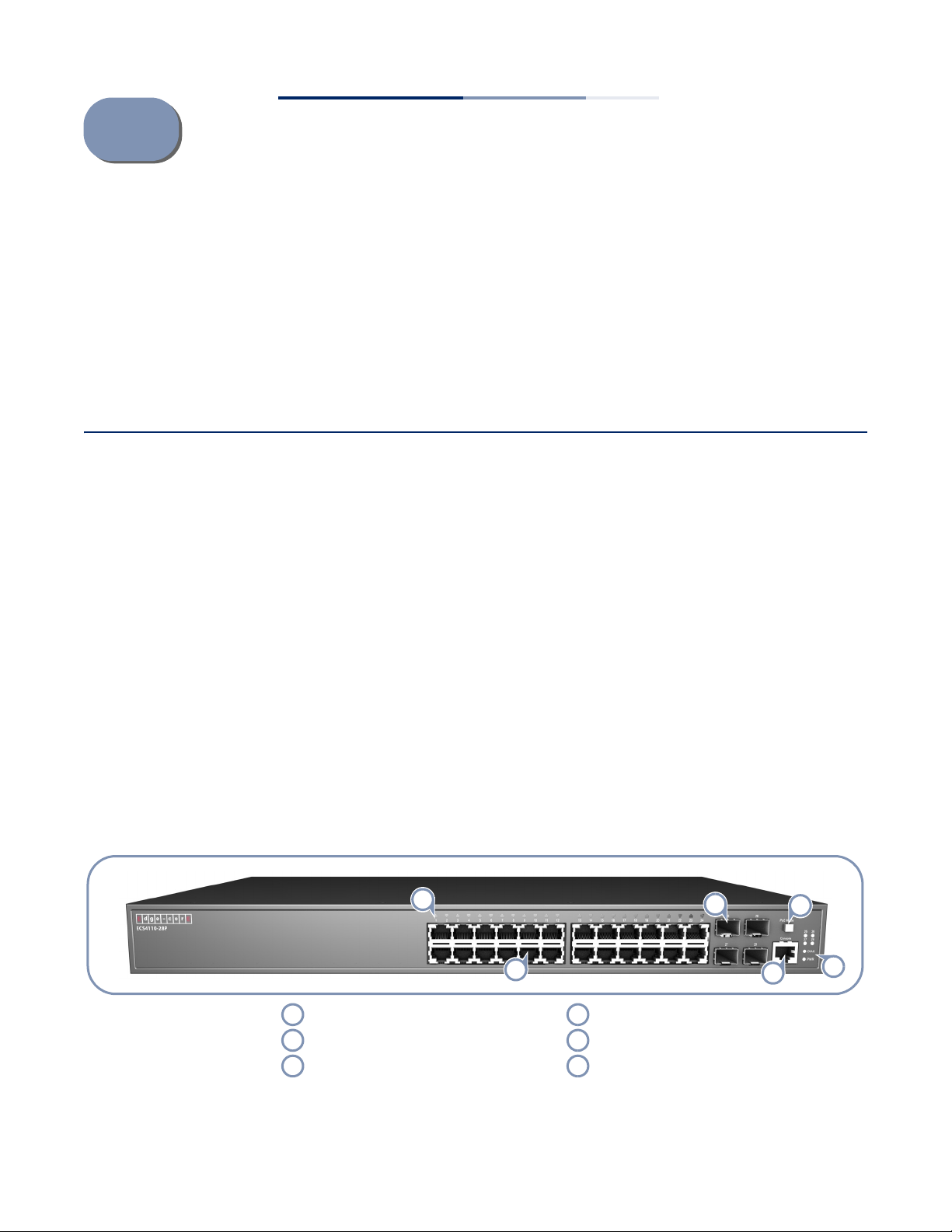

Figure 1: Front Panel

10/100/1000BASE-T RJ-45 Ports: The switch contains 24 10/100/1000BASE-T RJ-45

ports that support data and PoE links to other devices.

123

Port LEDs System LEDs

Gigabit SFP Slots RJ-45 Console Port

Mode Button 1000BASE-T RJ-45 PoE Ports

Chapter 1

| Switch Description

System Overview

– 10 –

Gigabit SFP Slots: The switch contains four SFP transceiver slots that operate up to

1 Gbps full duplex.

Mode Button: Pressing the Mode button on the front panel changes the Diag LED

to display PoE status.

Console Port: The RJ-45 connector on the front panel labeled “Console” provides

an out-of-band serial connection to a terminal or a PC running terminal emulation

software. The port can be used for performing switch monitoring and

configuration.

System LEDs: The switch supports indicator LEDs for displaying system status.

Port LEDs: The switch supports indicator LEDs for displaying port status.

Figure 2: Rear Panel

AC Power Socket: The switch includes a standard AC power socket that connects

to a 100-240 VAC, 50-60 Hz AC power source.

Grounding Terminal: The switch supports a single-screw grounding terminal. The

grounding terminal must be connected to a ground source that provides local

earth potential.

Reset Button: The switch supports a reset button on the rear panel that causes the

switch to execute a hard reset.

AC Power Socket Reset Button

Grounding Point
