Catalog #4779

Rev.10/05 - RS/mc

Brochure #63-0463

Page 1 of 2

SECONDARY FUEL RAIL

For B-Series Honda Performer X Intake Manifolds

Catalog #4779

INSTALLATION INSTRUCTIONS

PLEASE study these instructions carefully before beginning this installation. Most installations can be accomplished with common tools and

procedures. However, you should be familiar with and comfortable working on your vehicle. If you do not feel comfortable performing this

installation, it is recommended to have the installation completed by a qualified mechanic. If you have any questions, please call our Technical

Hotline at: 1-800-416-8628, 7:00 am - 5:00 pm, Pacific Standard Time, Monday through Friday or e-mail us at [email protected].

NOTE: Proper installation is the responsibility of the installer. Improper installation may result in poor performance and engine or vehicle damage.

PLEASE complete and mail your warranty card. Be sure to write the model number of this product in the "Part #____" space. THANK YOU.

•Description: The Edelbrock Secondary Fuel Rail kit for the Performer X intake manifold allows the use of secondary fuel injectors on

Performer X manifolds, 4771, 4774, and 4778, for turbocharged, alcohol-fueled, or nitrous oxide applications, where additional injectors are

needed. Performer X manifolds must use PICO-style secondary fuel injectors.

Kit Contents:

❑ 1 Secondary fuel rail

❑2 1/4-20 x 1.25” bolts

❑2 1/4” AN washer

❑2 1/4” Star washer

❑2 3/8” NPT x -6 AN Adapter fittings

•NOTE: If the intake manifold is on the engine, it must be removed before attempting to install the Secondary Fuel Rail. Drilling

of the injector bosses is required, and metal chips could get into the engine if intake manifold is not removed prior to drilling.

Refer to your intake manifold installation instructions, or your factory service manual for proper removal procedure.

•WARNING: When working around gasoline or with any fuel system, always work in a well-ventilated area. Keep all sparks,

open flames, or other sources of ignition away from the work area. Failure to do so could result in a fire or explosion causing

vehicle or property damage, personal injury, and/or death.

• INJECTORS: Performer X intake manifolds require the use of a

Pico-style

fuel injector

(See Fig. 1)

. See chart below for recommended

Edelbrock fuel injectors. Select the size that is appropriate for your particular application.

FUEL INJECTOR DESCRIPTION

#3574 19 lbs/hour @ 44 psi (185cc/min)

#3583 29 lbs/hour @ 44 psi (281cc/min)

#3635 35 lbs/hour @ 44 psi (340cc/min)

#3685 44 lbs/hour @ 44 psi (427cc/min)

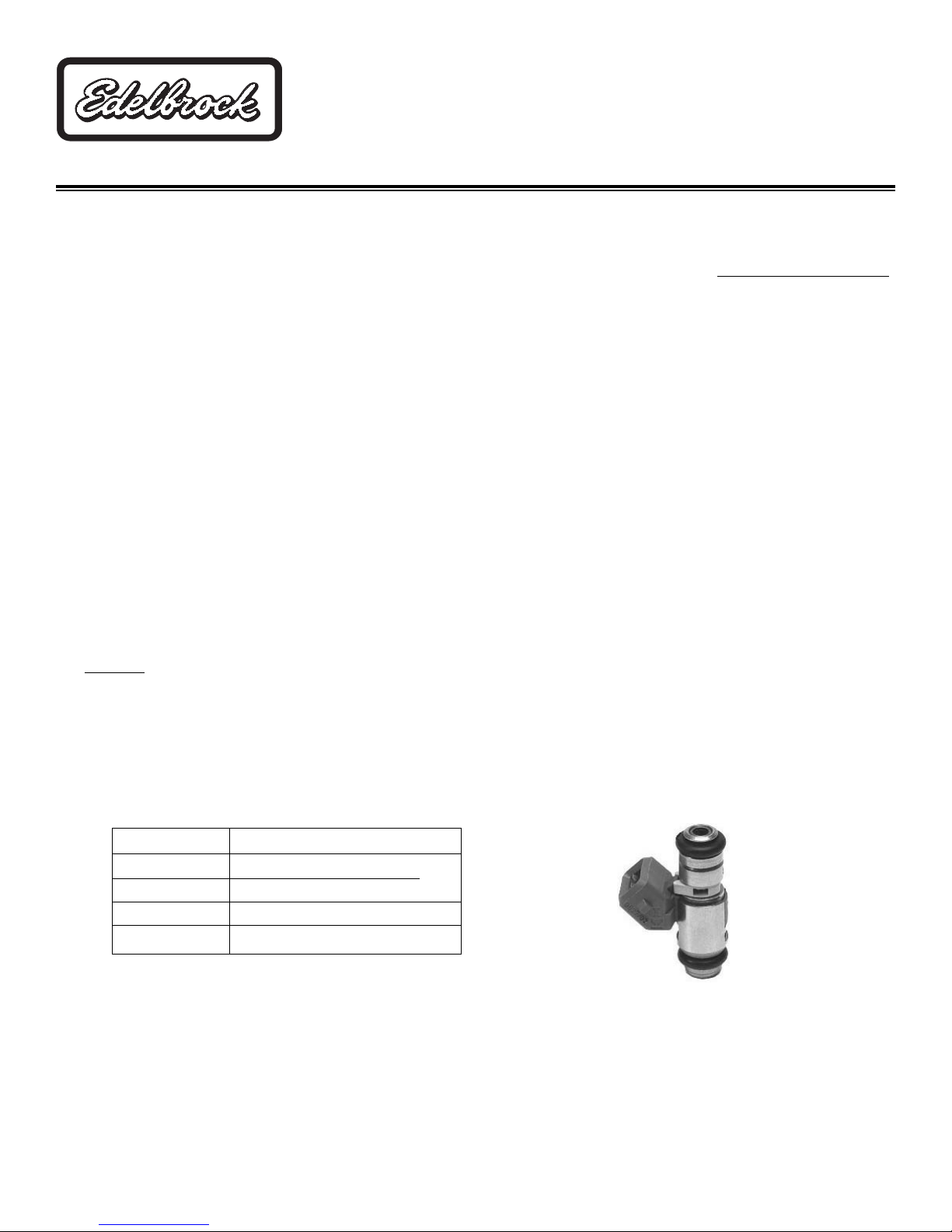

Figure 1 - Pico-Style Fuel Injector

Catalog #4779

Rev.10/05 - RS/mc

Brochure #63-0463

Page 2 of 2

Edelbrock Corporation • 2700 California St. • Torrance, CA 90503

Tech-Line: 800-416-8628 • E-Mail: [email protected]

INSTALLATION PROCEDURE

1. Support and secure the intake manifold properly in a drill

press or on a work bench to allow a straight drill path to the

injector bosses

(See Fig. 2 for reference)

2. Using a 7/16” drill bit, drill through the blind holes in the

injector bosses.

Warning: Use caution as the drill may tend to kick back

as it breaks through to the intake manifold runners.

Warning: Be careful not to damage the o-ring sealing

surface when drilling the injector bosses.

4. Insert the appropriate injectors for your application into the

intake manifold.

5. Press the fuel rail onto the injectors. Using a fuel system safe

lubricant on the o-rings will help make this easier.

6. Bolt the fuel rail to the Performer-X intake manifold using the

supplied 1/4-20x1-1/4” bolts and the supplied washers.

7. Apply a fuel system safe thread sealant to the threads of the

3/8”NPTx-6AN adapters and install them into the ends of the

fuel rail.

Note: You may also use any adapter fitting with 3/8”NPT

threads, if it is more suitable to your fuel system. Also, be sure

to allow the sealant to cure completely before allowing fuel

through the fuel rail. Fittings may also be installed before

mounting fuel rail onto the intake manifold. Make sure to

secure the fuel rail in a soft jaw bench vise.

Fig. 2 - Reference Dimensions

7/16” Dia.

20° (4771)

23° (4774 & 4778)

1/4-20

(Coarse Thread)
