ECS P6VPA2 Manuel utilisateur

Quick Jumper Setting Reference

JP1: Clear CMOS jumper

Use this jumper to clear the contents of the CMOS memory. You

may need to clear the CMOS memory if the settings in the BIOS

Setup Utility are incorrect and are preventing your mainboard

from operating. To clear the CMOS memory, disconnect all the

power cables from the mainboard and then move the jumper cap

into the Clear CMOS memory setting for a few seconds. CMOS

is cleared.

Return the jumper cap to the Normal operation setting. Recon-

nect the power cables and start the system. When the POST

starts, press the delete key to start the BIOS Setup Utility and

reload BIOS optimal settings. Refer to Chapter 3 for information

on BIOS.

Function Jumper Setting

Normal operation Short pins 1-2

Clear CMOS Short pins 2-3

JP1

1 2 3

Note: Before clearing the BIOS, ensure that AC power is not con-

nected.

JP6: CPU frequency select jumper

This jumper enables you to force the CPU to clock at a higher fre-

quency than it is rated. Short pins 2 and 3 to force the CPU to run

at a 100 MHz FSB instead of a 66 MHz FSB. We recommend that

you leave the jumper on the normal operation setting.

Function Jumper Setting

Normal Short pins 1-2

Force 66 MHz FSB to

run at 100 MHz FSB. Short pins 2-3

JP6

1 2 3

JP7: CPU frequency select jumper

This jumper enables you to force the CPU to clock at a higher

frequency than it is rated. Short pins 2 and 3 to force the CPU to

run at a 133 MHz FSB instead of a 100 MHz FSB. We recom-

mend that you leave the jumper on the normal operation setting.

Function Jumper Setting

Normal Short pins 1-2

Force 100 MHz FSB to

run at 133 MHz FSB Short pins 2-3

JP7

1 2 3

Note: The CPU speed is determined by the CPU Host/PCI Clock

speed multiplied by the CPU Clock Ratio. Refer to the Frequency

Control Option in Chapter 3 for more information.

Forcing the CPU to run at a higher clock speed then it was rated

for is called overclocking and is not recommended.

JP8: BIOS Flash protect jumper

Use this jumper to enable or disable the BIOS flash protection

on the mainboard. You should disable this jumper when you

want to flash the BIOS.

Function Jumper Setting

Disable Short pins 1-2

Enable Short pins 2-3

JP8

1 2 3

PANEL1: Panel connectors for switches and indicators

Use the panel connector to implement the switches and indica-

tors on your system case.

Panel connectors for switches and indicators

Function Pins

Power switch 22, 23

Hard disk LED Indicator +20, -21

Empty pin 19

Speaker +15, -16, 17, 18

Empty pin 14

Reset switch 12, -13

Keyboard lock 10, -11

Green LED indicator +7, +8,-9

Empty pin 6

Sleep switch 4,-5

Power LED indicator +1, +2,-3

PANEL1

Speaker 15-16-17-18

Power LED 1-2-3

KeyLock 10-11

Reset Switch 12-13

Green LED 7-8-9

Power Switch 22-23

HDD LED 20-21

Sleep Switch 4-5

PANEL1

Note: The plus sign (+) indicates a pin which must be connected

to a positive voltage.

Autres manuels pour P6VPA2

Autres manuels ECS Carte mère

ECS

ECS GeForce 7050M-M Manuel utilisateur

ECS

ECS P41G Series Manuel utilisateur

ECS

ECS NFORCE6M-A Manuel utilisateur

ECS

ECS G31T-M9 Manuel utilisateur

ECS

ECS Durathon 2 H110M4-C23 Manuel utilisateur

ECS

ECS H67H2-M v 1.1 Manuel utilisateur

ECS

ECS C19-A SLI Manuel utilisateur

ECS

ECS A785GM-AD3 Manuel utilisateur

ECS

ECS P6SEP-Me Manuel utilisateur

ECS

ECS UM4980 Manuel utilisateur

ECS

ECS P67H2-A2 Manuel utilisateur

ECS

ECS P4IBAD2 Manuel utilisateur

ECS

ECS A75F2-A2 V1.0 Manuel utilisateur

ECS

ECS Motherboard Manuel utilisateur

ECS

ECS G41T-M7 Manuel utilisateur

ECS

ECS L4IBMGL3 1.0 Manuel utilisateur

ECS

ECS 671T-M Manuel utilisateur

ECS

ECS G31T-M7 Manuel utilisateur

ECS

ECS P45T-AD3 Manuel utilisateur

ECS

ECS B85H3-A3 Manuel utilisateur

ECS

ECS P5HX-A Manuel utilisateur

ECS

ECS H67H2-M Manuel utilisateur

ECS

ECS KV2 Extreme Manuel utilisateur

ECS

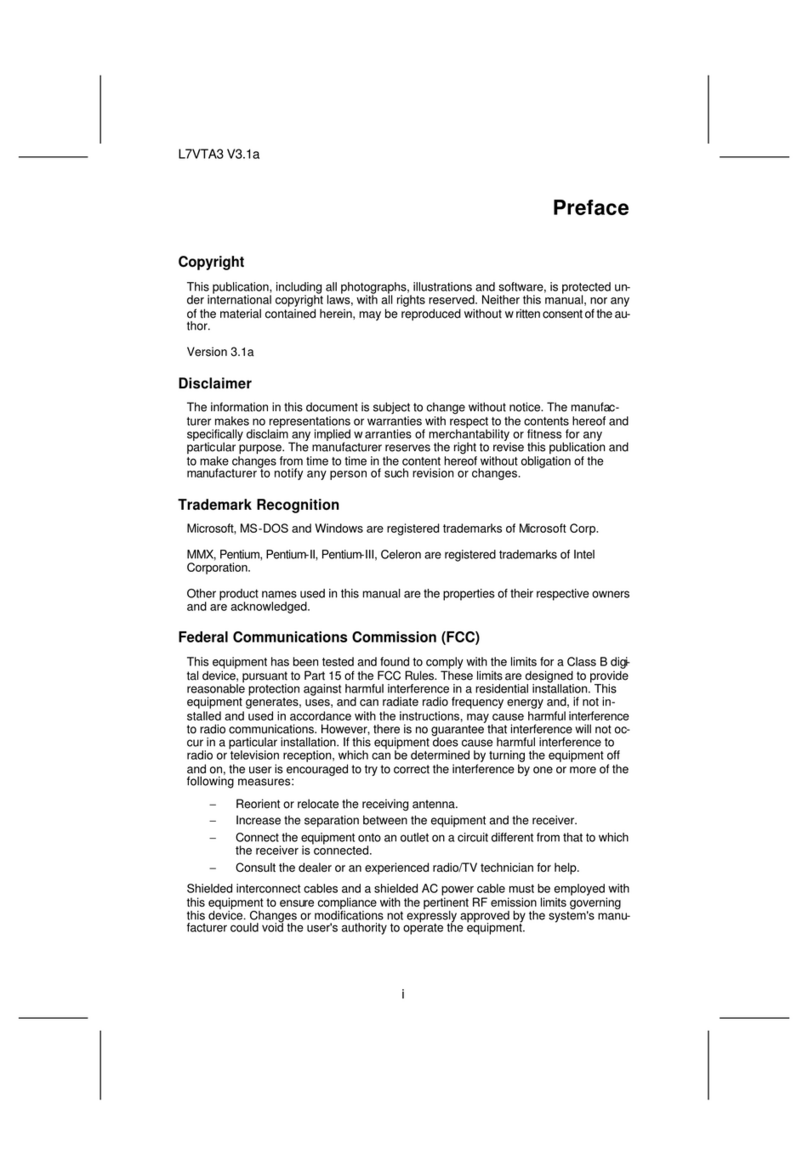

ECS L7VTA3 Manuel utilisateur
