ECS K7VMM+ Manuel utilisateur

Preface

This publication, including all photographs, illustrations and software, is protected un-

of the material contained herein, may be reproduced without writtenconsent ofthe au-

thor.

Version 1.2

Disclaimer

The information in this document is subject to change without notice. The manufac-

turer makes no representations or warranties with respect to the contents hereof and

specifically disclaims any implied warranties of merchantability or fitness for any par-

ticular purpose. The manufacturer reserves the right to revise this publication and to

make changes from time to time in the content hereof without obligation of the manu-

facturer to notify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel

Corporation.

Other product names used in this manual are the properties of their respective owners

and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digi-

tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not in-

stalled and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not oc-

cur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

−Reorient or relocate the receiving antenna.

−Increase the separation between the equipment and the receiver.

−Connect the equipment onto an outlet on a circuit different from that to which

the receiver is connected.

−Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and a shielded AC power cable must be employed with

this equipment to ensure compliance with the pertinent RF emission limits governing

this device. Changes or modifications not expressly approved by the system's manu-

facturer could void the user's authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the follow-

ing conditions:

−This device may not cause harmful interference, and

−This device must accept any interference received, including interference

that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-

causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement

sur le matériel brouilieur du Canada.

About the Manual

The manual consists of the following:

Chapter 1

Introducing the Mainboard Describes features of the mainboard,

and provides a shipping checklist.

Go to ⇒page 1

Chapter 2

Installing the Mainboard Describes installation of mainboard

components.

Go to ⇒page 5

Chapter 3

Using BIOS Provides information on using the BIOS

Setup Utility.

Go to ⇒page 22

Chapter 4

Using the Mainboard Software Describes the mainboard software.

Go to ⇒page 34

iii

Preface i

Features and Packing List Translations 錯誤! 尚未定義書籤。

CHAPTER 1 1

Introducing the Mainboard 1

Introduction............................................................................................................1

Checklist.................................................................................................................1

Standard Items ...................................................................................................1

Features..................................................................................................................2

Choosing a Computer Case................................................................................3

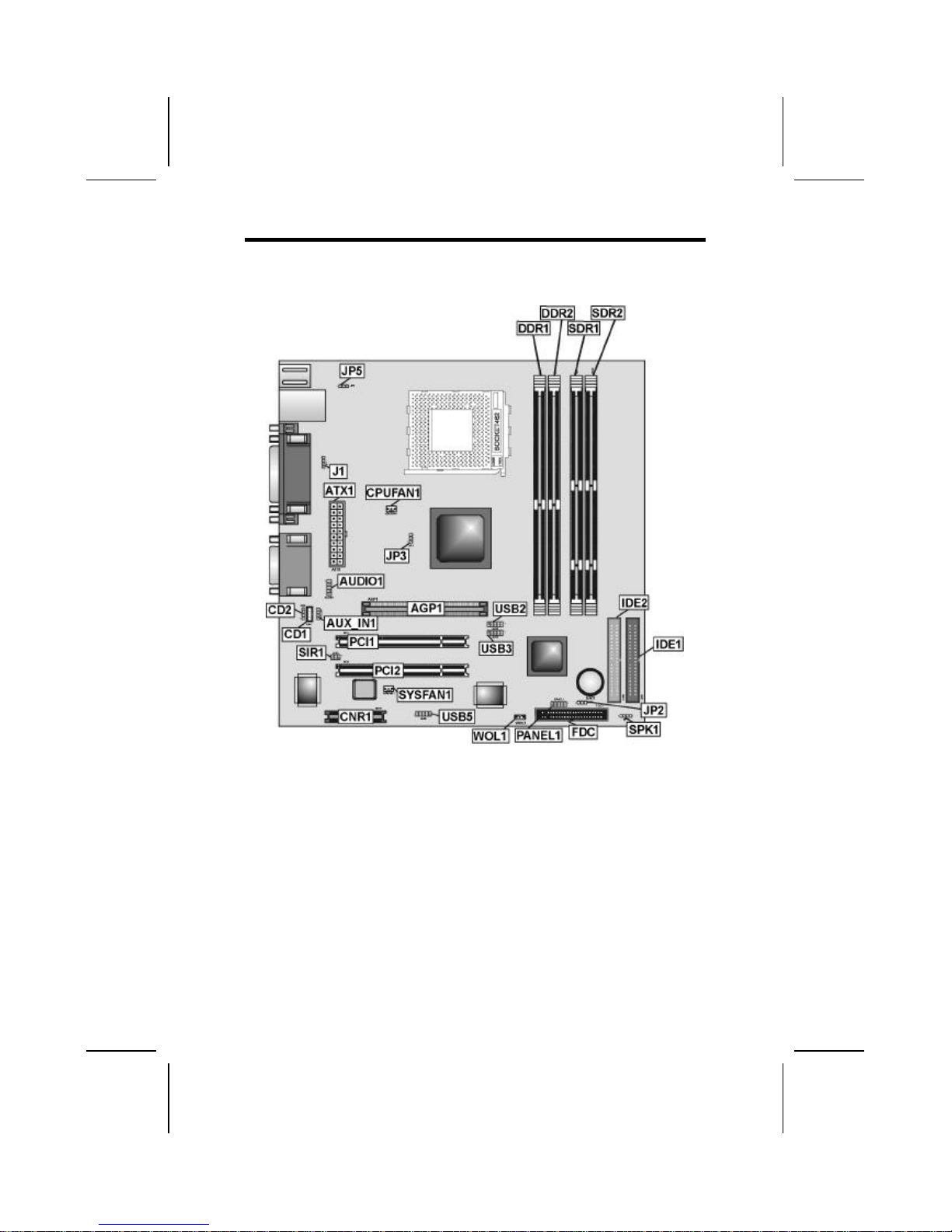

Mainboard Components.......................................................................................4

CHAPTER 2 5

Installing the Mainboard 5

Safety Precautions................................................................................................5

Quick Guide...........................................................................................................5

Installing the Mainboard in a Case.....................................................................6

Checking Jumper Settings...................................................................................6

Setting Jumpers .................................................................................................6

Checking Jumper Settings.................................................................................7

Jumper Settings.................................................................................................7

Connecting Case Components...........................................................................8

The PANEL1 Connector....................................................................................9

Installing Hardware.............................................................................................10

Installing the Processor...................................................................................10

InstallingMemoryModules............................................................................12

Installing a Hard Disk Drive/CD-ROM ..........................................................13

Installing a Floppy Diskette Drive ..................................................................15

InstallingAdd-on Cards..................................................................................16

Connecting Optional Devices..........................................................................18

ConnectingI/ODevices.....................................................................................20

CHAPTER 3 22

Using BIOS 22

About the Setup Utility........................................................................................22

The Standard Configuration............................................................................22

Running the Setup Utility................................................................................23

Using BIOS..........................................................................................................23

Standard CMOS Setup Page............................................................................24

Advanced Setup Page......................................................................................25

Power Management Setup Page......................................................................27

PCI / Plug and Play Setup...............................................................................28

Load Optimal Settings.....................................................................................29

Load Best Performance Settings.....................................................................29

Features Setup Page.........................................................................................29

CPU PnP Setup Page.......................................................................................31

HardwareMonitorPage..................................................................................32

ChangePassword ............................................................................................33

Change or Remove the Password....................................................................33

Exit ..................................................................................................................33

CHAPTER 4 34

Using the Mainboard Software 34

About the Software CD-ROM............................................................................34

Auto-installing under Windows 98....................................................................34

Running Setup.................................................................................................36

Manual Installation..............................................................................................37

Utility Software Reference.................................................................................38

Introducing the Mainboard

Congratulations on purchasing the K7VMM mainboard. This mainboard has a

Socket-A support for the AMD K7 processors. The Socket-A processor front-

side bus speed is200/266MHz.

This mainboard has a KM266 chipset that supports a 4X AGP slot for highly

graphics display, 100/133 MHz DDR/SDR, and Ultra DMA ATA100 function to

provide outstanding high system performance under all types of system op-

erations. The mainboard has the built-in AC97 Codec,aCNR

(Communications and Networking Riser) slot and a built-in

10BaseT/100BaseTX Network Interface. This mainboard has the 128-bit

2D/3D AGP Graphics Accelerator with 32MB frame buffer, supporting AGP

4X 266MHz mode up to 1GB/s bandwidth, which provides a direct connection

between the graphics sub-system and memory so that the graphics do not

have to compete for processor time with other devices on the PCI bus. This

mainboard also has a chipset VIA VT6202 supporting the auxiliary USB 2.0,

which provides higher bandwidth and is backward compatible with USB1.1.

It implements Universal Serial Bus Specification Revision 2.0 and is com-

pliant with UHCI 1.1 and EHCI 0.95. There is a full set of I/O Ports including

PS/2 keyboard and mouse ports, two back-panel USB 2.0 ports, one parallel

port, one serial port and one onboard VGA (S3). Connecting extended USB

modules to the mainboard makes six extra USB ports (header USB2 & 3 for

USB1.1; header USB5 for USB 2.0).

This mainboard has all the features you need to develop a powerful multime-

dia workstation that is network ready. The board is Micro ATX size and has

power connectors for anATX power supply.

Compare the mainboard’s package contents with the following checklist:

Standard Items

•One mainboard

•One diskette drive ribbon cable

•One IDE drive ribbon cable

•Software support CD

•This User’s Manual

Processor •Socket-A Processor

•Supports AMD Athlon XP/Athlon/Duron processors

•Supports 200/266 MHz Front-Side Bus

Chipset There are VIA KM266 Northbridge and VT8233 Southbridge in

this chipset in accordance with an innovative and scalable

architecture with proven reliability and performance. A few of

the chipset’s advanced features are:

•An advanced V-Link memory controller architecture that

provides the bandwidth up to 266 MB/s and performance

necessary for even the most demanding Internet and

2D/3D graphics

•Support for an 4xAGP interface providing vivid 2D/3D

graphics and video performance.

Memory •Two 168-pin DIMM slots for SDRAM memory modules

•Two 184-pin DIMM slots for DDR memory modules

•Support for 100/133 MHz memory bus

•Maximum installed memory is 2GB

Note: You cannot use SDRAM and DDR simultane-

ously.

Expansion Slots •One CNR slot

•One 4X AGP slot for AGP 2.0-compliant interface

•Two 32-bit PCI slots for PCI 2.2-compliant bus interface

Onboard IDE

channels •Primary and Secondary PCI IDE channels

•Support for PIO (programmable input/output) modes

•Support for Multiword DMA modes

•Support for Bus Mastering and Ultra DMAATA 100

33/66/100 modes

Power Supply

and Power

Management

•ATX power supply connector

•ACPI and previous PMU support, suspend switch, key-

board power on/off

•Supports Wake on LAN

AC’97 Audio

Codec •Compliant AC97 2.2 specification

•Supports 18-bit ADC (Analog Digital Converter) and DAC

(Digital Analog Converter) as well as 18-bit stereo full-

duplex codec

VGA •Single cycle 128-bit 3D architecture

•128-bit 2D graphic engine

•8/16/32 MB frame buffer using system memory

•Supports AGP 4X 266 MHz mode up to 1GB/s bandwidth

•Supports 250MHz RAMDAC

•2D/3D resolutions up to 1920x1440

•Supports AGP Rev. 2.0 Spec. Compliant

Built-in Ethernet

LAN (optional) •Built-in 10BaseT/100BaseTX Ethernet LAN

•LAN controller integrates Fast Ethernet MAC and PHY

compliant with IEEE802.3u 100BASE-TX, 10BASE-T and

ANSI X3.263 TP-PMD standards

•Compliant with ACPI 1.0 and the Network Device Class

Power Management 1.1

•High Performance provided by 100Mbps clock generator

and data recovery circuit for 100Mbps receiver

Onboard I/O

Ports •Provides PC99 Color Connectors for easy peripheral

device connections

•Floppy disk drive connector with 1Mb/s transfer rate

•Two PS/2 ports for keyboard and mouse

•One serial port with 16C550-compatible fast UART

•One parallel port with ECP and EPP support

•One MIDI/Game port

USB •Compliant with Universal Serial Bus Specification Re-

vision 2.0

•Compliant with Intel’s Enhanced Host Controller

Interface Specification Revision 0.95

•Compliant with Universal Host Controller Interface

Specification Revision 1.1

•PCI multi-function device consists of two UHCI Host

Controller cores for full-/low-speed signaling and one

EHCI Host Controller core for high-speed signaling

•Root hub consists 4 downstream facing ports with

integrated physical layer transceivers shared byUHCI

and EHCI Host Controller

•Support PCI-Bus Power Management Interface

Specification release 1.1

•Legacy support for all downstream facing ports

Hardware Moni-

toring Built-in hardware monitoring for CPU & System temperatures,

fan speeds and mainboard voltages

Onboard Flash

ROM Supports Plug and Play configuration of peripheral devices

and expansion cards

Dimensions Micro ATX form factor (24.4cm x 24.4cm)

There are many types of computer cases on the market. The mainboard com-

plies with the specifications for the micro-ATX system case. Some features on

the mainboard are implemented by cabling connectors on the mainboard to

indicators and switches on the system case. Ensure that your case supports

all the features required. The mainboard can support one floppy diskette drive

and four enhanced IDE drives. Ensure that your case has sufficient power and

space for all the drives that you intend to install.

Most cases have a choice of I/O templates in the rear panel. Make sure that

the I/O template in the case matches the I/O ports installed on the rear edge

of the mainboard.

This mainboard has a micro-ATX form factor of 24.4 x 24.4 cm. Choose a

case that accommodates this form factor.

This concludes Chapter 1. The next chapter explains how to install the main-

board.

Installing the Mainboard

Follow these safety precautions when installing the mainboard:

•Wear a grounding strap attached to a grounded device to avoid

damage from static electricity.

•Discharge static electricity by touching the metal case of a safely

grounded object before working on the mainboard.

•Leave components in the static-proof bags they came in.

•Hold all circuit boards by the edges. Do not bend circuit boards.

This Quick Guide suggests the steps you can take to assemble your system

with the mainboards.

The following table provides a reference for installing specific components:

Locating Mainboard Components Go to page 4

Installing the Mainboard in a Case Go to page 6

Setting Jumpers Go to page 6

Installing Case Components Go to page 8

Installing the CPU Go to page 10

Installing Memory Go to page 12

Installing an HDD and CD-ROM Drive Go to page 13

Installing an FDD Go to page 15

Installing Add-on Cards Go to page 16

Connecting Options Go to page 18

Connecting Peripheral (I/O) Devices Go to page 20

Refer to the following illustration and instructions for installing the mainboard

in a case:

This illustration shows an ex-

ample of a mainboard being

installed in a tower-type case:

Note: Do not overtighten

the screws as this

can stress the main-

board.

Most system cases have

mounting brackets installed in

the case, which correspond to

the holes in the mainboard.

Place the mainboard over the

mounting brackets and secure

the mainboard onto the mount-

ing brackets with screws.

2. Secure the mainboard with

screwswhereappropriate.

1. Place the mainboard

over the mounting brackets.

Ensure that your case has an I/O template that supports the I/O ports and

expansion slots on your mainboard.

Thissectionexplains how to set jumpers for correct configuration of the main-

board.

Setting Jumpers

Use the mainboard jumpers to set system configuration options. Jumpers with

more than one pin are numbered. When setting the jumpers, ensure that the

jumper caps are placed on the correct pins.

The illustrations below show a 2-pin jumper.

When the jumper cap is placed on both pins,

the jumper is SHORT. If you remove the

jumper cap, or place the jumper cap on just

one pin, the jumper is OPEN.

This illustration shows a 3-pin

jumper. Pins 1 and 2 are SHORT.

Short Open 123

Autres manuels pour K7VMM+

Table des matières

Autres manuels ECS Carte mère

ECS

ECS 945P-A Manuel utilisateur

ECS

ECS H81H3-M5 Manuel utilisateur

ECS

ECS IC43T-A2 Manuel utilisateur

ECS

ECS DURATHON 2 H81H3-BTC Manuel utilisateur

ECS

ECS H87H3-M4 Manuel utilisateur

ECS

ECS B75H2-M Manuel utilisateur

ECS

ECS A55F-M2 V.2.0 Manuel utilisateur

ECS

ECS G41T-M9 Manuel utilisateur

ECS

ECS H55H-M Manuel utilisateur

ECS

ECS 915-M5GL Manuel utilisateur

ECS

ECS A780GM-A Ultra Manuel utilisateur

ECS

ECS C51GM-M Manuel utilisateur

ECS

ECS 945GCD-M Manuel utilisateur

ECS

ECS A85F2-A DELUXE Manuel utilisateur

ECS

ECS 865GV-M3 Series Manuel utilisateur

ECS

ECS L4IBME 1.0 Manuel utilisateur

ECS

ECS kt600-a Manuel utilisateur

ECS

ECS A55F2-M3 Manuel utilisateur

ECS

ECS G41T-M7 Manuel utilisateur

ECS

ECS P6LX-A Manuel utilisateur

ECS

ECS H61H2-A Manuel utilisateur

ECS

ECS B85H3-M9 Manuel utilisateur

ECS

ECS P45T-A Manuel utilisateur

ECS

ECS Z77H2-A4 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
