Ecotric Folding Fat Bike Guide de démarrage rapide
WWW.ECOTRIC.COM
2
TABLE OF CONTENTS
Carton Contents------------------------------------------------------------------------------------2
Note------------------------------------------------------------------------------------------------- 3
Warning----------------------------------------------------------------------------------------------4
Assembly Instructions
Handle bar------------------------------------------------------------------------------------------ 5
Folding bike-----------------------------------------------------------------------------------------6
Front wheel----------------------------------------------------------------------------------------- 7
For seat post and pedals---------------------------------------------------------------------------8
Operating Procedures
For flash-------------------------------------------------------------------------------------------- 9
For seagull-----------------------------------------------------------------------------------------10
For fat bike ----------------------------------------------------------------------------------------11
For Tornado----------------------------------------------------------------------------------------12
Battery & Charger Care--------------------------------------------------------------------------13
Safety-----------------------------------------------------------------------------------------------14
General warning-----------------------------------------------------------------------------------15
Meter Programming & Use
800 or 810 LED-----------------------------------------------------------------------------------16
S700 LCD---------------------------------------------------------------------------------------17-18
S900 LCD---------------------------------------------------------------------------------------19-20
Troubleshooting--------------------------------------------------------------------------------- 21
Simple Maintenance Tips for your Electric Bike--------------------------------------------22
Warranty information--------------------------------------------------------------------------23-24
ECOTRIC BIKE Models------------------------------------------------------------------------25
The wiring diagram------------------------------------------------------------------------------26
RECORDING YOUR ECOTRIC BIKE INFO----------------------------------------------26
CARTON CONTENTS
(x1) Kit Box
(x2) Pedals
(x1) Owner’s user Manual
(x1) Tool Kit
(x1) Battery Charger
(x1) ECOTRIC Bike
(x1) Saddle
(x1) Lithium Ion Battery
(x2) Keys
(x1) Reflector
3
First of all, we would like to thank you for choosing the ECOTRIC electric
bike. We believe this technology, with the benefits of electric propulsion,
provides you with the perfect vehicle to increase your personal mobility.
Our brushless, electric hub motor allows you to run errands
or commute to work while saving money on gas and reducing your
environmental impact on our world. It also gives you the opportunity
to pedal if you want to get exercise along the way.
All this and it is just plain fun to ride!
If you have any concerns, questions or suggestions about the ECOTRIC
for choosing ECOTRIC.
PLEASE NOTE:
THIS MANUAL IS NOT INTENDED AS A DETAILED USER,
SERVICE, REPAIR OR MAINTENANCE MANUAL. PLEASE
SEEK ASSISTANCE FROM A QUALIFIED TECHNICIAN
FOR SERVICE, REPAIRS OR MAINTENANCE.
4
WARNING
Electric Bikes can be dangerous to use. The user or consumer assumes
all risk of personal injuries, damage, or failure of the bicycle or system and
all other losses or damages to themselves and others and to any property
arising as a result of using the bicycle.
As with all mechanical components, the bicycle is subjected to wear
and high stresses. Different materials and components may react to
wear or stress fatigue in different ways. If the design life of a component
has been exceeded, it may suddenly fail possibly causing injuries to the
rider. Any form of crack, scratches or change of coloring in highly stressed
areas indicate that the life of the component has been reached and it
should be replaced.
For replacement parts, technical information and warranty assistance,
please contact ECOTRIC BIKE at service@ecotric.com
YOUR INSURANCE POLICIES MAY NOT PROVIDE
COVERAGE FOR ACCIDENTS INVOLVING THE USE
OF THIS BICYCLE. TO DETERMINE IF COVERAGE
IS PROVIDED YOU SHOULD CONTACT YOUR
INSURANCE COMPANY OR AGENT.
5
ASSEMBLY INSTRUCTIONS
For Handle bar
Your bike has been pre-assembled and requires only a few simple steps
to get it ready for you to ride:
1. Carefully remove your bike from the carton and gently rest it in place with the
kickstand down.
2. Remove all of the inside cardboard protection and bubble wrap on the bike.
3. Please locate and set aside the kit box containing the battery charger, pedals, and
tool kit etc.

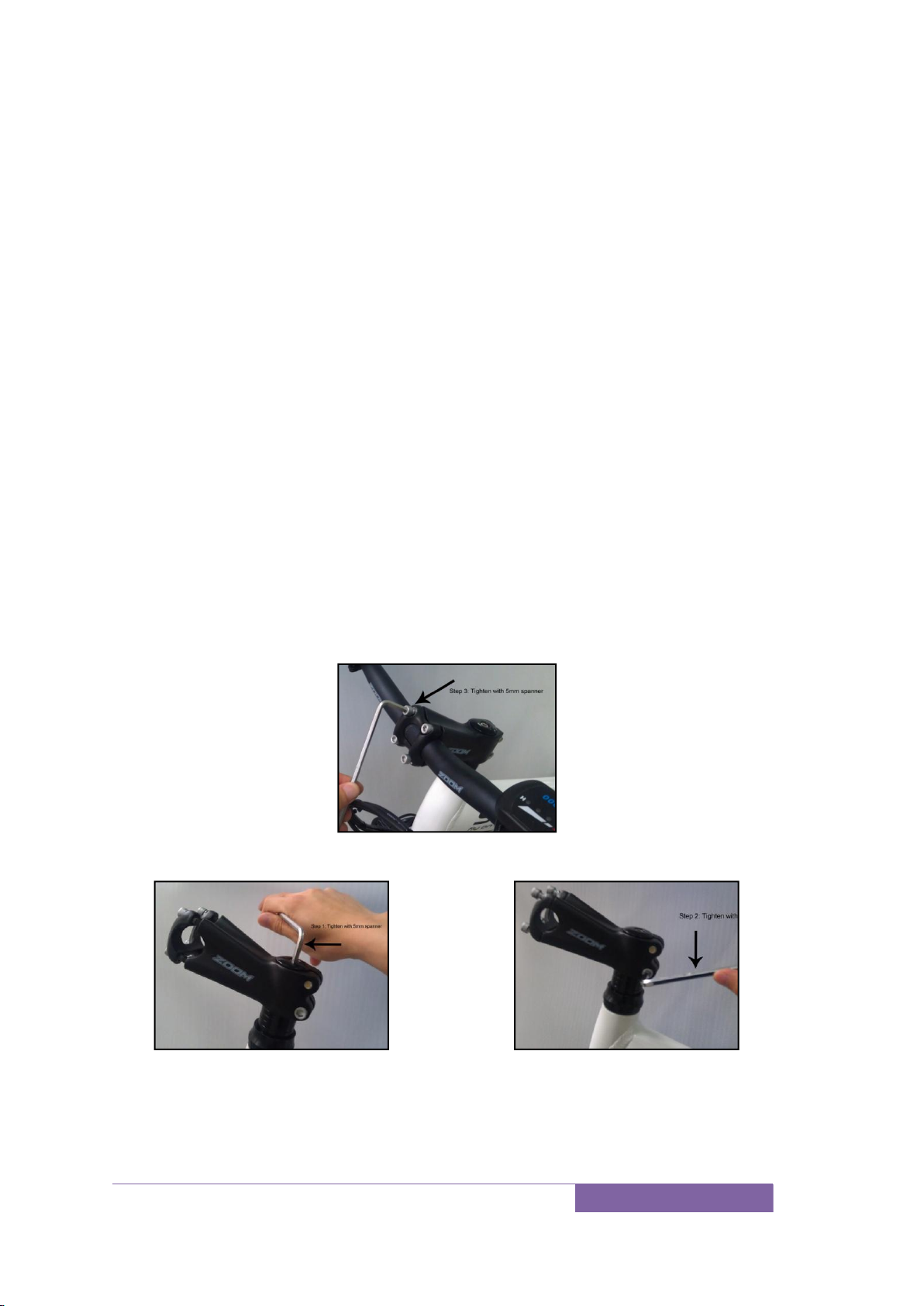

4. Place the handle bar on the stem, and tighten four bolts with 5mm hexagonal
spanner (Figure 1), Position the handlebars to your desired comfort level.
5. Once the handlebars are aligned and the top bolt is slightly secured, firmly tighten
the 2 side bolts on the stem with 6mm hexagonal spanner(Figure 3). After tightening
the 2 side bolts, firmly tighten the top bolt with 5mm hexagonal spanner(Figure 2).
After all 3 bolts have been securely fastened, make sure there is no play in the
headset.
WARNING:
Do not over tighten the stem bolt. Over tightening the stem bolt can damage the
steering system and cause loss of control.
Figure 1
Figure 2 Figure 3
6
ASSEMBLY INSTRUCTIONS
For Folding Fatbike
Guide for folding:
Battery Operation For Folding Fatbike
To remove or insert the battery
The battery is fully inserted in the battery holder, to remove the battery, turn the key
to the "Off" position and press the key to "UNLOCK" position, lift the battery vertical
from top side of the battery, and remove or insert the battery. The key switch must be
in the unlock position to slide the battery in and out.
Power on/off switch ( See Figure 1 )to turn on/off the power. Switch to "on"
position.
Charging of battery
To charge the battery, plug the charger into an AC outlet. Then plug the charger plug
into the charging port on the bike(see Figure 2).
Figure 1 Figure 2
How to fold head stem vertically.
How to fold frame.
7
ASSEMBLY INSTRUCTIONS
For Front wheel
CAUTION: Your Electric bike is equipped with a front disk brake. Be careful not to
damage the disk, caliper or brake pads when reinserting the disk into the caliper.
Never activate a disk brake’s control lever unless the disk is correctly inserted in the
caliper.
Your bicycle may be equipped with a different securing method for the front wheel
(1) With the steering fork facing forward, insert the wheel between the fork blades so
that the axle seats firmly at the top of the fork dropouts. The cam lever should be on
rider’s left side of the bicycle (fig. 4-1)
(2) While pushing the wheel firmly to the top of the slots in the fork dropouts, and at
the same time centering the wheel rim in the fork:
With a cam action system, move the cam lever upwards and swing it into the CLOSED
position (fig. 4-1). The lever should now be parallel to the fork blade and curved
toward the wheel. To apply enough clamping force, you should have to wrap your
fingers around the fork blade for leverage, and the lever should leave a clear imprint
in the palm of your hand.
NOTE: If, on a traditional cam action system, the lever cannot be pushed all the
way to a position parallel to the fork blade, return the lever to the OPEN
position. Then turn the tension adjusting nut counterclockwise one quarter
turn and try tightening the lever again.
WARNING: Securely clamping the wheel with a cam action retention device takes
considerable force. If you can fully close the cam lever without wrapping your fingers
around the fork blade for leverage, the lever does not leave a clear imprint in the
palm of your hand, and the serrations on the wheel fastener do not emboss the
surfaces of the dropouts, the tension is insufficient. Open the lever; turn the tension
adjusting nut clockwise a quarter turn; then try again.
Spin the wheel to make sure that it is centered in the frame and clears the brake pads;
then squeeze the brake lever and make sure that the brakes are operating correctly.
(3) Hex nuts or hex key bolts which are threaded on to or into the hub axle. (bolt-on
wheel, fig. 4-4 )
8
ASSEMBLY INSTRUCTIONS
For seat post and pedals
Make sure the seat is tight enough so that you can’t twist it out of alignment.
Pull the seat clamp handle away from the seat post and slide the seat up
or down to adjust it . Move the clamp handle inward toward the
seat post so it is held tight by the clamp.
If necessary, tighten the clamp by twisting the clamp handle clockwise while in the
unclamped position. Then, fold the handle in toward the seat post. This should
require a fair amount of force to ensure the seat post is held tight. If necessary, the
clamp can be further tightened with a 5 mm allen wrench while in the clamped
position. Make sure the seat is not set with the vertical maximum height marks above
the clamp.
Using the 15 mm wrench provided in the tool
kit, attach and tighten the pedals. PLEASE
NOTE –The pedals are marked “L”for Left
and “R”for Right. The left pedal is attached
by turning it counterclockwise and the right
pedal is tightened by turning it clockwise.
Make sure the pedals are tightly attached
to the crank arms to prevent stripping.
TORQUE SPECIFICATIONS
9
OPERATING PROCEDURES
For Flash

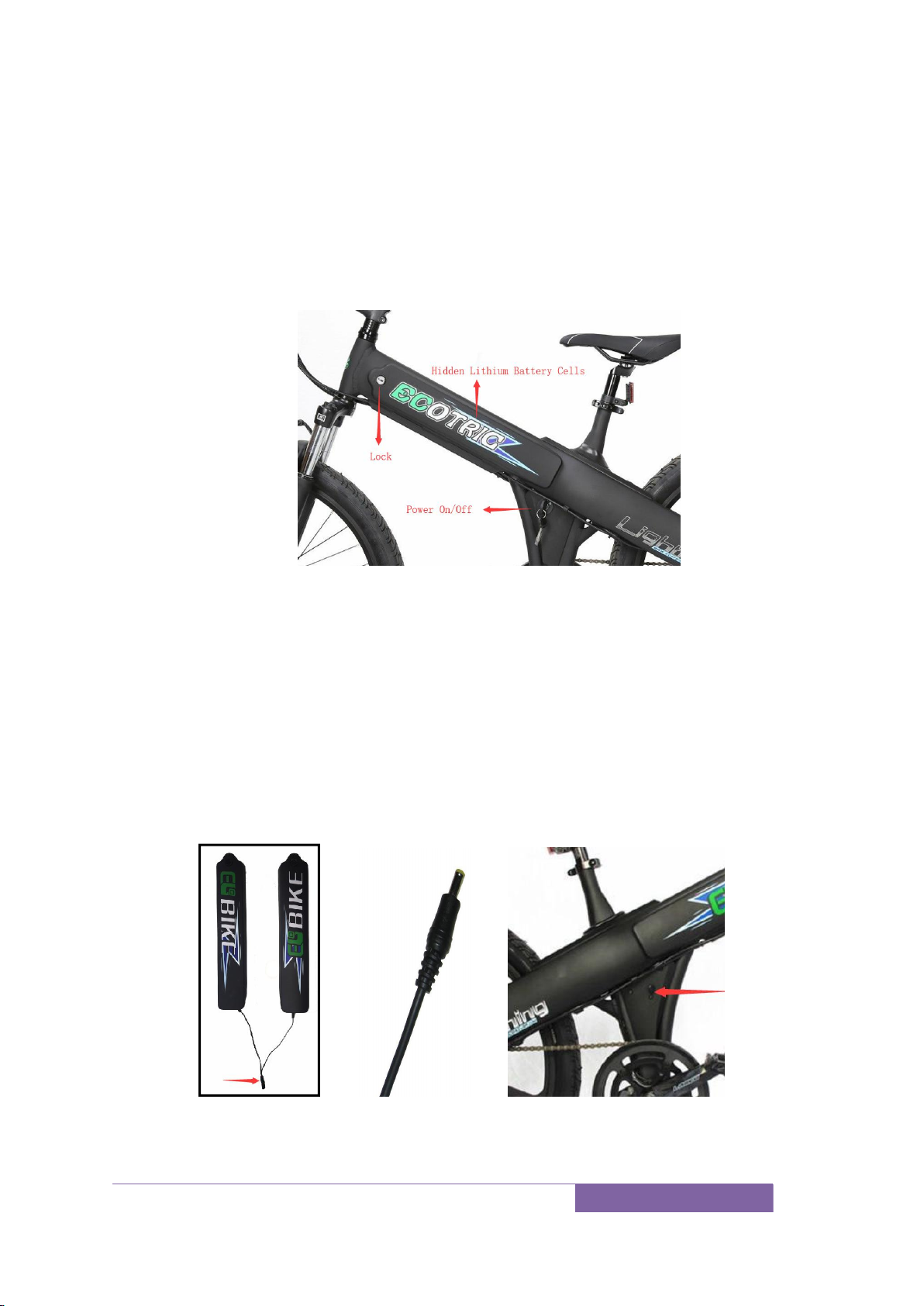

Removable hidden lithium batteries on each side frame, already mounted with
locks (Figure 1). The battery must be locked when riding or it may fall out. The
keys for battery locks also operate power on/off switch which is located under
the seat post (Figure 1).
Figure 1
Charging of battery
Included with your new bike is a lithium ion battery, along with a charger, which
plugs into a standard household electric receptacle. The battery may be charged while
on the bike (Figure 3) or removed (Figure 1) and charged at a location away from the
bike. The battery is easily removed by turning the key switch to the open/unlock
position.
To charge the battery, plug the charger into an AC outlet. The LED indication
light should be green showing the charger is working normally. Then plug the charger
plug (Figure 2) into the charging port on the bike (Figure 3) or removed batteries
(Figure 1) with a combination of cable divided into 2 cables.
Figure 1
Figure 2
Figure3
10
OPERATING PROCEDURES
For Seagull
To remove or insert the battery
Removable battery under the seat. Lift up the seat by loose the seat clamp(Figure 1)
to create room to insert and remove the battery, move the seat away from the bike,
turn the key to the "Off" position and press the key to "UNLOCK" position, Lift up the
hand shank on the top of the battery (Figure 2) and remove or insert the battery. The
key switch must be in the unlock position to slide the battery in and out.
Charging of battery
To charge the battery, plug the charger into an AC outlet. The LED indication
light should be green showing the charger is working normally. Then plug the charger
plug(Figure 2) into the charging port on the bike(red arrow on Figure 3).
Figure 1
Figure 2
Figure 1
Figure 2
