EchoLife HG8121H GPON Terminal

Quick Start

Safety Information

To use the device properly and safely, read the safety precautions carefully before using

the device and strictly observe these precautions when using the device.

Safety precautions:

Store devices and accessories in temperature –10°C to +35°C and relative

humidity 30%–85% RH for at most 9 months. If the ambient temperature or relative

humidity is overhigh or overlow, the device may be faulty.

Used only indoors. Do not lead metallic cables, such as network cables and

telephone lines outdoors.

Do not look directly into the optical port without eye protection.

Keep the device out of the reach of children as the components or accessories

may be swallowed.

Install the device in strict compliance with the requirements of the supplier.

Reserve a space of at least 10 cm above and around the device for heat

dissipation. During the installation, keep the device away from electric appliances

that generate strong magnetic or electric ﬁelds, such as microwave ovens,

refrigerators, and mobile phones.

The described input voltage range should comply with the local power grid. For

example, the input voltage of the adapter is 200–240 V AC for European Union;

the input voltage of the adapter is 100–140 V AC for America.

If the power adapter is damaged and its internal circuit is exposed due to

manmade factors, do not touch the exposed circuit, which may bring safety risks.

Only power adapters delivered with the device can be used. Otherwise, the device

may be abnormal or unsecure.

Dry your hands before connecting or disconnecting cables. Stop the device and

switch off the power before connecting or disconnecting cables.

Do not place any object on the device, so that the device will not be damaged due

to overheating or deformation.

Prevent objects, such as metal, from entering the device through the heat

dissipation hole.

Switch off the power and disconnect all cables, including the power cable, optical

ﬁber, and network cable, during periods of lightning activities. The socket-outlet

shall be installed near the power adapter and shall be easily accessible. Before

use the power adapter, please check no damage on the adapter.

Do not lead the strength member of the optical ﬁber or other metal parts indoors.

Do not install telephone lines, network cables, power adapters or power adapter

cables outdoors. Adopting these measures will help prevent device damage and

bodily injuries which are especially prone during thunderstorms.

If an abnormality occurs, for example, liquid entering the device, smoke, unusual

sound, and smell, stop the device immediately, switch off the power, disconnect all

cables (such as the power cable, optical cable, and network cable) to the device,

and contact the authorized service center.

Do not disassemble the device without permission. In the case of a device fault,

contact the authorized service center.

Dispose of the packing materials, expired batteries, and old or abandoned devices

in accordance to local laws and regulations (recycling them is strongly

recommended).

Do not change the structure, safety design, or performance design of the device

without prior authorization.

The device should be installed and operated with a minimum distance of 20 cm

between the radiator and your body.

Fireproof precautions:

Keep the device away from large heat source equipment, bare flames, and

high-power devices, such as electric heaters, candles, and blow drier, to eliminate

safety risks.

If there are aged cables or power socket facilities on the power supply line to or

near the device, replace them in time to eliminate safety risks. The power supply

voltage of the device must meet the input voltage requirement.

Product Overview

Product Function

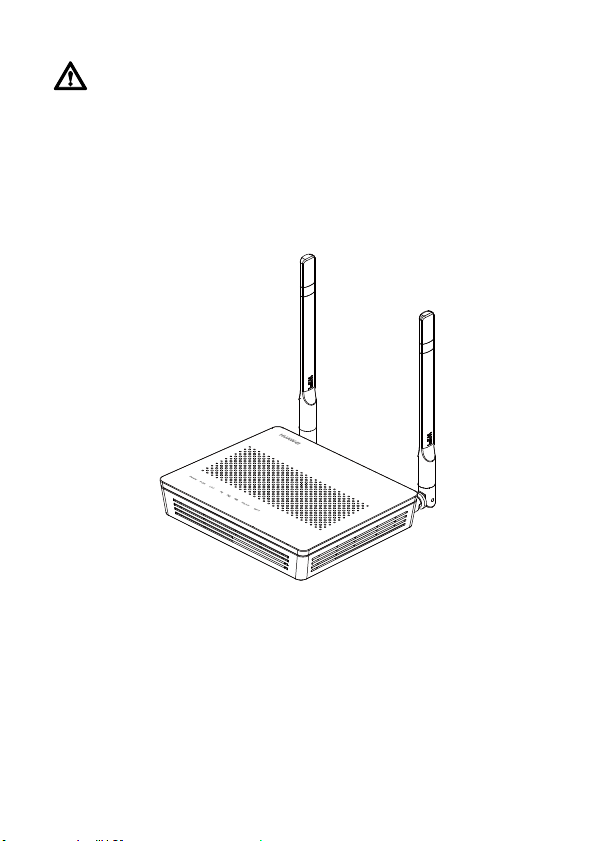

HG8121H

1 GE + 1 FE

1 POTS port

Wi-Fi access

Technical Specifications

Item Speciﬁcations

Dimensions (L x W x H) 156 mm x 125 mm x 28 mm (without an

external antenna)

Weight (including the power

adapter) less than 1000 g

System power supply See the nameplate on the device

Power adapter input See the nameplate on the adapter

Maximum power consumption ≤ 12 W

Operating temperature 0ºC – +40ºC

Operating humidity 5%–95% RH (non-condensing)

If the appearance of the product in this document differs from the actual product, the actual

product prevails.

NOTE

Installing the GPON Terminal

1. Do not install GPON terminals outdoors or on the outdoor cabinets.

2. GPON terminals can be mounted onto a wall or be placed on a workbench. Do not install

GPON terminals in other modes, such as the ceiling.

3. The terminal cannot be connected to other devices such as GPON terminals, switch and

router.

Mounting a GPON terminal on the desk

The figure below shows a GPON terminal that is horizontally placed on a desk.

Mounting a GPON terminal onto the wall

Step 1 Mark the positions of two holes used for mounting a GPON terminal,

ensure that the two holes have the same spacing as the two mounting

holes.

Step 2 Select a proper drill according to the outer diameter of the screws. Use a

hammer drill to drill the marked positions on the wall. Then clean the wall

and install two expansion bolts.

Step 3 Use a screwdriver to fasten the screws into the expansion bolts, leaving

the heads of the screws 3 mm over the wall. Then install the GPON

terminal to the screws.

CAUTION

Connecting Cables

Power socket Phone

TV set

IP STB

Wi-Fi terminal

1 2 34

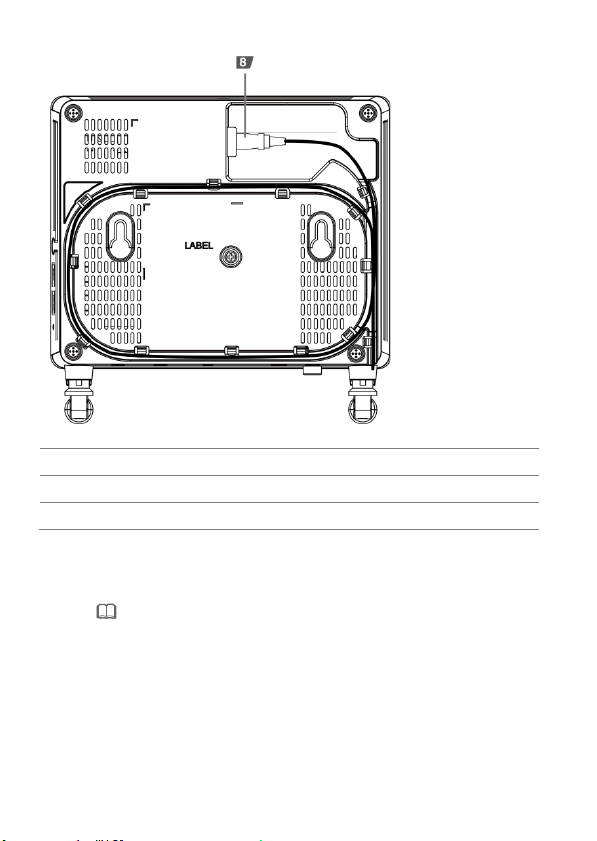

1. Power switch 2. Power port 3. POTS port

4. Ethernet ports 5. Reset 6. WLAN switch

7. WPS switch 8. Optical port

Step 1 Use an optical ﬁber to connect the optical port on the ONT and the optical

port on the wall.

Step 2 Use a network cable to connect the FE/GEport to a PC or the Ethernet

port on the IP STB.

Step 3 Use a phone line to connect the TEL port to a phone or fax machine.

Step 4 Use a power adapter to connect the POWER port to the power socket.

NOTE

The type of the optical connector connected to the optical port in the wall is determined

by practical conditions.

To ensure normal use of ﬁbers, make sure that the ﬁber bend radius is larger than 30

mm.

The preceding ﬁgure connects the power adapter as an example. When connecting the

backup battery unit, please see the usage guide to the backup battery for details.

Step 5 Press the ON/OFF power switch.

Step 6 Press the WLAN switch to enable the Wi-Fi access function. By default,

this function is enabled.

Step 7 Press the WPS switch to enable the WPS encryption function.

Before enabling the WPS encryption function of a GPON terminal, ensure that the

function is set in the system software in advance. After successful setting, press the

WPS switch for the settings to take effect.

Logging in to the Web Configuration Window

Step 1 Set the IP address of the PC in the same subnet as the management IP

address of the GPON terminal.

You can ﬁnd the default management IP address on the nameplate of the device.

Step 2 Enter the management IP address of the GPON terminal in the address

bar of Internet Explorer and press Enter. The login window is displayed.

Step 3 In the login window, select your preferred language, enter the user name

and password (printed on the nameplate of the device.), and click Login.

After the password is authenticated, the Web configuration window is

displayed.

Configuring Wi-Fi Parameters

Step 1 Choose the WLAN tab and choose Basic Network Settings.

Step 2 In the pane, select the Enable WLAN option box. In the dialog box that is

displayed, set the basic Wi-Fi parameters, including the SSID,

authentication mode, and encryption mode.

NOTE

If you do not perform any operations after logging in to the system for ﬁve minutes, you

will exit the system and the system automatically returns to the login interface.

The system will be locked if you input incorrect user name and password three

consecutive times. One minute later, it will be unlocked.



Change the initial password after logging in to the web page.

Step 3 Click Apply.

HG8121H supporting Wi-Fi, a wireless network coverage is subject to the number,

thickness, and positions of walls, material, ceilings, or other objects that radio signals

traverse. Besides, material type and background radio frequency (RF) noise also affect the

coverage of a wireless network. You can maximize the coverage of a wireless network

using the following methods:

1. Decrease the number of walls and ceilings between HG8121H and other

network devices.

Each wall or ceiling reduces the coverage of a wireless network by 1 to 30 meters.

Install HG8121H at a proper place to avoid walls or ceilings whenever possible.

2. Observe the straight line rule when installing network devices.

The distance for which signals have to traverse at a 45° corner of two 0.5 meter-thick

walls reaches approximately 1 meter. Therefore, place devices at places where

signals can directly traverse walls or ceilings.

3. Note the impact of building materials on the wireless network coverage.

A metal door or aluminum wall may limit the coverage of a wireless network. Install

access points, wireless routers, and computers, so signals can traverse walls or open

passageways. Materials and objects such as FRP products, metal products, insulative

walls, filing cabinets, bricks, and concrete weaken radio signals.

4. When connecting HG8121H to a wireless network, keep it far from the

following devices:

5. Do not use the HG8121H in public scenarios, such as cafe and store,

because it is designed for only residential applications.

6. You are advised to connect a maximum of 10 terminals through Wi-Fi for

user experience.

NOTE

SSID: See the nameplate on the device. SSID indicates the name of a wireless

network searched by the Wi-Fi terminal

WPA PreSharedKey: See the nameplate on the device. W PA PreSharedKey

indicates the authentication password for the Wi-Fi terminal to access a wireless

network.

Electronic devices or components that produce RF noises. (Keep a distance of more

than 2 meters between such a device andHG8121H.)

2.4 GHz wireless mobile phones and X-10 devices (such as microwave ovens, home

security systems, blue-tooth devices, and refrigerators) greatly weaken or even

eliminate wireless signals. Even when a 2.4 GHz wireless mobile phone is not

connected to a wireless network, the phone base still sends signals that interfere the

wireless network.

Indicator Description

Table 1-1 Indicator status description 1

LED

Status

Description

POWER

Green: Steady on

The device is powered on.

Off

The power supply is cut off.

PON

See Table 1-2

LOS

See Table 1-2

TEL

Steady on

The terminal is registered with the softswitch

but no service flows are transmitted.

Blinking

Service flows are transmitted.

Off The terminal is not powered on or fails to be

registered to the softswitch.

GE/FE Steady on The Ethernet connection is in the normal

state.

Blinking

Data is being transmitted on the Ethernet

port.

Off

The Ethernet connection is not set up.

WLAN

Steady on

The WLAN function is enabled.

Blinking

Data is being transmitted on the WLAN port.

Off

The WLAN function is disabled.

WPS

Steady on

The WPS function is enabled.

Blinking

A Wi-Fi terminal is accessing the system.

Off

The WPS function is disabled.

Table 1-2 Indicator status description 2

Status

No.

Status

Description

PON

LOS

1 Off Steady on The GPON terminal is prohibited by the

upper-layer device, contact the service

provider for help.

Blinks

twice a

second

Off The GPON terminal attempts to set up a

connection with its upper-layer device.

3 Steady on Off

A connection is set up between the

GPON terminal and its upper-layer

device.

4 Off Blinks

once two

seconds

The GPON terminal is not connected to

optical fibers or does not receive optical

signals.

Blinks

twice a

second

Blinks

once two

seconds

The GPON terminal is a rogue terminal,

contact the service provider for help.

Blinks

once two

seconds

Blinks

once two

seconds

The hardware is faulty.

Disposal and recycling information

The crossed-out wheeled-bin symbol on your product, battery, literature or

packaging reminds you that all electronic products and batteries must be

taken to separate waste collection points at the end of their working lives; they

must not be disposed of in the normal waste stream with household garbage.

It is the responsibility of the user to dispose of the equipment using a

designated collection point or service for separate recycling of waste electrical and

electronic equipment (WEEE) and batteries according to local laws.

Proper collection and recycling of your equipment helps ensure electrical and electronic

equipment (EEE) waste is recycled in a manner that conserves valuable materials and

protects human health and the environment, improper handling, accidental breakage,

damage, and/or improper recycling at the end of its life may be harmful for health and

environment. For more information about where and how to drop off your EEE waste,

please contact your local authorities, retailer or household waste disposal service or visit

the website www.huawei.com/en/product-certification.

Reduction of hazardous substances

This device and any electrical accessories are compliant with local applicable rules on the

restriction of the use of certain hazardous substances in electrical and electronic

equipment, such as EU REACH, RoHS and Batteries (where included) regulations, etc.

For declarations of conformity about REACH and RoHS, please visit our web site

www.huawei.com/en/product-certification.

FAQ

The LOS indicator blinks.

If the LOS indicator blinks once two seconds, check whether the pigtail fiber is

properly connected and the connector is clean.

If the GPON terminal blinks twice a second, contact the service provider for

help.

The PON indicator is off.

Check whether the OPTICAL port and optical fiber is properly connected.

The GPON terminal fails to register with the upper-layer device. Contact the

service provider for help.

The phone does not ring upon an incoming call but communication

is in normal state when the phone is in off-hook state.

The GPON terminal provides a maximum of 60 V AC ringing current voltage.

Check whether the ringing current voltage of the phone is higher than 60 V AC.

If it is higher than 60 V AC, replace it with another phone.

How to reset the GPON terminal?

Press Reset by using a needle-type object.

How can I restore factory defaults?

Press Reset by using a needle-type object for longer than 10s to restore

factory defaults and reset the GPON terminal. If the indicator is off and then is

lit, the system restarts successfully.

Table des matières

Autres manuels EchoLife Terminal tactile

EchoLife

EchoLife HG8145V Manuel utilisateur

Manuels Terminal tactile populaires d'autres marques

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Manuel utilisateur

Ingenico

Ingenico AXIUM EX4000 Manuel utilisateur

Heisei Electronics

Heisei Electronics Q-POS 815 Manuel utilisateur

Amano

Amano MTX-15 Manuel utilisateur

FLOWBIRD

FLOWBIRD CWT Compact Touch Manuel utilisateur

Demco

Demco SP7 Manuel utilisateur

Lathem

Lathem PC600 Series Manuel utilisateur

Partner

Partner MF-2352 Manuel utilisateur

NCR

NCR RealPOS 7460-2 Manuel

Simrad

Simrad MS50 Instructions de montage

Unitech

Unitech MR350 MKII Guide de démarrage rapide

Jungheinrich

Jungheinrich WMT 210 Manuel utilisateur

Motorola

Motorola MTP850 Manuel utilisateur

YASKAWA

YASKAWA 62H-MDC0 Manuel utilisateur

MVG industries

MVG industries NeptuLink Manuel utilisateur

Price Industries Limited

Price Industries Limited FDC Manuel d'instructions

Honeywell

Honeywell TemaKey Manuel utilisateur

EBN

EBN BPC65-B-A16G Manuel utilisateur
