Echogear ECHO-GM1FC Manuel utilisateur

#YourGearUpgraded

INSTRUCTION MANUAL

Model Echo-gm1Fc

Single Screen

Monitor Mount for Gaming

WEIGHT RESTRICTIONS

Each monitor (including accessories)

CANNOT EXCEED:

20 lbs.

(9.0 kg)

IMPORTANT SAFETY INSTRUCTIONS. READ ENTIRE MANUAL PRIOR TO quest. SAVE These INSTRUC

TIONS.

Before You EmBark on your Quest... just read it so you don’t get pwned!

Please read through these instructions completely and check your monitors' owner manual to see if there

are any special requirements for mounting your monitor.

CAUTION: Manufacturer is not responsible for damage or injury caused by incorrect

assembly or use. To avoid potential personal injuries, property damage and tipping:

►Your mounting surface must be stable and rugged enough to support the weight and motion of the

monitor and mount.

►Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

“You even lift, Brah?....

Ok, even if you do... doooon’t do it.”

If you do not understand these instructions, are a noob or have doubts

about the safety of the installation, assembly or use of this product, contact:

The Echogear Pros @ 1-855-428-2490 or www.echogear.com.

"Hopefully you are unscathed after detonating

the mount from the packaging!..."

Contact The Echogear Pros:

1-855-428-2490

www.echogear.com

DESKTOP

THICKNESS

BFG

Yo Hands

Power up! Grab These Tools from Your arsenal

Size up Your Mounting Surface

Unsure?

UUUUHHH ?!?

Phillips

Screwdriver Apple

Required to Get the Job Done

Optional Based on Skill Level

"No

snapin

pics for

twitter

til your

done!"

Mini-Nuke

Pump

Refreshment Saw

"Phil is

the boss"

0.8 in. -2.6 in.

(20 mm - 66 mm)

Hex Keys

BOnus Loot!

3 FREE Inside Every Box

⁄

⁄

⁄

"A.K.A

Allen Wrench"

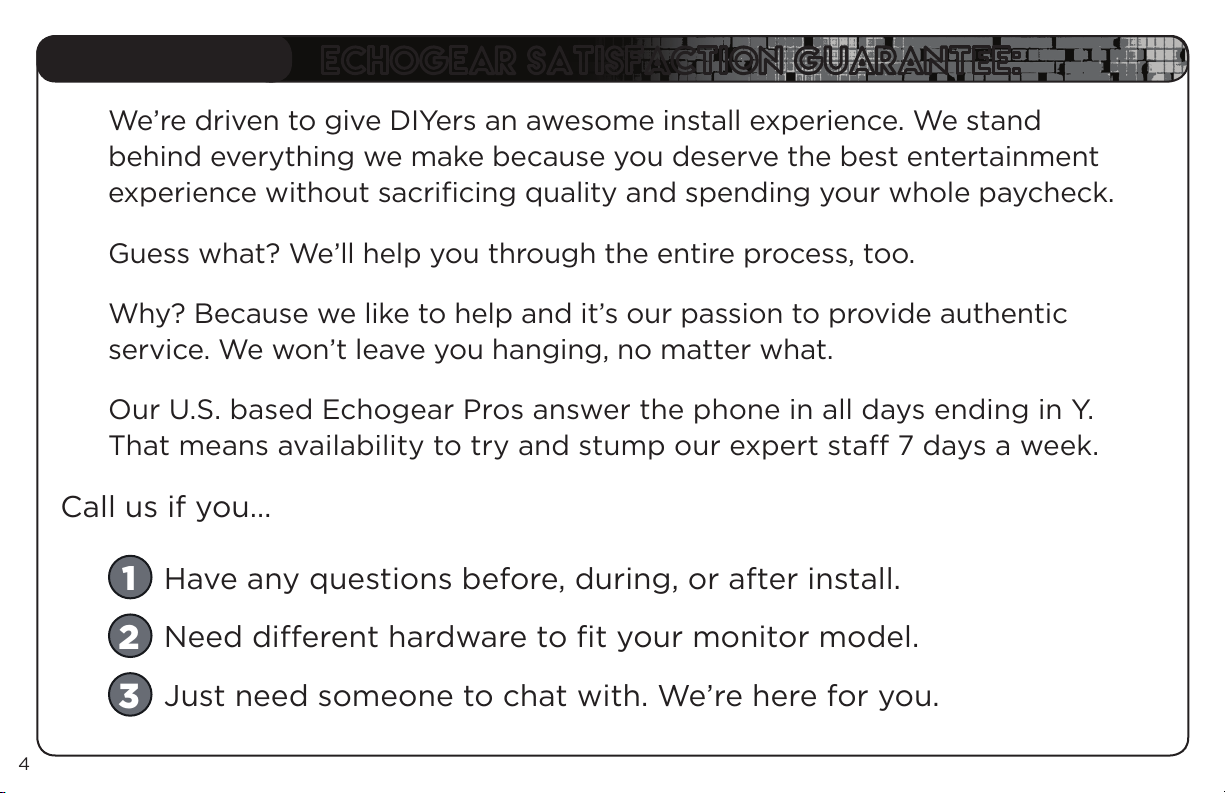

We’re driven to give DIYers an awesome install experience. We stand

behind everything we make because you deserve the best entertainment

experience without sacriﬁcing quality and spending your whole paycheck.

Guess what? We’ll help you through the entire process, too.

Why? Because we like to help and it’s our passion to provide authentic

service. We won’t leave you hanging, no matter what.

Our U.S. based Echogear Pros answer the phone in all days ending in Y.

That means availability to try and stump our expert sta 7 days a week.

Call us if you…

1Have any questions before, during, or after install.

2Need dierent hardware to ﬁt your monitor model.

3Just need someone to chat with. We’re here for you.

Echogear Satisfaction Guarantee:

ONE MORE THING ...

WARNINGS:

DON'T ALLOW CHILDREN TO FEED ON CONTENTS AND NEVER USE DAMAGED GOODS!

►This product contains small items that are a choking hazard if swallowed.

►Before you start assembly, verify all parts are included and undamaged. If any parts are missing

or damaged, do not return the damaged item to your dealer; contact Customer Service.

Here's your Loadout

GEAR FOR LEVEL 1

1 Full Motion

Desk Mount

5 Bumpers

4 Screws

M4 X 12mm

4 Screws

M4 X 30mm

4 Spacers

5mm

4 Spacers

22mm

Gear FOR Level 2

Gear FOR Level 3

1 Cable

Covers

2 Screws

8-32 x 3/8 in

STAGE 1: Plaster Soft Bumpers+5 on Desk Clamp

Level 1 Lock N' LOAD! Clamp Mount to Desk

STAGE 1: Loosen Screw on Mount to Lower Clamp

USE HEX KEY

TO LOWER CLAMP.

STAGE 2:

Tighten Screw To

Attach Clamp to Desk

USE HEX KEY

TO SECURELY

CLAMP IT DOWN.

Level 2 Make The DROP! Attach Monitor to Mount

Select

Spacers

(if needed)

Flat Monitor

NEEDED FOR

NOT NEEDED

Select

Screws

Bracket

Short Screw

Spacer

Long Screw

Bracket

5/6

STAGE 1: Determine Screw Length and Spacer Size

Round

Monitor

Inset

Holes Cables

Flat

Monitor
