Echo CS-310 Manuel utilisateur

X7503275401

Operator’s

Manual

CS-310

CHAIN SAW

The engine exhaust from this product contains chemicals

known to the State of California to cause cancer, birth defects,

or other reproductive harm.

Read and understand all provided literature before

use. Failure to do so could result in serious injury.

This product complies with CAN ICES-2/NMB-2.

TABLE OF CONTENTS CS-310

2 X7503275401

TABLE OF CONTENTS

Introduction ................................................................................................. 4

Servicing Information .................................................................................. 5

Parts/Serial Number............................................................................. 5

Service................................................................................................. 5

ECHO Consumer Product Support...................................................... 5

Product Registration ............................................................................ 5

Additional Literature............................................................................. 5

Packing List................................................................................................. 6

Safety.......................................................................................................... 6

Rules For Safe Operation .................................................................... 6

Correct Use Of Chain Brake ................................................................ 8

Personal Condition and Safety Equipment ........................................ 12

International Symbols ........................................................................ 16

Manual Safety Symbols and Important Information ........................... 18

Emission Control (Exhaust & Evaporative) .............................................. 19

CARB And EPA Emissions Control Information ................................ 19

Description ................................................................................................ 20

Preparation For Use........................................................................... 22

Operation .................................................................................................. 25

Fuel.................................................................................................... 25

Chain Lubricant.................................................................................. 28

Winter Operation................................................................................ 29

Starting Cold Engine.......................................................................... 29

Starting Warm Engine........................................................................ 31

Running ............................................................................................. 33

Stopping............................................................................................. 34

Checking Chain Tension.................................................................... 34

Chain Lubrication Test....................................................................... 34

Cutting Instructions ............................................................................ 35

Chain And Guide Bar Combination.................................................... 39

Guide Bar........................................................................................... 40

Saw Chain ......................................................................................... 40

CS-310 TABLE OF CONTENTS

X7503275401 3

Maintenance ............................................................................................. 41

Skill Levels ........................................................................................ 41

Maintenance Intervals ....................................................................... 42

Carburetor Adjustment ...................................................................... 43

Air Filter ............................................................................................. 44

Spark Plug......................................................................................... 45

Check Fuel System ........................................................................... 45

Fuel Filter .......................................................................................... 45

Oil Filter ............................................................................................. 46

Guide Bar .......................................................................................... 46

Sprocket ............................................................................................ 46

Cooling System Cleaning .................................................................. 47

Spark Arrestor Muffler ....................................................................... 47

Spark Arrestor Screen....................................................................... 48

Exhaust Port Cleaning....................................................................... 48

Setting The Saw Chain...................................................................... 49

Troubleshooting........................................................................................ 52

Storage ..................................................................................................... 54

Long Term Storage (Over 30 Days) .................................................. 54

Specifications ........................................................................................... 55

Product Registration ................................................................................. 56

Notes......................................................................................................... 58

INTRODUCTION CS-310

4 X7503275401

INTRODUCTION

Specifications, descriptions and illustrative material in this literature are as

accurate as known at the time of publication, but are subject to change

without notice. Illustrations may include optional equipment and

accessories, and may not include all standard equipment.

Read and understand all provided literature.

Literature contains specifications and

information for safety, operation,

maintenance, storage and assembly specific

to this product. Scan QR codes for more

information.

For additional literature, including safety manuals where applicable, or

questions regarding terms used in this manual, visit:

https://www.echo-usa.com/manuals

https://www.shindaiwa-usa.com/manuals

CS-310 SERVICING INFORMATION

X7503275401 5

SERVICING INFORMATION

Parts/Serial Number

Genuine ECHO Parts and

Assemblies for your ECHO products

are available only from an Authorized

ECHO Dealer. When you do need to

buy parts always have the Model

Number and Serial Number of the unit

with you. For future reference write

them in the space provided below.

Model No. _______________

Serial No. _______________

Service

Service of this product during the warranty period must be performed by an

Authorized ECHO Service Dealer. For the name and address of the

Authorized ECHO Service Dealer nearest you, ask your retailer or call:

1-800-432-ECHO (3246). Dealer information is also available on our Web

Site www.echo-usa.com. When presenting your unit for Warranty service/

repairs, proof of purchase is required.

ECHO Consumer Product Support

If you require assistance or have questions concerning the application,

operation, or maintenance of this product, call the ECHO Consumer

Product Support Department at 1-800-673-1558 from 8:00 am to 5:00 pm

(Central Standard Time) Monday through Friday. Before calling, please

know the model and serial number of your unit.

Product Registration

out the product registration sheet included in this manual. Registering your

product confirms warranty coverage and provides a direct link to ECHO if

we find it necessary to contact you.

Additional Literature

In addition to finding information online, information is available from your

Authorized ECHO Service Dealer, or by contacting ECHO Inc., 400

Oakwood Road, Lake Zurich, IL 60047 (800-673-1558).

PACKING LIST CS-310

6 X7503275401

Safety Videos are available from your Authorized ECHO Service Dealer. A

$5.00 shipping charge is required for each video.

PACKING LIST

The ECHO product you purchased has been factory pre-assembled for your

convenience. Due to packaging restrictions, some assembly may be

necessary.

After opening the carton, check for damage. Immediately notify your retailer

or ECHO Dealer of damaged or missing parts. Use the contents list to check

for missing parts.

SAFETY

Rules For Safe Operation

1. Fatigue causes carelessness. Be more cautious

before rest periods and before the end of your shift.

2. Personal protective clothing required by your safety

organizations, government regulations, or your

employer should be used; otherwise, snug fitting

clothing, protective eye wear, safety footwear and

hand, leg and hearing protection should be worn.

Note: Personal protective

clothing should meet the

requirements of

applicable Standards.

3. Before fueling, servicing or

transporting your chain saw

switch off the engine. To help

prevent fire, restart your chain

saw at least 3 m from the fueling

area.

4. When using a chain saw a fire extinguisher should be available.

1 Power Head

1 Operator's Manual

1 Warranty Statement

1 Guide Bar

1 Saw Chain

1TipGuard

Rotational kickback

CS-310 SAFETY

X7503275401 7

5. When felling, keep at least 2 tree

lengths between yourself and

your fellow workers.

6. Plan your work; assure yourself

of an obstacle-free work area

and, in the case of felling, have at

least one escape path from the

falling tree prepared in advance.

7. Follow instructions in your

operator’s manual for starting the

chain saw and control the chain saw with a firm grip on both handles

when it is in operation. Keep handles dry, clean and free of oil. A chain

saw should never be carried with the engine running.

8. When transporting your chain

saw, use the appropriate

transportation covers that should

be available for the guide bar and

saw chain.

9. Never operate a chain saw that is

damaged, improperly adjusted,

or is not completely and securely

assembled. Be sure that the saw

chain stops moving when the

throttle control trigger is released. Never adjust the guide bar or saw

chain when the engine operating.

10. Beware of carbon monoxide

poisoning. Operate the chain saw

in well-ventilated areas only.

11. Do not attempt a pruning or

liming operation in a standing

tree unless specifically trained to

do so.

12. Guard against kickback.

Kickback is the upward motion of

the guide bar, which occurs when the saw chain, at the nose of the

guide bar, contact an object. Kickback can lead to dangerous loss of

the chain saw.

TO AVOID KICKBACK:

a. Contact of the guide bar tip with any object should be avoided.

b. Tip contact may cause the guide bar to move suddenly upward and

backward which may cause serious injury.

c. Always use two hands when operating the chain saw.

d. Use a firm grip, thumbs and fingers encircling the handles.

e. Don’t overreach.

Rotational kickback

Chain moving downward at impact

Kickback Danger Zone

Linear kickback

Kickback

Pinch

SAFETY CS-310

8 X7503275401

f. Avoid cutting above shoulder height.

g. Follow the manufacturer’s instructions for sharpening and

maintenance of the saw chain.

13. When boring with the chain saw, the initial cut should be introduced

with the lower part of the nose (tip) until the hole is sufficiently large so

as to introduce the entire nose (tip) of the guide bar. This technique

should reduce the danger of kickback.

14. A chain saw is intended for two-handed use. Serious injury to the

operator, helpers and/or bystanders may result from one-handed

operation.

a. Allow your chain saw to cool before refueling, and do not

smoke while refueling.

b. Do not allow other persons or animals close to running chain

saw or close to where a tree is being felled.

c. Use extreme caution when cutting small size brush and

saplings because slender material may catch the saw chain

and be whipped toward you.

d. When cutting a limb that is under tension be alert for spring-

back.

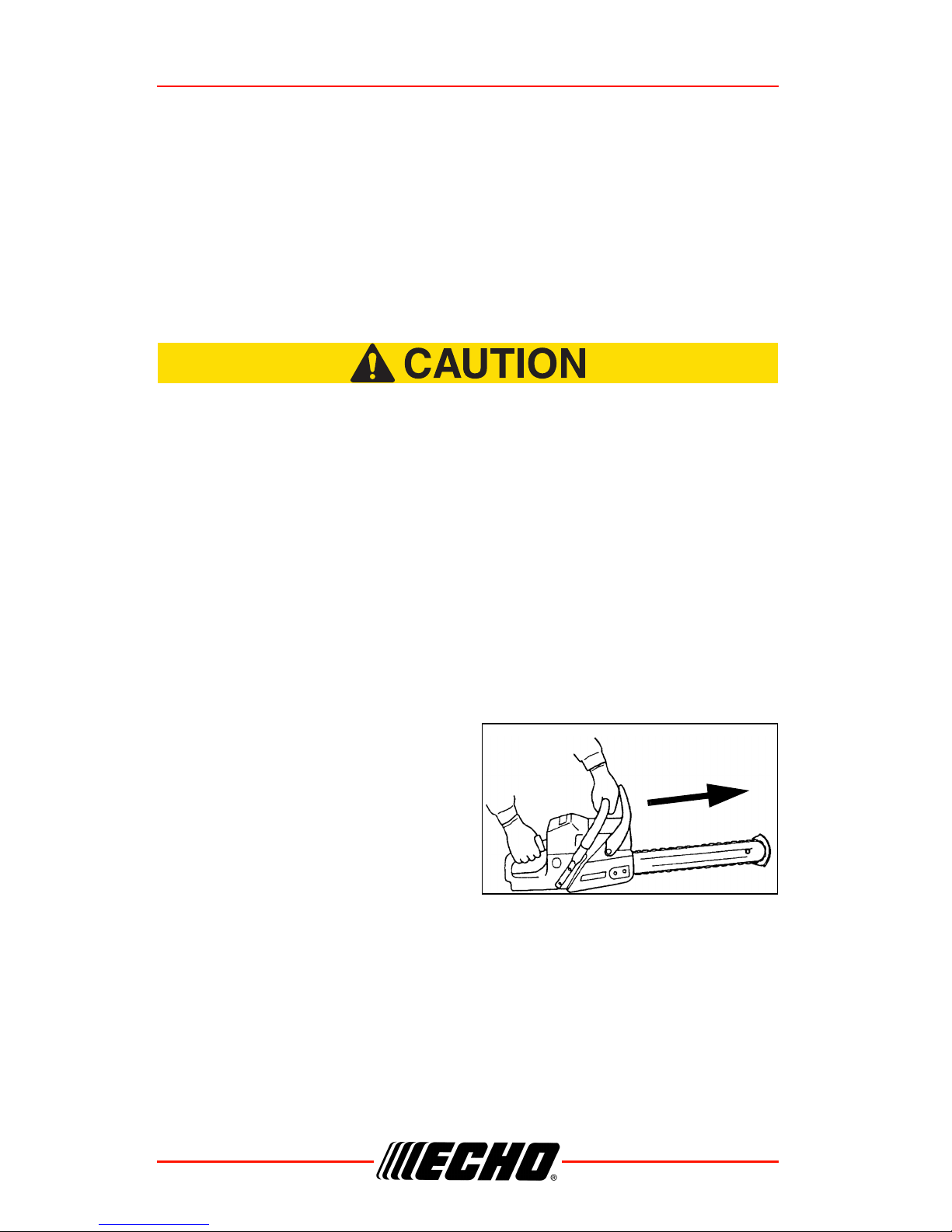

Correct Use Of Chain Brake

CHAIN BRAKE OPERATION

• Set the lever in the unlocked

position before starting to cut.

• If the brake is tripped by kickback

reaction, the chain will stop

immediately. Release the throttle to

avoid possible damage to the

engine or clutch.

• Do not attempt to operate the engine with the brake locked.

Locked

CS-310 SAFETY

X7503275401 9

TESTING THE BRAKE

• Start the engine on a solid level

surface and run at a fast idle until

warm.

• Hold the saw firmly by the handles

and accelerate the engine to a fast

idle.

• Slowly operate the chain brake

lever while holding the saw firmly on the ground. When the brake lever

trips, the chain should stop. Immediately release the throttle trigger.

Do not allow the saw to tip forward in order to avoid damage to the

chain.

If the chain does not stop immediately, return the saw to your

authorized dealer for repair.

Note:

• For practice, while cutting a small tree, push the lever forward to lock

the brake.

• Confirm that the brake works properly before each use.

• If the chain brake is clogged with wood chips, function of the brake may

deteriorate. Always keep the device clean.

• Do not increase engine RPM's while the chain brake is locked.

The installation of a chain brake may be mandatory by law or as stipulated

by insurance regulations in your area of operation. You should inquire

through local government offices, your employer or your local dealer to

ensure that your chain saw conforms to the required safety standard.

This chain brake has been designed and tested to comply with international

safety standards as follows.

Canada: CSA Standard Z62.1, Z62.3

USA: ANSI Standard B175.1 Safety Requirement for chain saws

Unlocked

SAFETY CS-310

10 X7503275401

CSA Z62.1, .3 stipulates that the brake shall stop the chain 0.12

seconds at an engine speed of 13,500 r/min. It is the

responsibility of the owner/operator to ensure that the brake is

serviced, adjusted and tested strictly in accordance with the

instructions as detailed herein in order to ensure that the brake

performance is maintained in compliance with the Standard

CSA Z62.1, .3.

AUTOMATIC CHAIN BRAKE

Kickback produced from the tip of

the guide bar will trip the automatic

chain brake. To make sure that the

automatic chain brake operates

properly, follow these steps:

1. Stop the engine.

2. Hold the saw with the guide

bar approximately 35 cm (14

in.) above a wooden surface.

Right hand should hold the

rear handle, and left hand

should hold the front handle.

3. Release the front handle and

drop the end of the guide bar

against the wooden surface.

4. The impact should lock the

chain brake.

When checking the operation of the automatic chain brake, use a soft

surface substance like wood to absorb the impact so the chain is not

damaged.

Chain saws shall be used in accordance with the operating

instructions and safety precautions listed in the operator's

manual(s). It shall be the responsibility of the owner to see that

such instructions and precautions are given to every operator

who uses the saw.

35 cm

(14 in.)

Autres manuels pour CS-310

Table des matières

Autres manuels Echo Tronçonneuse

Echo

Echo CS-400 - PARTS CATALOG SERIAL NUMBER C10013001001 -... Mode d’emploi

Echo

Echo CS-355T Manuel utilisateur

Echo

Echo CS-370 Manuel utilisateur

Echo

Echo CS-4510-18 Manuel utilisateur

Echo

Echo CS-330EVL Instructions d'utilisation et d'installation

Echo

Echo CS-302 Manuel utilisateur

Echo

Echo CS-352 Manuel utilisateur

Echo

Echo CHAIN SAW Guide de l'utilisateur

Echo

Echo CS-300, CS-340, CS-345 Mode d’emploi

Echo

Echo CS-2511T Manuel du propriétaire

Echo

Echo CS-370ES Manuel utilisateur

Echo

Echo CS-370 Manuel utilisateur

Echo

Echo CS-500VL Manuel utilisateur

Echo

Echo ECCS-58V Manuel utilisateur

Echo

Echo CS-346 Manuel utilisateur

Echo

Echo CS-1201 Manuel utilisateur

Echo

Echo CS-5000 Manuel utilisateur

Echo

Echo CS-8001 Series Instructions de montage

Echo

Echo CS-2510TES Manuel utilisateur

Echo

Echo CS-5100 Manuel utilisateur

Echo

Echo CS-4400 Instructions de montage

Echo

Echo CS-4510 Manuel utilisateur

Echo

Echo CHAIN SAW CS-330T Manuel utilisateur

Echo

Echo CS-303T Manuel utilisateur

Manuels Tronçonneuse populaires d'autres marques

Bushranger

Bushranger CS4210 Manuel utilisateur

Husqvarna

Husqvarna 136, 141 Manuel utilisateur

HART

HART HLCS01 Manuel utilisateur

Homelite

Homelite UH10817 Manuel utilisateur

Westfalia

Westfalia SCS 725 Manuel utilisateur

Nakayama

Nakayama EC2050 Manuel utilisateur

The Handy

The Handy THPCS16 Manuel utilisateur

McCulloch

McCulloch PRO MAC 54 Manuel

Husqvarna

Husqvarna 359 E-tech Manuel utilisateur

Craftsman

Craftsman 358.352162 Manuel utilisateur

Craftsman

Craftsman 358.350270 Manuel utilisateur

Craftsman

Craftsman 358.351610 Manuel utilisateur

Poulan Pro

Poulan Pro 545047544 Manuel utilisateur

Ryobi

Ryobi RY3714VNM Manuel utilisateur

Homelite

Homelite Ranger UT10926 Manuel utilisateur

McCulloch

McCulloch TimberBear TM502 Manuel utilisateur

SNOWJOE

SNOWJOE Sunjoe 20ViONLTE-CS10-RM Manuel utilisateur

Husqvarna

Husqvarna 346XP TrioBrake Mode d’emploi
