ECD MOLE EV6 Manuel utilisateur
QUICK REFERENCE GUIDE
1
CONTENTS
WELCOME.......................................................................................................................2
EQUIPMENT
FEATURES/FUNCTIONS..........................................................................................3
STATUS ACTIVITY LED............................................................................................ 4
HOME SCREEN ........................................................................................................5
MAIN MENU............................................................................................................6
SETUP
CHARGING THE POWER PACK..............................................................................7
SOFTWARE INSTALLATION ...................................................................................8
SOFTWARE AUTHORIZATION .............................................................................10
COMMUNICATIONS .............................................................................................11
OPERATION
INTRODUCTION....................................................................................................13
STEP 1: SETUP INSTRUMENT ..............................................................................14
STEP 2: DATA COLLECTION..................................................................................19
STEP 3: VIEW DATA ..............................................................................................22
STEP 4: DOWNLOAD DATA..................................................................................24
2
WELCOME
This Quick Reference Guide is designed to help the user to familiarize themselves with the
equipment, perform basic hardware setup/communications and operation. For detailed
information on both Hardware & Software components, please refer to the Help system
accessible in the M.O.L.E.™ MAP Software.
To access the help system start the software and use any of the methods listed:
• Select the Help Button on the Toolbar.
• Pressing the shortcut key [F1]
• On the Help menu, click MAP Help.
3
EQUIPMENT
FEATURES/FUNCTIONS
Display:
The touch screen interface
of the thermal proler.
Thermocouple/Inputs:
This is where type “K”
thermocouple sensors are
connected.
Data/Charging Port:
Transfers data to/from a
computer & charges the
internal battery.
LED:
Indicates various statuses
of the thermal proler.
ON/OFF Button:
Turns Proler “ON/OFF”. Record Button:
Starts/Stops thermal
proler recording data.

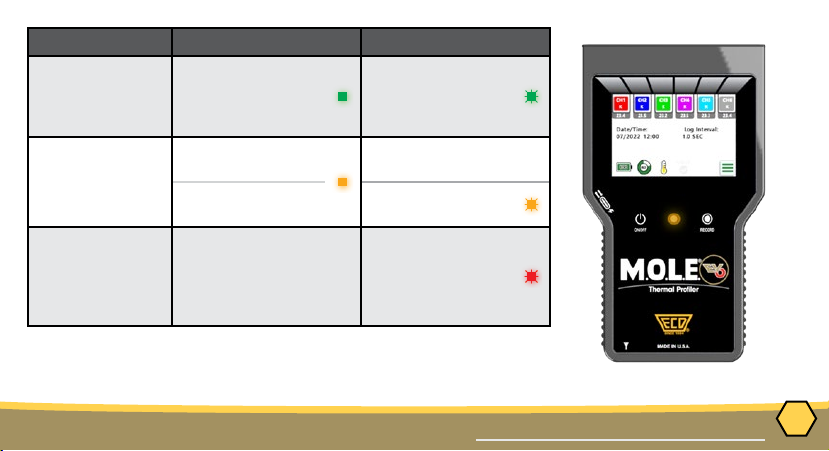

LED Color Solid Flashing
Green Indicates thermal proler is
“ON” and idle
Indicates thermal proler is
recording data. (Log Interval: 1
sec., ash each log, < 0.5 sec.,
ash 4 mes per sec., > 1 sec.,
ash every 2 seconds)
Yellow
Power ON. LED illuminated for
3 seconds during system check -
Indicates thermal proler is
“ON” and in RIDER mode
Indicates Proler is recording
RIDER data. (ash 4 mes per
second)
Red -
Flashes 5 mes to indicate
when the internal baery
voltage is low or internal temp
is at or above a threshold or all
channels are OFF or when the
memory is full
4
EQUIPMENT
STATUS ACTIVITY LED
➊
➋
➌ ➎➍ ➏
➐
➑
5
EQUIPMENT
HOME SCREEN
➊Channel status indicators:
· Shows current sensor Temp.
· Grayed when disabled
· “N/C” if T/C not connected/open
· Touch opens Channel enable
type selection screen
➐Log interval:
· Displays the congured log interval
➎MOLE Temp:
· Red if >70C
· Yellow if >40C, <=70C
· Green if <=40C
➋Date/Time:
· Displays the current date/time
from the internal clock
➑Menu button:
· Touch to open main menu screen
➏Rider Mode:
· Dimmed if not connected to a
Rider pallet
➌Battery charge:
· Displays charge (0-100%)
· 20% resolution (5 steps)
➍File storage:
· Displays how full (0-100%)
· 10% resolution (10 steps)
6
EQUIPMENT
MAIN MENU
Record Congure Screen Select Prole Screen Select KPI Screen
Date/Time Screen Units Screen Bluetooth® Screen
Battery Screen M.O.L.E. History Screen Factory Screen
A completely discharged battery
takes about 4 hours to be fully
charged.
②
①
7
SETUP
CHARGING THE POWER PACK
1. Insert the USB computer interface
cable into a computer USB port
2. Insert the USB-C end into the data/
charging port.
②
8
SETUP
SOFTWARE INSTALLATION

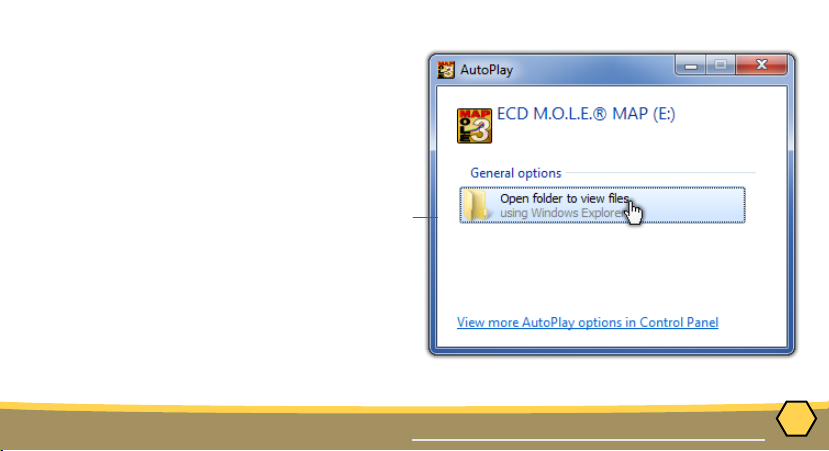

1. Insert the ash drive in a USB port
and the AutoPlay menu appears.
2. Select Open folder to view les
button on the AutoPlay menu to
launch Windows® Explorer. Closely
follow the instructions for your
operating system. For detailed
information view the Installation
Help le on the ash drive.
Locate the setup.exe on the
installation drive. Double-click
the le to proceed.
9
SETUP
SOFTWARE INSTALLATION
