Chengdu Ebyte Electronic Technology Co.,Ltd E890-470LG27 User Manual

________________________________________________________________________________________________________

LoRaWAN Gateway

E890-470LG27

User Manual

_________________________________________________________________________________________________

CONTENTS

1. OVERVIEW.................................................................................................................................................. 1

1.1 INTRODUCTION.......................................................................................................................................1

1.2 NETWORK DIAGRAM............................................................................................................................. 1

2. PARAMETERS:............................................................................................................................................2

DIMENSIONS.................................................................................................................................................. 3

3. PORTS AND INSTALLATION................................................................................................................... 4

3.1 PORTS:........................................................................................................................................................4

3.2 NOTICE.......................................................................................................................................................4

4. GATEWAY SETTING.................................................................................................................................. 5

4.1 SETTING STEPS:....................................................................................................................................... 5

5. SHIPPING AND STORAGE:.......................................................................................................................9

6. APPENDIX: ACCESSORIES LIST............................................................................................................. 9

7. REVISION HISTORY...................................................................................................................................9

ABOUT US....................................................................................................................................................... 9

Chengdu Ebyte Electronic Technology Co.,Ltd E890-470LG27 User Manual

_________________________________________________________________________________________________

1.Overview

1.1 Introduction

E890-470LG27 is a LoRaWAN gateway designed and manufactured by Chengdu Ebyte Electronic Technology Co.,

Ltd. It is a standard Internet of Things relay device. As an information converter of the LoRaWAN communication

system, E890-470LG27 is responsible for connecting the network servers and the terminal nodes to achieve the data

communication protocol conversion and forwarding from the terminal devices to the servers. With the LoRa physical

layer function, E890-470LG27 gateway supports the LoRaWAN communication standard, uplink multi-channel

concurrency. Using the CN 470-510MHz frequency band, and having frequency hopping anti-interference functions in

the working frequency band, The E890-470LG27 can be connected by a large number of various LoRa nodes. The

E890-470LG27 supports 4G / 3G / 2G, supports Bluetooth wireless configuration management nearby, supports

high-precision clock synchronization, and provides conditions for low-cost / low-power positioning. E890-470LG27 can

be powered by civilian power. The -40 to 70 ° C operating temperature enables E890-470LG27 to be suitable for indoor

industrial-grade equipment in harsh environments.

1.2 Network Diagram

Network Diagram Image

A LoRaWAN network architecture contains mainly four sectors: terminal, LoRaWAN gateway, NS (network server),

and application server. Taking advantage of long distance characteristics of LoRa technology, by single-hop transmission,

the LoRaWAN gateway and the terminal can be connected with each other from long distance by a star network. The

terminal sector contains typical applications such as water meters, electricity meters, gas meters, smoke sensors, smart

parking, street lights. One terminal node can send data to multiple LoRaWAN gateways at the same time, then the

LoRaWAN gateway will process for forwarding the data of LoRaWAN protocol between the NS and the terminal by

transfer the LoRaWAN data on the LoRa radio frequency transmission and TCP/IP respectively. In this way, data will be

transmitted from the terminal nodes to the network server.

Chengdu Ebyte Electronic Technology Co.,Ltd E890-470LG27 User Manual

_________________________________________________________________________________________________

2.Parameters:

E890-470LG27 LoRaWAN Gateway Parameters:

No.

Name

Details

Working Frequency

CN 470-510MHz/AS 923MHz

RX Sensitivity

-146dBm ＠SF12，125KHz BW

TX Sensitivity

Max +27dBm

LoRa Antenna Type

SMA Interface

TD-LTE/FDD-LTE/GSM/GPRS/EDGE

4G Antenna Type

SMA Interface

Bluetooth

2.0+, 2.4GHz

Bluetooth Antenna

Type

PCB

Ethernet Port

RJ45

Power Input

DC +12V--1.5A

Working Temp.

-40℃～+70℃

Power Consumption

Max 12W

Housing Material

ABS

Dimension

120mm×120mm×28mm

Installation Method

Mounting and Hanging

TG-18W Power Supply Parameters

Name

Details

Power Input

110/240VAC（50/60Hz）

Power Output

12V/1.5ARipple current≤100mV

Isolation Voltage

2500VAC（Input to Output）

Working Temp.

-40℃～+70℃

Protection Functions

Protection for short circuit, over current, over voltage

EMC Performance

Anti-static discharge 8KV, anti-group pulse 4KV,

anti-lightning surge 4KV

Housing Material

Plastic

Dimension

8×5.2×3.7 mm

Chengdu Ebyte Electronic Technology Co., Ltd. E890-470LG27 User Manual

_________________________________________________________________________________________________

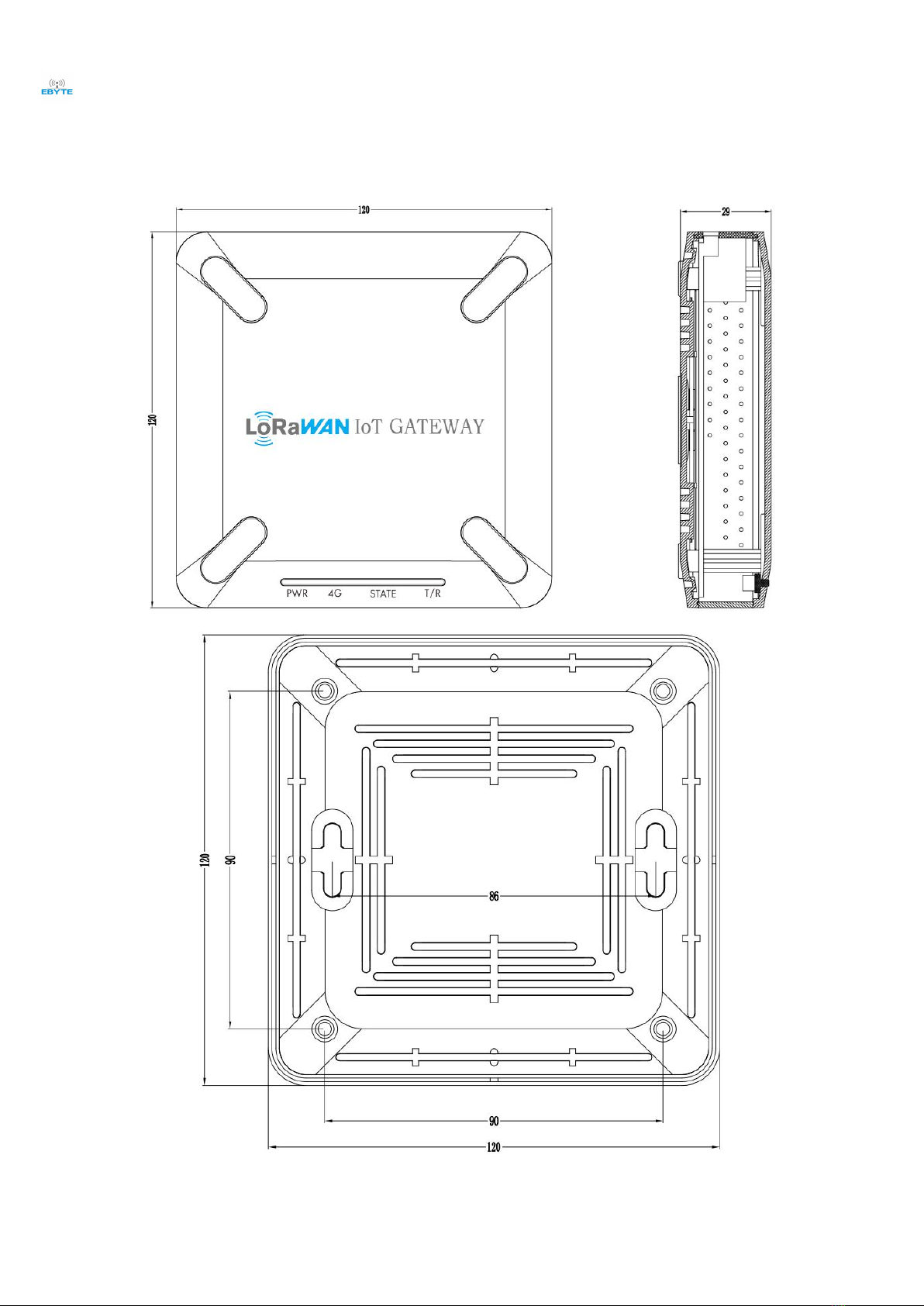

Dimensions

E890-470LG27 LoRaWAN Gateway Dimension:120mm（Length）×120mm（Width）×29mm（Height）


Chengdu Ebyte Electronic Technology Co., Ltd. E890-470LG27 User Manual

_________________________________________________________________________________________________

3. Ports and Installation

3.1 Ports:

Ports locations:

Ports Functions:

No.

Ports

Functions

LORA

To Install LoRa Antenna

PWR

To Connect to Power Input

WAN

To Connect to Ethernet Cable

microUSB

For Gateway Setting.

SIM

To Install SIM Card

To Install 4G Antenna

Working Indicator LED light Drawing:

Indicator LED light functions:

No.

Name

Functions

PWR

Power Indicator

4G Status Indicator

STATE

Working Status Indicator

T/R

Transmitting and Receiving Indicator

3.2 Notice

Depending on the data communication method, users need to prepare by yourselves either the network cables

(CAT5 network cables are recommended) or the first-generation big SIM card. The SIM card must be 4G cards with

sufficient 4G traffic.

If using 4G communication, user need to install the SIM card on the internal card slot of the SIM card port.

If using Ethernet communication, connect the Ethernet network cable to the Ethernet port of the gateway.

All antennas must be installed before they can be powered on for setting and use.

Chengdu Ebyte Electronic Technology Co., Ltd. E890-470LG27 User Manual

_________________________________________________________________________________________________

4. Gateway Setting

4.1 Setting Steps:

After the above hardware connections is completed, turn on the power and then you are ready to start to setting the

gateway parameters:

1. Install the E890-GateWay.apk LoRaWAN setting APP on the mobile phone. After the installation is completed,

turn on the mobile phone's Bluetooth, click the gray button to search for the gateway device (the gateway EUI can be

viewed on the back of the gateway), and click the corresponding gateway to establish a Bluetooth connection (for the

first time login, you need to enter the password: 1234 );

As shown below:

Click to search gateway

Click to choose the gateway

Chengdu Ebyte Electronic Technology Co., Ltd. E890-470LG27 User Manual

_________________________________________________________________________________________________

At this point, the gateway has established a Bluetooth connection with the mobile phone and you can return to the

previous menu: Gateway Settings—> Gateway Parameter Configuration—> Select the parameters you want to configure:

Common parameters:

4G mode setting: server IP, uplink port, downlink port, transmission protocol TCP / UDP;

Ethernet mode setting: LoRa gateway IP, LoRa gateway subnet mask, Ethernet gateway IP, server IP, uplink

port, downlink port, transmission protocol TCP / UDP;

Click to connect gateway

by Bluetooth

Button turns to green when

connection is successful

Chengdu Ebyte Electronic Technology Co., Ltd. E890-470LG27 User Manual

_________________________________________________________________________________________________

For example, the parameters setting here are:

As a standard LORAWAN gateway, two parameters in the advanced parameters need to be noted:

Network type selection: Public LoRaWan; Gateway working mode: standard

Chengdu Ebyte Electronic Technology Co., Ltd. E890-470LG27 User Manual

_________________________________________________________________________________________________

After the gateway parameters are set, select the previously configured parameters and click "Read" to see if the

parameters set are successful;

After confirming the setting is successful, (return) —> gateway reset — hardware reset —> click settings (restart

gateway);

After confirming the successful restart, (return) —> terminal status read (need to reconnect Bluetooth) —> click

read (check if the gateway is online)
