Eaton Powerware 9170+ Manuel utilisateur

Powerware 9170+Rail Kit

9- and 12-Slot Cabinets

Installation Guide

Powerware is a registered trademark of Eaton Power Quality Corporation.

Torx is a registered trademark of Textron, Inc.

reproduced in any way without the express written approval of Eaton Corporation.

EATON Powerware®9170+Rail Kit (9- and 12-Slot Cabinets) Installation Guide S164201420 Rev B

www.powerware.com

Rack-Mount Installation

To install a 9- or 12-slot uninterruptible power system (UPS) cabinet into

a rack, you must order a cabinet specifically designed for rack-mounting.

Nine- and 12-slot battery cabinets ASY-0749 and ASY-0750 are also

available for rack-mounting. These models can be installed in an

EIA-standard 48.3 cm (19”) equipment rack and include a rack-mounting

kit with the brackets and required hardware.

To install the UPS or battery cabinet in the equipment rack:

NOTE The 9- and 12-slot cabinets are heavy [9-slot: 72 kg (158 lb); 12-slot: 89 kg (196 lb)].

This procedure requires two people to lift and position the cabinet into the equipment rack.

Install the cabinet in the rack before installing power and battery modules and before making

connections to the intended power source.

1. Remove the four screws (two on either side) securing the top cover

of the cabinet. Carefully lift the cover straight up and off to avoid

stressing the front panel display. Set the cover aside.

2. Remove the cabinet side covers by lifting the top edge. No other

hardware must be detached. Store or discard the side covers.

3. Carefully replace the cabinet top cover and secure with the four

screws removed in Step 1. Position the cover lip to fit behind the

front panel display.

RACK-MOUNT INSTALLATION

EATON Powerware®9170+Rail Kit (9- and 12-Slot Cabinets) Installation Guide S164201420 Rev B

www.powerware.com

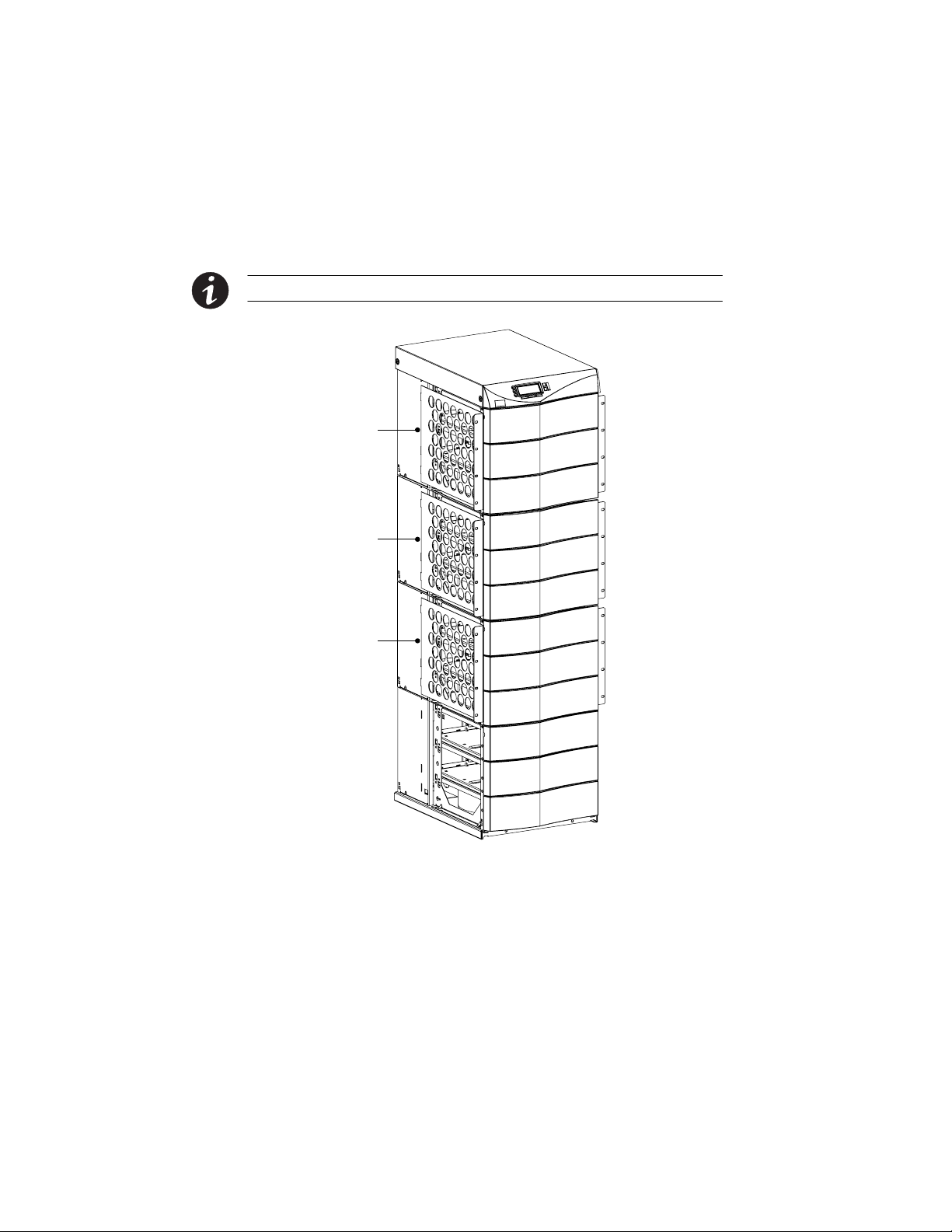

4. Install six metal clip nuts (nine clip nuts for 12-slot cabinets) onto

each side flange along the front of the cabinet (see Figure 1).

NOTE DO NOT install metal clip nuts in the bottom cabinet section.

Tab Slots

Metal Clip Nuts

Tab Slots

Metal Clip Nuts

Figure 1. Metal Clip Nut and Tab Slot Locations

RACK-MOUNT INSTALLATION

EATON Powerware®9170+Rail Kit (9- and 12-Slot Cabinets) Installation Guide S164201420 Rev B

www.powerware.com

5. Install two rack-mount ears (three for 12-slot cabinets) on each side

of the cabinet (see Figure 2).

Insert the two offset tabs on the rear edge of the ear into the

matching tab slots on the cabinet side frame (see Figure 1). Pivot

the ear forward until it is flush against the cabinet side frame.

Secure each ear with three 1/4-20×1/2”Phillips-head bolts; screw

the bolts into the metal clip nuts installed in Step 4.

NOTE DO NOT install rack-mount ears in the bottom cabinet section.

Rack-Mount Ear

Figure 2. Rack-Mount Ears Installed

RACK-MOUNT INSTALLATION

EATON Powerware®9170+Rail Kit (9- and 12-Slot Cabinets) Installation Guide S164201420 Rev B

www.powerware.com

6. Select the proper holes in the rail that position the cabinet at the

desired location in the rack.

7. Install one equipment rail on each side of the rack using four

10-32×1/2”flat-head screws per rail.

8. With one person lifting each side of the cabinet, position the cabinet

onto the two equipment rails (see Figure 3).

Carefully slide the cabinet into the equipment rack until the

rack-mount ears of the cabinet are flush with the front vertical rails

of the rack. Verify that the holes in the ears align with the holes in

the rack.

Equipment Rail

Figure 3. Rails Holding UPS Cabinet

RACK-MOUNT INSTALLATION

EATON Powerware®9170+Rail Kit (9- and 12-Slot Cabinets) Installation Guide S164201420 Rev B

www.powerware.com

9. Secure the cabinet in the rack using 10-32×1/2”Torx®screws or

other appropriate customer-specified screws.

10. Follow the instructions in the UPS user’s guide to install the power

and battery modules.

Service and Support

If you have any questions or problems with the UPS, call your Local

Distributor or the Help Desk at one of the following telephone numbers

and ask for a UPS technical representative.

United States: 1-800-356-5737 or 1-919-870-3149

Canada: 1-800-461-9166 ext 260

All other countries: Call your local service representative

Please have the following information ready when you call the Help

Desk:

SModel number

SSerial number

SVersion number (if available)

SDate of failure or problem

SSymptoms of failure or problem

SCustomer return address and contact information

If repair is required, you will be given a Returned Material Authorization

(RMA) Number. This number must appear on the outside of the package

and on the Bill Of Lading (if applicable). Use the original packaging or

request packaging from the Help Desk or distributor. Units damaged in

shipment as a result of improper packaging are not covered under

warranty. A replacement or repair unit will be shipped, freight prepaid for

all warrantied units.

NOTE For critical applications, immediate replacement may be available. Call the Help

Desk for the dealer or distributor nearest you.

*164201420B*

164201420 B
