Eaton 5S 850 Manuel utilisateur

Installation and

user manual

EATON 5S

850/1200/1600

2614-06819-00

2 3

EATO N 5S

Packaging

lBefore installing the Eaton 5S, read the booklet 3containing the safety instructions to be respected.

Then follow the instructions given in this manual 2.

Caution!

614-06819-00

Quick start

1200 / 1600

850

4614-06819-00

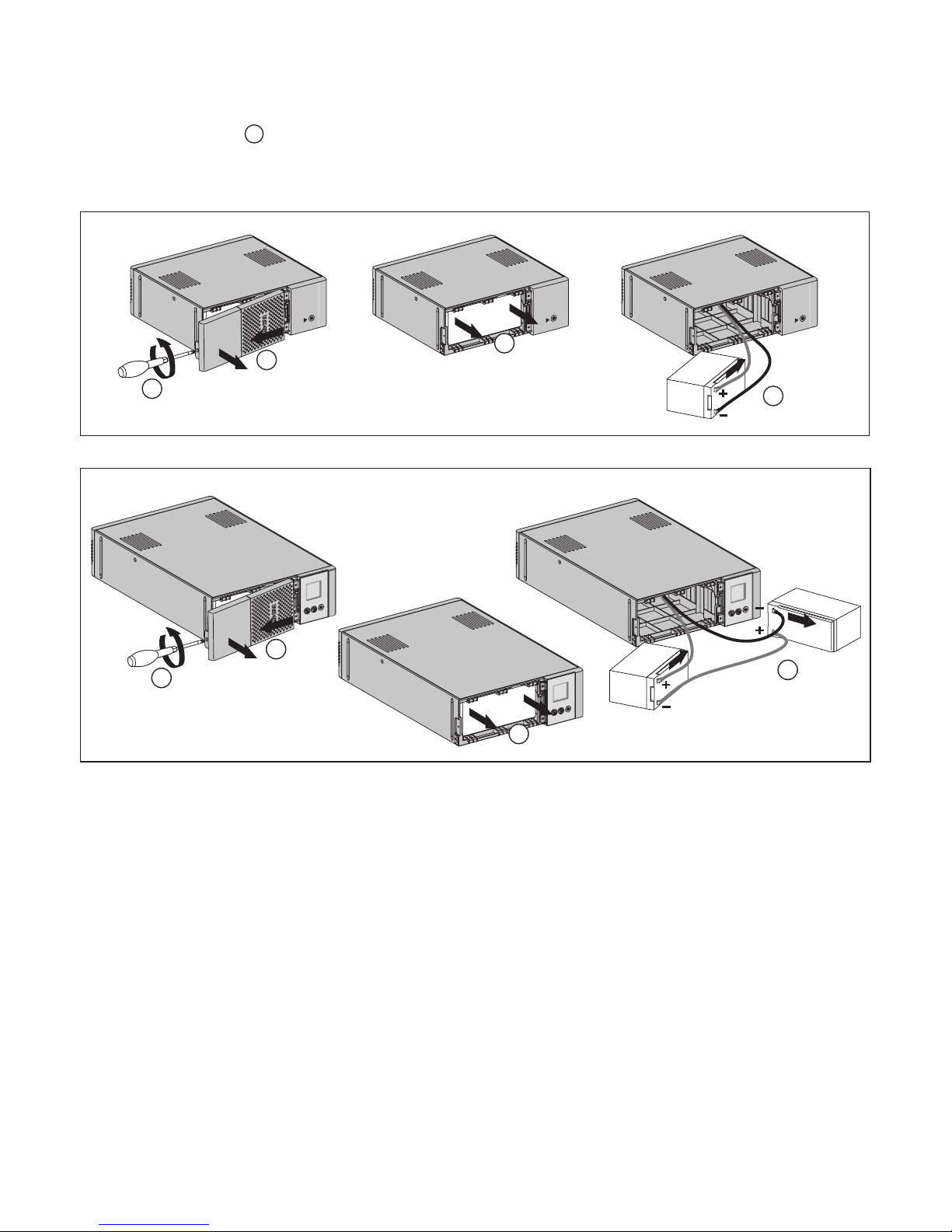

Battery change

•Warning: take care not to inverse the polarity + (red) and - (black) when connecting the batteries as this will

destroy the device.

850

1200 / 1600

Battery disposal and safety

•Caution. Battery service life is reduced by 50 % for every ten degrees above 25 °C.

•The battery elements must be replaced exclusively by qualied personnel (risk of electrocution), with new

elements approved by Eaton to ensure correct operation of the UPS.

•The battery must be disposed of in accordance with applicable regulations.To remove the battery elements, shut

down the UPS (button 6OFF), remove the power cord and proceed as indicated in page 4 "Battery change".

614-06819-00

Technical characteristics

(*) Warning: Output cables should not exceed 10m length.

Eaton 5S 850 1200 1600

•UPS power 850 VA /

510 W

120 VA /

750 W

1600 VA /

1000 W

•Nominal input voltage 185 V - 285 V, adjustable to 150 V - 285 V

•Input frequency 50/60 Hz (46 - 70 Hz working range)

•Voltage/frequency of battery backup

outlets 19 in battery mode

220 V / 230 V / 240 V +15 % -20 % (50/60 Hz ± 1 %)

•Total output current for all outlets 10 A max

•Output current of battery backup

outlets 19

3.8 A max 5.4 A max 7.3 A max

•Leakage current 0.4 mA

•Input protection 10 A resettable circuit breaker

•Transfer time 5 ms typical

•Telephone surge protection Tel, ISDN, ADSL, Ethernet

•Sealed lead-acid battery 12 V, 9 Ah 2 x 12 V, 7 Ah 2 x 12 V, 9 Ah

•Automatic battery test Once a week

•Average battery life 4 years typical, depending on temperature and amount of discharge cycles

•Operating temperature 0 to 35 °C

•Storage temperature -25 °C to +55 °C

•Operating relative humidity 0 to 85 %

•Operating elevation 0 to 2000 m

•Safety standards IEC62040-1,CEcertied

•Electromagnetic compatibility

standards

IEC 62040-2, C1*

AS 62040-2, C1

•Warranty 2 years

•Dimensions (mm) 263 x 81 x 235 305 x 81 x 312

•Weigth (Kg) 3.6 6.7 7. 8

6614-06819-00

1. Operating conditions

• This product is an Uninterruptible Power Supply (UPS) for computers and their

peripherals, television sets, stereo systems and video recorders... It must not be used

to supply other electrical equipment (lighting, heating, household appliances, etc.).

• UPS can be installed in horizontal, vertical position, or placed in Rack 2U (optional kit).

2. Description

AVR

Min

kVA

6ON/OFF button for the

battery backup outlets

7Scroll down

8Mute alarm

LCD

912

9UPS ON

10 AVR mode

11 Battery mode

12 Internal fault

13 Output load level

14 Battery level

15 Input measurements

16 Output measurements

17 Measuring unit

Outlets

18 Filtered outlets

19 Battery backup outlets

20 Protection (circuit breaker)

614-06819-00

3. UPS connections

• Connect the UPS 1to the AC-power system via a wall outlet with an earth connector,

using the supplied cord 4for a UPS with FR/DIN sockets or with the supply cord of

your computer for a UPS with IEC sockets (seegureA).

• Plug critical equipment (computer, monitor, modem, etc.) into the outlets 19 providing

batterybackuppowerandsurgeprotection(seegureB),takingcarenottoexceed

the rated current indicated in amperes.

• Otherdevices(printer,scanner,fax,etc.)canbeconnecttothelteredoutlets18

thatprovidesurgeprotection(seegureB).Thelteredoutletsarenotbackedupby

battery power in the event of a power outage.

Optional Internet modem / Network connection:

A modem or Ethernet data line can be protected against surges by connecting it via

the UPS. Connect the existing device cable between the wall outlet and the UPS, and

useasimilarcablebetweentheUPSandthedevice,asindicatedingureC(cablenot

supplied).

Optional USB connection:

The UPS device can be connected to the computer using the USB cable 5supplied.

The software is available on the CD-ROM 5or Eaton UPS Companion software is

downloadablefrompowerquality.eaton.com(seegureC).

4. Master and EcoControl outlets operating procedure

In order to limit energy consumption of peripherals (scanner, printer) in standby mode,

the Eaton 5S is equipped with EcoControl outlets that are dependent on the Master

outlet. When the main application supplied by the Master outlet (computer) is shut

down, the EcoControl outlets are automatically deactivated and the peripherals shut

down.

Thisfunction(deactivatedbydefault)isvalidatedandconguredusingtheconguration

tool integrated in the software.

Note: when the function is activated, do not connect critical applications to EcoControl outlets.

Threshold setup

A default setup ensures the correct operation of the EcoControl function. However,

depending on the consumption of the main load, the trigger threshold of the EcoControl

functionmayhavetobemodiedusingthecongurationsoftwaresuppliedwiththe

UPS:

• First, make sure that the function is activated in the "EcoControl Function" tab of the

congurationtool.

• If the peripherals connected to the EcoControl outlets do not switch off when the main

load is not in normal operation (ex: when in standby mode), the detection threshold

value must be set to High.

• If the rated consumption level of the main load is low and the EcoControl outlets shut

down when the main load is operating normally, the detection threshold value must

be set to Low.

8614-06819-00

7. Operation

Battery charge

The UPS charges the battery as soon as it is connected to the AC outlet, whether

button 6ispressedornot.Whenusedforthersttime,thebatterywillonlyprovide

its maximum autonomy after it has been charged for 8 hours. It is recommended that

the UPS be permanently connected to the AC power supply to ensure the best possible

autonomy.

Switching-on the UPS

Press button 6for about 1 second.

Filtered outlets 18 without battery backup

Equipment connected to these outlets is supplied as soon as the AC cord 4is plugged

in.They are not affected by button 6.

Battery backup outlets 19

Equipment connected to these outlets is supplied as soon as button 6turns green

(seegureD).

These outlets can be turned on even if the UPS is not connected to AC power

(button 6ashes).

6. UPS setting through the LCD

l LCD shut off if any button inactive for 3 minutes.

5s 2s 2s 2s 2s

(184 - 264 V)

Output voltage Input voltage

tolerance

EcoControl Alarm

(161 - 284 V)

Release scroll down button to select menu

Save the new value

10s 5s 5s

Example of setting

614-06819-00

(For further information, visit the www.powerquality.eaton.com site or contact after-sales support.)

Problem Diagnostic Solution

1•The battery backup outlets 19

are not supplied with power.

•Button 6is not lighted on. •Press button 6and check that

it turns green.

2•The connected devices are not

supplied when AC power fails.

•The devices are not connected

to the battery backup outlets 19.

•Connect the devices to the

battery backup outlets 19.

3•AC power is available, but the

UPS operates on battery power. •Circuit breaker 20, located

under the UPS, has been tripped

by an overload on the UPS

output.

•Disconnect excess equipment

and reset the circuit breaker 20

by pressing the corresponding

button.

4•Green button 6ashesand

audio alarm beeps every 3

seconds.

•The UPS battery backup outlets

19 are overloaded.

•Disconnect excess equipment

connected to the battery backup

outlets 19 .

5•Fault sign 12 appear on the

LCD panel and audio alarm beep

continuously.

•A fault has occurred on the UPS.

The battery backup outlets 19 are

no longer supplied.

•Call after-sales support.

6•EcoControl outlets keep powered

when main application (Master

outlet) is stopped.

•EcoControl function is not

activated or not properly set.

•Activate or set properly

EcoControl function using the

software provided with the

product.

8.Troubleshooting

AC-power disturbance

• If AC power is disturbed or fails, the UPS continues to operate on battery power.

Button 6ashesgreen.Innormalmode,theaudioalarmbeepseverytenseconds,

then every three seconds when the end of battery backup time is near. In silent mode

(see the section on settings), the audio alarm simply beeps once when the UPS

transfers to battery power.

• If the power outage lasts longer than the battery backup time, the UPS shuts down

and automatically restarts when power is restored. Following a complete discharge, a

few hours are required to recharge the battery back to full backup time.

• To save battery power, it is possible to press button 6to cut the supply of power to

the devices connected to the battery backup outlets.

Lightning protection:

Alloutlets,whetherbackeduporsimplyltered,includesurgeprotection,whateverthe

position of button 6.

Shutdown of the battery backup outlets 19

Press button 6for more than two seconds.
