Eaton Cutler-Hammer IQMSSPM Manuel utilisateur

I.L. 17567

Effective January, 2000

THE MODULE

The Separate Source Power Supply Module

(IQMSSPM) is designed for use with the

IQA6400/IQA6600 (66d2045) and DP4000 (66d2040)

meters in three-phase applications to 600Vac. The

IQMSSPM will power either of these devices from 100-

240 Vac or 100-250 Vdc.

In applications using either the IQA6400/IQA6600 or the

DP4000/DP4100, supply power can be converted from

three-phase power to a separate single-phase supply,

station battery, or UPS.

The IQMSSPM may also be used in certain applications

of the IQA6000/6200 (2d82302) or DP4000/DP4100

(4d13110) where the NEU terminal is grounded. These

applications include three-wire applications and

applications with potential transformers (PT’s). In either

of these acceptable retrofit applications, the NEU to

GND potential at the meter terminals is zero.

INSTALLATION

This device is designed to be installed, operated, and

maintained by adequately trained personnel. These

instructions do not cover all details, variations, or

combinations of the equipment, its storage, delivery,

installation, checkout, safe operation, or maintenance.

Care must be exercised to comply with local, state, and

national regulations, as well as safety practices, for this

class of equipment.

REMOVE ALL POWER FROM (DE-ENERGIZE) THE

DEVICE TO WHICH THE POWER MODULE IS BEING

ATTACHED OR WIRED; OTHERWISE, SERIOUS OR

FATAL PERSONAL INJURY AND EQUIPMENT

DAMAGE MAY RESULT.

REMOVING EXISTING POWER MODULE

Disconnect all power to the existing meter, including

power to any relay contacts of the device. Clearly mark

wire connections to the voltage terminal block. Refer to

Fig. 2 and your meter’s technical manual. If replacing

an existing Separate Source Power Module, clearly

mark the wire connections to the power connection

terminal block. Disconnect all wires from the existing

power module.

Unscrew the plug lock assembly on the ribbon cable

from the meter chassis and remove the cable from the

power module connector. Carefully remove the two

shoulder screws that secure the power module to the

chassis.

BE PREPARED TO SUPPORT THE POWER MODULE

ONCE THE SCREWS HAVE BEEN REMOVED.

MOUNTING TO IQ ANALYZER OR DP4000

Place the Separate Source Power Module in its

mounting position on the rear of the meter chassis, in

the same position as the one removed. Replace the two

shoulder screws to secure the IQMSSPM. Reconnect all

wires to the IQMSSPM and meter - tighten all screws.

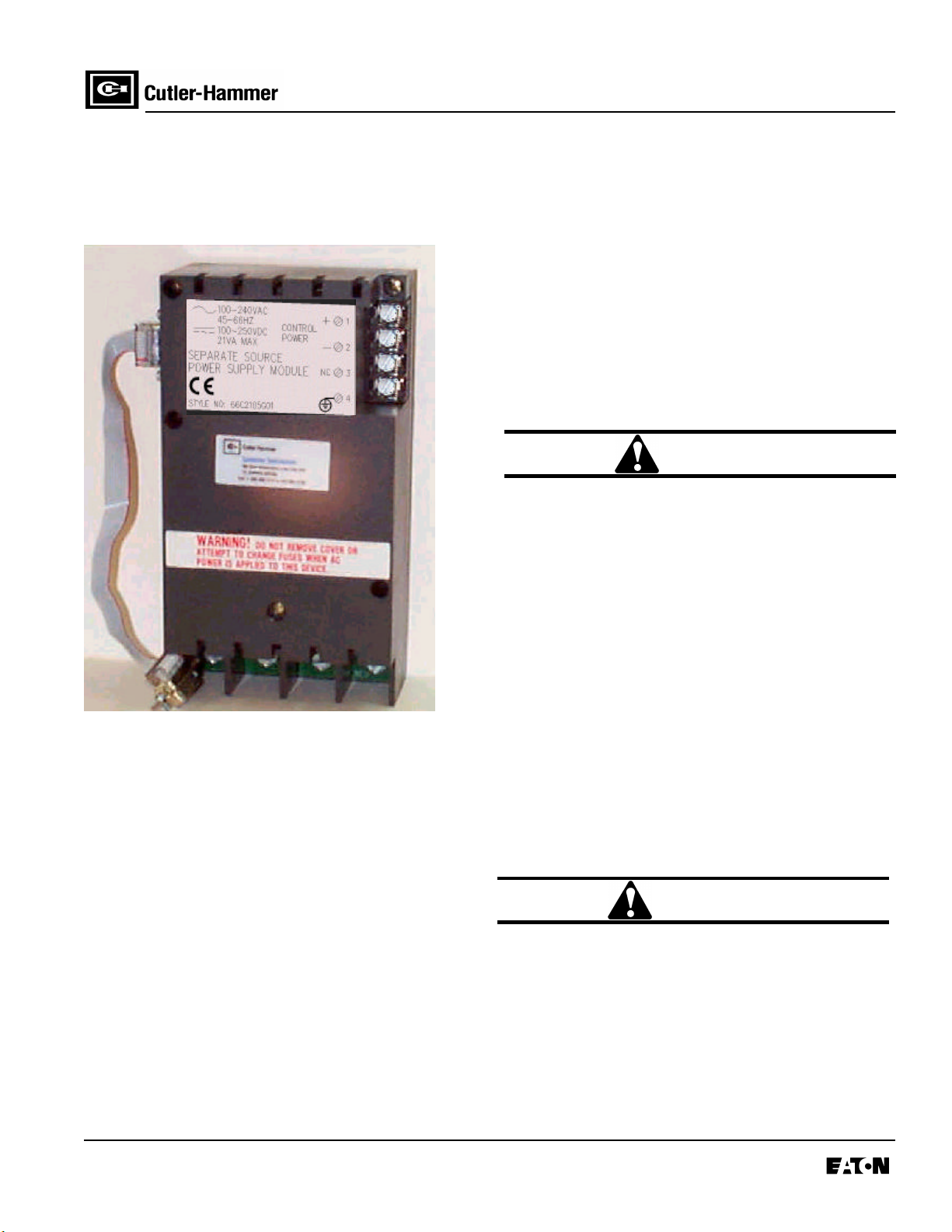

Fig. 1 Separate Source Power Module

Instructions for Separate Source Power Module:

Style IQMSSPM (66C2105)

CAUTION

I.L. 17567

Effective January, 2000

Page 2

REMOTE MOUNTING OF THE IQMSSPM

In those cases where it is necessary to mount the

IQMSSPM separately from the chassis, be sure that:

(1) The location allows for a cable connection

between the meter chassis and the IQMSSPM by means

of a 45-inch extension cable (IQA45CABLE).

(2) The IQMSSPM physical dimensions are shown

in the Fig. 2 below.

To mount the IQMSSPM, use the module as a drilling

template at the new location. The two #8-32 screws can

be used to remount the module in holes that are

properly drilled and tapped.

Reconnect all wires to the IQMSSPM and meter —

tighten all screws.

Fig. 2 Power Module Physical Dimensions and Mounting Holes

I.L. 17567

Effective January, 2000

Page 3

OPERATION CHECK

The appropriate wiring configuration for operation is

shown on the wiring label attached to the rear of the

IQMSSPM.

Verify that the NEU terminal is used. In three-wire

applications or applications with PT’s, the NEU terminal

must be tied to ground. Otherwise, wire NEU to the

power system’s neutral.

Apply control power to the meter across terminals 1 and

2 of the IQMSSPM. The front display of meter should

now be lit. If the device is not powered, remove power

coming to the IQMSSPM and check the wiring diagrams

and device connections. Restore control power.

Restore AC line power to the meter and check readings

on the unit. If the readings do not check out, or an alarm

condition occurs, consult the instruction manual or call

Power Management Application Support at

1(800) 809-2772.

MAINTENANCE

This industrial type control is designed to be installed,

operated, and maintained by adequately trained

personnel. These instructions do not cover all details,

variations, or combinations of the equipment, its

storage, delivery, installation, checkout, safe operation,

or maintenance. Care must be exercised to comply with

local, state, and national regulations, as well as safety

practices, for this class of equipment.

There are no user serviceable parts on the Separate

Source Power Module. While there is a 0.25A fuse

within the module, its failure would indicate other

problems that require repair. The user should not

attempt servicing this equipment. Please contact your

local Cutler-Hammer representative or the Cutler-

Hammer Power Management Application Support

(PMAS) for service information or additional questions.

CONTACT INFORMATION

PMAS 1(800) 809-2772

(412) 490-6714

FAX (412) 490-6712

BBS (412) 490-6711

FRED (412) 490-6710

Email: [email protected]

Internet: http://www.ch.cutler-hammer.com/pmp

I.L. 17567

Effective January, 2000

Printed in U.S.A.

Page 4

Cutler-Hammer

Pittsburgh, Pennsylvania U.S.A.
