Commercial Broadcast Spreader

with Side Spread Control

MODEL # 2170 ASSEMBLY INSTRUCTIONS

P2170_M52164_Rev_May2020_compressed PAGE 1

Prior to assembly, you will

need the following tools:

Needle nose pliers

#2 Phillips screwdriver

Adjustable wrench or ½” box

wrench

7/16″ wrench

SIDE SPREAD CONTROL

Your EarthWay spreader includes a feature called side

spread control. This feature turns off fertilizer from being

spread to the left side. To activate this feature, slide the

lever below the hopper to the right (if standing behind

the spreader) and walk along a sidewalk or flowerbed

that is 12″-14″on your left side. Fertilizer will not spread

to the left. This feature is better than a deflector as no

material is wasted by the deflector.

ASSEMBLY HARDWARE

SPREADER COMPONENTS

Assembly and Operation Instructions

P2170_M52164_Rev_May2020_compressed PAGE 2

HELPFUL HINTS

Read the directions before assembly.

If your spreader does not spread evenly, be sure the FRONT on the gear box points to the front of the spreader.

The impeller must turn clockwise. Reversing the gearbox will cause the impeller to turn counter clockwise. Clean

the impeller plate after each use. Fertilizer stuck on the impeller blades will cause uneven spreading.

Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster

speeds will change the spread patterns. Wet fertilizer will also change the spread pattern and flow rate. Clean

and dry your spreader thoroughly after each use. Coat all metal surfaces (pay special attention to the inside &

outside of tubing - it’s easiest to do while assembling) with light oil, Fluid Film® or silicon spray to help prevent

corrosion. Wash between the shut off plate and bottom of the hopper. Do not use powdered materials.

Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.

IF YOUR SPREADER COMES SEMI ASSEMBLED, SKIP TO STEP #7

Assembly Steps

Step 1: Remove all components and hardware items

from the box. Place the spreader hopper on its side.

Step 2: Install frame using (4) ¼-20 x 1½″Pan Head

Phillips bolts and (4) ¼-20 nylon insert locknuts.

First put bolts through holes in frame then through holes

in bottom of hopper.

Secure with locknuts. TIGHTEN THESE LOCKNUTS NOW.

DO NOT TIGHTEN WITH POWER TOOLS.

TIP: coat stainless steel bolts with wax or grease

before tightening to prevent them from seizing.

Assembly and Operation Instructions

P2170_M52164_Rev_May2020_compressed PAGE 3

Step 3: Install impeller onto pinion shaft by pressing

the impeller as shown onto the pinion shaft and turning

the impeller while holding the pinion shaft to engage

with the COIN fully. Press down to secure.

Next, insert Cross Brace thru the Gearbox Brace as

shown.

Step 4: Install gearbox by inserting the pinion shaft into

hole in center of hoppers bottom.

The word “FRONT” on the GEARBOX must point to Front

of the HOPPER. The EarthWay logo is on the front of the

hopper.

Step 5: (A) Install lower handles onto the frame to

both sides as shown. Insert 2¼″bolt through second hole

in lower handle and through first hole in frame and install

locknut. DO NOT TIGHTEN.

(B) Now insert 1½″bolt through first hole in lower

handle. Then through frame brace. Next into threaded

connector in cross brace. DO NOT TIGHTEN.

NOTE: Numbers on frame brace must be facing toward

gear box as shown.

and through second hole in frame install locknut.

Step 6: Install the axle through the axle hole in the

lower handle and then through the gearbox and then

through the lower handle on the other side as shown.

Assembly and Operation Instructions

P2170_M52164_Rev_May2020_compressed PAGE 4

NOTE: Notch on bearings and lower handles. Bearings

must go through flat side of lower handle (from the

outside to the inside).

NOW GO BACK AND TIGHTEN ALL NUTS AND BOLTS STARTING WITH FIRST STEP. DO NOT OVER TIGHTEN.

Step 7: Slide axle bushing over axle and into axle

bearing to both sides as shown.

Step 8: Install drive wheel onto the axle and align with

the cotter pin hole nearest to lower handles as shown.

Insert 2″cotter pin through wheel and through axle.

Bend with pliers to prevent pin from falling out.

Step 9: Install coast wheel onto the axle fully, then

using outside cotter pin hole, insert 1″cotter pin through

axle (not thru the wheel). Bend with pliers to prevent pin

from falling out.

Assembly and Operation Instructions

P2170_M52164_Rev_May2020_compressed PAGE 5

TURN SPREADER UPRIGHT ON TO WHEELS.

Step 10: Insert 2″bolt through Gauge & Lever assembly,

next through upper handle, then the handle shaft and

then the other upper handle and secure with locknut.

TIGHTEN ALL HARDWARE NOW

Assembly and Operation Instructions

P2170_M52164_Rev_May2020_compressed PAGE 6

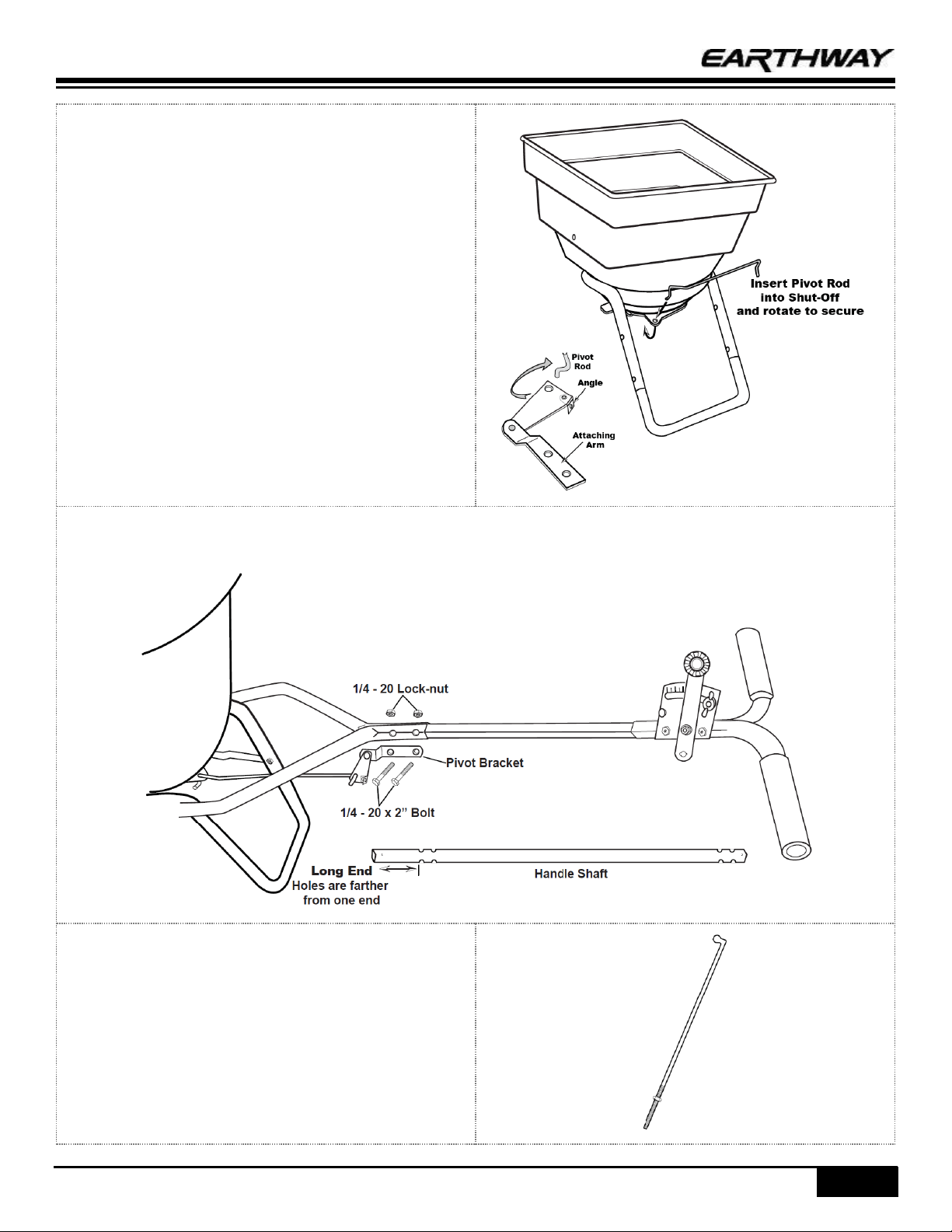

Step 11: Insert pivot rod into shut-off plate as shown.

Turn to lock in place.

Step 12: Insert other end of pivot rod into pivot and

bracket assembly as shown. Turn to lock in place.

Step 13: Install handle shaft to lower handles and pivot & bracket assembly as shown. Using ¼-20 x 2″bolts and

locknuts. TIGHTEN BOLTS AND NUTS NOW.

Step 14: Install (1) ¼-20 Hex nut (not a locknut) on to

control rod as shown.

Assembly and Operation Instructions

P2170_M52164_Rev_May2020_compressed PAGE 7

Step 15: Install flattened end of control rod in to lever

on gauge as shown. Turn to lock in place. Next push lever

forward to setting “0”. Align control rod with hole in

pivot bracket, pull lever backward to insert control rod

through hole in pivot bracket. Now install ¼-20 Hex nut

on to control rod.

Step 16: Pull lever back to setting “30” as shown. Next

push pivot & bracket forward so that the shut off plate in

the hopper is in the full open position. REMEMBER

SETTING “30” ON THE FLOW CONTROL LEVER MUST

PLACE THE SHUT-OFF PLATE IN THE FULL OPEN

POSITION TO BE PROPERLY CALIBRATED. Now tighten

the nuts against the pivot bracket to prevent change in

calibration.

NOTE: Tension on the flow control lever may be

adjusted by tightening or loosening the tension nut as

shown.

Step 17: Insert agitator to pinion shaft on inside of

hopper.

Note: the position of flat side of the agitator. This pin

should be installed as shown.

Step 18: Install debris screen into hopper, then insert ¼-

20 x 1″Stainless Steel Hex Bolt thru the hole in the side

wall of the hopper. Secure with Stainless Steel lock nut.

TIGHTEN WITH HAND TOOLS ONLY.

Assembly and Operation Instructions

P2170_M52164_Rev_May2020_compressed PAGE 8

CUSTOMER SERVICE

574.848.7941 | SUPPORT@EARTHWAY.COM | www.EARTHWAY.com | 1009 Maple Street, Bristol, IN 46507

ONE YEAR WARRANTY

EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the

end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion

will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling,

misuse, tampering, or normal wear and tear as determined by EarthWay.

EarthWay at its discretion may require that the part(s) or product be returned along with the original purchase receipt for

examination and compliance with the terms of this warranty. Do not return any product without first receiving authorization from

EarthWay Products, Inc.

To seek remedy under this warranty, contact EarthWay Products, Inc. at 574-848-7491, support@earthway.com or write to

EarthWay Products, Inc. 1009 Maple Street, Bristol, IN 46507 and describe the nature of the manufacturing defect. SPECIFIC

LIMITATIONS: This warranty covers only the part(s) or product; any labor charges associated with repair or replacement of

non-conformances are specifically excluded. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay

Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or

its effects.

OPERATING INSTRUCTIONS

Before filling hopper, become familiar with the operation of this spreader.

Obtain proper setting for material to be used from the enclosed SETTING MATRIX included with this spreader, or

from our web site under the MANUALS SECTION.

Move stop bolt on rate gauge assembly to the proper setting.

While pushing spreader forward, pull control lever back to stop bolt.

To stop, push lever forward to close flow holes before you stop moving.

When finished, empty any remaining material from hopper.

Thoroughly wash spreader and dry before storing. A coating of light oil will help prevent corrosion.

If you use Rock Salt, remove agitator when in use to prevent damage to the GEARBOX.

The settings furnished on the Rate Setting Matrix are intended as a guide only. Variations in physical characteristics of

material applied, walking speed, and roughness of ground surface may require slightly different spreader settings. Due to

the above conditions, the manufacturer makes no warranty as to the uniformity of coverage actually obtained from the

settings listed.

Assembly and Operation Instructions

P2170_M52164_Rev_May2020_compressed PAGE 9

NEW FEATURE

The SideSpred-Control™ is a new innovation that eliminates the need to use a side deflector, which can adversely affect

your application rate, to prevent material from being spread into flowerbeds, on sidewalks, or driveways. The

SideSpred-Control™ maintains the correct application rate while it is activated, giving you excellent results in seeding or

spreading while controlling the spread pattern on the left side of the spreader. The SideSpred-Control™ is an EarthWay

exclusive.

SideSpred-Control™ OPERATION

The SideSpred-Control™ lever is located under the right side of the hopper. To operate the SideSpred-Control™, slide

the control lever from the front to the back. This will activate the SideSpred-Control™ for a PARTIAL spread pattern and

prevent material from being spread to the left side of the spreader. Position the left wheel of your spreader 4″–6″from

the sidewalk, flowerbed, or driveway and spread as normal. When you have completed this spreading pass, close the

control lever to “0”, and then open the SideSpred-Control™ by sliding the control lever from back to the front, for a

FULL spread pattern.

HOW TO ORDER SPARE PARTS

All spare parts listed herein may be ordered direct from the manufacturer. Be sure to give the following information

when ordering.

Model Number

Part Number

Part Description

You can contact us by calling (574) 848-7491 to place an order with a credit card, or purchase online at

https://www.earthway.com/product-category/parts/ Questions? Email us at mailto:sales@earthway.com

Assembly and Operation Instructions

P2170_M52164_Rev_May2020_compressed PAGE 10

2170 Broadcast Spreader Parts List

KEY #

PART #

DESCRIPTION

40003

SQUARE SCREEN

60335

HOPPER ASSEMBLY

(2170/2170T)

33117

AGITATOR

12209

HOPPER BUSHING

36214

1/4-20 X 1 1/2" PHPMS S.S.

32103

1/4-20 NYLON INS LOCKNUT

ZINC

36210

1/4-20 X 1" HHMS S.S.

31120

1/4-20 X 2" HHCS ZINC

60300

PIVOT & BRACKET

ASSEMBLY

12147

SPACER (PIVOT LINK)

44251

PIVOT ROD

60298

GAUGE & LEVER ASSEMBLY

60175

UPPER HANDLE SQUARE

W/GRIP ea.

24500

AXLE, COINED

31100

1/4-20 X 1 1/2 HHMS ZINC

25223

HANDLE SHAFT SQ

42256

CONTROL ROD

31138

#8 X 3/8" PMT #8 HD COARSE

BLACK

36300

1/4-20 NYLON INSERT

LOCKNUT S.S.

32100

1/4-20 HEX NUT ZINC

36208

#6 X 3/8" TYPE 25 PHPS S.S.

12317SSC

SHUT OFF PLATE

25222

LOWER HANDLE SQ

25108

FRAME

25228

CROSS BRACE

(2150/2170/S25) 11.25”

31106

1/4-20 X 2 1/4" HHCS ZINC

12110

IMPELLER 9" Round Dished

25723

FRAME Foot

12274

GRIP (2150/2170) 7.5" LONG

60333

New Floating GEAR BOX

12148

AXLE BEARING KIT

12152

AXLE BUSHING KIT

33109

3/16" X 2" COTTER PIN ZINC

70138

PNEUMATIC DRIVE WHEEL

STUD

33108

3/16" X 1" COTTER PIN ZINC

11927

SHUTOFF SUPPORT- LARGE

60027

WING NUT ASSEMBLY

BLACK

37100

1/4-20 X 1" CARRIAGE BOLT

ZINC

You can find replacement Nuts and Bolts at

your local hardware store.

Autres manuels pour 2170

Table des matières

Autres manuels Earth Way Épandeur

Earth Way

Earth Way 2050SU Manuel utilisateur

Earth Way

Earth Way Polar Tech 90365 Manuel utilisateur

Earth Way

Earth Way 2030 Manuel utilisateur

Earth Way

Earth Way PolarTech 90399 Instructions d'installation

Earth Way

Earth Way 3100 Manuel utilisateur

Earth Way

Earth Way M20 Manuel utilisateur

Earth Way

Earth Way M40 Manuel utilisateur

Earth Way

Earth Way EV-N-SPRED M20 Manuel utilisateur

Earth Way

Earth Way 2170 Manuel utilisateur

Earth Way

Earth Way 2600A-PLUS Manuel utilisateur

Earth Way

Earth Way HIGH-OUTPUT 2040Pi-Plus Manuel utilisateur

Earth Way

Earth Way 2050TP Manuel utilisateur

Earth Way

Earth Way EV-N-SPRED M30 Manuel utilisateur

Earth Way

Earth Way FLEX-SELECT F80 Series Manuel utilisateur

Earth Way

Earth Way EV-N-SPRED C24HD Manuel utilisateur

Earth Way

Earth Way 2170T Tow Manuel utilisateur

Earth Way

Earth Way M80ECM Manuel utilisateur

Earth Way

Earth Way FLEX-SELECT F80 Series Manuel utilisateur

Earth Way

Earth Way 2050 Manuel utilisateur

Earth Way

Earth Way M80ECM Manuel utilisateur

Earth Way

Earth Way FLEX-SELECT Series Manuel utilisateur

Earth Way

Earth Way EV-N-SPRED C24HD Manuel utilisateur

Earth Way

Earth Way 2130 Manuel utilisateur

Earth Way

Earth Way Polar Tech 2040PI-PLUS Manuel utilisateur

Manuels Épandeur populaires d'autres marques

PEQUEA

PEQUEA GT-100 Manuel utilisateur

Herculano

Herculano H2RS9 Manuel utilisateur

Epoke

Epoke SKE8 Manuel utilisateur

GEA

GEA EL44 Fiche technique

Boss Snowplow

Boss Snowplow TGS 800 Manuel utilisateur

Fisher

Fisher EMERSON 168 Series Manuel utilisateur

Fisher

Fisher POLY-CASTER 78601 Manuel utilisateur

TurfEx

TurfEx RS7200 Manuel du propriétaire

Ferris

Ferris Pathfinder Series Manuel utilisateur

Fayat Group

Fayat Group DYNAPAC S100 Guide de dépannage

Art's-Way Manufacturing

Art's-Way Manufacturing X700 Manuel d'installation et d'exploitation

EASTMAN

EASTMAN CR 500 Manuel utilisateur

Nogueira

Nogueira RoyalFlow-600 Manuel utilisateur

Buyers

Buyers TGS05B Manuel utilisateur

Magnum

Magnum V-BOX PV Series Supplément

Meyer's

Meyer's VB280 Manuel utilisateur

SnowEx

SnowEx VX-4210 Manuel utilisateur

Kramer

Kramer VM-400HDCP Manuel utilisateur
