11n Mini Router
BR080n
User Manual
Version 1.0.15
2
Table of Contents
FCC Caution ..........................................................................................................................................6
Safe Seating Gestures..........................................................................................................................7
Chapter 1 Introduction.................................................................................................................8
1.1 Overview ......................................................................................................................8
Features.........................................................................................................................................9
1.2 Specifications............................................................................................................10
1.2.1 Six Views of Product Appearance ..................................................................11
1.2.2 LED Indicator Status Description ...................................................................11
1.3 System Requirements ..............................................................................................11
1.4 WAN Network Plug and Play....................................................................................12
1.5 Get Your IP Automatically & Manually ....................................................................12
1.5.1 Network Testing................................................................................................15
1.5.2 Testing with Internet Browser.........................................................................15
1.5.2.1 Testing with DOS (Windows XP Platform).........................................................16
Chapter 2 Hardware Installation................................................................................................18
2.1 Diagram of Connecting Hardware to 11N Mini Router..........................................18
2.1.1 Hardware Connection and Application for Router Mode.............................18
2.1.2 Hardware Connection and Application for AP Mode....................................19
2.1.3 Hardware Connection and Application for Wi-Fi AP Mode ..........................19
Chapter 3 One Button Setup......................................................................................................20
3.1 One Button Setup configuration for Router Mode ................................................20
3.2 One Button Setup configuration for AP Mode .......................................................22
3.3 One Button Setup configuration for WiFi AP Mode...............................................24
Chapter 4 Basic Setup................................................................................................................28
4.1 Router Mode..............................................................................................................28
4.1.1 Switch to Router Mode ....................................................................................28
4.1.2 Administrator Setup Instruction.....................................................................28
4.2 AP Mode.....................................................................................................................29
4.2.1 Switch to AP Mode ...........................................................................................29
4.3 WiFi AP Mode ............................................................................................................30
4.3.1 Switch to WiFi AP Mode...................................................................................30
Chapter 5 Advanced Configuration for Router Mode .............................................................31
5.1 IP Configuration........................................................................................................31
5.1.1 WAN...................................................................................................................31
5.1.1.1 WAN Interface– Ethernet Port.............................................................................31
5.1.1.2 WAN Interface– Wireless ....................................................................................32
Version 1.0.15
3
5.1.1.3 WAN Access Type – Static IP..............................................................................33
5.1.1.4 WAN Access Type – Dynamic IP ........................................................................35
5.1.1.5 WAN Access Type – PPPoE................................................................................37
5.1.1.6 WAN Access Type – PPTP ..................................................................................40
5.1.1.7 WAN Access Type – L2TP...................................................................................42
5.1.2 LAN Interface Setup.........................................................................................44
5.1.3 Dynamic DNS Setting.......................................................................................45
5.2 Wireless Setup ..........................................................................................................47
5.2.1 Wireless Basic Settings...................................................................................47
5.2.2 Wireless Advanced Settings ...........................................................................52
5.2.3 Wireless Security Setup ..................................................................................53
5.2.4 Wireless Access Control .................................................................................56
5.2.5 WDS Settings....................................................................................................57
5.2.6 WPS ...................................................................................................................62
5.3 NAT.............................................................................................................................66
5.3.1 Visual Server.....................................................................................................66
5.3.2 Visual DMZ........................................................................................................68
5.4 Firewall.......................................................................................................................69
5.4.1 Port Filtering.....................................................................................................70
5.4.2 IP Filtering.........................................................................................................71
5.4.3 MAC Filtering....................................................................................................73
5.4.4 URL Filtering.....................................................................................................74
5.5 System Management ................................................................................................75
5.5.1 Change Password ............................................................................................75
5.5.2 Upgrade Firmware............................................................................................76
5.5.3 Save / Reload Settings.....................................................................................77
5.5.4 Time Zone Setting ............................................................................................81
5.5.5 UPnP Setting.....................................................................................................83
5.6 Log & Status..............................................................................................................83
5.6.1 Network Config.................................................................................................84
5.6.2 Event Log..........................................................................................................84
5.7 Logout........................................................................................................................86
Chapter 6 Advance Configuration for AP Mode ......................................................................86
6.1 IP Configuration........................................................................................................87
6.1.1 LAN Setup.........................................................................................................87
6.1.2 LAN Interface Setup.........................................................................................87
6.2 Wireless Setup ..........................................................................................................88
6.2.1 Wireless Basic Settings...................................................................................89
Version 1.0.15
4
6.2.2 Wireless Advanced Settings ...........................................................................94
6.2.3 Wireless Security Setup ..................................................................................96
6.2.4 Wireless Access Control ...............................................................................100
6.2.5 WDS Settings..................................................................................................101
6.2.6 WPS .................................................................................................................106
6.3 System Management .............................................................................................. 111
6.3.1 Change Password .......................................................................................... 111
6.3.2 Upgrade Firmware..........................................................................................112
6.3.3 Save / Reload Settings...................................................................................113
6.3.4 Time Zone Setting ..........................................................................................118
6.3.5 UPnP Setting...................................................................................................119
6.4 Log & Status............................................................................................................120
6.4.1 Network Config...............................................................................................120
6.4.2 Event Log........................................................................................................121
6.5 Logout......................................................................................................................122
Chapter 7 Advance Configuration for WiFi AP Mode............................................................123
7.1 IP Configuration......................................................................................................123
7.1.1 LAN Setup.......................................................................................................123
7.1.2 LAN Interface Setup.......................................................................................123
7.2 Wireless Setup ........................................................................................................125
7.2.1 Wireless Basic Settings.................................................................................125
7.2.2 Wireless Advanced Settings .........................................................................130
7.2.3 Wireless Site Survey......................................................................................132
7.2.4 Wireless Security Setup ................................................................................133
7.2.5 Wireless Access Control ...............................................................................135
7.2.6 WPS .................................................................................................................137
7.3 System Management ..............................................................................................141
7.3.1 Change Password ..........................................................................................141
7.3.2 Upgrade Firmware..........................................................................................142
7.3.3 Save / Reload Settings...................................................................................143
7.3.4 Time Zone Setting ..........................................................................................147
7.3.5 UPnP Setting...................................................................................................149
7.4 Log & Status............................................................................................................150
7.4.1 Network Config...............................................................................................150
7.4.2 Event Log........................................................................................................151
7.5 Logout......................................................................................................................152
Chapter 8 DDNS Service Application......................................................................................153
Chapter 9 Q & A ........................................................................................................................158
Version 1.0.15
5
9.1 Installation ...............................................................................................................158
9.2 LED...........................................................................................................................158
9.3 IP Address................................................................................................................158
9.4 OS Setting................................................................................................................159
9.5 11N Mini Router Setup............................................................................................161
9.6 Wireless LAN...........................................................................................................163
9.7 Support ....................................................................................................................165
9.8 Others.......................................................................................................................166
9.9 USB Device..............................................................................................................166
Chapter 10 Appendices..............................................................................................................167
10.1 Operating Systems .................................................................................................167
10.2 Browsers..................................................................................................................167
10.3 Communications Regulation Information ............................................................167
Version 1.0.15
6
FCC Caution
1. The device complies with Part 15 of the FCC rules. Operation is subject to the following
conditions:
2. This device may not cause harmful interference, and this device must accept any
interference received, including interference that may cause undesired operation.
3. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters between the radiator
and your body.
4. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
5. Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user authority to operate the equipment.
Version 1.0.15
7
Safe Seating Gestures
You should follow the manufacturer’s instructions for adjusting the backrest to fit your body
properly.
An adjustable chair that provides firm, comfortable support is best.
Adjust the height of the chair so your thighs are horizontal and your feet flat on the floor.
The back of the chair should support your lower back (lumbar region).
CE Statement of Conformity
Our product has been tested in typical configuration by Ecom Sertech Corp and was found to
comply with the essential requirement of “Council Directive on the Approximation of the Laws
of the Member States relating to Electromagnetic Compatibility” (89/336/EEC; 92/31/EEC;
93/68/EEC)
Version 1.0.15
8
Chapter 1 Introduction
1.1 Overview

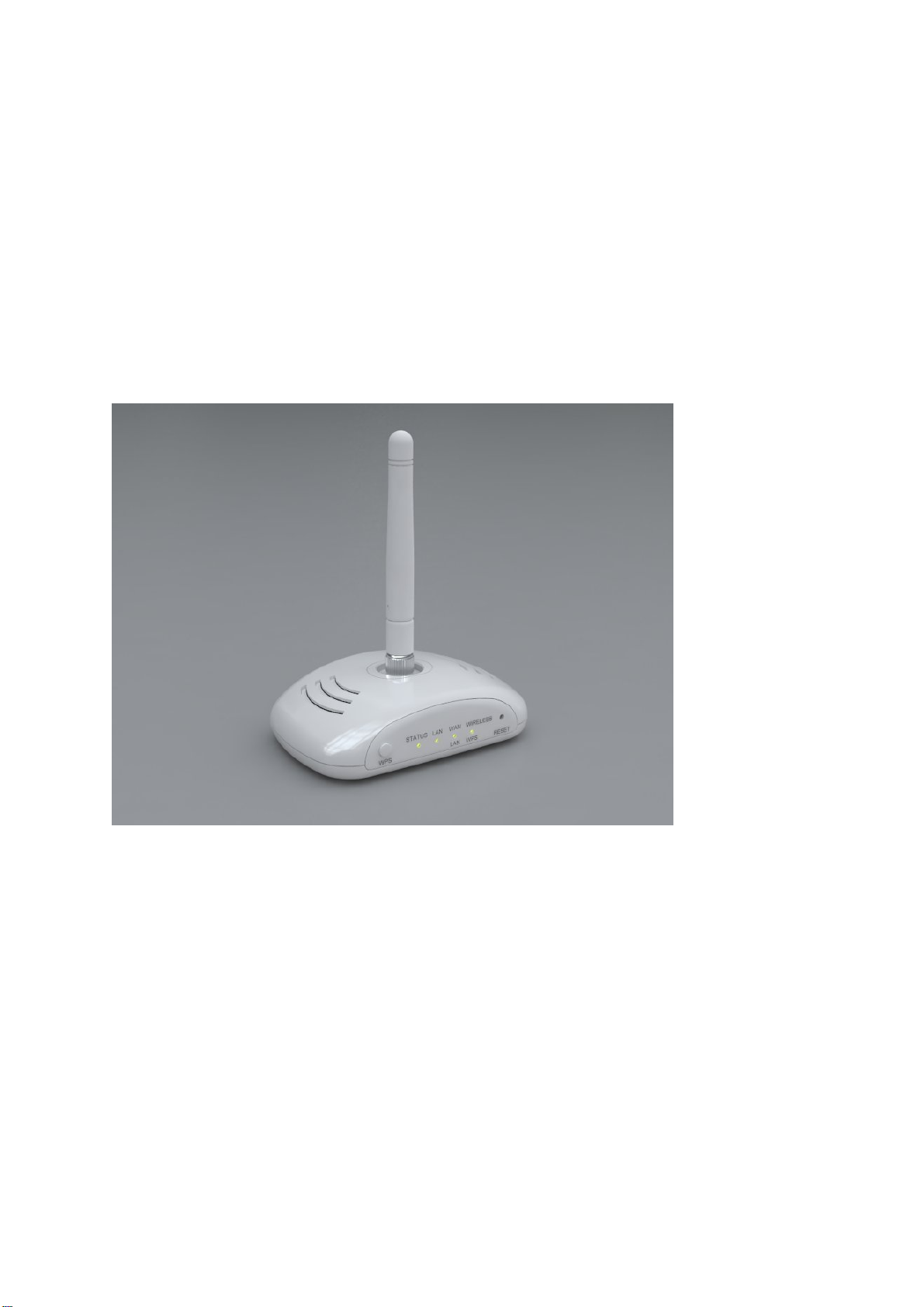

11N Mini Router might be small in size, but is huge in functionality. It supports multiple
operation modes, including Access Point (AP) mode, Router mode, and WiFi AP mode. You
can switch among these modes easily by using its 3-way configuration switch.
Version 1.0.15
9
Features
ySmall in size but huge in functionality; the world No.1 Mobile Router for traveler
yThree modes to be switched; Router, AP and WiFi AP
yWPS button provides not only an easy and secured wireless network but also a WDS
repeater in one push
yMultiple APs Supported; adds or limits the properties for classed SSID, increasing the
flexibility and efficiency of the network.
Version 1.0.15
10
1.2 Specifications
WAN Port 1 x 10/100 Mbps RJ45, with auto MDI/MDIX
LAN Port 1 x 10/100 Mbps RJ45, with auto MDI/MDIX
Wireless Built-in Mini PCI
Interface
Slide Switch Router / AP / WiFi AP mode exchange function.
Web-Base Windows IE / Linux Firefox / MAC Safari
WAN Protocol PPPoE / PPTP / Static IP/ Dynamic IP/ L2TP
WLAN WDS / WEP Key / WPA / WPA-PSK / WPA2 / WPA2-PSK / MAC Access
Control /Hidden SSID
Routing UPnP / DHCP / DNS / WINS / DDNS
NAT Virtual Server / Virtual DMZ
Function
Firewall MAC Filter / URL Filter / SPI / DoS Protection / IP Packet Filter
Operation
Requirement
Operating Temp. 0°C~45°C (32°F~113°F)
Storage Temp. -20°C~70°C (-14°F~158°F)
Operating Humidity 10% to 85% Non-Condensing
Storage Humidity 5% to 90% Non-Condensing
Others
Peak Gain of the
Antenna 2dBi @ 2.45GHz
Dimension 88mm (L) x 58mm (W) x 26.5mm (H)
Application Power Power Adapter DC5V/0.5A with mini-USB B type male connector
Note: 1. Firmware Upgrade available through download.
Table des matières
Autres manuels E-TOP Routeur réseau
E-TOP
E-TOP BR486n Manuel utilisateur
E-TOP
E-TOP GR290n Manuel utilisateur
E-TOP
E-TOP NR620M Manuel utilisateur
E-TOP
E-TOP BR485d Manuel utilisateur
E-TOP
E-TOP BR480n Manuel utilisateur
E-TOP
E-TOP BR280n Manuel utilisateur
E-TOP
E-TOP PR126g Manuel utilisateur
E-TOP
E-TOP GS293d Manuel utilisateur
E-TOP
E-TOP DR368n Manuel utilisateur
E-TOP
E-TOP BR486n Manuel utilisateur
Manuels Routeur réseau populaires d'autres marques
NETGEAR
NETGEAR FS526T - Switch Manuel utilisateur
Korenix
Korenix JetNet 5710G Series Manuel utilisateur
Automated Logic
Automated Logic ZN551 Manuel du propriétaire
Cisco
Cisco ASR 1000 Series Manuel de l'opérateur
EnGenius
EnGenius ESR-9710 Manuel utilisateur
Cisco
Cisco 805 Series Instructions d'utilisation et de sécurité
