Mini FuntanaX
Assembly Manual
2
Introduction................................................................3
Specifications.............................................................3
Using the Manual .......................................................3
Contents of Kit/Parts Layout .........................................4
Required Radio Equipment...........................................5
Important Information About Motor Selection .................6
High Power Outrunner Setup........................................6
Optional Accessories ..................................................6
Required Tools and Adhesives ......................................6
Note on Lithium Polymer Batteries.................................7
Warning....................................................................7
Date of Purchase Warranty Period ................................7
Limited Warranty ........................................................8
Damage Limits............................................................9
Safety Precautions.......................................................9
Questions, Assistance, and Repairs...............................9
Inspection or Repairs.................................................10
Warranty Inspection and Repairs................................10
Non-Warranty Repairs...............................................11
Table of Contents
Safety, Precautions, and Warnings..............................12
Landing Gear Installation...........................................13
Outrunner Motor Installation.......................................15
Cowling Installation ..................................................16
Aileron Hinging........................................................20
Aileron Servos and Linkages ......................................23
Wing Installation ......................................................27
Stabilizer and Elevator ..............................................30
Rudder and Fin.........................................................34
Rudder and Elevator Servos .......................................36
Final Assembly .........................................................40
Control Throws .........................................................44
Center of Gravity......................................................45
Range Test Your Radio...............................................46
Preflight ...................................................................47
Flying Your Mini FuntanaX .........................................48
Building and Flying Notes..........................................49
2006 Official AMA
National Model Aircraft Safety Code..........................50
3
Introduction
Thank you for purchasing the Mini FuntanaX. To create
the Mini Funtana X, E-flite started with the proven 3D
benefits of the original Mini Funtana design then increased
the wing area by 26%, added filets, added a tapered
thickness airfoil and optional side force generators. The
result is a plane that excels in high-alpha maneuverability,
especially when outfitted with E-flite’s phenomenal Park
480 Brushless Outrunner motor.
Specifications
Wingspan: 43 in (1092mm)
Length: 40.5 in (1028mm)
Wing Area: 447 sq in (28.8 sq dm)
Weight w/o Battery: 23–24 oz (652–680 g)
Weight w/ Battery: 27–29 oz (765–822 g)
Using the Manual
This manual is divided into sections to help make assembly
easier to understand, and to provide breaks between each
major section. In addition, check boxes have been placed
next to each step to keep track of each step completed.
Steps with a single circle () are performed once, while
steps with two circles () indicate that the step will
require repeating, such as for a right or left wing panel,
two servos, etc.
Remember to take your time and follow the directions.
4

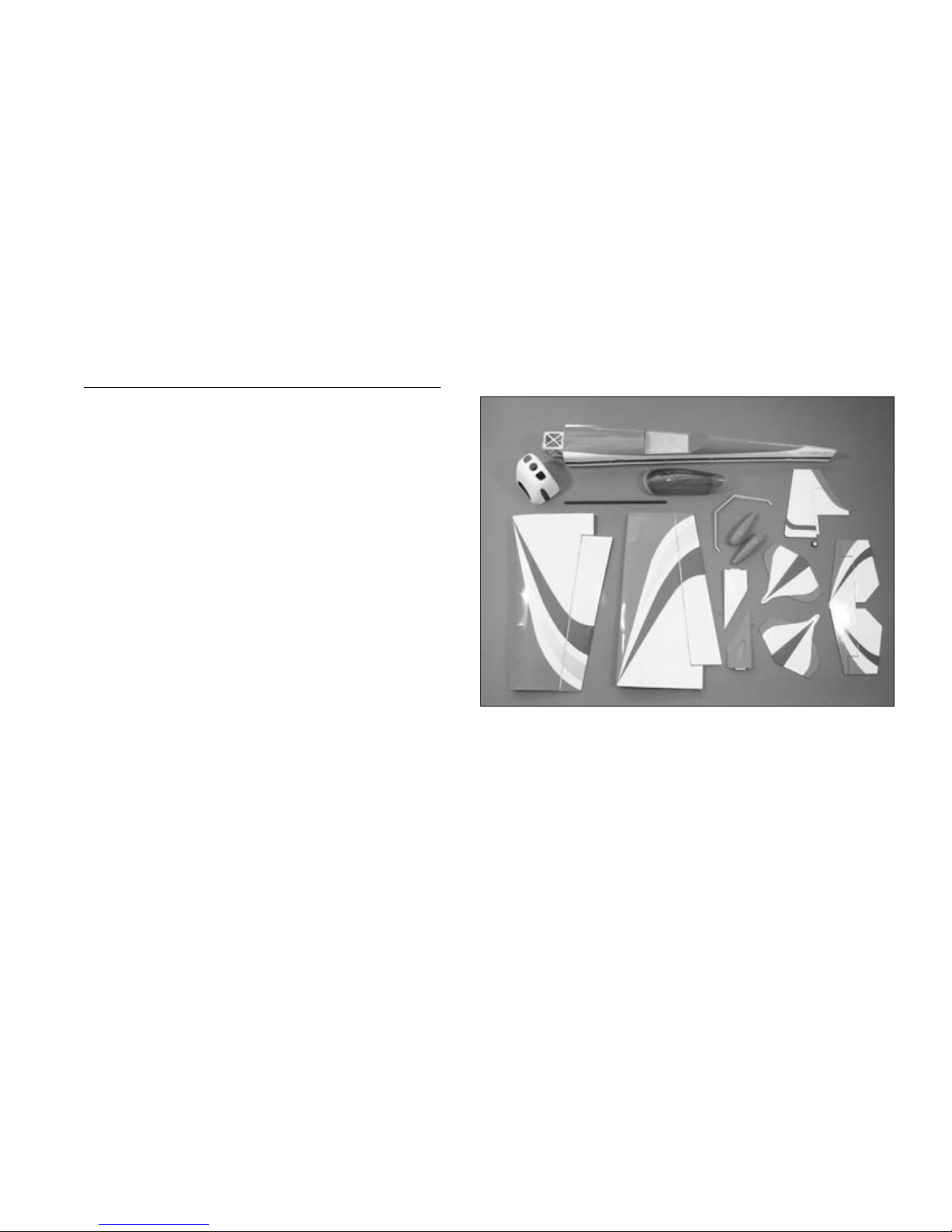

Contents of Kit/Parts Layout
Large Replacement Parts:
EFL2426 Wing w/Ailerons
EFL2427 Fuselage w/Hatch
EFL2428 Tail Set
EFL2429 Pushrod Set
EFL2430 Main Landing Gear
EFL2431 Fuselage Hatch
EFL2432 Canopy
EFL2433 Cowling
EFL2434 Wheel Pants
EFL2435 Wing Tube
EFL2436 Side Force Generators
Small Replacement Parts:
EFLA200 Micro Control Horns
EFLA203 Micro Control Connectors
EFLA219 Steerable Tailwheel Assembly
EFLA222 Foam Park Wheels, 13/4"
EFLA213 E-flite/JR/Horizon Decals
5
You will need a minimum 6-channel transmitter, crystals,
micro receiver, and four sub-micro servos. You can choose
to purchase a complete radio system that includes all of
these items or, if you are using an existing transmitter, just
purchase the other required equipment separately.
Complete Radio System
SPM2460 DX6 DSM 6CH Park Flyer w/4-S75
Servos
Note: We recommend the crystal-free,
interference-free Spektrum®DX6 2.4GHz DSM®
6-Channel System, which includes a micro
receiver and 4 sub-micro servos.
Or Purchase Separately
SPM6000 AR6000 DSM DuaLink™ 6-Channel
Park Flyer Rx
Or
JSP30610 6-Channel UltraLite Rx w/o Crystal,
Positive Shift JR/AIR (72MHz)
Or
JSP30615 6-Channel UltraLite Rx w/o Crystal,
Negative Shift FUT/HRC (72MHz)
JRPXFR** FM Receiver Crystal
JSP98110 6" Servo Extension (2)
JSP98120 18" Servo Extension (2)
JSP98020 Y-Harness, Standard 6"
EFLRS75 7.5-Gram Sub-Micro Servo (4)
Required Radio Equipment
6
Important Information About Motor
Selection
We recommend the E-flite®Park 480 Brushless Outrunner,
1020Kv (EFLM1505) to provide you with excellent sport
and aerobatic power and a worry-free outrunner motor.
The Mini FuntanaX does not include a propeller.
High Power Outrunner Setup
EFLM1505 Park 480 Brushless Outrunner
Motor, 1020Kv
EFLA312B 40-Amp Brushless ESC
THP21003SPL 2100mAh 3-Cell 11.1V Li-Po,
16GA
APC12060E 12 x 6 Electric Prop
EFLAEC302 EC3 Battery Connector, Female (2)
EFLC3005 Celectra 1- to 3-cell Li-Po Charger
This is a high power performance setup for
strong 3D flights.
Optional Accessories
EFLA110 Power Meter
Required Tools and Adhesives
Tools & Equipment
EFLA250 Park Flyer Tool Assortment, 5-piece
Or Purchase Separately
EFLA257 Screwdriver, #0 Phillips (or included
with EFLA250)
EFLA251 Hex Wrench: 3/32" (or included
with EFLA250)
Nut driver: 1/4"
Drill
Drill bit: 1/16" (1.5mm), 5/64" (2mm)
Masking tape
Card stock
Felt-tipped pen
Needle-nose pliers
Canopy glue
Medium grit sandpaper
T-pins
Thin CA
Paper towels
Hobby knife
6-minute epoxy
Ruler
Square
7
Note on Lithium Polymer Batteries
Lithium Polymer batteries are significantly
more volatile than alkaline or Ni-Cd/Ni-MH
batteries used in RC applications. All
manufacturer’s instructions and warnings
must be followed closely. Mishandling of
Li-Po batteries can result in fire. Always follow
the manufacturer’s instructions when disposing
of Lithium Polymer batteries.
Warning
An RC aircraft is not a toy! If misused, it can cause
serious bodily harm and damage to property. Fly
only in open areas, preferably at AMA (Academy of
Model Aeronautics) approved flying sites, following all
instructions included with your radio.
Keep loose items that can get entangled in the propeller
away from the prop, including loose clothing, or other
objects such as pencils and screwdrivers. Especially keep
your hands away from the propeller.
Date of Purchase Warranty Period
Horizon Hobby, Inc., (Horizon) warranties that the
Products purchased (the "Product") will be free from
defects in materials and workmanship at the date of
purchase by the Purchaser.
Limited Warranty
(c) Purchaser Remedy- Horizon's sole obligation hereunder
shall be that Horizon will, at its option, (i) repair or
(ii) replace, any Product determined by Horizon to be
defective. In the event of a defect, these are the Purchaser's
exclusive remedies. Horizon reserves the right to inspect
any and all equipment involved in a warranty claim.
Repair or replacement decisions are at the sole discretion
of Horizon. This warranty does not cover cosmetic damage
or damage due to acts of God, accident, misuse, abuse,
negligence, commercial use, or modification of or to any
part of the Product. This warranty does not cover damage
due to improper installation, operation, maintenance, or
attempted repair by anyone other than Horizon. Return of
any goods by Purchaser must be approved in writing by
Horizon before shipment.
(a) This warranty is limited to the original Purchaser
("Purchaser") and is not transferable. REPAIR OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY
IS THE EXCLUSIVE REMEDY OF THE PURCHASER. This
warranty covers only those Products purchased from an
authorized Horizon dealer. Third party transactions are
not covered by this warranty. Proof of purchase is required
for warranty claims. Further, Horizon reserves the right
to change or modify this warranty without notice and
disclaims all other warranties, express or implied.
(b) Limitations- HORIZON MAKES NO WARRANTY
OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE
HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY
MEET THE REQUIREMENTS OF THE PURCHASER’S
INTENDED USE.
8
Damage Limits
HORIZON SHALL NOT BE LIABLE FOR SPECIAL,
INDIRECT OR CONSEQUENTIAL DAMAGES, LOSS OF
PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN
ANY WAY CONNECTED WITH THE PRODUCT, WHETHER
SUCH CLAIM IS BASED IN CONTRACT, WARRANTY,
NEGLIGENCE, OR STRICT LIABILITY. Further, in no event
shall the liability of Horizon exceed the individual price of
the Product on which liability is asserted. As Horizon has
no control over use, setup, final assembly, modification
or misuse, no liability shall be assumed nor accepted for
any resulting damage or injury. By the act of use, setup or
assembly, the user accepts all resulting liability.
If you as the Purchaser or user are not prepared to accept
the liability associated with the use of this Product, you
are advised to return this Product immediately in new and
unused condition to the place of purchase.
Law: These Terms are governed by Illinois law (without
regard to conflict of law principals).
Safety Precautions
This is a sophisticated hobby Product and not a toy. It
must be operated with caution and common sense and
requires some basic mechanical ability. Failure to operate
this Product in a safe and responsible manner could result
in injury or damage to the Product or other property. This
Product is not intended for use by children without direct
adult supervision. The Product manual contains instructions
for safety, operation and maintenance. It is essential
to read and follow all the instructions and warnings in
the manual, prior to assembly, setup or use, in order to
operate correctly and avoid damage or injury.
Questions,Assistance, and Repairs
Your local hobby store and/or place of purchase
cannot provide warranty support or repair. Once
assembly, setup or use of the Product has been started,
you must contact Horizon directly. This will enable
Horizon to better answer your questions and service
you in the event that you may need any assistance. For
questions or assistance, please direct your email t
o productsupport@horizonhobby.com, or call
877.504.0233 toll free to speak to a service technician.
9
Inspection or Repairs
If this Product needs to be inspected or repaired, please
call for a Return Merchandise Authorization (RMA). Pack
the Product securely using a shipping carton. Please note
that original boxes may be included, but are not designed
to withstand the rigors of shipping without additional
protection. Ship via a carrier that provides tracking and
insurance for lost or damaged parcels, as Horizon is
not responsible for merchandise until it arrives and
is accepted at our facility. A Service Repair Request is
available at www.horizonhobby.com on the “Support” tab.
If you do not have internet access, please include a letter
with your complete name, street address, email address
and phone number where you can be reached during
business days, your RMA number, a list of the included
items, method of payment for any non-warranty expenses
and a brief summary of the problem. Your original sales
receipt must also be included for warranty consideration.
Be sure your name, address, and RMA number are clearly
written on the outside of the shipping carton.
Warranty Inspection and Repairs
To receive warranty service, you must include your
original sales receipt verifying the proof-of-purchase
date. Provided warranty conditions have been met,
your Product will be repaired or replaced free of charge.
Repair or replacement decisions are at the sole discretion
of Horizon Hobby.
10
Table des matières
Autres manuels E-FLITE Jouet
E-FLITE
E-FLITE Blade 400 3D Manuel utilisateur
E-FLITE
E-FLITE Blade CP Manuel utilisateur
E-FLITE
E-FLITE UMX BEAST 3D Manuel utilisateur
E-FLITE
E-FLITE Clipped Wing Cub 250 Manuel utilisateur
E-FLITE
E-FLITE 25-Size Float Set Manuel utilisateur
E-FLITE
E-FLITE 4-Site Manuel utilisateur
E-FLITE
E-FLITE Fokker DVII 250 Slow Flyer ARF Manuel utilisateur
E-FLITE
E-FLITE Deuces Wild ARF Manuel utilisateur
E-FLITE
E-FLITE F-16 Falcon 80mm EDF Manuel utilisateur
E-FLITE
E-FLITE thunderbolt p-47 Manuel utilisateur
E-FLITE
E-FLITE Mini Ultra Stick Manuel utilisateur
E-FLITE
E-FLITE F-16 ARF Manuel utilisateur
E-FLITE
E-FLITE Funtana 300 AR Manuel utilisateur
E-FLITE
E-FLITE Rhapsody 25e ARF Manuel utilisateur
E-FLITE
E-FLITE Brio 10 ARF Manuel utilisateur
E-FLITE
E-FLITE Enticement F3P Manuel utilisateur
E-FLITE
E-FLITE Habu 32 EDF ARF Manuel utilisateur
E-FLITE
E-FLITE Mini Ultra Stick PNP Manuel utilisateur
E-FLITE
E-FLITE PT-19 ARF Manuel utilisateur
E-FLITE
E-FLITE Boeing Stearman PT-17 Manuel utilisateur
