Brio 10 ARF

Assembly Manual

Table of Contents

Landing Gear Installation ..................................11

Aileron Hinging ...............................................15

Aileron Servos and Linkages..............................18

Wing Installation..............................................21

Stabilizer, Elevator & Rudder .............................23

Firewall Installation...........................................28

Park 480 Outrunner Motor Installation................30

Power 10 Outrunner Motor Installation ...............32

6-Pole Motor Installation....................................34

Cowling, ESC and Propeller Installation ..............36

Rudder and Elevator Servos...............................43

Final Assembly.................................................49

Control Throws.................................................51

Center of Gravity .............................................52

Notes:.............................................................53

2005 Official AMA

National Model Aircraft Safety Code .......54

Contents of Kit/Parts Layout.................................3

Introduction .......................................................4

Specifications ....................................................4

Required Radio Equipment ..................................4

Important Information About Motor Selection.........5

Quique Somenzini’s Lightweight 3D Power Setup...5

High Speed Precision Outrunner Setup .................5

High Power 6-Pole Setup (Using Gearbox)* ..........6

Required Tools and Adhesives..............................6

Optional Accessories..........................................6

Using the Manual...............................................7

Warning ...........................................................7

Before Starting Assembly.....................................7

Note on Lithium Polymer Batteries ........................7

Limited Warranty Period......................................7

Safety Precautions ..............................................8

Questions, Assistance, and Repairs ......................8

Questions or Assistance ......................................8

Inspection or Repairs ..........................................8

Limited Warranty & Limits of Liability ....................9

Warranty Inspection and Repairs .......................10

Non-Warranty Repairs ......................................10

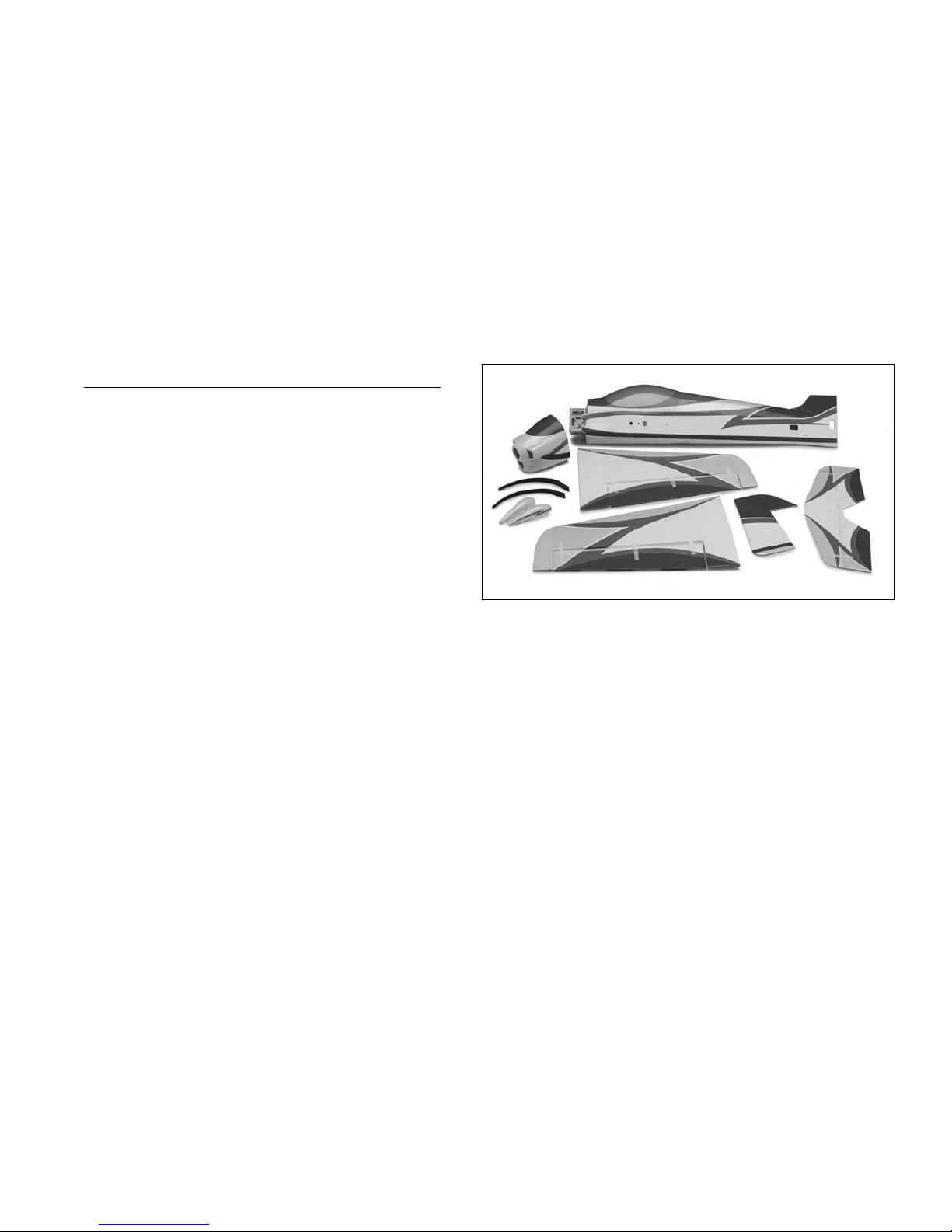

Contents of Kit/Parts Layout

Large Replacement Parts:

EFL2276 Wing Set w/Aileron

EFL2277 Fuselage w/Hatch

EFL2278 Tail Set

EFL2280 Main Landing Gear

EFL2281 Hatch & Canopy

EFL2283 Painted Cowl

EFL2284 Painted Wheel Pant Set

EFL2286 Firewall Set

Small Replacement Parts

EFL2086 Hook & Loop Tape

EFL2279 Pushrod Set

EFL2282 Pull-Pull Control Horn

EFL2285 Wing Tube

EFLA200 Micro Control Horns

EFLA202 Micro Tail Skid

EFLA203 Micro Control Connectors

EFLA213 E-flite/JR/Horizon Decals

EFLA214 Micro Pull-Pull Set

EFLA271 Spinner, 1 3/4" Black

EFLA221 Foam Park Wheels, 1.5"

EFLM1915 Outrunner Stick Mount

EFLM1916 Firewall Stick Mount

Introduction

Thank you for purchasing the E-ﬂite™Brio 10 ARF. If

anybody knows what precision feels like, 3-time World

Champion and 2-time US Champion Quique Somenzini

certainly does. And he has poured all this experience into

the design of the Brio 10—a 10-size replica of the same

F3A plane he used to win the 2005 US Nats. At the heart

of its performance is a low aspect ratio wing that moves the

center of lift closer to the fuselage. The result is an electric

pattern plane with outstanding roll rates and a locked-in feel

that will give you the conﬁdence to ﬂy artistic aerobatics with

absolute precision.

Specifications

Wingspan: 41 in (1040mm)

Length: 40 in (1015mm)

Wing Area: 325 sq in (21 sq dm)

Weight w/o Battery: 25–29 oz (710–820g)

Weight w/ Battery: 28–34 oz (795–965g)

Required Radio Equipment

You will need a minimum 6-channel transmitter (for proper

mixing capabilities), crystal, and four sub-micro servos.

You can choose to purchase a complete radio system that

includes all of these items or, if you are using an existing

transmitter, just purchase the other required equipment

separately. JR’s XP9303 has every possible programming

feature a precision plane like the Brio 10 would need. This,

combined with a feather-light JR 610UL, is the same system

Quique uses in his Brio 10.

Quique’s Transmitter

JR 9303 XP9303 9-Channel, 30-Model

Memory Transmitter

Purchase Separately

JSP30610 6-Channel UltraLite Rx w/o Crystal,

Positive Shift JR/Air (72 MHz)

JSP30615 6-Channel UltraLite Rx w/o Crystal,

Negative Shift Fut/HRC (72 MHz)

JRPXFR** FM Receiver Crystal

EFLRS75 7.5 Gram Sub-Micro Servo (4)

JSP98110 6" Servo Extension (2)

JSP98030 12" Servo Extension

Important Information About Motor

Selection

The Brio 10 has two ﬁrewall options that are designed

to easily utilize our recommended E-ﬂite™Park 480 BL

Outrunner Motor, 1020Kv, the optional Power 10 BL

Outrunner Motor, 1100Kv or our optional Six-Series BL

2700Kv Motor (28mm) with a gearbox. First determine

what power system you will be using, an outrunner or 6-

pole inrunner with a gearbox. You can also use the included

Firewall Stick Mount and easily mount our Six-Series with

a gearbox, or even our Park 480 Outrunner when you use

the included Outrunner Stick Mount. By using the included

outrunner standoffs, mounting a Power 10 Outrunner is also

very easy.

If it's Quique Somenzini's lightweight setup you are looking

for, try using our park 480 Outrunner, 1020 Kv motor

(EFLM1505). For high-speed F3A ﬂying only, we recommend

E-ﬂite’s Power 10 BL Outrunner motor (EFLM4010A). This

setup will weigh about 3 ounces more than the lightweight

alternative.

For a geared alternative with strong vertical power and

speed, try the Six-Series BL 2700Kv Motor (28mm)

(EFLM2005).

Best Recommended Setup

EFLM1505 Park 480 BL Outrunner Motor, 1020Kv

EFLA312B 40-Amp Brushless ESC (V2)

APC11070E Electric Propeller, 11 x 7E

WSD1300 Ultra Plug, Male/Female Set

EFLC3005 Celectra 1–3 Cell Li-Po Charger

Recommended Battery (by E-flite)

THP13203SPL 1320mAh 3-Cell 11.1V Li-Po, 16GA

This is the lightweight setup Quique ﬂies and recommends.

This is the best setup for precision ﬂying, artistic aerobatic

ﬂying, and 3D.

Note: The use of the Thunder Power 11.1V

1320mAh pack with wide open throttle will

discharge the battery at a very high rate.

Proper throttle management is required to

achieve optimum performance and prevent

shortened battery life.

Required Tools and Adhesives

Tools & Equipment

EFLA257 Screwdriver, #0 Phillips (or included with

EFLA250)

EFLA251 Hex Wrench: 3/32" (or included with

EFLA250)

7mm nut driver

Hobby knife

Paper towel/tissue

Square

Ruler

Felt-tipped pen

String

Adhesives

Medium CA Thick CA

6-Minute Epoxy, 9oz (HAN8000)

Threadlock (for mounting motor to gearbox)

Optional Accessories

EFLA110 Power Meter

EFLA212 Gear Puller: 1mm–5mm Shaft

Other Possible Setups

Optional High Speed Precision Outrunner Setup

EFLM4010A Power 10 Brushless Outrunner Motor,

1100Kv

EFLA312B 40-Amp Brushless ESC (V2)

APC12060E Electric Propeller, 12 x 6E

THP21003SPL 2100mAh 3-Cell 11.1V Li-Po, 16GA

WSD1300 Ultra Plug, Male/Female Set

EFLC3005 Celectra 1–3 Cell Li-Po Charger

This setup is for high speed F3A. It is not recommended

for 3D ﬂying.

Optional High Power 6-Pole Setup (Using Gearbox)

EFLM2005 Six-Series BL 2700Kv Motor (28mm)

EFLM236 400 Gearbox w/56T 0.5M Spur Gear

EFLM1957 19T 0.5 Module 3.2mm ID Pinion Gear

EFLA312B 40-Amp Brushless ESC (V2)

APC12060E Electric Propeller, 12 x 6E

THP21003SPL 2100mAh 3-Cell 11.1V Li-Po, 16GA

WSD1300 Ultra Plug, Male/Female Set

EFLC3005 Celectra 1–3 Cell Li-Po Charger

Using this setup will give you plenty of power for extreme

F3A precision aerobatic ﬂights and 3D aerobatics.

Using the Manual

This manual is divided into sections to help make assembly

easier to understand, and to provide breaks between each

major section. In addition, check boxes have been placed

next to each step to keep track of each step completed.

Steps with a single circle () are performed once, while

steps with two circles () indicate that the step will

require repeating, such as for a right or left wing panel,

two servos, etc.

Remember to take your time and follow the directions.

Warning

An RC aircraft is not a toy! If misused, it can cause serious

bodily harm and damage to property. Fly only in open

areas, preferably at AMA (Academy of Model Aeronautics)

approved ﬂying sites, following all instructions included with

your radio.

Keep loose items that can get entangled in the propeller

away from the prop, including loose clothing, or other

objects such as pencils and screwdrivers. Especially keep

your hands away from the propeller.

Before Starting Assembly

Before beginning the assembly of your Brio 10, remove

each part from its bag for inspection. Closely inspect the

fuselage, wing panels, rudder and stabilizer for damage.

If you ﬁnd any damaged or missing parts, contact the place

of purchase.

Note on Lithium Polymer Batteries

Lithium Polymer batteries are signiﬁcantly

more volatile than alkaline or Ni-Cd/Ni-

MH batteries used in RC applications. All

manufacturer’s instructions and warnings

must be followed closely. Mishandling of Li-Po

batteries can result in ﬁre. Always follow the

manufacturer’s instructions when disposing of

Lithium Polymer batteries.

Limited Warranty Period

Horizon Hobby, Inc. guarantees this product to be free

from defects in both material and workmanship at the

date of purchase.

Questions or Assistance

For questions or assistance, please direct your email to

productsupport@horizonhobby.com, or call 877.504.0233

toll free to speak to a service technician.

Inspection or Repairs

If your product needs to be inspected or repaired, please

call for a Return Merchandise Authorization (RMA). Pack

the product securely using a shipping carton. Please note

that original boxes may be included, but are not designed

to withstand the rigors of shipping without additional

protection. Ship via a carrier that provides tracking and

insurance for lost or damaged parcels, as Horizon Hobby,

Inc. is not responsible for merchandise until it arrives and

is accepted at our facility. Include your complete name,

address, phone number where you can be reached during

business days, RMA number, and a brief summary of the

problem. Be sure your name, address, and RMA number are

clearly written on the shipping carton.

Safety Precautions

This is a sophisticated hobby product and not a toy. It must

be operated with caution and common sense and requires

some basic mechanical ability. Failure to operate this product

in a safe and responsible manner could result in injury or

damage to the product or other property. This product is not

intended for use by children without direct adult supervision.

The product manual contains instructions for safety,

operation and maintenance. It is essential to read and

follow all the instructions and warnings in the manual,

prior to assembly, setup or use, in order to operate correctly

and avoid damage or injury.

Questions,Assistance, and Repairs

Your local hobby store and/or place of purchase cannot

provide warranty support or repair. Once assembly, setup

or use of the product has been started, you must contact

Horizon Hobby, Inc. directly. This will enable Horizon to

better answer your questions and service you in the event

that you may need any assistance.

Pursuant to this Limited Warranty, Horizon Hobby, Inc.

will, at its option, (i) repair or (ii) replace, any product

determined by Horizon Hobby, Inc. to be defective. In the

event of a defect, these are your exclusive remedies.

This warranty does not cover cosmetic damage or damage

due to acts of God, accident, misuse, abuse, negligence,

commercial use, or modiﬁcation of or to any part of the

product. This warranty does not cover damage due to

improper installation, operation, maintenance, or attempted

repair by anyone other than an authorized Horizon Hobby,

Inc. service center. This warranty is limited to the original

purchaser and is not transferable. In no case shall Horizon

Hobby’s liability exceed the original cost of the purchased

product and will not cover consequential, incidental or

collateral damage. Horizon Hobby, Inc. reserves the right to

inspect any and all equipment involved in a warranty claim.

Repair or replacement decisions are at the sole discretion

of Horizon Hobby, Inc. Further, Horizon Hobby reserves the

right to change or modify this warranty without notice.

REPAIR OR REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER. HORIZON HOBBY, INC. SHALL

NOT BE LIABLE FOR ANY INCIDENTAL OR

CONSEQUENTIAL DAMAGES.

As Horizon Hobby, Inc. has no control over use, setup,

ﬁnal assembly, modiﬁcation or misuse, no liability shall be

assumed nor accepted for any resulting damage or injury.

By the act of use, setup or assembly, the user accepts all

resulting liability.

If you as the purchaser or user are not prepared to accept

the liability associated with the use of this product, you

are advised to return this product immediately in new and

unused condition to the place of purchase.

Limited Warranty & Limits of Liability

Warranty Inspection and Repairs

To receive warranty service, you must include your original

sales receipt verifying the proof-of-purchase date. Providing

warranty conditions have been met, your product will be

repaired or replaced free of charge. Repair or replacement

decisions are at the sole discretion of Horizon Hobby.

Non-Warranty Repairs

Should your repair not be covered by warranty and the

expense exceeds 50% of the retail purchase cost, you will be

provided with an estimate advising you of your options. You

will be billed for any return freight for non-warranty repairs.

Please advise us of your preferred method of payment.

Horizon Hobby accepts money orders and cashiers checks,

as well as Visa, MasterCard, American Express, and

Discover cards. If you choose to pay by credit card, please

include your credit card number and expiration date.

Any repair left unpaid or unclaimed after 90 days will be

considered abandoned and will be disposed of accordingly.

Electronics and engines requiring inspection or repair should

be shipped to the following address (freight prepaid):

Horizon Service Center

4105 Fieldstone Road

Champaign, Illinois 61822

All other products requiring inspection or repair should be

shipped to the following address (freight prepaid):

Horizon Product Support

4105 Fieldstone Road

Champaign, Illinois 61822

Table des matières

Autres manuels E-FLITE Jouet

E-FLITE

E-FLITE Taylorcraft 450 ARF Manuel utilisateur

E-FLITE

E-FLITE Fokker DVII 250 Slow Flyer ARF Manuel utilisateur

E-FLITE

E-FLITE Mini Ultra Stick Manuel utilisateur

E-FLITE

E-FLITE EFLH2200 Manuel utilisateur

E-FLITE

E-FLITE hawker sea fury 400 arf Manuel utilisateur

E-FLITE

E-FLITE UMX Vapor Lite HP BNF Basic Manuel utilisateur

E-FLITE

E-FLITE 25-Size Float Set Manuel utilisateur

E-FLITE

E-FLITE EFLU5864 Manuel utilisateur

E-FLITE

E-FLITE F86 Sabre 15DF Manuel utilisateur

E-FLITE

E-FLITE Pitts Model 12 15e ARF Manuel utilisateur

E-FLITE

E-FLITE Mini ShowTime 4D Manuel utilisateur

E-FLITE

E-FLITE Piper L-4 Grasshopper ARF Manuel utilisateur

E-FLITE

E-FLITE Rhapsody 25e ARF Manuel utilisateur

E-FLITE

E-FLITE 4-Site Manuel utilisateur

E-FLITE

E-FLITE Conscendo Evolution 1.5m Manuel utilisateur

E-FLITE

E-FLITE Carbon-Z P2 Prometheus Manuel utilisateur

E-FLITE

E-FLITE S.E.5a Slow Flyer ARF EFL1925 Manuel utilisateur

E-FLITE

E-FLITE Blade CP Pro 2 PNP Manuel utilisateur

E-FLITE

E-FLITE P-38 Lightning 400 ARF Manuel utilisateur

E-FLITE

E-FLITE J-3 Cub 25 ARF Manuel utilisateur

E-FLITE

E-FLITE Carbon-Z Cub SS Manuel utilisateur

E-FLITE

E-FLITE Funtana 300 AR Manuel utilisateur

E-FLITE

E-FLITE Extra 300 3D Manuel utilisateur

E-FLITE

E-FLITE F-16 ARF Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
