DW DWC-V6563D Manuel utilisateur

08132013

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Vandal Dome Camera

DWC-V6563D

DWC-V6563DIR

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Table of Contents

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Surface Mount Installation

Accessories Installation

Connecting to Monitors

Control Board

9-12

17-28

30-31

32-33

Adjusting the Camera Gimbal 16

Adjusting the Camera Lens 15

FEATURES*

960H CCD Image Sensor (960 Horizontal Pixels)

720 TV Lines [B/W], 700 TV Lines [Color]

2.8~12mm Varifocal Auto Iris Lens

100ft Range IR with Intelligent Camera Sync, Smart IR

Electronic Day & Night

3D DNR (3D Digital Noise Reduction)

Star-Light (Super Low Light Technology)

HME (Highlight Masking Exposure)

SLC (Side Light Compensation)

Programmable Privacy Zones (8) & Motion Detection

AGC / BLC / AWB

Easy Icon Driven OSD Menu with Built-in Joystick

IP66 Certified (Weatherproof)

Auto Sensing 24VAC/12VDC with Line Lock

Secondary Video-BNC Output

PARTS & DESCRIPTION*

1Bottom Case

Camera Gimbal

Upper Case

Dome Cover

Cover Screws (x4)

Side Port for Cabling

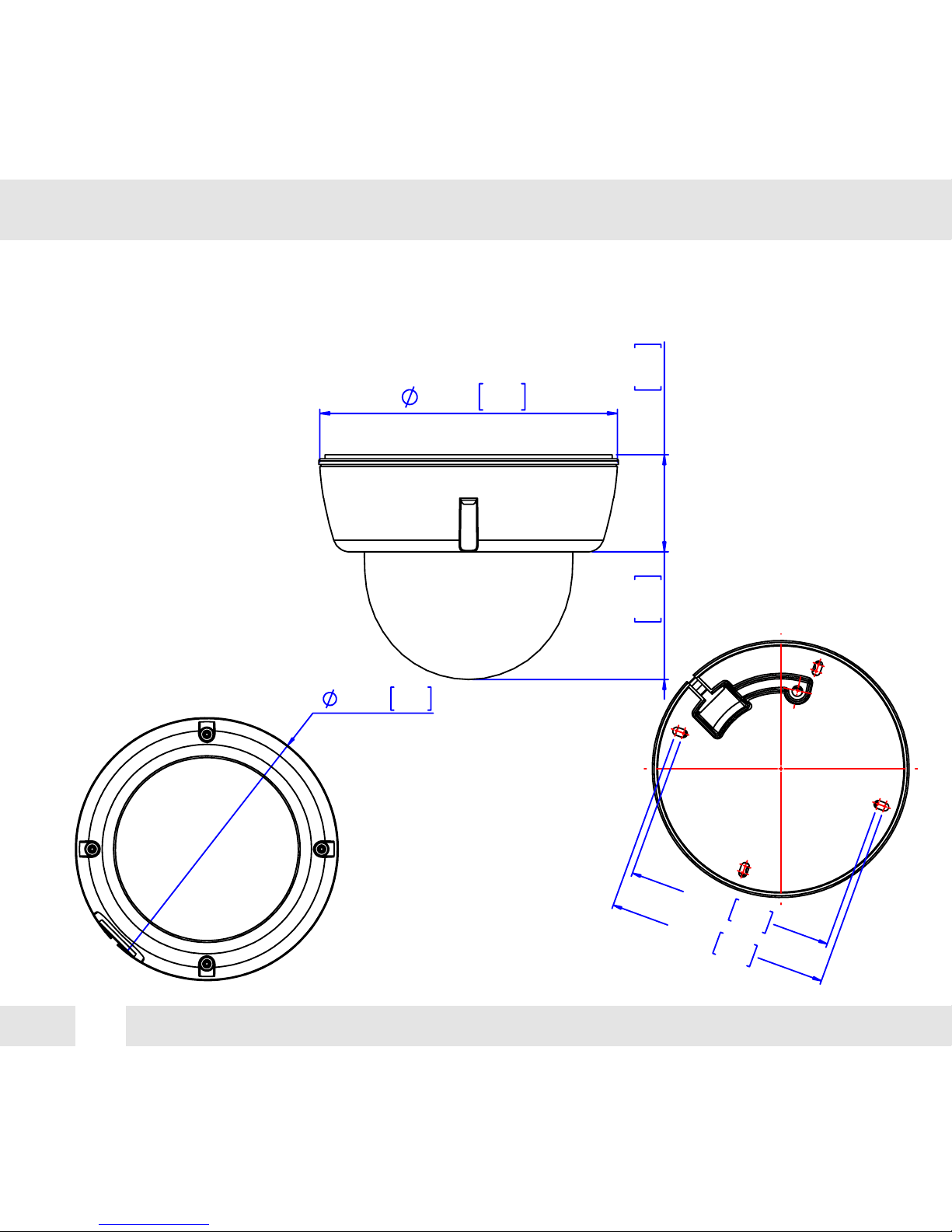

DIMENSIONS IN MILLIMETERS (IN)*

47.0 1.9

144.0 5.7

61.8 2.4

145.0 5.7

117.0 4.6

125.0 4.9

INSIDE THE BOX*

Included with Camera:

User Manual

Mounting Template

4 Machine Screws and 4 Dry Wall Anchors

Secondary Video-BNC Cable

L-Key

07292013

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Vandal Dome Camera

DWC-V6553D

DWC-V6563D

DWC-V6563DIR

SURFACE MOUNT INSTALLATION INSTRUCTIONS*

1. Use the camera or mounting template to mark and drill the

necessary holes in the wall or ceiling.

2. Pull wires through and make connections.

3. Using the four (4) included screws, mount and secure the

camera to the wall or ceiling.

4. Adjust the camera’s Pan and Tilt and Lens.

See pages 15-16 for more information.

5. Use the joystick to adjust the OSD menu. See pages 17-28

for more information.

6. Attach the camera housing to the camera base using the

assembly screws.

JUNCTION BOX INSTALLATION INSTRUCTIONS*

Check to see all parts are in

the box.

Use the dry wall anchors and

machine screws to mount the

junction box and rubber

gasket to the wall.

Insert wires through the

wall and make the

appropriate connections.

Attach the camera to the

junction box using the

machine screws.

Attach the camera housing

to the junction box using the

assembly screws.

1 2 3

4 5

WALL MOUNT INSTALLATION INSTRUCTIONS*

Check to see all parts are in

the box.

Insert the wires from the

camera through the wall

mount housing.

Attach the camera to

the wall mount housing.

Use the mounting template to

make pilot holes. Use the dry

wall anchors and machine screws

to attach the assembly to the wall.

Attach the camera housing

to the fixture.

1 2 3

4 5

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DW Caméra de sécurité

DW DWC-D3763WTIR Manuel utilisateur

DW MEGApix DWC-MVA2Wi28T Manuel utilisateur

DW PIXIM DWC-V365D Manuel utilisateur

DW MEGApix DWC-MVA2WiAT Manuel utilisateur

DW DWC-MPTZ30X Manuel utilisateur

DW MEGApix CaaS DWC-MB44Wi650C6 Manuel utilisateur

DW DWC-B6263WTIR Manuel utilisateur

DW DWC-PPVF9Di2TW Manuel utilisateur

DW Star-Light Plus DWC-D4883WTIRW Mode d’emploi

DW DWC-V562D Manuel utilisateur

DW DWC-B1362TIR650 Manuel utilisateur

DW DWC-MB74Wi4 Manuel utilisateur

DW megaPix DWC-MV950TIR Manuel utilisateur

DW DWC-V7253TIR Manuel utilisateur

DW MEGApix CaaS DWC-MB44WiAWC5 Manuel utilisateur

DW DWC-MB421TIR Manuel utilisateur

DW MEGAPIX DWC-MC421D Manuel utilisateur

DW DWC-LPR650 Manuel utilisateur

DW DWC-MVC8WiATW Manuel utilisateur

DW x39 Manuel utilisateur

DW DWC-MT95WiATW Manuel utilisateur

DW DWC-MV9CMJ Manuel utilisateur

DW STAR-LIGHT HDCOAX DWC-PTZ220X Manuel utilisateur

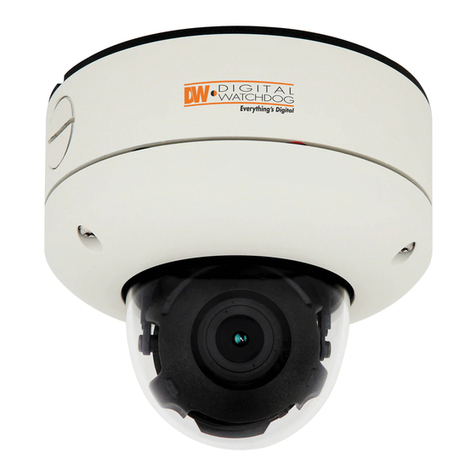

DW Snapit DWC-V4363D Manuel utilisateur
