DW DWC-B6763WTIR Manuel utilisateur
05/2015
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
Analog High Definition
Bullet Camera
DWC-B6763WTIR
DWC-B6763WTIR650
2
PRECAUTIONS
Do not open or modify.
Do not open the case except during maintenence and installation,
for it may be dangerous and can cause damages.
Do not put objects into the unit.
Keep metal objects and flammable substances from entering the camera.
It can cause fire, short-circuits, or other damages.
Be careful when handling the unit.
To prevent damages, do not drop the camera or subject it to shock or vibration.
Do not install near electric or magnetic fields.
Protect from humidity and dust.
Protect from high temperature.
Be careful when installing near the ceiling of a kitchen or a boiler room,
as the temperature may rise to high levels.
Cleaning:
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
Mounting Surface:
The material of the mounting surface must be strong enough to support the camera.
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference, when the equipment is operated in a residential environment. This
equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in
accordance with the instruction manual, it may cause harmful interference to radio communications.
WARNING: Changes or modifications are not expressly approved by the manufacturer.
Table of Contents
3
TABLE OF CONTENTS
Introduction
Installation
Module OSD Menu
Troubleshooting
Warranty Information
Specifications
Features
Parts and Descriptions
Dimensions
Inside the Box
Installation Instructions
Connecting to Monitors 10
Control Board
4
5
6-7
8
9
11
12
13-25
26
27-28
29-30
Adjusting the Camera Angle
4
FEATURES*
Analog High Definition (AHD) HD over Coax Technology
STAR-LIGHT™ Super Low Light Technology
Panasonic 1/3" CMOS Sensor
1080P Resolution at 30fps
Wide Dynamic Range (WDR)
Varifocal P-Iris Lens from 2.8~12mm [DWC-B6763WTIR Models]
Varifocal P-Iris Lens from 6~50mm [DWC-B6763WTIR650 Models]
Smart IR™ with Intelligent Camera Sync. 100-150ft Range
Smart DNR™ 3D Digital Noise Reduction
Highlight Masking Exposure (HME)
True Day/Night Mechanical IR Cut Filter
Auto Sensing 24VAC/12VDC with Line Lock
Secondary Video-BNC Output (While UTP in use)
Easy Icon Driven OSD Menu with Built-in Joystick
Programmable Privacy Zones
Auto Gain Control (AGC)
Back Light Compensation (BLC)
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Auto White Balance (AWB)
RS-485 Built-in
IP66 Certified (Weather Resistant)
Set Screw
5
PARTS & DESCRIPTION*
1Mounting Bracket
Camera Module
Sunshield Adjusting Screws
Sunshield Cover
IR Module
Front Case
2
3
4
5
12
11
10
9
8
7
6
5
4
3
1
2
6
OSD Joystick Controller
BNC Cable
12VDC Power Outlet
RS485 Cable
UTP Cable
Alarm Output Cable
7
8
9
10
12
11
6
DIMENSIONS IN MILLIMETERS (IN)*
224.5 8.83
73.7 2.90
112.0 4.41 94.0 3.70
96.7 3.81
61.5 2.42
4.2 0.17
78.0 3.07
DWC-B6763WTIR
7
DIMENSIONS IN MILLIMETERS (IN)*
DWC-B6763WTIR650
252.0
(9.9”)
222.5
(8.76”)
93.5
(3.68”)
96.7 (3.8”)
78.0 (3.07”)
4.2 (0.16”)
8
INSIDE THE BOX*
Included with Bullet Camera:
1
2
3
4
6
5
User Manual
Mounting Template
4 Machine Screws and 4 Dry Wall Anchors
Secondary Video-BNC Cable
L-Key
DC Plug Power Cable
6
05/2015
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
Anlog High Definition
Bullet Camera
DWC-B6763WTIR
DWC-B6763WTIR650
9
INSTALLATION INSTRUCTIONS*
1. Using the mounting template or your own camera,
mark and drill the necessary holes to mount the
bracket to a wall or ceiling.
2. Pull all necessary wires through and make the
proper connections.
3. Use the four (4) mounting screws to install
the camera on the wall or ceiling.
NPT 3/4” Pipe
*Installation Using a Junction Box
*Note: Electrical junction box and
required screws sold separately.
10

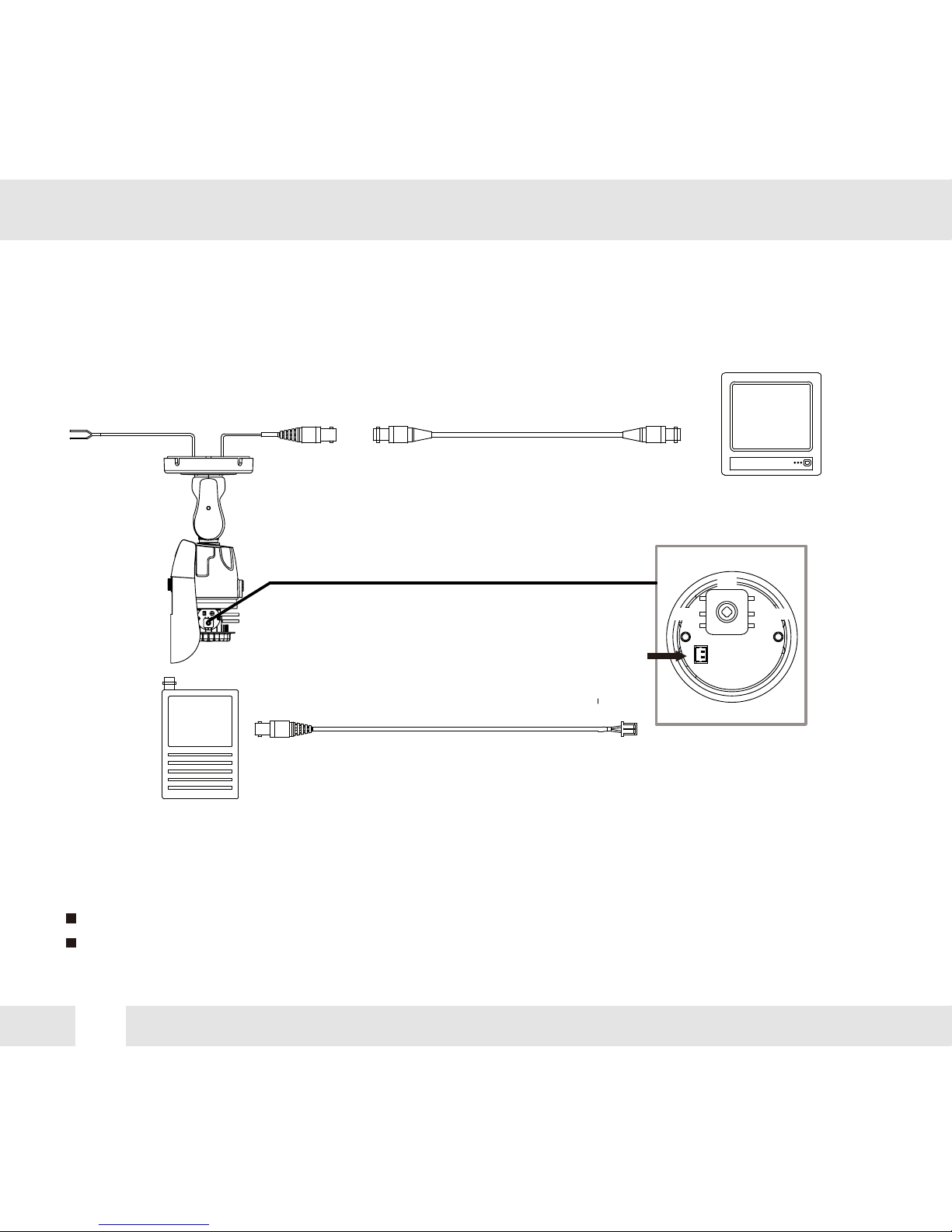

Use the diagram below to connect to a Monitor or CRT Monitor properly.
Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection)
All cameras are equipped with a second video output for on-site configuration.
CONNECTING TO MONITORS*
12VDC/24VAC
Monitor
CCTV Monitor
Second Video Output
Right
Left
Up
Down
