DW DWC-V562D Manuel utilisateur

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

960H Vandal Dome Camera

DWC-V562D

DWC-V562DIR

User Manual

11192012

Value

PRECAUTIONS

FCC COMPLIANCE

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Do not open or modify.

Do not open the case except during maintenance and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a residential environment. This equipment generates, uses, and radiates

radio frequency energy; and if it is not installed and used in accordance with the

instruction manual, it may cause harmful interference to radio communications.

Table of Contents

Introduction

Installation

Camera OSD Menu and Glossary

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Included Accessories

Base Installation

Connecting to Monitors

Adjusting the Camera

12-23

25-26

27-28

Adjusting the 3-Axis Gimbal 11

FEATURES*

DWC-V562D / DWC-V562DIR

1/3” 960H High Resolution CCD

700 TV Lines

2.8 ~ 11mm Varifocal Auto Iris Lens

Electronic Day and Night

HME (Highlight Masking Exposure)

AGC / SMART BLC / AWB

Night-Up

Mirror Image Control

Programmable Privacy Zones (8) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Auto Sensing 12VDC or 24VAC with Line Lock

Secondary Video-BNC Output

Video Test Output Included

IP66 Certified (Weatherproof)

85ft Range IR with Intelligent Camera Sync, Smart IR (DWC-V562DIR)

PARTS & DESCRIPTIONS*

1Lens

4Upper Case

5Dome Cover

2Power Input Connector

12VDC/24VAC Dual Voltage

3Video Output Connector - BNC

6Dome Cover Rubber

7Mounting Plate

Assembly Screws

Camera Base

Control Board

Power Board

Mounting Screws

8Upper Ring

NO IR

Joystick

DIMENSIONS IN MILLIMETERS (INCHES)*

See below for diagrams of the exact dimensions for Surface Mount Housing.

52.2(2.05”)

96.2(3.79”)

Ø149.9(Ø5.9”)

37.0

(1.46”)

Ø149.9

(Ø5.9”)

Ø115.0

(Ø4.53”)

Ø5.0

(Ø0.2”)

3- Ø4.5

(3- Ø0.18”)

INSTALLATION*

Included with Value Line Vandal Dome Camera

1. User Manual

2. Mounting Template

3. Second Video Jack

4. Three (3) Screws and Three (3) Dry Wall Anchors

5. L-Wrench

Ø144.0

Ø5.0

Mounting Template

VD101

Ø15.0

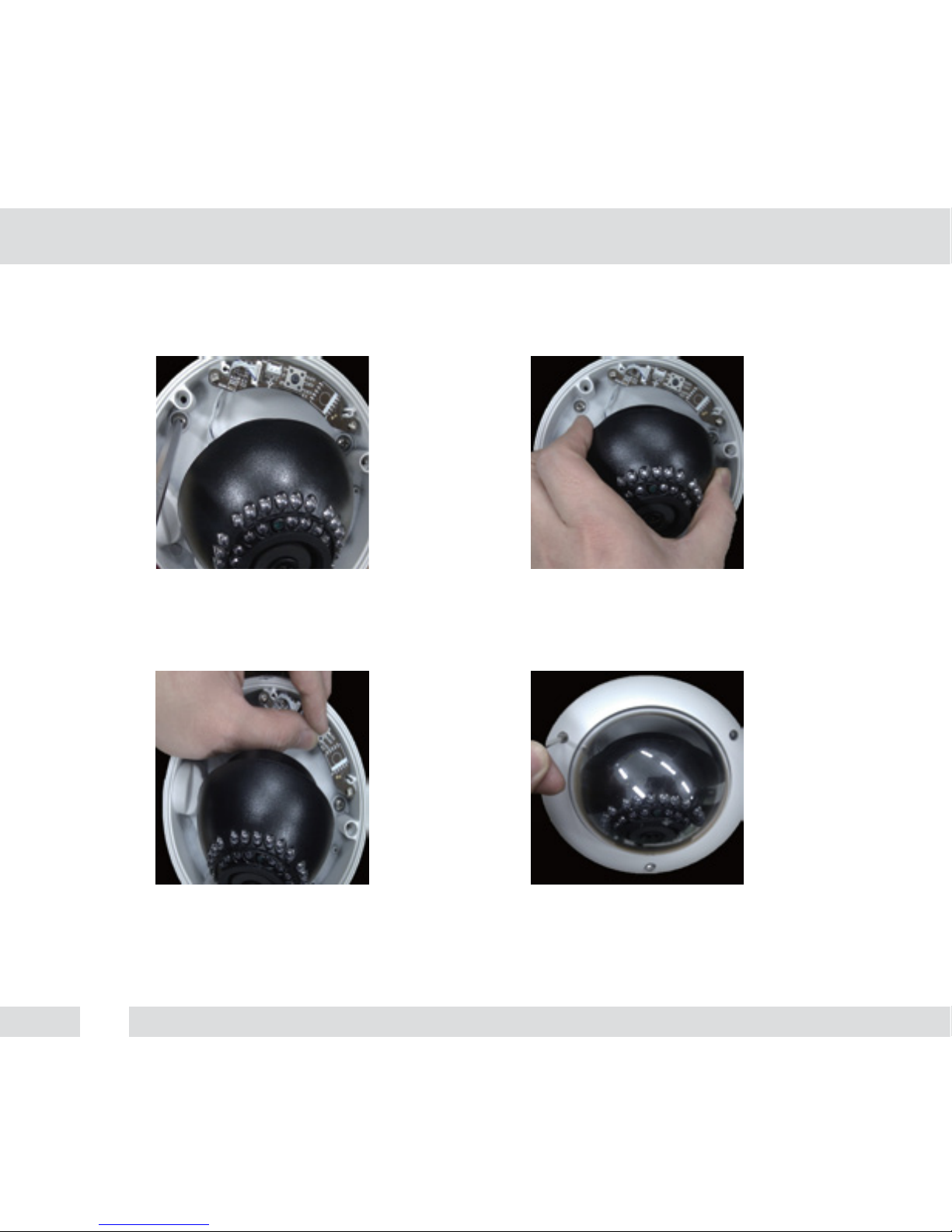

BASE INSTALLATION*

1. Pull wires through and make connections.

Refer to page 9. Use mounting template to

mount camera with dry wall mounts and

wood screws.

3. Use the joystick to adjust the OSD menu.

See pages 12~23 for details.

2. Adjust the camera’s 3-Axis Gimbal, zoom,

and focus. See pages 10-11 for details.

4. Secure the dome cover to the camera base by

using the assembly screws. Make sure the camera

is tightly secured to avoid damage to the camera

module.

CONNECTING TO MONITORS*

2nd Video Output

Right

Left

Up Down

CCTV Monitor

Monitor

11.8in

12VDC/24VAC

Power connection - 12VDC/24VAC Dual Voltage. (Auto polarity detection and protection.)

All cameras are equipped with a second video output on the camera’s Control Board for

easy on-site configuration.

NO IR

ADJUSTING THE CAMERA*

ZOOM

FOCUS

NO IRIR Zoom:

Focus:

Tele - Wide

Far - Near

Loosen the zoom and focus handles by rotating them counter-clockwise.

Adjust the field of view by moving the handle to the RIGHT (tele) to zoom in, or to the

LEFT (wide) to zoom out.

Adjust the focus the same way as described above AFTER the desired zoom position

is established.

Once the desired adjustments have been made, please tighten the handles back by

turning them clockwise.
