DURAVIT Architec 700353 Manuel utilisateur

Leben im Bad

Living bathrooms

Architec

Mounting instructions Tiled bathtub (niche)

Notice de montage Baignoire, carrelée (niche)

Instrucciones de montaje Bañera empotrada con azulejos (entre 3 paredes, )

Architec

# 700353

# 700354

# 700355

# 700356

Important information

Remarques importantes

Informacion importante

2_Architec_14.7.17 3_Architec_14.7.17

Mortar Bed Installation

* Tub may be mounted on a bed of wet mortar

on top of the sub-ﬂoor for leveling and stabil-

ity.

* On every side of the tub that touches a wall,

a tile ﬂange should be used to seal the joint

from water damage.

Regarding the mounting instructions

These mounting instructions comes as part of the Duravit

bathtub and should be read carefully prior to installation.

Explanation of key words and symbols

NOTE! In the case of potential damage to property

Link to installation information in this section

Inspection (e.g. for scratches)

Indication of the length of time (e.g. 10 minutes)

Inspect to check for leaks and tightness

Target group and qualification

The bathtub must only be installed by licensed plumber.

Note!

Local installation regulations and any country-specific

standards must be observed at all times.

Important information

Products are in compliance with following codes: Uni-

form Plumbing Code

National Plumbing Code of Canada

International Plumbing Code

Products are in Compliance with the following stand-

ards

CSA B45.5-11/IAPMO Z124-2011

Prerequisites

Please check door width(s) and ensure that the bath-

tub can be easily transported into bathroom.

The service hatch for the outlet and siphon must be

at least 7-7/8“ x 7-7/8” . The access panels has to be

splash proof and they have to be installed in such a

way that they can only be opened with a tool.

We reserve the right to make technical improvements

and enhance the appearance of the products shown.

Concernant la notice de montage

Cette notice de montage fait partie de la baignoire

Duravit et doit être lue soigneusement avant le montage.

Explication des avertissements et symboles

REMARQUE! En cas de dégâts matériels éventuels

Référence à la consigne de montage dans ce

chapitre

Invitation à vérifier (par ex. les rayures)

Indication de la durée (par ex. 10 minutes)

Invitation à vérifier l'étanchéité

Groupe cible et qualification

La baignoire doit uniquement être montée par des

installateurs sanitaires formés à cet effet.

Remarque!

L'installation doit obligatoirement être réalisée selon les

consignes d'installation des fournisseurs locaux ainsi que

les normes spécifiques aux pays.

Remarques importantes

4_Architec_14.7.17 5_Architec_14.7.17

Instrucciones de montaje

Estas instrucciones de montaje acompañan a la bañera

Duravit y es necesario leerlas cuidadosamente antes del

montaje.

Explicación de las indicaciones y símbolos de

advertencia

¡ADVERTENCIA! En caso de posibles daños materiales

Indica a una advertencia acerca del montaje en

este capítulo

Fíjese que no haya, por ejemplo, arañazos

Tiempo necesario (por ejemplo, 10 minutos)

Compruébese la estanqueidad

Instaladores y sus cualificaciones

La bañera únicamente podrán montarla instaladores

sanitarios cualificados.

¡Advertencia!

Deberán cumplirse sin restricciones las instrucciones de

instalación de las empresas de suministro locales y las

normas específicas de cada país.

Información importante

Ruler Screw Wrench Caulk Level Drill Pencil

Driver

# 791224

US Drain

6_Architec_14.7.17 7_Architec_14.7.17

Inspect tub for any potential damage that

may have occured during transport.

Place cardboard or blanket on the ﬂoor and

turn tub over. Connect tub waste and overﬂow ( see page

10-11 for instruction.

DANGER!

Fatal injury by electric shock. Make sure that

there are no electrical wires or heating run-

ning under the ﬂoor, which could be affected

by the installation of tub.

Afﬁx 6 ﬂange clips to the wall frame to pro-

vide top side support of the tub.

Set tub into designated frame area and

connect tub drain to rough in. Fill the tub

with water insecpt for water leaks.

Once tub is set, ﬁnish wall and tile and apply

silicone as needed.

71 23

456

8_Architec_14.7.17 9_Architec_14.7.17

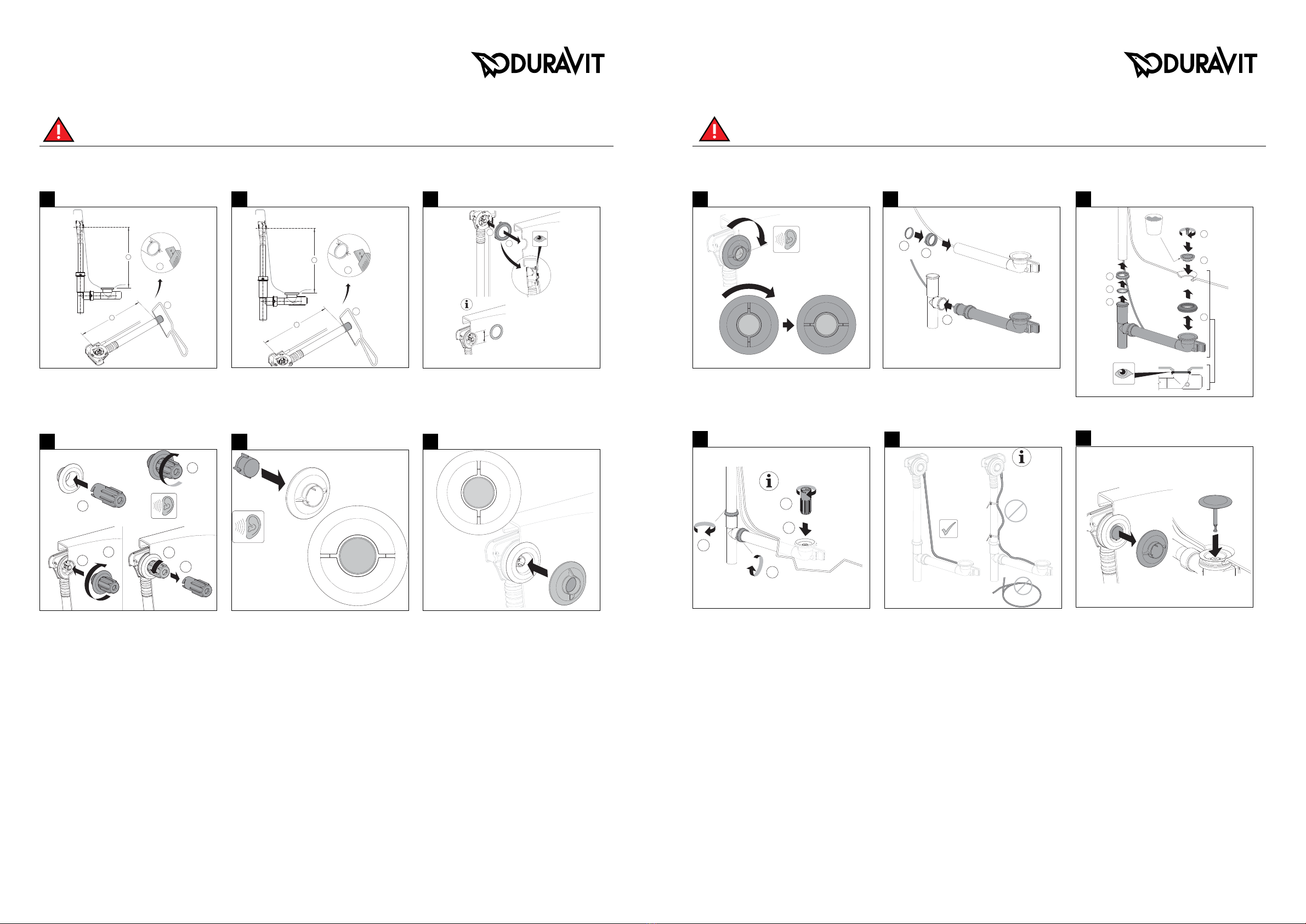

Measure vertical distance of overﬂow to

drain and cut pipe length.

Measure horizontal distance of drain center

to overﬂow and cut drain pipe to match

length.

Attach rubber gasket and install the over-

ﬂow against interior of wall.

Using provide tool, attach to chrome trim

piece and connect to overﬂow. Turn tool

Clockwise to tighten into place.

Insert push button into yellow sleeve, turn

90° to secure button into place.

Insert push button and sleeve to overﬂow

and ensure button lines up with insert in

overﬂow.

Once set, turn sleeve ninty degrees to secure

push button to overﬂow and then remove

yellow sleeve.

Connect drain and overﬂow using gasket and

adaptor.

Using provided gaskets, attach the drain to

the tub and insert get screw to drain.

2-1/2"

(62.75)

“Click”

« Clic »

“Clic”

“Click”

« Clic »

“Clic”

Spacer need metal trim only for hole

sizes equal to or greater than 2-1/2”.

90° “Click”

« Clic »

“Clic”

Hand snug tight

(5 ft-lbs max)

Serrer à fond à la

main (5 pi-lb max)

Apretar bien sólo

con la mano

(5 pies/lb

máximo)

Hand snug tight

(5 ft-lbs max)

Serrer à fond à la

main (5 pi-lbmax)

Apretar bievn sólo

con la mano

(5 pies/lb máximo)

78 9

10 11 12

123

456

No tools for tighting drain! No tools for tighting drain!

10_Architec_14.7.17

Tighten set

screw in drain

using provided

tool.

Connect cable and ensure it is tight. It cannot

have slack.

Insert drain cover to drain and press over-

ﬂow button to actuate a sync.

11_Architec_14.7.17

Duravit NYC

105 Madison Avenue

New York, NY 10016

Toll Free +888- Duravit

Phone +212 686 0033

Fax +212 686 8033

[email protected]avit.com

www.duravit.us

Duravit USA, Inc.

2205 Northmont Parkway

Suite 200 Duluth, GA 30096

Toll Free +1 888-DURAVIT

Phone +1 770 9313575

Fax +1 770 9318454

[email protected]avit.com

www.duravit.us

12_Architec_14.7.17
