DURAVIT Architec 700353 Manuel utilisateur

Mounting instructions Alcove Installation

Leben im Bad

Living bathrooms

Architec

2 Architec_US_.14.11.18

Architec

# 700353

# 700354

# 700355

# 700356

Architec_US_.14.11.18 3

Important information 4

Installation

Waste and Overﬂow installation

Cleaning and Care

4 Architec_US_.14.11.18

Important information

Regarding the mounting instructions

These mounting instructions comes as part of the Duravit

bathtub and should be read carefully prior to installation.

Explanation of key words and symbols

NOTE! In the case of potential damage to property

Link to installation information in this section

Inspection (e.g. for scratches)

Indication of the length of time (e.g. 10 minutes)

Inspect to check for leaks and tightness

Target group and qualification

The bathtub must only be installed by licensed plumber.

Note!

Local installation regulations and any country-specific

standards must be observed at all times.

Prerequisites

Please check door width(s) and ensure that the

bathtub can be easily transported into bathroom.

We reserve the right to make technical improvements

and enhance the appearance of the products shown.

Products are in compliance with following codes:

Uniform Plumbing Code

National Plumbing Code of Canada

International Plumbing Code

Products are in Compliance with the following standards

CSA B45.5-11/IAPMO Z124-2011

Architec_US_.14.11.18 5

# 791224

# 700353

# 700354

# 700355

6 Architec_US_.14.11.18

Inspect tub for any potential damage that

may have occured during transport.

Place cardboard or blanket on the ﬂoor and

turn tub over.

Connect tub waste and overﬂow.

Fatal injury by electric shock. Make sure

that there are no electrical wires or heating

running under the ﬂoor, which could be

affected by the installation of tub.

Afﬁx 6 ﬂange clips to the wall frame for side

support of the tub.

Set tub into designated frame area and

connect tub drain to rough in. Fill the tub

with water and inspect for any potential

leaks.

DANGER!

Architec_US_.14.11.18 7

Once tub is set, ﬁnish wall and tile and apply

silicone as needed.

8 Architec_US_.14.11.18

2-1/2"

(62.75)

“Click”

« Clic »

“Clic”

“Click”

« Clic »

“Clic”

Measure vertical distance of overﬂow to

drain and cut pipe length.

Measure horizontal distance of drain center

to overﬂow and cut drain pipe to match

length.

Attach rubber gasket and install the

overﬂow against interior of wall.

Using provide tool, attach to chrome trim

piece and connect to overﬂow. Turn tool

Clockwise to tighten into place.

Insert push button into yellow sleeve, turn

90° to secure button into place.

Insert push button and sleeve to overﬂow

and ensure button lines up with insert in

overﬂow.

Waste & Overﬂow Installation

Architec_US_.14.11.18 9

90° “Click”

« Clic »

“Clic”

Hand snug tight

(5 ft-lbs max)

Serrer à fond à la

main (5 pi-lb max)

Apretar bien sólo

con la mano

(5 pies/lb

máximo)

Once set, turn sleeve 90 degrees to secure

push button to overﬂow and then remove

yellow sleeve.

Connect drain and overﬂow using gasket and

adaptor.

Using provided gaskets, attach the drain to

the tub and insert get screw to drain.

Tighten set screw in drain using provided

tool.

Connect cable and ensure it is tight. It cannot

have slack.

Insert drain cover to drain and press

overﬂow button to actuate a sync.

10 Architec_US_.14.11.18

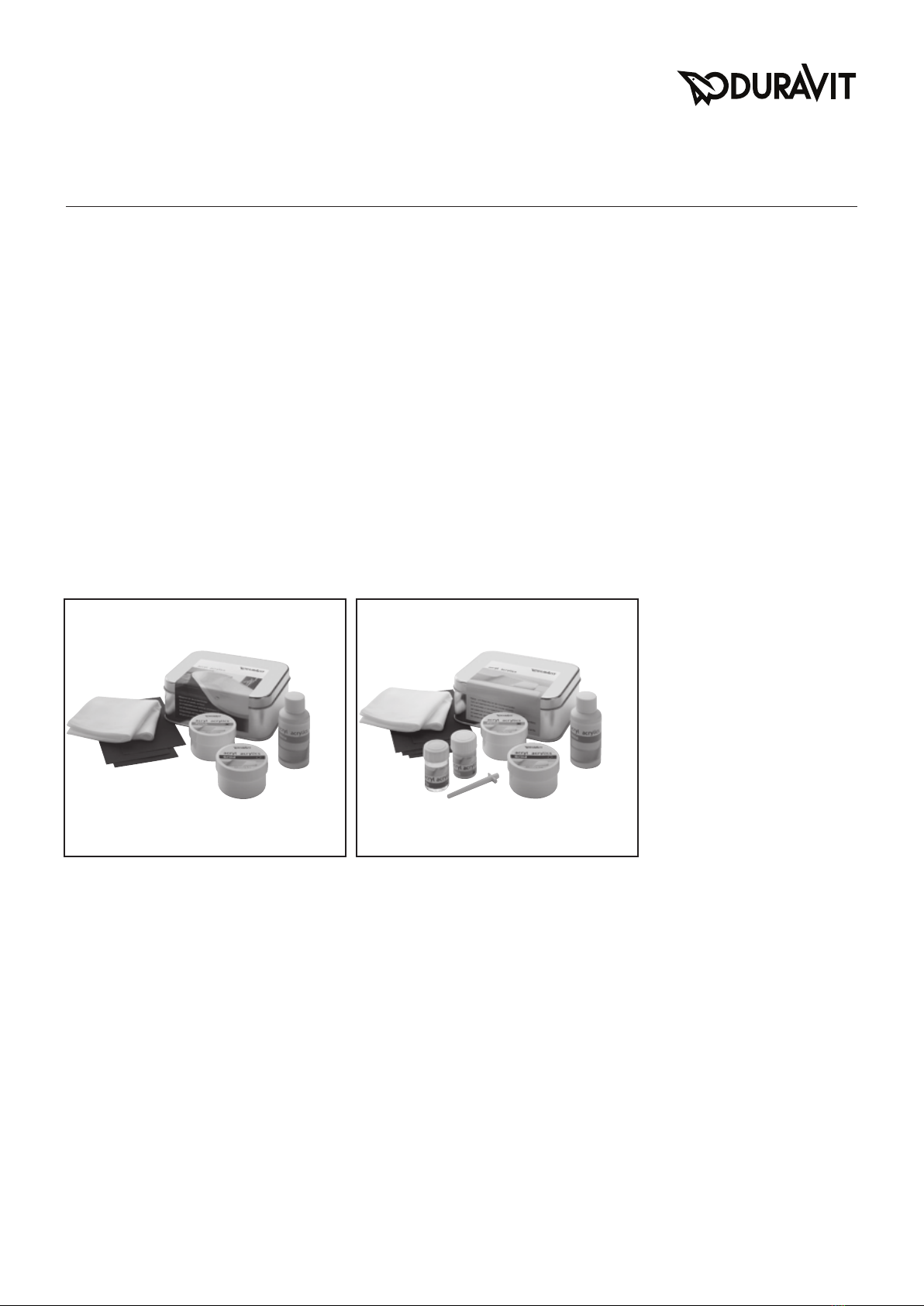

Cleaning and Care

ACRYLIC

Surface cleaning

Clean the surface with a soft cloth and soapy water. Do not use abrasive

cleaning liquids. For removing stains we advise using the Duravit care kit

for acrylic surfaces (see picture I).

More resistant stains can also be removed with warm water and a mild,

liquid detergent or soap sud.

Lime stain

Lime stains can be taken off with brandy vinegar and water. After treatment

rinse with clear water.

Damage

Cleaning substances other than those recommended by Duravit can

cause damage the material. Scratches and other superﬁcial damage

can be corrected using the Duravit care and maintenance kit for acrylic

surfaces (see picture II).

# 790301 00 0 00 0000

Care kit

# 790302 00 0 00 0000

I: Incudes: Acrylic care agent, grinding paste, polishing paste, polishing cloth, and wet abrasive paper in various

grits.

II: Includes: Acrylic care agent, acrlic resin, resin hardener, stirring stick, grinding paste, polishing paste,

polishing cloth, and wet abrasive paper in various grits. (Resin only necessary for repair of air injectors.)

Care Kits can be purchased online through one of the certiﬁed parts distributors listed on our website:

http://www.duravit.us/website/homepage/service/parts.us-en.html

http://www.duravit.us/website/homepage/service/ﬁnd_a_retailer.com-en.html

(If you cannot access the above link, go to www.duravit.us and click on the Service tab at the top. Then click Find a

Retailer in the left column.)
