ASSEMBLY INSTRUCTIONS
GS72
BASE SIZE: 2.190m x 0.685m
BEFORE YOU START:
• Read all instructions carefully
• Identify all parts and check quantities against parts list
• Select a level site
• Do not mark cladding with pencil as lead can cause corrosion to cladding
• During assembly, ensure all drill filings are removed between layers of steel, before riveting together
SAFETY:
• Do not attempt to build your shed in high winds
• Beware of sharp edges, we recommend that you use gloves
• Protect your eyes and ears
• For ease of assembly, use a friend to help

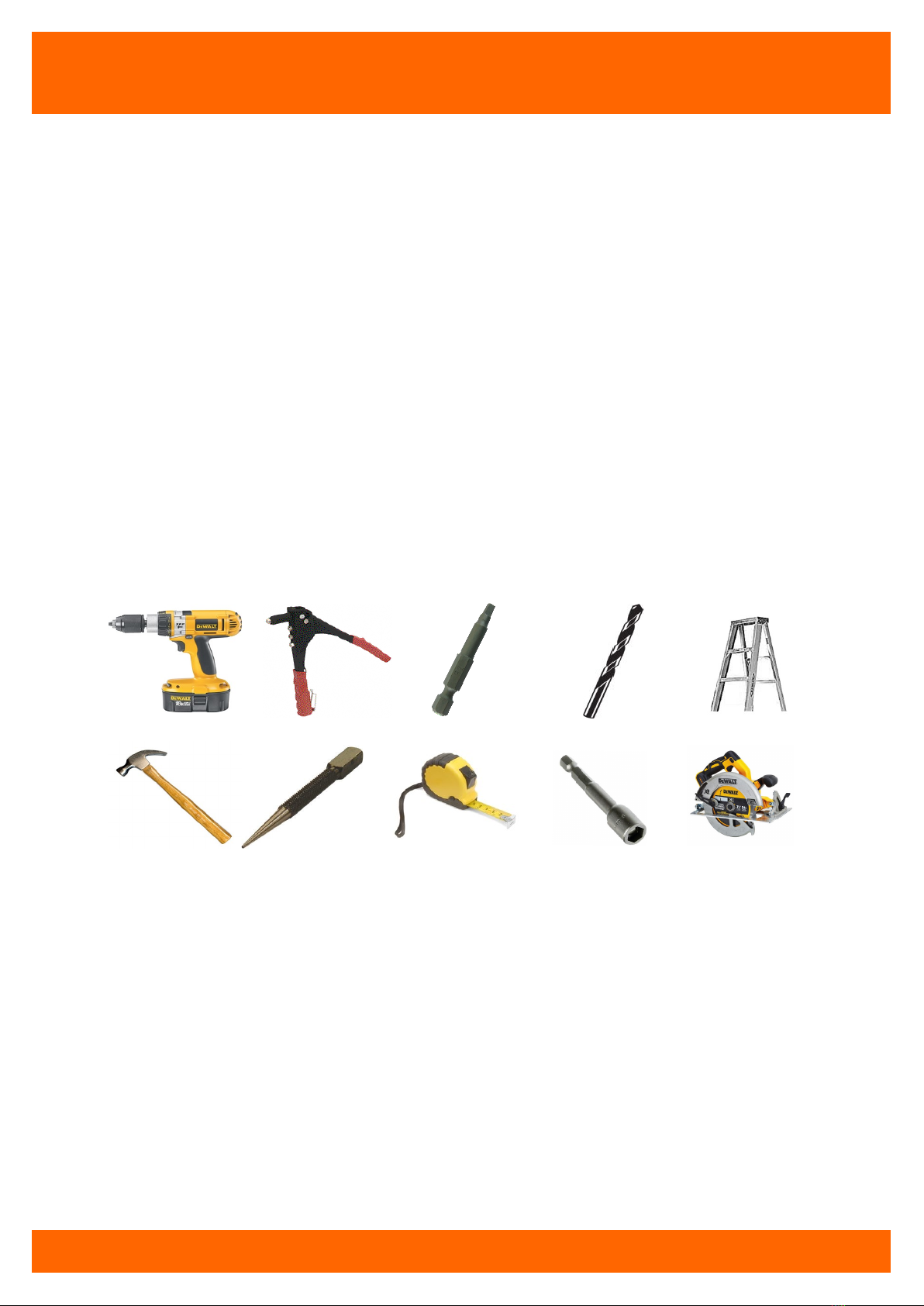

TOOLS REQUIRED:
WARRANTY REQUIREMENTS:
The following maintenance process needs to be adhered to, to qualify for the steel warranty of your Duratuf Guardian
shed.
• Wash all surfaces annually using a hose and soft nylon brush.
• Within 2 km of coast – wash every 3 months as above. After a storm, wash the cladding and the gutters as soon
as possible to remove any highly corrosive salt deposits.
• Volcanic Ash Fallout – wash as soon as possible, removing fall out from roof and gutters.
• Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.
CONGRATULATIONS ON PURCHASING A DURATUF GUARDIAN SHED.
BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS
:
2
DRILL RIVETER 3.5mm & 10mm
DRILL BIT
HAMMER
LADDER
TAPE MEASURE HEX DRIVENAIL PUNCH
SQUARE DRILL BIT
SKILL SAW
(timber floor only)
GS72 PARTS LIST
3
Checked: Date:
CLADDING + FLASHING + HARDWARE PACK 1
DESCRIPTION QTY DIAGRAM CHECKED
Front Wall 2 Pan - 1.890m 2
Back Wall - 1.930m 4
Side Wall Angle- 1.915m 2
Roof - 0.770m 4
Side Wall 1 pan Angle- 1.895m 2
Door Sheet - 1.850m 2
Door Sheet 1 pan - 1.850m 2
Back Wall 1 Pan - 1.930m 1
Roof 1 Pan - 0.770m 1
Door Sides - 1.850m 4
Door Jamb - 1.890m 2
Door Brace - 1.025m 4
Barge - 0.770m 2
Door Top/Bottom - 0.715m 4
Weatherstrip - 1.850m 1
Hardware Pack 1
Touchup Paint & Brush 1
GS72 PARTS LIST
4
TIMBER
DESCRIPTION QTY DIAGRAM CHECKED
Front/Back Bottom Plates - H4 (Green)
2.190 m 2
Front/Back Top Plate - H1 (Red)
2.190 m 2
Side Wall Bottom Plates - H4 (Green)
0.685 m 2
Side Wall Top Plates - H1 (Red)
0.687m 2
Ridge - 2.225m 1
Spouting - 2.225m 1
PACK 2
PARTS LOCATION
5
5
ASSEMBLE FRONT
PANEL
6
ASSEMBLE WALLS
7
ASSEMBLE ROOF
8
SECURE SHED
ASSEMBLE BACK
PANEL
3
ASSEMBLE SIDE
PANELS
1
LAY FOUNDATION
2
ASSEMBLE DOOR

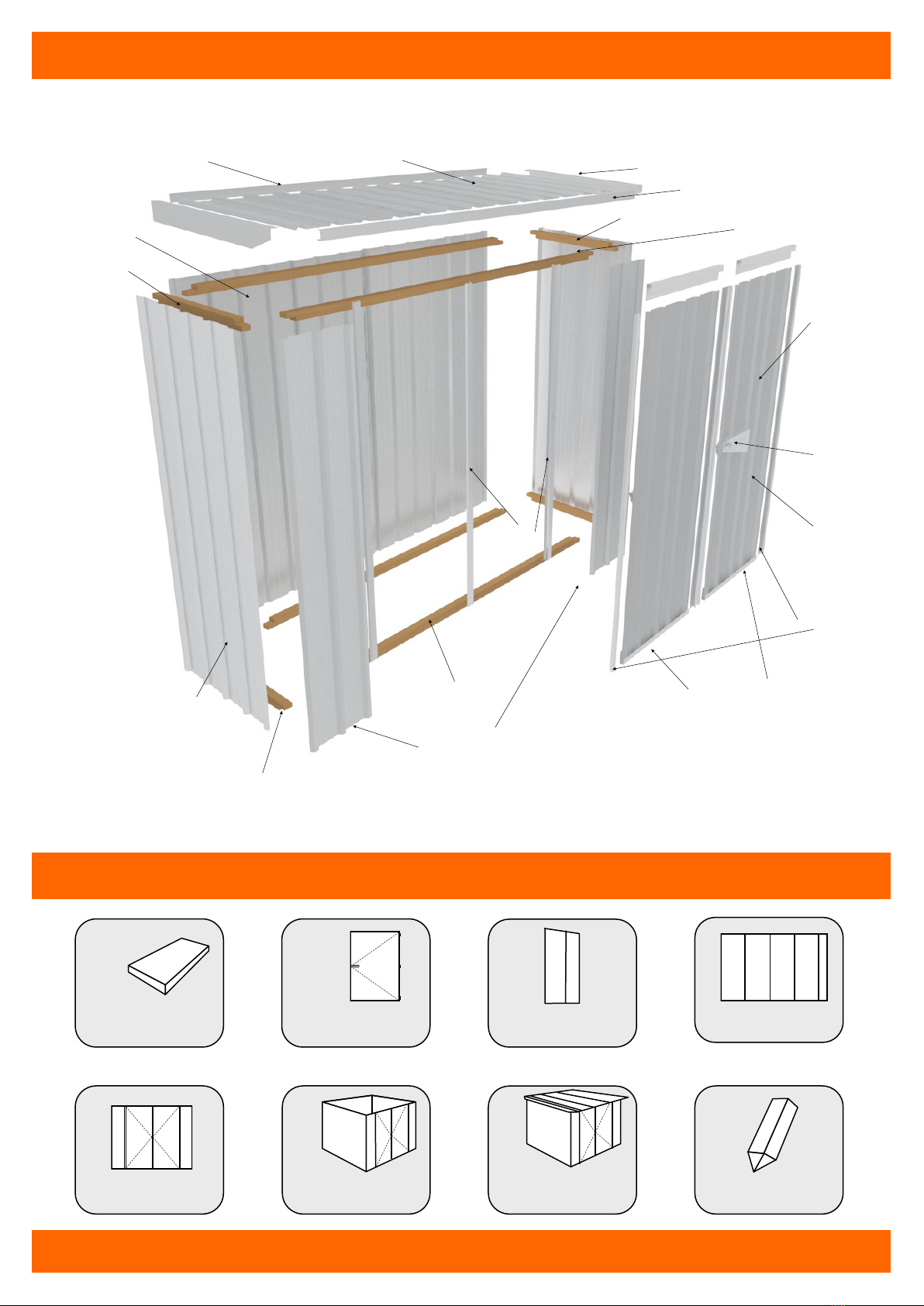

QUICK OVERVIEW
4
Top Plate
Back
Side Wall Sheets
Barge Flashing
Spouting
Roof Sheets
Top Plate Side Top Plate Front
Bottom Plate Front
Bottom Plate Side
Back Wall
Sheets
Front Wall Sheet
Door Jambs Door Sheets
Door Side
Flashing
Padbolt
Support
Door Brace
Door Top/Bottom Flashing
Ridge Flashing
FOUNDATION
GUARDIAN WOODEN FLOOR
• The optional Guardian kitset wooden floor is precut and designed
to be fitted into the shed after the shed is assembled.
• Assemble shed as per instructions and fit floor last.
(see page 13 for details).

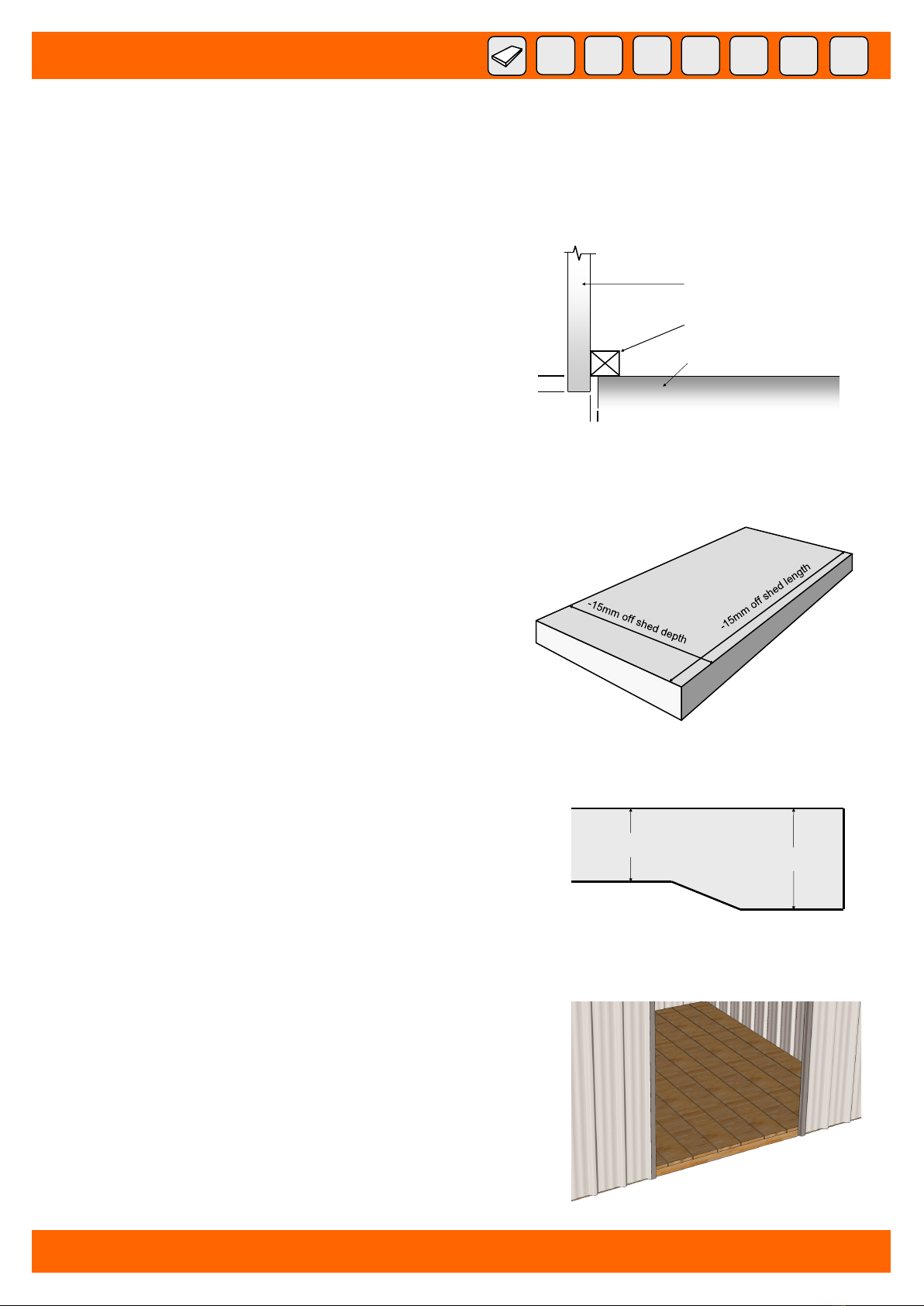

CONCRETE SLAB FOR RAISED BASE PLATE SHED
To build a raised concrete slab for your shed to sit on, we recom-
mend the following:
• The raised slab size should be 15mm smaller than the base
size of the shed and at least 30mm above ground line.
• The slab should be 80mm thick in the middle and 100mm
thick around the edges.
• The slab should be laid on a solid or compacted base.
• Plastic sheeting under slab will prevent moisture coming
through from underneath.
• During construction, you may raise the bottom timber
plate to allow the wall cladding to protrude 20mm below
the bottom plate. This will stop water flowing between
the bottom plate and the concrete floor.
See note on page 8.
80mm
100mm
7.5mm
20mm
Concrete Floor
Base Plate
Wall Cladding
6
RAISED BASE PLATE OPTION
(For sheds placed on a raised concrete floor)
No doubt by now you will have decided what sort of base you are putting down.
Please read the section that applies to your situation.
If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed.
This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
See concrete pad specifications below
By choosing this option you will need to make the concrete pad to the specification below.
fig.3

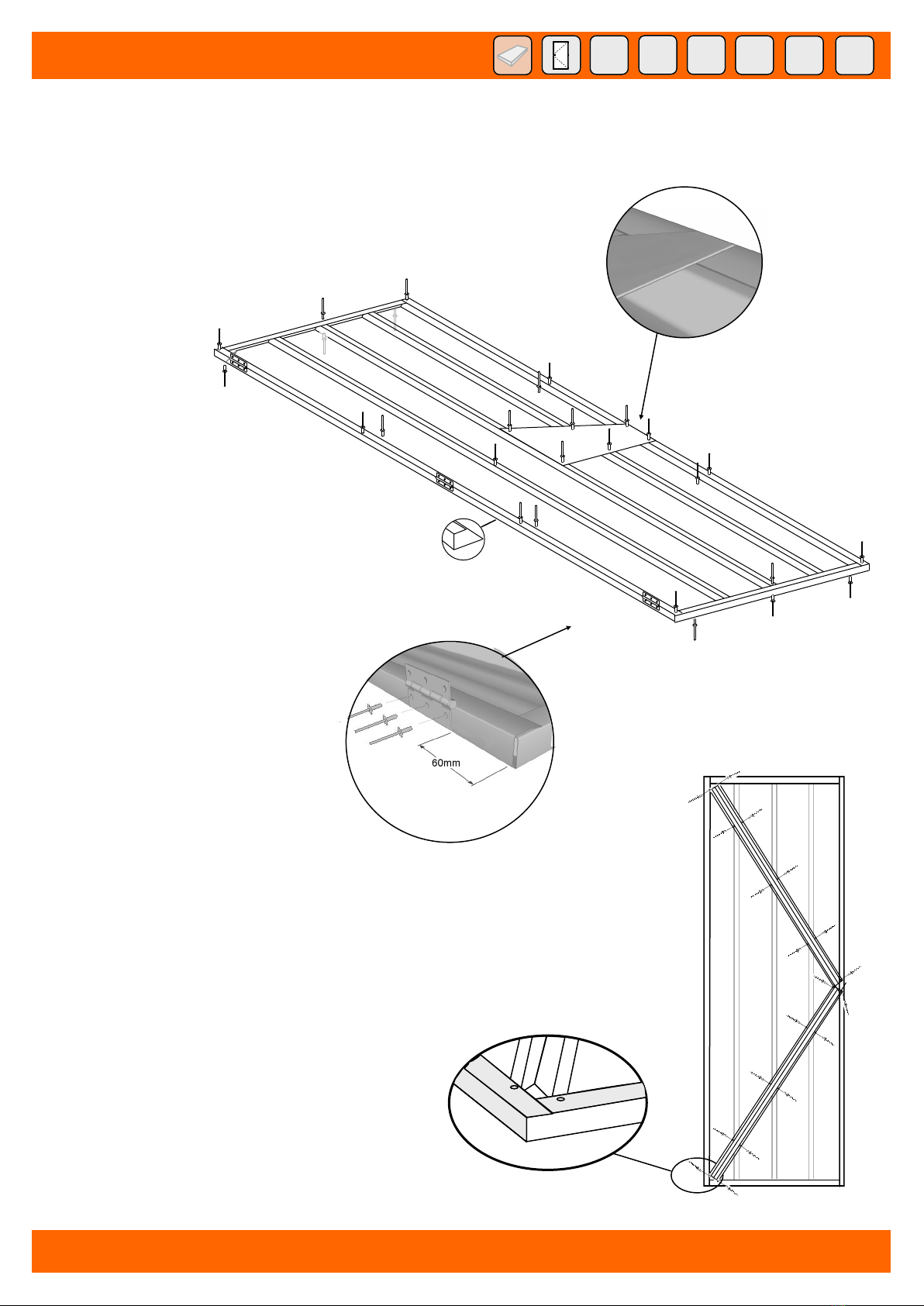

ASSEMBLE DOOR
7
SELECT:
2 x 1.850m Door Sheets
2 x 1.850m Door Sheets 1 pan
4 x 0.715m Door Top/Bottom Flashings
4 x 1.850m Door Side Flashings
1 x 1.850m Weatherstrip
6 x Hinges
1 x Padbolt Support Flashing
2 x 1.025m Door Brace Flashings
108 x Rivets
STEP 1:
• Lay out 1 x 1.850m Door Sheet and 1 x
1 Pan Sheet on a flat surface.
• Rivet sheets together in the centre
ensuring ends are flush with each other.
STEP 2:
• Position door side flashings and top
and bottom flashings and assemble
door as shown, ensuring narrow
face of flashing is on the front as
per fig.1
STEP 4:
• On the back of the door, place door braces in posi-
tion as shown in fig.4.
• Ensure that the top and bottom ends of the braces
are under the door flashings as shown in fig.5 and
opposite ends of the braces overlap in the middle.
• Rivet door brace flashings onto back of door as
shown. Where possible, rivet from front of door.
STEP 3:
• Attach hinges to door side flashing using
rivets provided. Ensure hinge is flush
with back of door, and 60mm in from
each end as per fig.2.
• Using six rivets, attach padbolt support
as shown in fig.3.
fig.4
fig.5
fig.2
STEP 5:
• Assemble second door as above but attach weather strip
flashing to back of door side flashing using six rivets ensuring
it protrudes 20mm out from door side.
fig.1

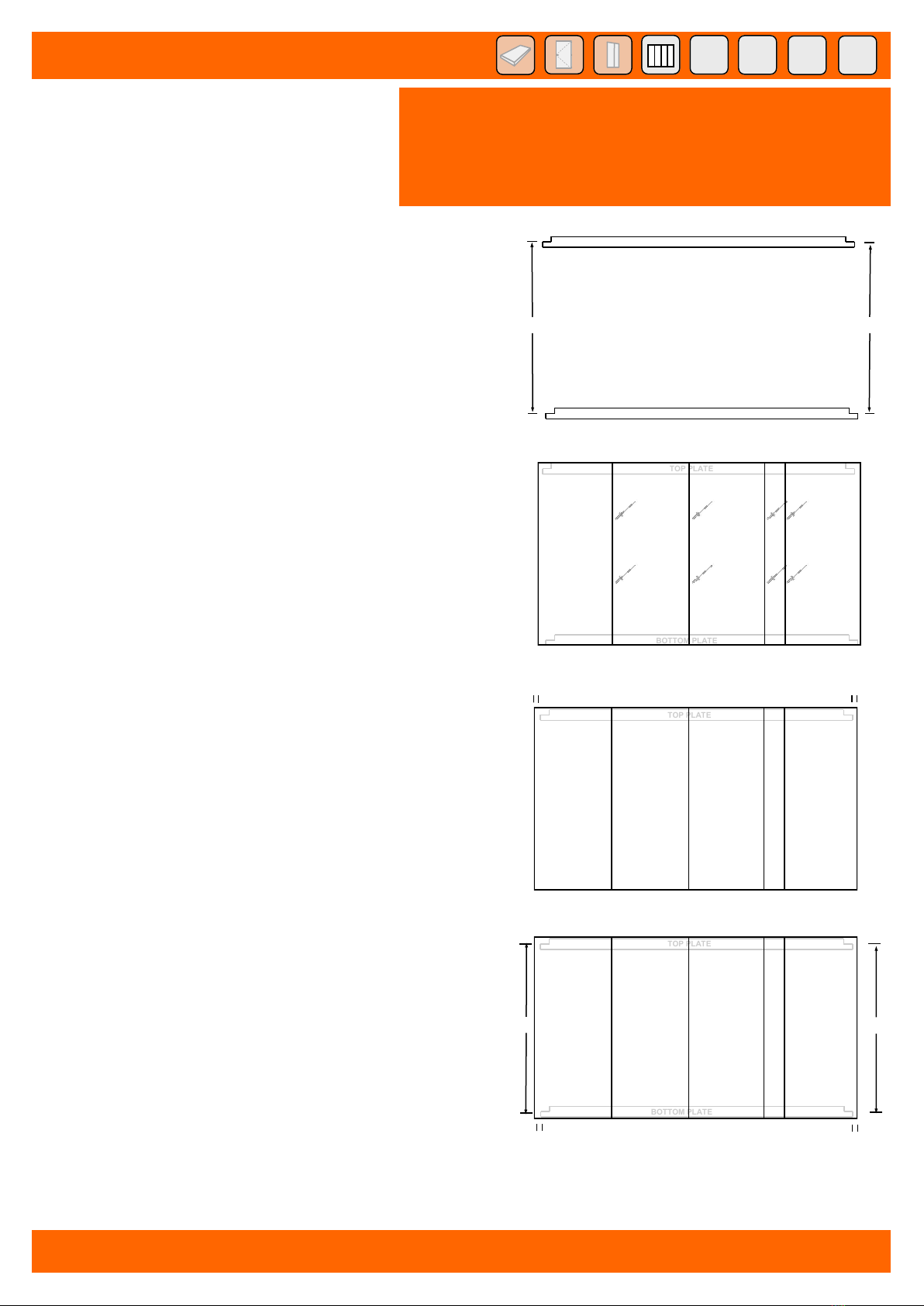

ASSEMBLE SIDE PANELS
8
BOTTOM PLATE
BOTTOM PLATE
BOTTOM PLATE
SELECT:
2 x 1.915 m Side Wall Sheets (Angled)
2 x 1.895 m Side Wall 1 pan Sheets (Angled)
2 x 0.687m Top Plates (Red)
2 x 0.685m Bottom Plates (Green)
32 x 30mm Galv Clouts
4 x Rivets
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 6), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
1855mm 1895mm
15mm
Second Side
Panel
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a flat surface (corner
cutouts to face as shown). Measurements between Top and Bottom
plates are critical to ensure wall panels fit together.
STEP 2:
• Place 1 x 1.915m wall sheet and 1 x 1.895m Side wall 1 pan sheet on
top of timber plates, with bottom of sheets flush with each other.
• Rivet sheets together on overlaps as shown.
STEP 3:
• Nail wall sheets to the Top Plate at each end making
sure that the top of the sheets are flush with the top of
the Top Plate and the sides of the wall sheet overhang
the Top Plate by approx 15mm as shown.
• Check that the Top Plate is straight then nail the wall
sheet to the Top Plate, two clouts per pan (see fig. 1).
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end ensuring each
side of wall sheets overhangs the end of Bottom Plate by 15mm.
Check that the distance between the Top and Bottom Plates is
correct. (As per diagram in step 1)
• Check that the Bottom Plate is straight then nail the wall sheets to
the Bottom Plate, two clouts per pan (see fig. 1).
Repeat with second side panel ensuring Top Plate is positioned as
shown.
fig.1
RIB
PAN
CLOUT
TIMBER PLATE
Standard Shed — Bottom Plate will protrude below
wall sheet by approximately 10mm.
Raised base plate shed — Wall sheet will protrude
below the Bottom Plate by 20mm.
15mm 15mm
1855mm 1895mm
15mm
15mm
RIVET
RIVET
1855mm
1895mm
BOTTOM PLATE
BOTTOM PLATE
BOTTOM PLATE
TOP PLATE
BOTTOM PLATE
TOP PLATE

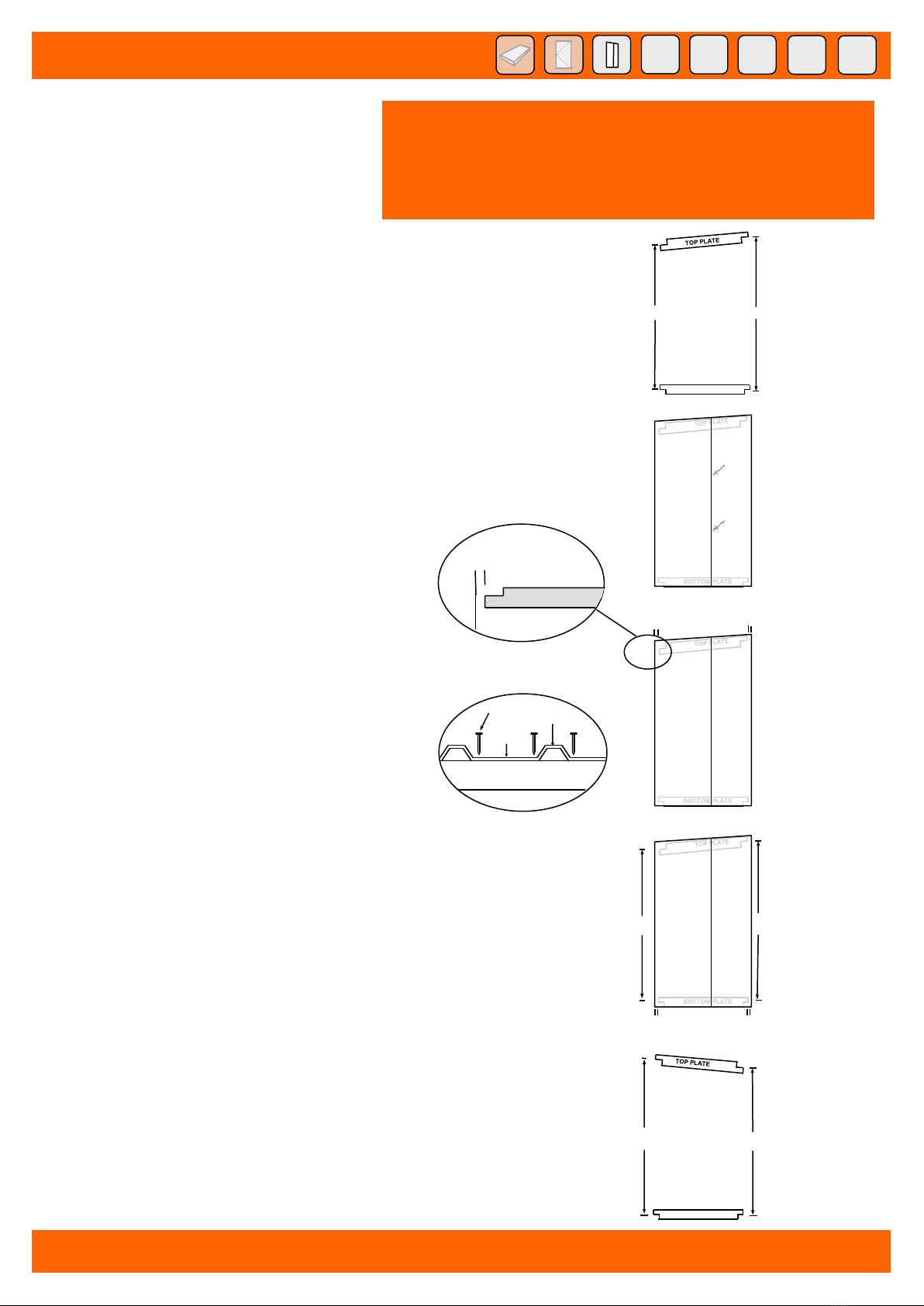

ASSEMBLE BACK PANEL
SELECT:
4 x 1.930 m Wall Sheets
1 x 1.930 m 1 Pan Wall Sheet
1 x 2.190 m Top Plate (Red)
1 x 2.190 m Bottom Plate (Green)
52 x 30mm Galv Clouts
8 x Rivets
9
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 6), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
1895mm
1895mm
15mm
1895mm 1895mm
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a
flat surface (corner cutouts to face as shown).
STEP 2:
• Place 4 x 1.930 m wall sheets and 1 x 1.930 1 Pan
Wall Sheet on top of timber Plates with bottom of
sheets flush with each other.
• Rivet the sheets together on overlaps as shown.
STEP 3:
• Nail the wall sheets to the Top Plate at each end making sure
that the top of the sheets are flush with the top of the Top
Plate and that the sides of the wall sheets overhang the Top
Plate by 15mm as shown.
• Check that the Top Plate is straight then nail wall sheets to
the Top Plate, using two clouts per pan.
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end,
ensuring that each side of the wall sheets overhangs the
Bottom Plate by 15mm and that the distance between
the Top and Bottom Plates is correct. (As shown)
• Check that the Bottom Plate is straight then nail
wall sheets to the Bottom Plate, using two clouts per pan.
Standard Shed — Bottom Plate will protrude below wall
sheet by approximately 10mm.
Raised base plate shed — Wall sheet will protrude below
the Bottom Plate by 20mm.
TOP PLATE
BOTTOM PLATE
15mm 15mm
15mm
TOP PLATE
