ASSEMBLY INSTRUCTIONS
SL2515
BASE SIZE: 2.520m x 1.520m

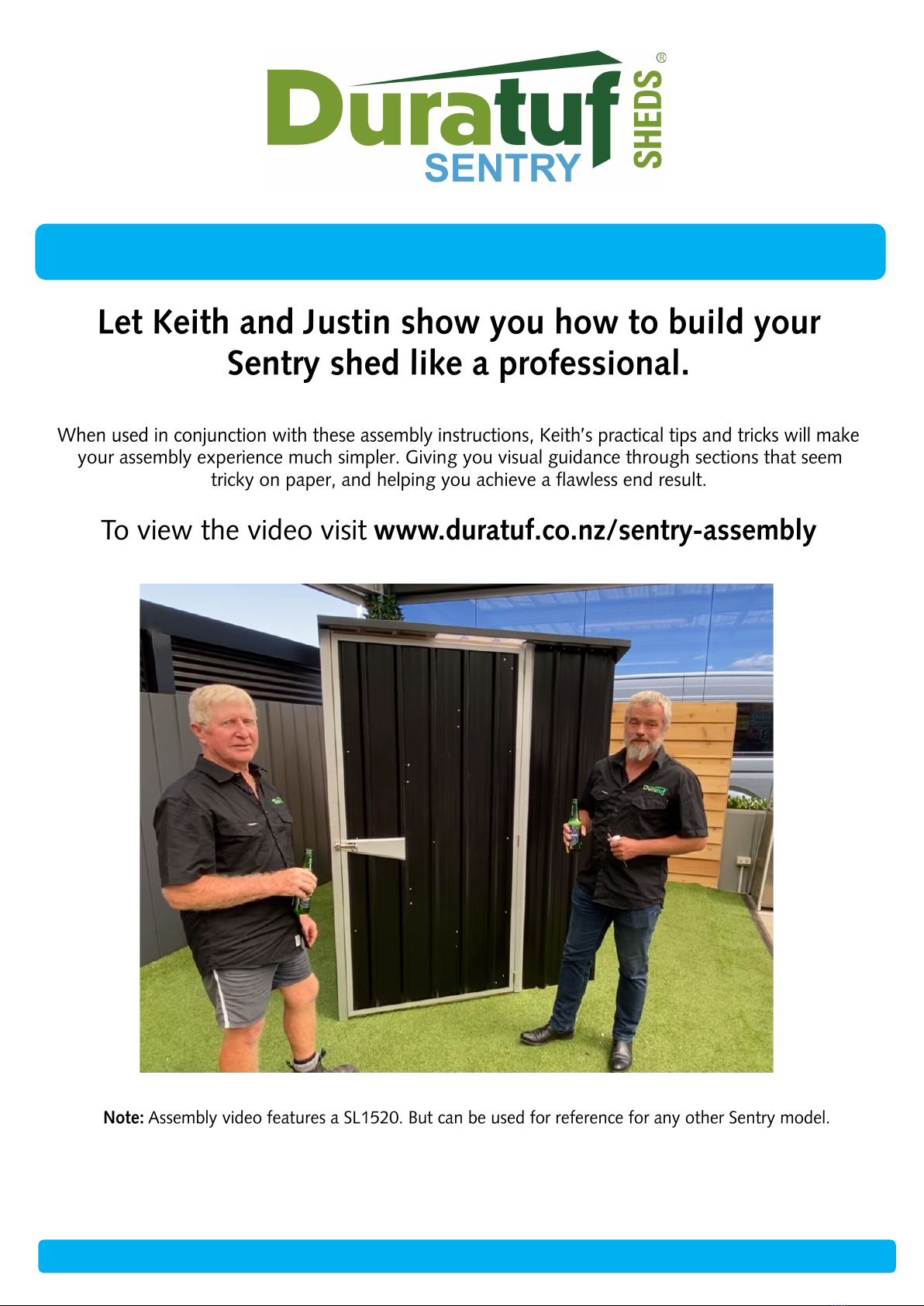

CHECK OUT OUR ASSEMBLY VIDEO
CONGRATULATIONS ON PURCHASING A DURATUF SENTRY SHED.
BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS:
3
BEFORE YOU START:
• Read all instructions carefully
• Identify all parts and check quantities against parts list
• Select a level site
• Do not mark cladding with pencil as lead can cause corrosion to cladding
SAFETY:
• Do not attempt to build your shed in high winds
• Beware of sharp edges, recommend use of gloves
• Protect your eyes and ears
• For ease of assembly, use a friend to help

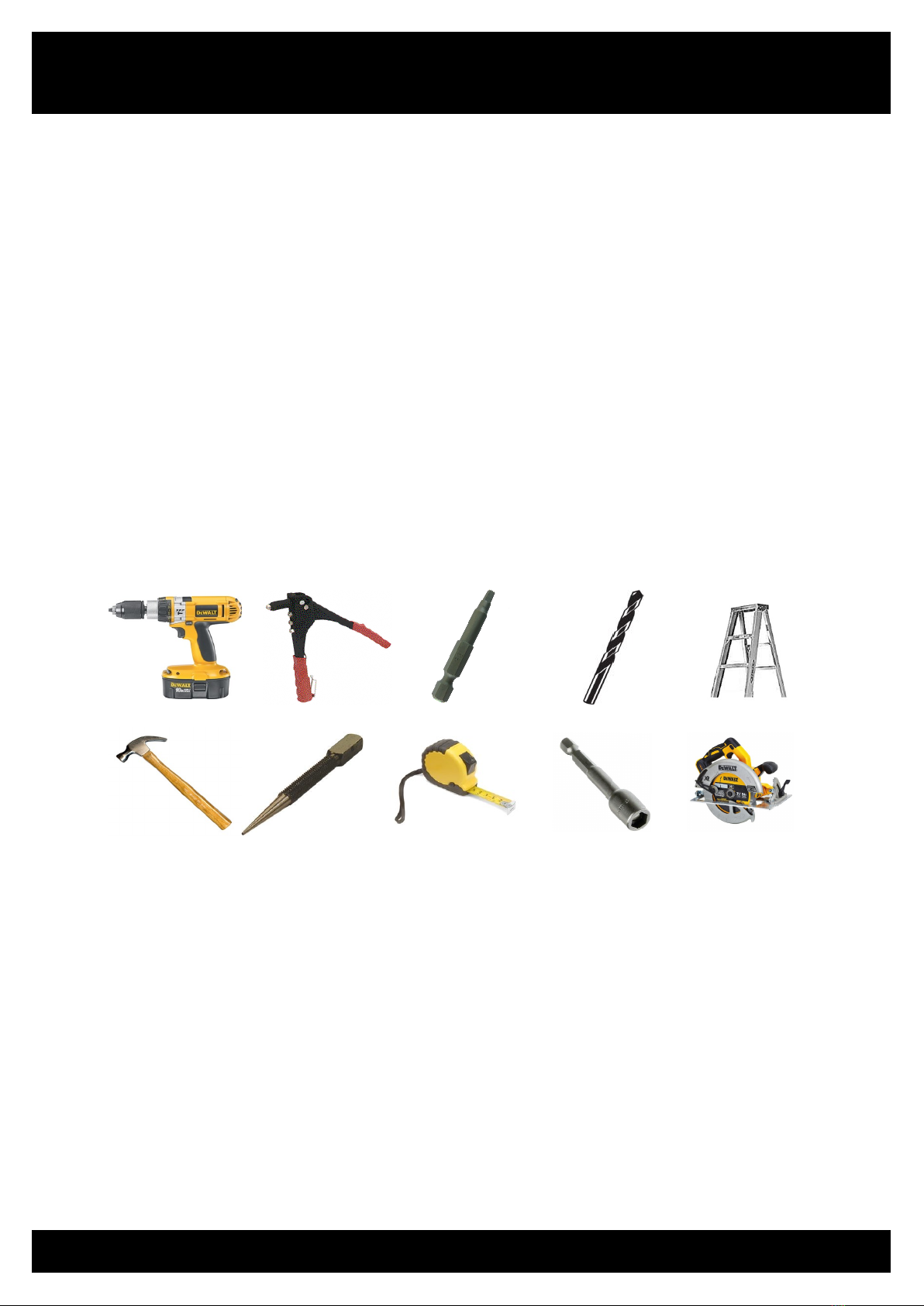

TOOLS REQUIRED:
WARRANTY REQUIREMENTS:
Following are the minimum requirements for cladding used in Sentry Sheds.
• Wash all surfaces annually using a hose and soft nylon brush.
• Within 2 km of coast – wash every 3 months as above. After a storm, wash the cladding and the gutters as soon
as possible to remove any highly corrosive salt deposits.
• Volcanic Ash Fallout – wash as soon as possible, removing fall out from roof and gutters.
• Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.
DRILL RIVETER 3.5mm DRILL BIT
HAMMER
LADDER
TAPE MEASURE 8mm HEX DRIVENAIL PUNCH
SQUARE DRILL BIT
SKILL SAW
(timber floor only)

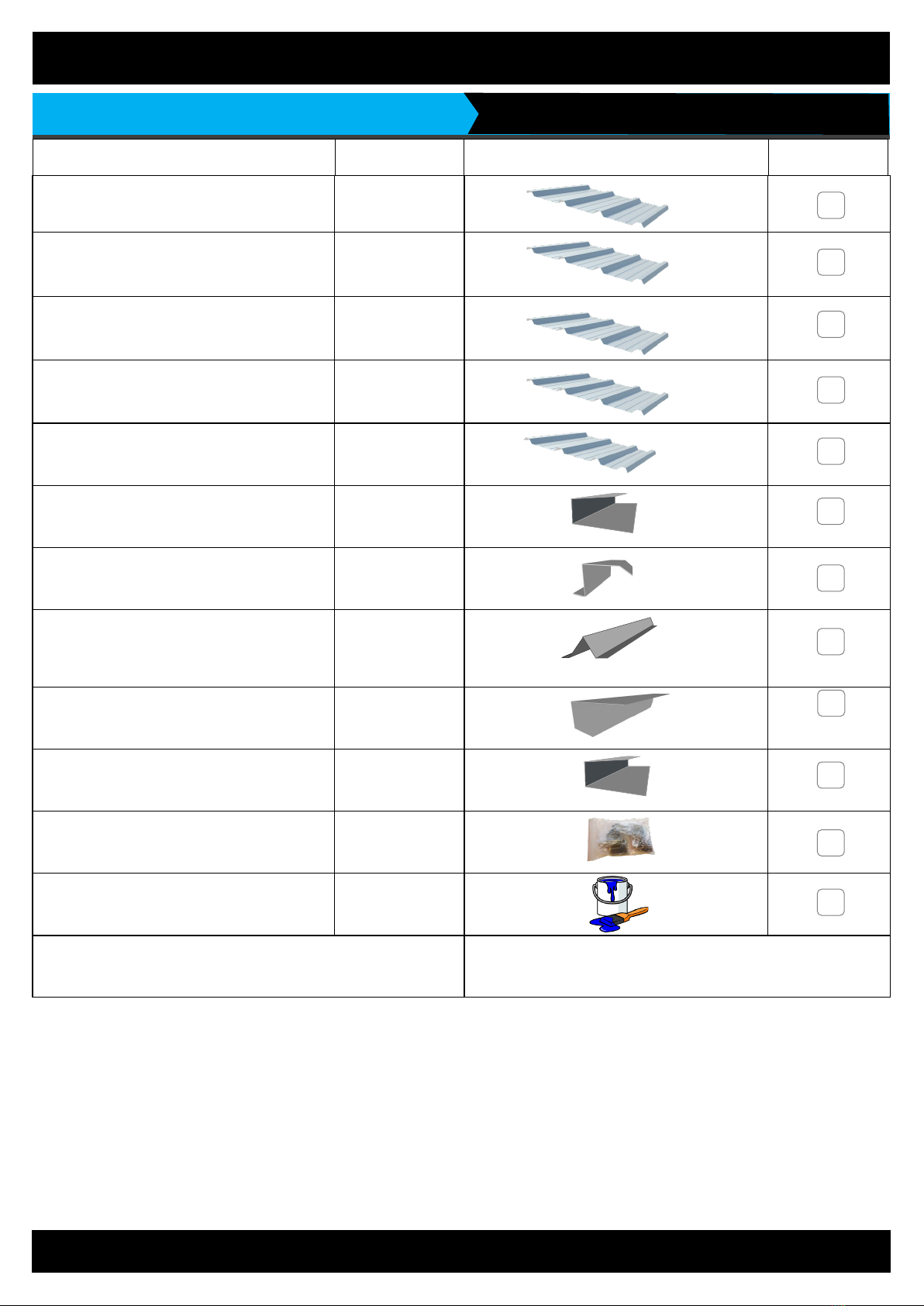

SL2515 PARTS LIST
CLADDING + FLASHING + HARDWARE
DESCRIPTION QTY DIAGRAM CHECKED
PACK 1
4
Front Wall - 1.890m 3
Back Wall - 1.850m 5
Side Wall - 1.850m 6
Roof - 1.720m 5
Door Sheet Narrow - 1.850m 2
Door Sides - 1.850m 2
Door Jamb - 1.890m 2
Door Brace - 1.160m 2
Barge - 1.720m 2
Door Top/Bottom - 0.945m 2
Hardware Pack 1
Touchup Paint & Brush 1
Checked: Date:

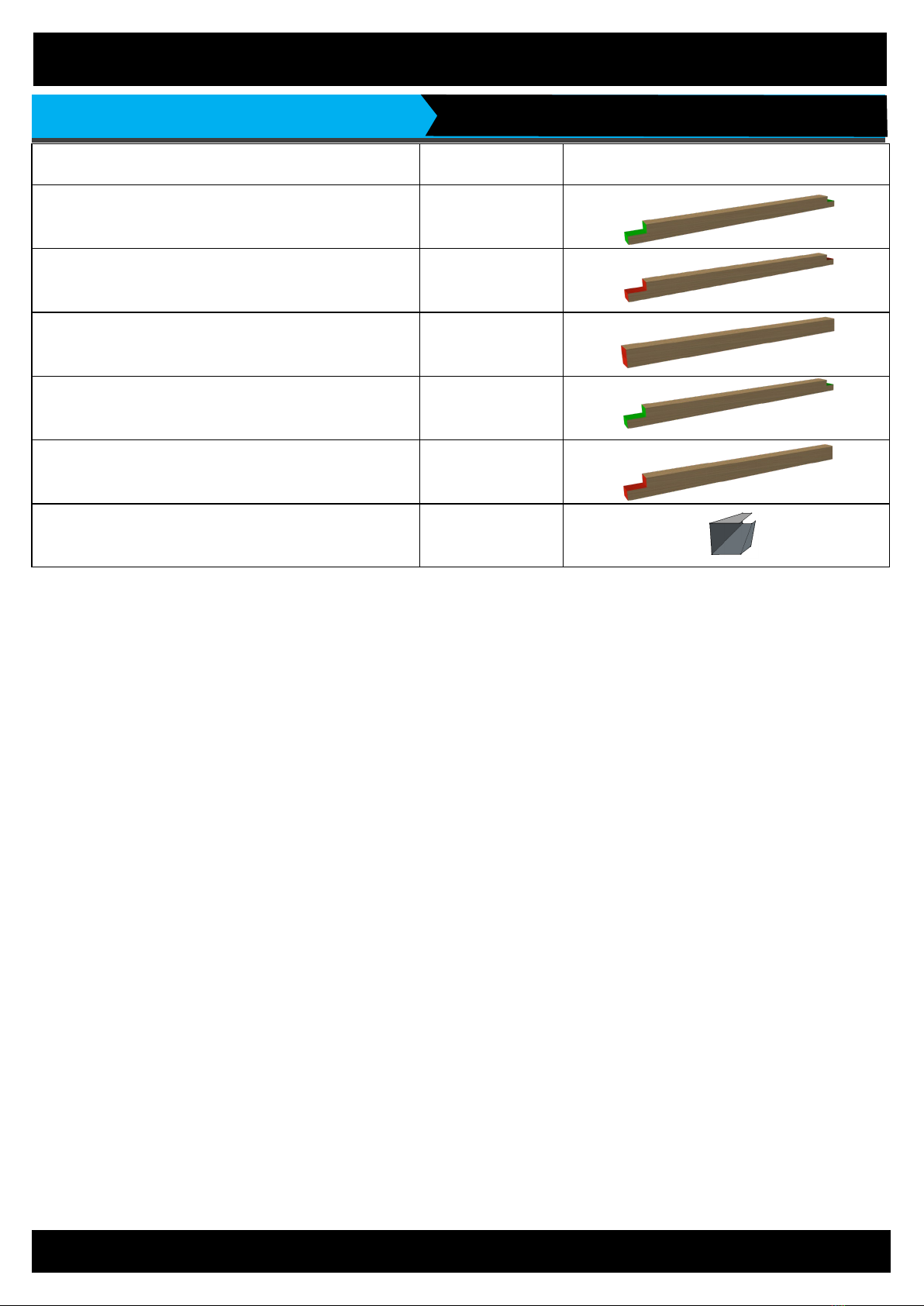

DESCRIPTION QTY DIAGRAM
Front/Back Bottom Plates - H4 (Green)
2.520 m 2
Back Top Plate - H1 (Red)
2.520 m 1
Front Top Plate - H1 (Red)
2.520 m 1
Side Wall Bottom Plates - H4 (Green)
1.520m - 2
Side Wall Top Plates - H1 (Red)
1.520m - 2
Spouting - 2.555m 1
5
SL2515 PARTS LIST
PACK 2
TIMBER PACK

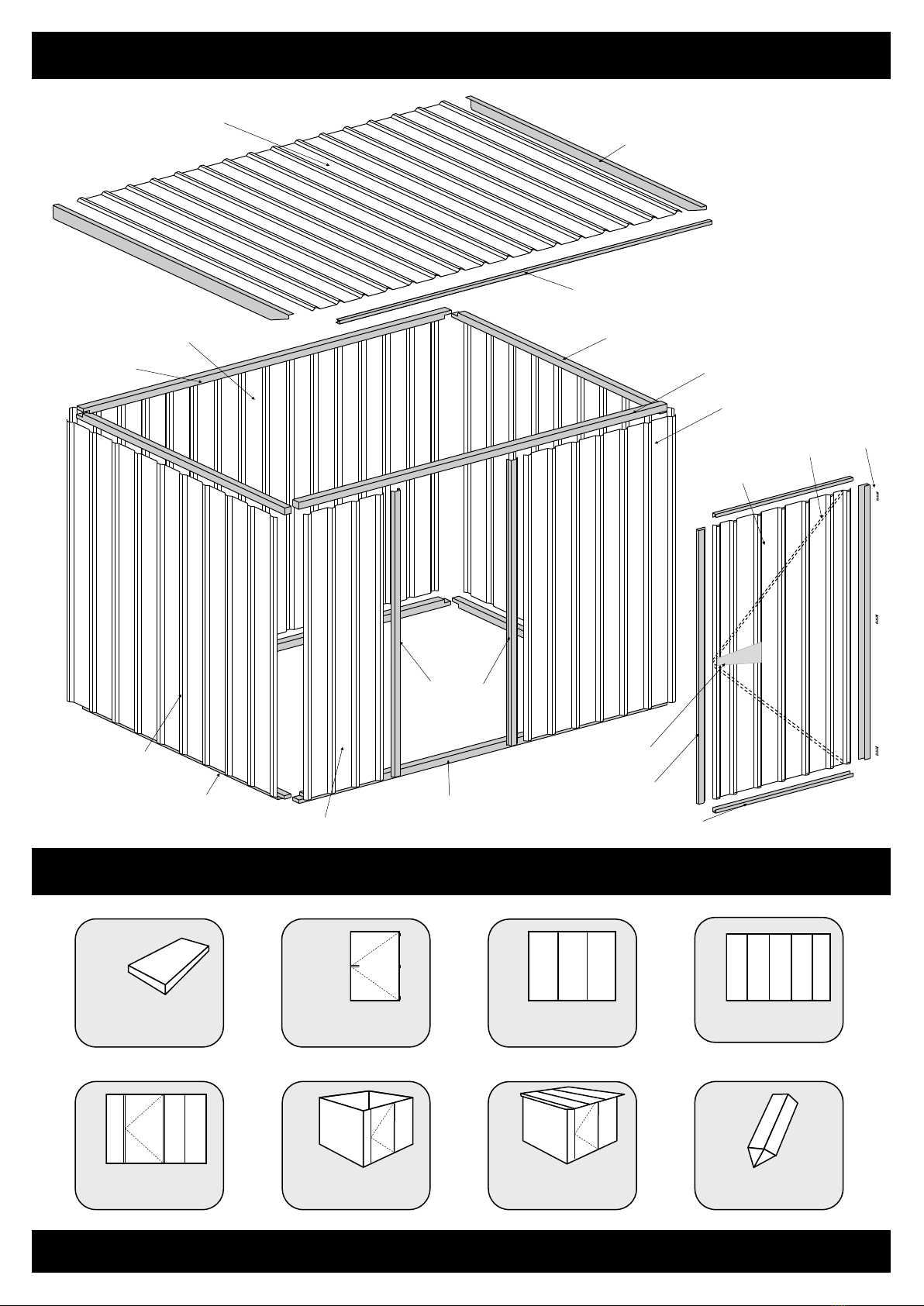

PARTS LOCATION
Top Plate Back
Side Wall Sheets
Barge Flashing
Spouting
Roof Sheets
Top Plate Side
Top Plate Front
Bottom Plate FrontBottom Plate Side
Back Wall Sheets
Front Wall Sheets
Door Jambs
Front Wall Sheet
Door Sheets
Door Side Flashing
Padbolt Support
Hinge
Door Brace
Door Top/Bottom
QUICK OVERVIEW
1
LAY FOUNDATION
2
ASSEMBLE DOOR
3
ASSEMBLE SIDE
PANELS
5
ASSEMBLE FRONT
PANEL
6
ASSEMBLE WALLS
7
ASSEMBLE ROOF
8
SECURE SHED
6
4
ASSEMBLE BACK
PANEL

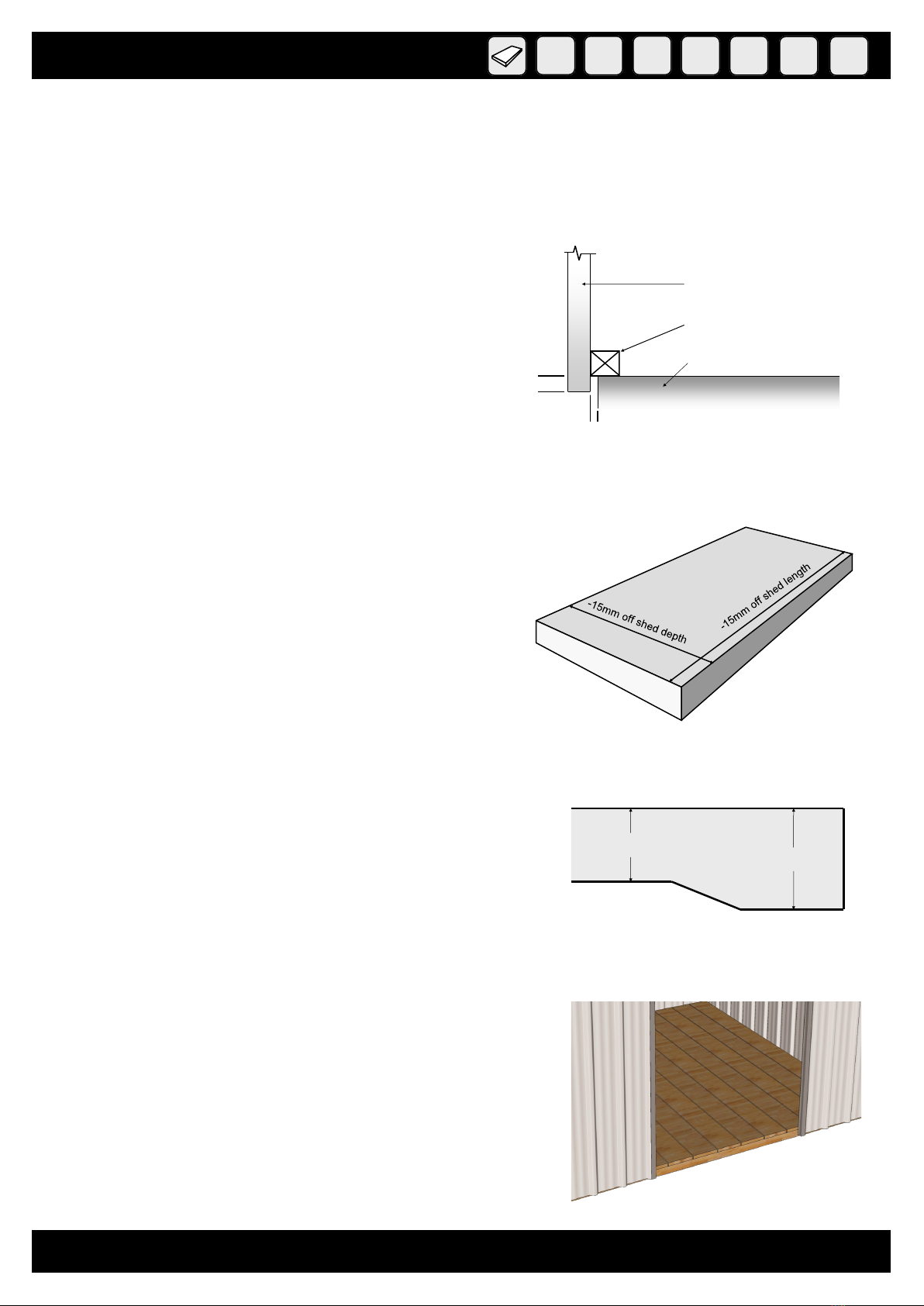

FOUNDATION
SENTRY WOODEN FLOOR
• The optional Sentry kitset wooden floor is precut and designed to
be fitted into the shed after the shed is assembled.
• Assemble shed as per instructions and fit floor last.
(see page 14 for details).
CONCRETE SLAB FOR RAISED BASE PLATE SHED
To build a raised concrete slab for your shed to sit on, we recom-
mend the following:
• The raised slab size should be 15mm smaller than the base
size of the shed and at least 30mm above ground line.
• The slab should be 80mm thick in the middle and 100mm
thick around the edges.
• The slab should be laid on a solid or compacted base.
• Plastic sheeting under slab will prevent moisture coming
through from underneath.
• During construction, you may raise the bottom timber
plate to allow the wall cladding to protrude 20mm below
the bottom plate. This will stop water flowing between
the bottom plate and the concrete floor.
See note on page 9.
80mm
100mm
7.5mm
20mm
Concrete Floor
Base Plate
Wall Cladding
7
RAISED BASE PLATE OPTION
(For sheds placed on a raised concrete floor)
No doubt by now you will have decided what sort of base you are putting down.
Please read the section that applies to your situation.
If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed.
This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
See concrete pad specifications below
By choosing this option you will need to make the pad to the specification below.

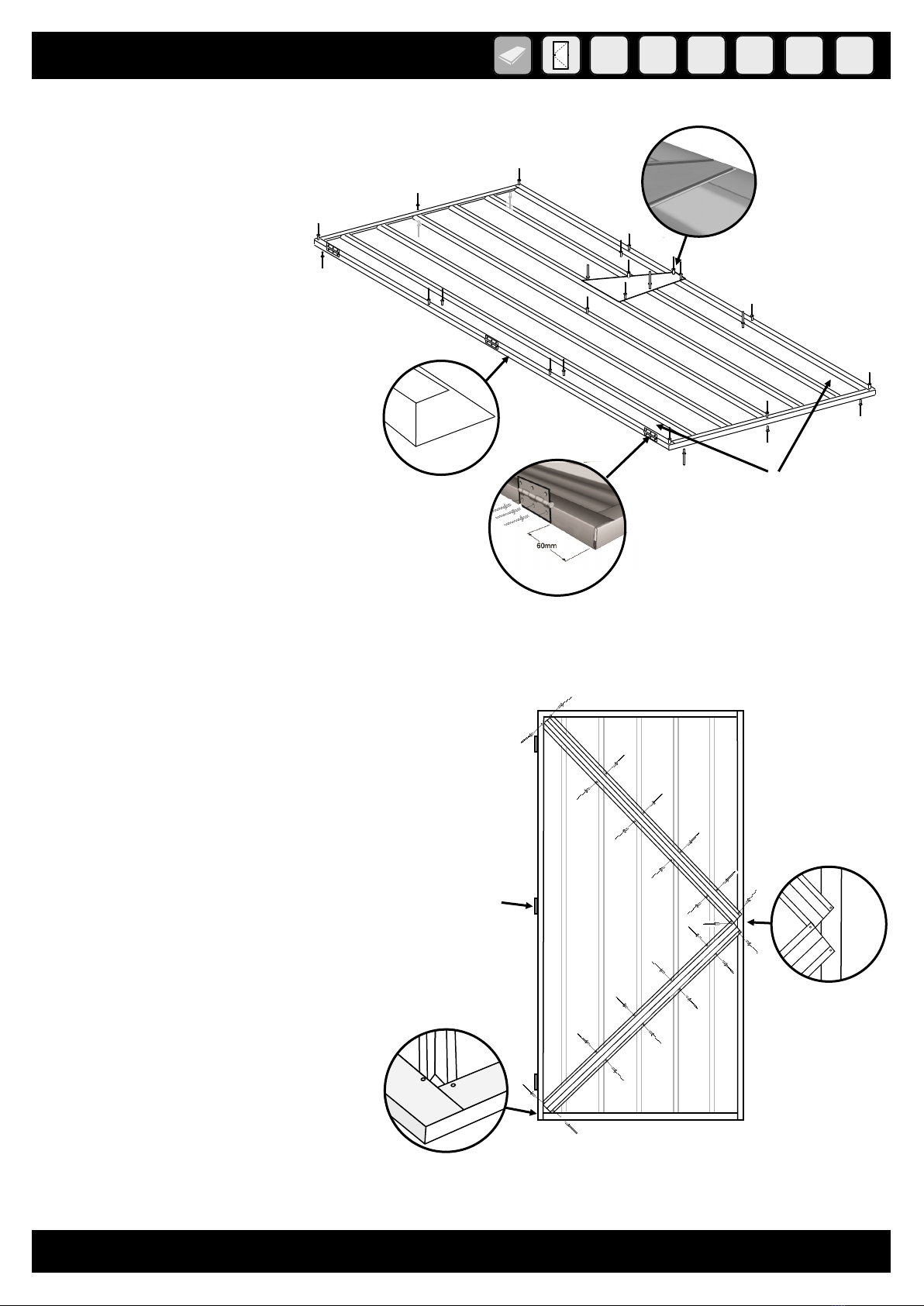

ASSEMBLE DOOR
8
SELECT:
2 x 1.850 m Door Sheets (Narrow)
2 x 0.945 m Door Top/Bottom Flashings
2 x 1.850 m Door Side Flashings
3 x Hinges
1 x Padbolt Support Flashing
2 x 1.160m Door Brace Flashings
54 x Rivets
STEP 1:
• Lay out 2 x door sheets on a flat surface
making sure narrow pans are on the outside.
• Rivet sheets together ensuring ends are flush
with each other.
STEP 2:
• Position door side flashings and door top and
bottom flashings and assemble door as shown,
ensuring narrow face of flashing is on the front
as per fig.1
• Drill and rivet as per diagram.
STEP 4:
• On the back of the door, place door braces in
position as shown in fig.4.
• Ensure that the top and bottom ends of the
braces are under the door flashings as shown
in fig.5 and opposite ends of the braces
overlap in the middle as shown in fig.6.
• Rivet door brace flashings onto back of door
as shown. Where possible, rivet from front of
door.
STEP 3:
• Attach hinges to door side flashing using rivets
provided. Ensure hinge is flush with back of
door, and 60mm in from each end as per fig.2.
• Using six rivets, attach padbolt support as
shown in fig.3.
NARROW PANS
fig.3
fig.4
fig.5
Hinges
fig.6
fig.1
fig.2

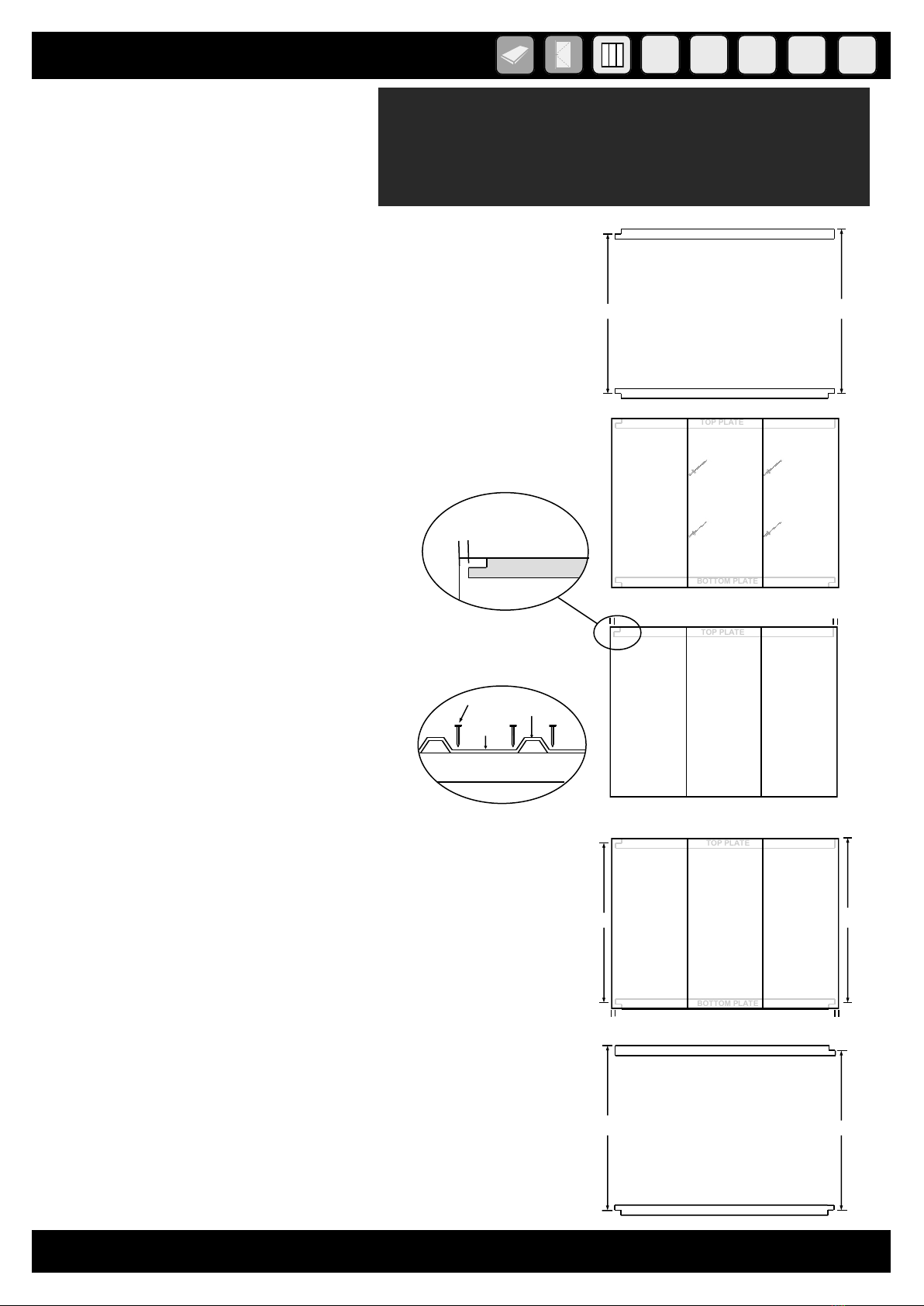

ASSEMBLE SIDE PANELS
SELECT:
6 x 1850 Wall Sheets
2 x 1.520 Top Plates (Red)
2 x 1.520 Bottom Plates (Green)
72 x 30mm Galv Clouts
8 x Rivets
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a flat surface as shown
(corner cutouts to face outwards). Measurements between Top and
Bottom plates are critical to ensure wall panels fit together.
STEP 2:
• Place 3 x 1.850 wall sheets on top of timber plates, with sheets
flush with each other.
• Rivet sheets together on overlaps as shown.
STEP 3:
• Nail wall sheets to the Top Plate at each end
making sure that the top of the sheets are flush with
the top of the Top Plate and the sides of the wall sheet
overhang the Top Plate by approx 15mm as shown.
• Check that the Top Plate is straight then nail along
the wall sheet to the Top Plate, two clouts per
pan (see fig. 1).
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end ensuring each
side of wall sheets overhangs the end of Bottom Plate by 15mm.
Check that the distance between the Top and Bottom Plates is
correct. (As per diagram in step 1)
• Check that the Bottom Plate is straight then nail the wall sheets to
the Bottom Plate, two clouts per pan (see fig. 1).
Repeat with second side panel ensuring Top Plate is positioned in
the OPPOSITE direction to the first side panel, as shown.
TOP PLATE
BOTTOM PLATE
1810mm 1833mm
TOP PLATE
15mm 15mm
TOP PLATE
BOTTOM PLATE
15mm 15mm
1810mm 1833mm
BOTTOM PLATE
TOP PLATE
9
fig.1
TOP PLATE
BOTTOM PLATE
1810mm
1833mm Second Side
Panel
RIB
PAN
CLOUT
TIMBER PLATE
RIVET RIVET
RIVET RIVET
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 7), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
15mm
Std Shed — Bottom Plate will protrude below wall
sheet by approximately 10mm.
Raised base plate shed — Wall sheet will protrude
below the Bottom Plate by 20mm.

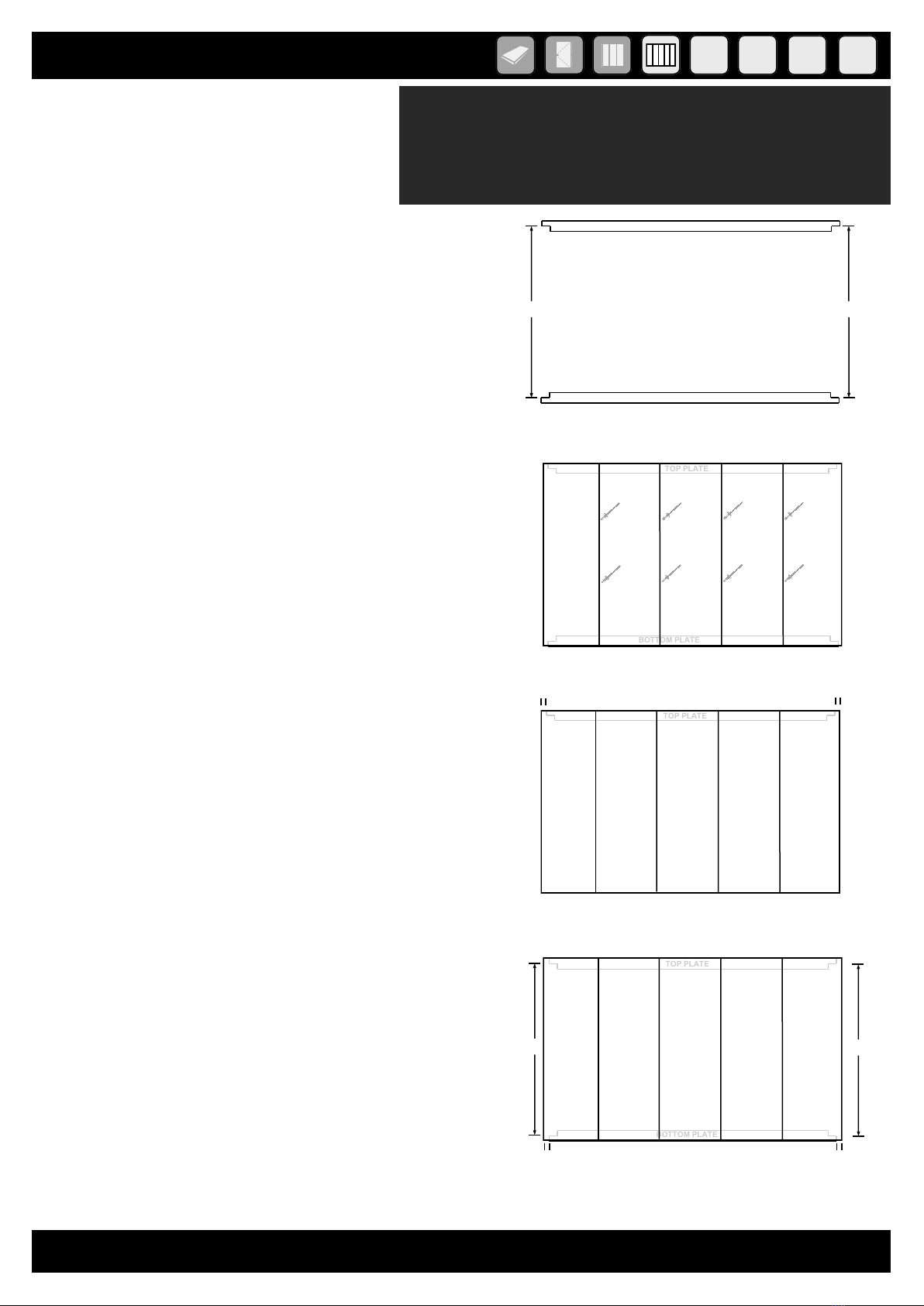

ASSEMBLE BACK PANEL
10
SELECT:
5 x 1.850m Wall Sheets
1 x 2.520 m Top Plate (Red)
1 x 2.520 m Bottom Plate (Green)
60 x 30mm Galv Clouts
8 x Rivets
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a
flat surface as shown (corner cutouts to face in-
wards).
STEP 2:
• Place 5 x 1.850 m wall sheets on top of timber
Plates with bottom of sheets flush with each oth-
er.
• Rivet the sheets together on overlaps as shown.
STEP 3:
• Nail the wall sheets to the Top Plate at each end making sure
that the top of the sheets are flush with the top of the Top
Plate and that the sides of the wall sheets overhang the Top
Plate by 15mm as shown.
• Check that the Top Plate is straight then nail wall sheets to
the Top Plate, using two clouts per pan.
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end,
ensuring that each side of the wall sheets overhangs the
Bottom Plate by 15mm and that the distance between
the Top and Bottom Plates is correct. (As shown)
• Check that the Bottom Plate is straight then nail
wall sheets to the Bottom Plate, using two clouts per pan.
Std Shed — Bottom Plate will protrude below wall sheet by
approximately 10mm.
Raised base plate shed — Wall sheet will protrude below
the Bottom Plate by 20mm.
TOP PLATE
BOTTOM PLATE
BOTTOM PLATE
1811mm 1811mm
TOP PLATE
TOP PLATE
15mm 15mm
1811mm 1811mm
BOTTOM PLATE
15mm 15mm
TOP PLATE
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 7), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
