ASSEMBLY INSTRUCTIONS
GL75D
BASE SIZE: 2.190m x 1.520m
CHECK OUT OUR ASSEMBLY VIDEO
Let Keith and Jusn show you how to build your
Guardian shed like a professional.
When used in conjuncon with these assembly instrucons, Keith’s praccal ps and tricks will make your
assembly experience much simpler. Giving you visual guidance through secons that seem tricky on pa-
per, and helping you achieve a awless end result.
To view the video visit www.duratuf.co.nz/guardian-assembly
Note: Assembly video features a GL57, but can be used for reference for any other Guardian model.
BEFORE YOU START:
• Read all instructions carefully
• Identify all parts and check quantities against parts list
• Select a level site
• Do not mark cladding with pencil as lead can cause corrosion to cladding
• During assembly, ensure all drill filings are removed between layers of steel, before riveting together
SAFETY:
• Do not attempt to build your shed in high winds
• Beware of sharp edges, we recommend that you use gloves
• Protect your eyes and ears
• For ease of assembly, use a friend to help

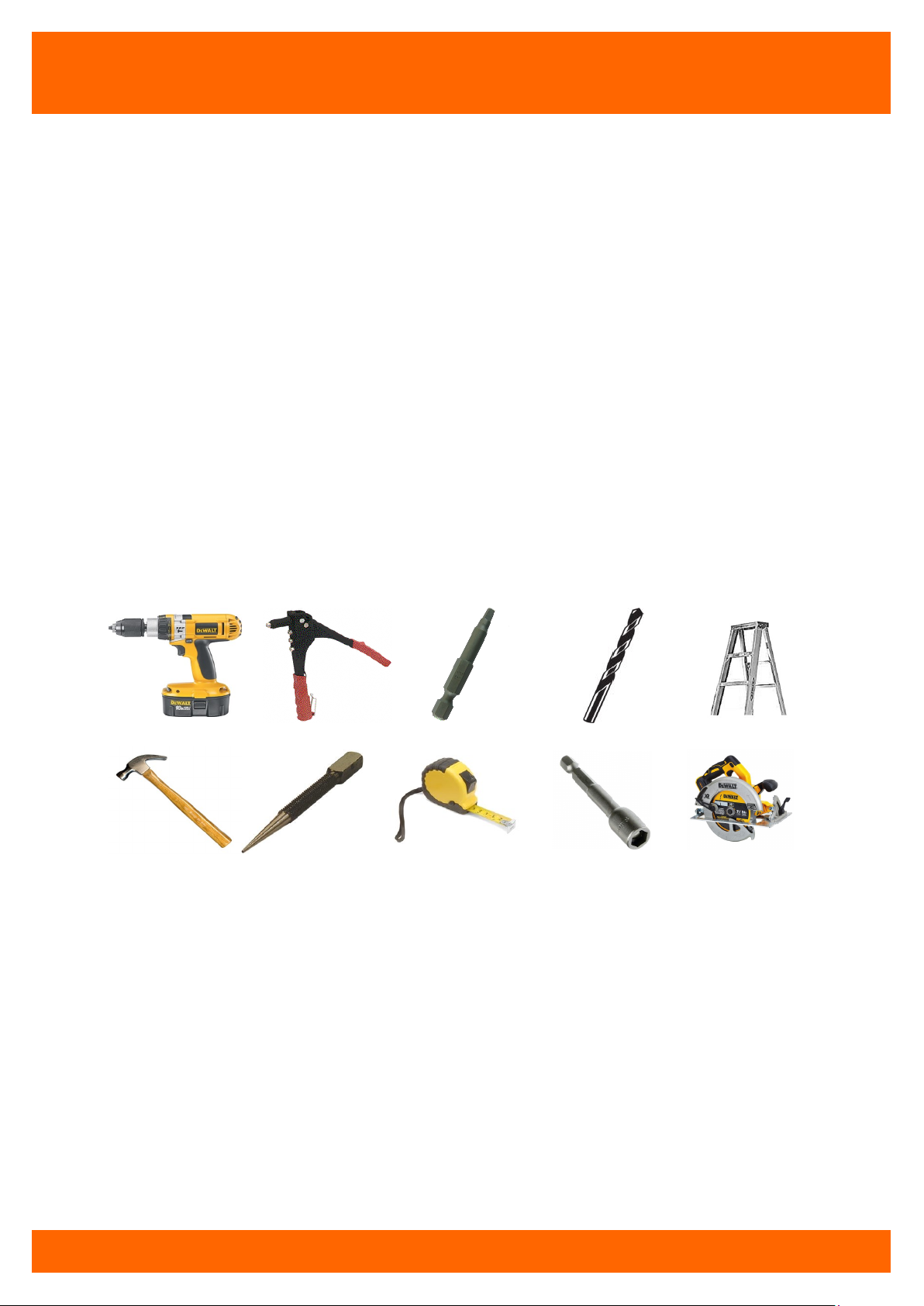

TOOLS REQUIRED:
WARRANTY REQUIREMENTS:
The following maintenance process needs to be adhered to, to qualify for the steel warranty of your Duratuf Guardian
shed.
• Wash all surfaces annually using a hose and soft nylon brush.
• Within 2 km of coast – wash every 3 months as above. After a storm, wash the cladding and the gutters as soon
as possible to remove any highly corrosive salt deposits.
• Volcanic Ash Fallout – wash as soon as possible, removing fall out from roof and gutters.
• Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.
CONGRATULATIONS ON PURCHASING A DURATUF GUARDIAN SHED.
BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS
:
2
DRILL RIVETER 3.5mm DRILL BIT
HAMMER
LADDER
TAPE MEASURE HEX DRIVENAIL PUNCH
SQUARE DRILL BIT
SKILL SAW
(timber floor only)
3
GL75D PARTS LIST
Packed By:
Checked By
Time:
Date:
CLADDING + FLASHING + HARDWARE PACK 1
DESCRIPTION QTY DIAGRAM CHECKED
Front Wall 2 Pan - 1.980m 2
Back Wall - 1.890m 4
Back Wall 1Pan Sheet - 1.890m 1
Side Wall Angle- 1.965m 2
Side Wall Angle- 1.935m 2
Side Wall Angle- 1.905m 2
Roof - 1.720m 4
Roof 1Pan Sheet—1.720m1
Door Sheet Narrow - 1.940m 3
Door Sides - 1.940m 4
Door Jamb - 1.980m 2
Door Brace - 1.200m 2
Door Brace - 0.955m 2
Door Top/Bottom - 0.945m 2
Door Top/Bottom - 0.495m 2
Weather-strip - 1.940m 1
Barge - 1.720m 2
Hardware Pack 1
Touchup Paint & Brush 1
4
GL75D PARTS LIST
TIMBER
DESCRIPTION QTY DIAGRAM CHECKED
Front/Back Bottom Plates - H4 (Green)
2.190 m 2
Front/Back Top Plate - H1 (Red)
2.190 m 2
Side Wall Bottom Plates - H4 (Green)
1.520 m 2
Side Wall Top Plates - H1 (Red)
1.522m 2
Spouting - 2.225m 1
PACK 2
5
1
LAY FOUNDATION
2
ASSEMBLE DOOR
3
ASSEMBLE SIDE
PANELS
5
ASSEMBLE FRONT
PANEL
6
ASSEMBLE WALLS
7
ASSEMBLE ROOF
8
SECURE SHED
4
ASSEMBLE BACK
PANEL
3
ASSEMBLE SIDE
PANELS
Door Sheets
Hinge
Side Wall Sheets
Barge Flashing
Spouting
Roof Sheets
4 Sheets + 1Pan Sheet
Top Plate Side
Top Plate Front
Bottom Plate Front
Bottom Plate Side
Back Wall Sheets
4 Sheets + 1Pan Sheet
Front Wall Sheet
Door Jambs
Front 2Pan Wall Sheet
Door Side Flashing
Door Brace
Door Top/Bottom
Top Plate Back
Padbolt Support
PARTS LOCATION
QUICK OVERVIEW
FOUNDATION
GUARDIAN WOODEN FLOOR
• The optional Guardian kitset wooden floor is precut and designed
to be fitted into the shed after the shed is assembled.
• Assemble shed as per instructions and fit floor last.
(see page 13 for details).

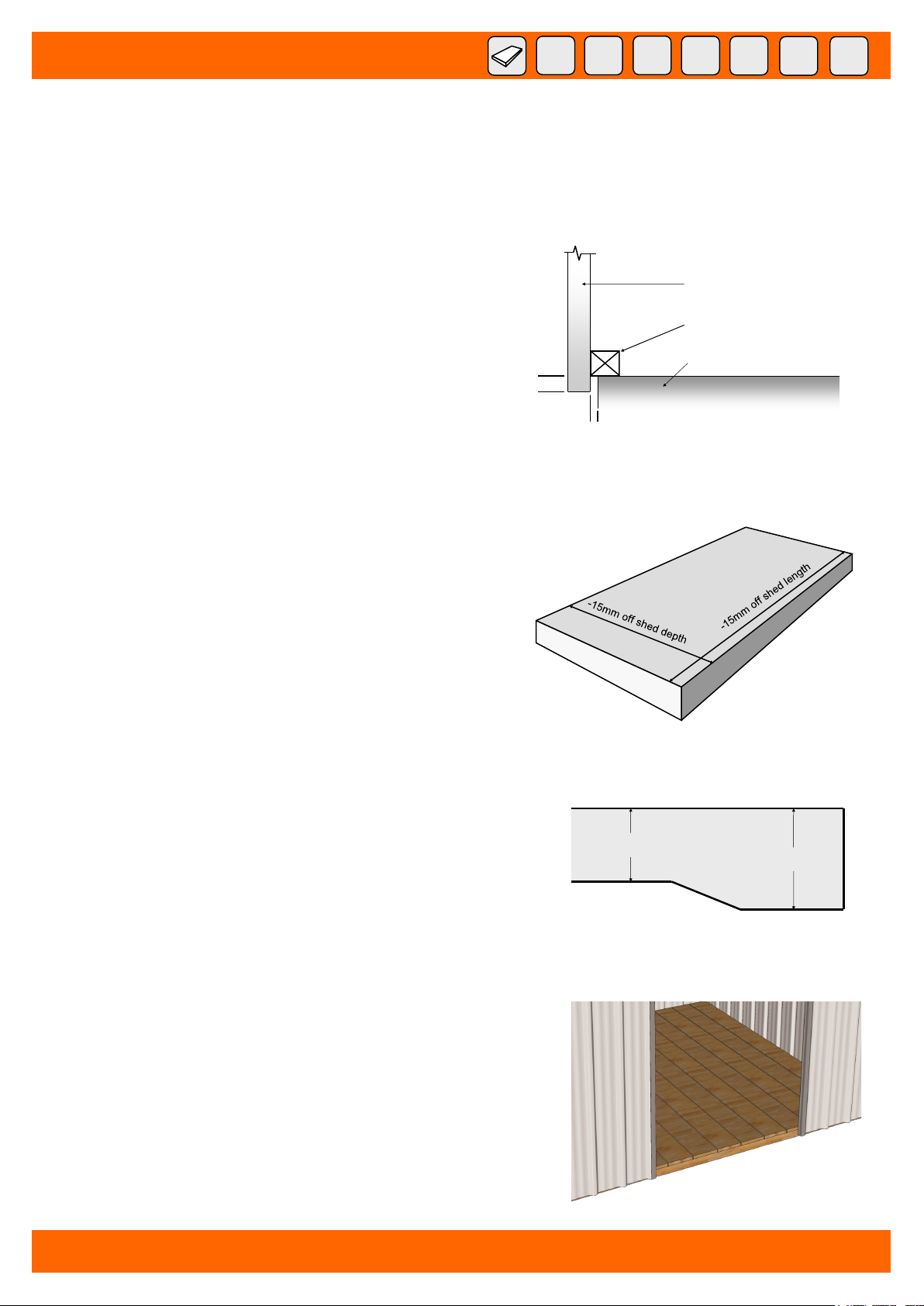

CONCRETE SLAB FOR RAISED BASE PLATE SHED
To build a raised concrete slab for your shed to sit on, we recom-
mend the following:
• The raised slab size should be 15mm smaller than the base
size of the shed and at least 30mm above ground line.
• The slab should be 80mm thick in the middle and 100mm
thick around the edges.
• The slab should be laid on a solid or compacted base.
• Plastic sheeting under slab will prevent moisture coming
through from underneath.
• During construction, you may raise the bottom timber
plate to allow the wall cladding to protrude 20mm below
the bottom plate. This will stop water flowing between
the bottom plate and the concrete floor.
See note on page 8.
80mm
100mm
7.5mm
20mm
Concrete Floor
Base Plate
Wall Cladding
6
RAISED BASE PLATE OPTION
(For sheds placed on a raised concrete floor)
No doubt by now you will have decided what sort of base you are putting down.
Please read the section that applies to your situation.
If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed.
This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
See concrete pad specifications below
By choosing this option you will need to make the concrete pad to the specification below.
ASSEMBLE DOOR
7
SELECT:
3 x 1.940m Door Sheets (Narrow)
2 x 0.945m Door Top/Bottom Flashings
2 x 0.495m Door Top/Bottom Flashings
4 x 1.940m Door Side Flashings
2 x 1.160m Door Brace Flashings
2 x 0.955m Door Brace Flashings
1 x 1.940m Weather-strip Flashing
6 x Hinges
1 x Padbolt Support Flashing
108 x Rivets
STEP 1:
• Lay out 2 x door sheets on a flat surface
making sure narrow pans are on the outside.
• Rivet sheets together ensuring ends are flush
with each other.
STEP 2:
• Position door side flashings and door top and
bottom flashings and assemble door as shown,
ensuring narrow face of flashing is on the front
as per fig.1
• Drill and rivet as per diagram.
STEP 4:
• On the back of the door, place door braces in
position as shown in fig.4.
• Ensure that the top and bottom ends of the
braces are under the door flashings as shown
in fig.5 and opposite ends of the braces
overlap in the middle as shown in fig.6.
• Rivet door brace flashings onto back of door
as shown. Where possible, rivet from front of
door.
STEP 3:
• Attach hinges to door side flashing using rivets
provided. Ensure hinge is flush with back of
door, and 60mm in from each end as per fig.2.
• Using six rivets, attach padbolt support as
shown in fig.3.
NARROW PANS
fig.3
fig.4
fig.5
Hinges
fig.6
fig.1
fig.2
SMALL DOOR:
• Assemble small door in same way as large door using 0.495 m top and bottom flashings.
• Before screwing on 0.955m door braces, attach weather strip flashing to back of door side flashing using six rivets
ensuring it protrudes 20mm out from door side.
ASSEMBLE SIDE PANELS
8
BOTTOM PLATE
BOTTOM PLATE
SELECT:
2 x 1.905 m Side Wall Sheets (Angled)
2 x 1.935 m Side Wall Sheets (Angled)
2 x 1.965 m Side Wall Sheets (Angled)
2 x 1.522 m Top Plates (Red)
2 x 1.520 m Bottom Plates (Green)
72 x 30mm Galv Clouts
8 x Rivets
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 6), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
BOTTOM PLATE
1857mm 1947mm
15mm
BOTTOM PLATE
1857mm
1947mm
Second Side
Panel

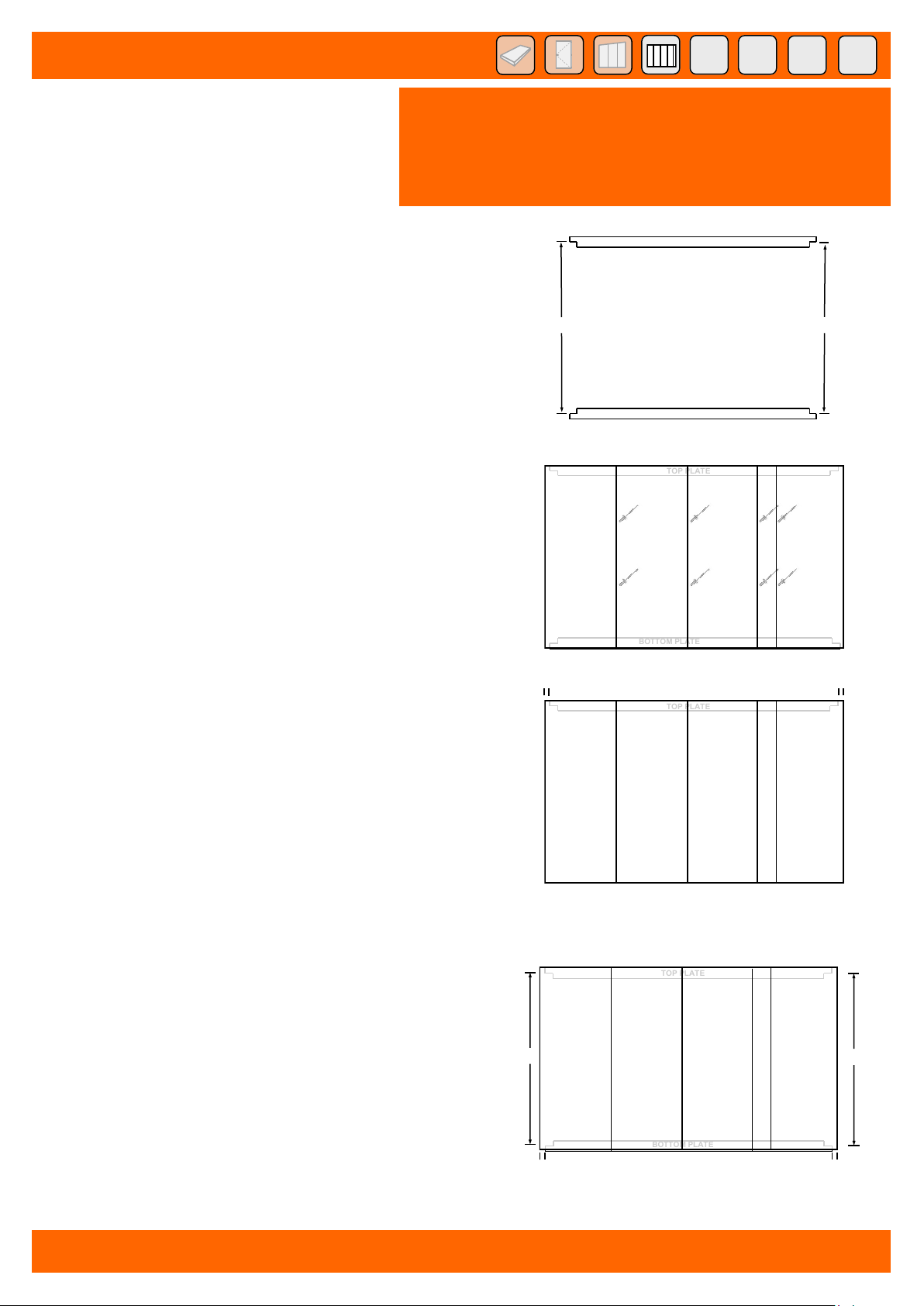

STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a flat surface (corner
cutouts to face as shown). Measurements between Top and Bottom
plates are critical to ensure wall panels fit together.
STEP 2:
• Place 1 x 1.905m, 1 x 1.935m and 1 x 1.965m Side wall sheets on
top of timber plates, with bottom of sheets flush with each other.
• Rivet sheets together on overlaps as shown.
STEP 3:
• Nail wall sheets to the Top Plate at each end making
sure that the top of the sheets are flush with the top of
the Top Plate and the sides of the wall sheet overhang
the Top Plate by approx 15mm as shown.
• Check that the Top Plate is straight then nail the wall
sheet to the Top Plate, two clouts per pan (see fig. 1).
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end ensuring each
side of wall sheets overhangs the end of Bottom Plate by 15mm.
Check that the distance between the Top and Bottom Plates is
correct. (As per diagram in step 1)
• Check that the Bottom Plate is straight then nail the wall sheets to
the Bottom Plate, two clouts per pan (see fig. 1).
Repeat with second side panel ensuring Top Plate is as shown.
fig.1
RIB
PAN
CLOUT
TIMBER PLATE
Standard Shed — Bottom Plate will protrude below
wall sheet by approximately 10mm.
Raised base plate shed — Wall sheet will protrude
below the Bottom Plate by 20mm.
15mm 15mm
1857mm 1947mm
15mm
RIVET
RIVET
RIVET
RIVET
BOTTOM PLATE
15mm
ASSEMBLE BACK PANEL
SELECT:
4 x 1.890 m Wall Sheets
1 x 1.890 m 1Pan Wall sheet
1 x 2.190 m Top Plate (Red)
1 x 2.190 m Bottom Plate (Green)
52 x 30mm Galv Clouts
8 x Rivets
9
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 6), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
1858mm
BOTTOM PLATE
1858mm
TOP PLATE
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a
flat surface (corner cutouts to face as shown).
STEP 2:
• Place 4 x 1.890 m wall sheets and 1 x 1Pan wall
sheet on top of timber Plates with bottom of sheets
flush with each other.
• Rivet the sheets together on overlaps as shown.
STEP 3:
• Nail the wall sheets to the Top Plate at each end making sure
that the top of the sheets are flush with the top of the Top
Plate and that the sides of the wall sheets overhang the Top
Plate by 15mm as shown.
• Check that the Top Plate is straight then nail wall sheets to
the Top Plate, using two clouts per pan.
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end,
ensuring that each side of the wall sheets overhangs the
Bottom Plate by 15mm and that the distance between
the Top and Bottom Plates is correct. (As shown)
• Check that the Bottom Plate is straight then nail
wall sheets to the Bottom Plate, using two clouts per pan.
Standard Shed — Bottom Plate will protrude below wall
sheet by approximately 10mm.
Raised base plate shed — Wall sheet will protrude below
the Bottom Plate by 20mm.
TOP PLATE
15mm 15mm
BOTTOM PLATE
TOP PLATE
1858mm
BOTTOM PLATE
15mm 15mm
TOP PLATE
1858mm
Table des matières
Autres manuels Duratuf Entreposage extérieur
Duratuf
Duratuf PG66 Manuel utilisateur
Duratuf
Duratuf SS1510 Manuel utilisateur
Duratuf
Duratuf KAIPARA Manuel utilisateur
Duratuf
Duratuf TUF 200 Manuel utilisateur
Duratuf
Duratuf Glenburn Manuel utilisateur
Duratuf
Duratuf GL105 Manuel utilisateur
Duratuf
Duratuf PL46 Manuel utilisateur
Duratuf
Duratuf Sentry Sheds SL1515 Manuel utilisateur
Duratuf
Duratuf GG109 Manuel utilisateur
Duratuf
Duratuf MATAKANA Manuel utilisateur
Duratuf
Duratuf PS42 Manuel utilisateur
Duratuf
Duratuf Garrison PL63 Manuel utilisateur
Duratuf
Duratuf SENTRY SHEDS SS1515 Manuel utilisateur
Duratuf
Duratuf Wairarapa Manuel utilisateur
Duratuf
Duratuf GG99 Manuel utilisateur
Duratuf
Duratuf Paihia Manuel utilisateur
Duratuf
Duratuf GARRISON PS62 Manuel utilisateur
Duratuf
Duratuf Garrison Sheds PL64 Manuel utilisateur
Duratuf
Duratuf SL3015 Manuel utilisateur
Duratuf
Duratuf PG88 Manuel utilisateur
Manuels Entreposage extérieur populaires d'autres marques
rollaway container
rollaway container ARPCA24 Manuel utilisateur
X-METAL
X-METAL 4065 Manuel utilisateur
Outdoor Life Products
Outdoor Life Products FP2030 F Manuel utilisateur
Royalcraft
Royalcraft Faro 295L Storage Box Manuel utilisateur
Riverlea
Riverlea Duratuf KIWI KS3 Manuel utilisateur
OLT
OLT GS84D-FJ-Plywood Manuel utilisateur
