Dukane ImagePro 8925H-RJ Manuel utilisateur

DUKANE CORP AV SERVICE DEPT

2900 Dukane Drive

St Charles, IL 60174

800-676-2487 / 630-762-4032

Fax 630-584-5156

[email protected]

www.dukane.com/av

Information in this Guide may change due to product improvements. To obtain the latest

manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av

and look at the specic model SUPPORT or DOWNLOADS section.

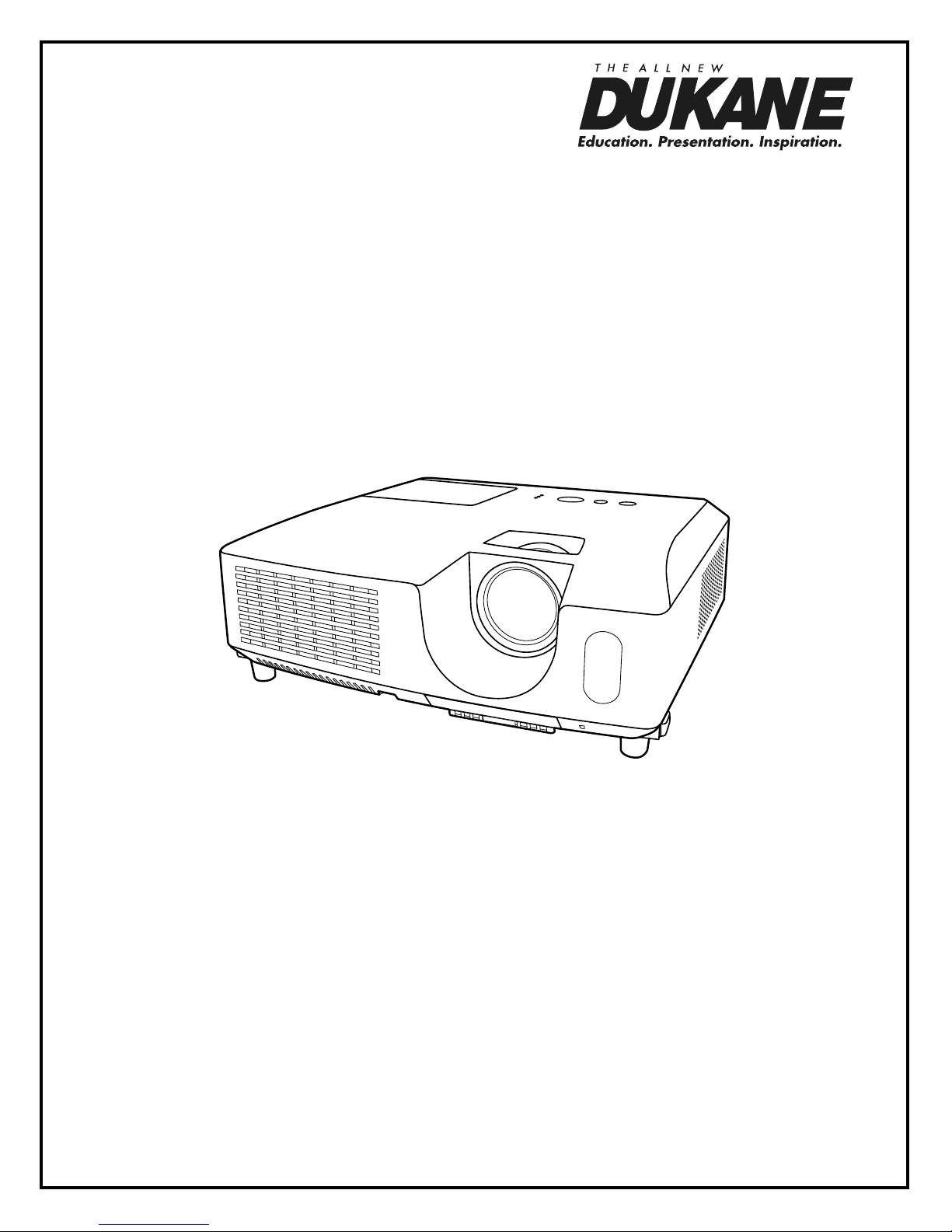

Data Video Projector

Concise User’s Manual

MODELS: 8925H-RJ / 8926H-RJ

8956H-RJ / 8927HW-RJ

403-8925H-RJ-PLUS-CONCISE-00

ENGLISH

Projector

8925H-RJ/8926H-RJ/8956H-RJ

8927HW-RJ

User's Manual (concise)

Thank you for purchasing this projector.

Please read through this manual before using this product, in order to use safely

and utilize well the product.

WARNING ►Before using this product, be sure to read all manuals for this

product. After reading them, store them in a safe place for future reference.

►Heed all the warnings and cautions in the manuals or on the product.

►Follow all the instructions in the manuals or on the product.



First of all............................................ 2

Entries and graphical symbols explanation ......2

Important safety instruction ..............................2

Regulatory notices.............................. 3

About Electro-Magnetic Interference ................3

About Waste Electrical and Electronic Equipment

...4

Contents of package........................... 4

Preparing for the remote control......... 5

Arrangement....................................... 6

Connecting with your devices............. 7

Fastening the adapter cover............... 8



Connecting power supply ................... 8

Turning on the power.......................... 9

Adjusting the projector's elevator ..... 10

Displaying the picture ....................... 11

Turning off the power........................ 12

Replacing the lamp........................... 13

Cleaning and replacing the air ﬁlter

.. 15

Using the CD manual ....................... 16

Speciﬁcations ................................... 17

Troubleshooting

- Warranty and after-service ........... 18

Contents

NOTE • In this manual, unless any comments are accompanied, “the

manuals” means all the documents provided with this product, and “the product”

means this projector and all the accessories came with the projector.

Projection Tables ............................. 19

First of all

Entries and graphical symbols explanation

The following entries and graphical symbols are used for the manuals and the

product as follows, for safety purpose. Please know their meanings beforehand,

and heed them.

Important safety instruction

The followings are important instructions for safely using the product. Be sure to

follow them always when handling the product. The manufacturer assumes no

responsibility for any damage caused by mishandling that is beyond normal usage

deﬁned in these manuals of this projector.

WARNING

This entry warns of a risk of serious personal injury or even death.

CAUTION This entry warns of a risk of personal injury or physical damage.

NOTICE This entry notices of fear of causing trouble.

WARNING ►Never use the product in or after an abnormality (ex. giving

off smoke, smelling strange, took a liquid or an object inside, broken, etc.) If an

abnormality should occur, unplug the projector urgently.

►Situate the product away from children and pets.

►Keep small parts away from children and pets. If swallowed, consult a

physician immediately for emergency treatment.

►Do not use the product when there is fear of a thunderbolt.

►Unplug the projector from the power outlet if the projector is not used for the

time being.

►Do not open or remove any portion of the product, unless the manuals direct

it. For internal maintenance, leave it to your dealer or their service personnel.

►Use only the accessories speciﬁed or recommended by the manufacturer.

►Do not modify the projector or accessories.

►Do not let any things or any liquids enter to the inside of the product.

►Do not wet the product.

►Do not place the projector where any oils, such as cooking or machine oil,

are used. Oil may harm the product, resulting in malfunction, or falling from the

mounted position.

►Do not apply a shock or pressure to this product.

- Do not place the product on an unstable place such as the uneven surface or

the leaned table.

- Do not place the product unstably. Place the projector so that it does not

protrude from the surface where the projector is placed on.

- Remove all the attachments including the power cord and cables, from the

projector when carrying the projector.

►

Do not look into the lens and the openings on the projector, while the lamp is on.

►

Do not approach the lamp cover and the exhaust vents, while the projection lamp

is on. Also after the lamp goes out, do not approach them for a while, since too hot.

ENGLISH

Regulatory notices

About Electro-Magnetic Interference

In CANADA

This Class B digital apparatus complies with Canadian ICES-003.

In the US, and other places where the FCC regulations are applicable

Declaration of Conformity

Trade name HITACHI'XNDQH

Model Number CP-X2514WN+5-, CP-X3014WN(8926H-RJ), CP-X4014WN(8956H-RJ),

CP-WX3014WN(8927HW-RJ)

Responsible Party Hitachi America, Ltd.

Address 900 Hitachi way, Chula Vista, CA 91914-3556 U.S.A.

Telephone Number +1 -800-225-1741

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.This equipment has

been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

INSTRUCTIONS TO USERS: This equipment complies with the requirements of

FCC (Federal Communication Commission) equipment provided that the following

conditions are met. Some cables have to be used with the core set. Use the

accessory cable or a designated-type cable for the connection. For cables that

have a core only at one end, connect the core to the projector.

CAUTION: Changes or modiﬁcations not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

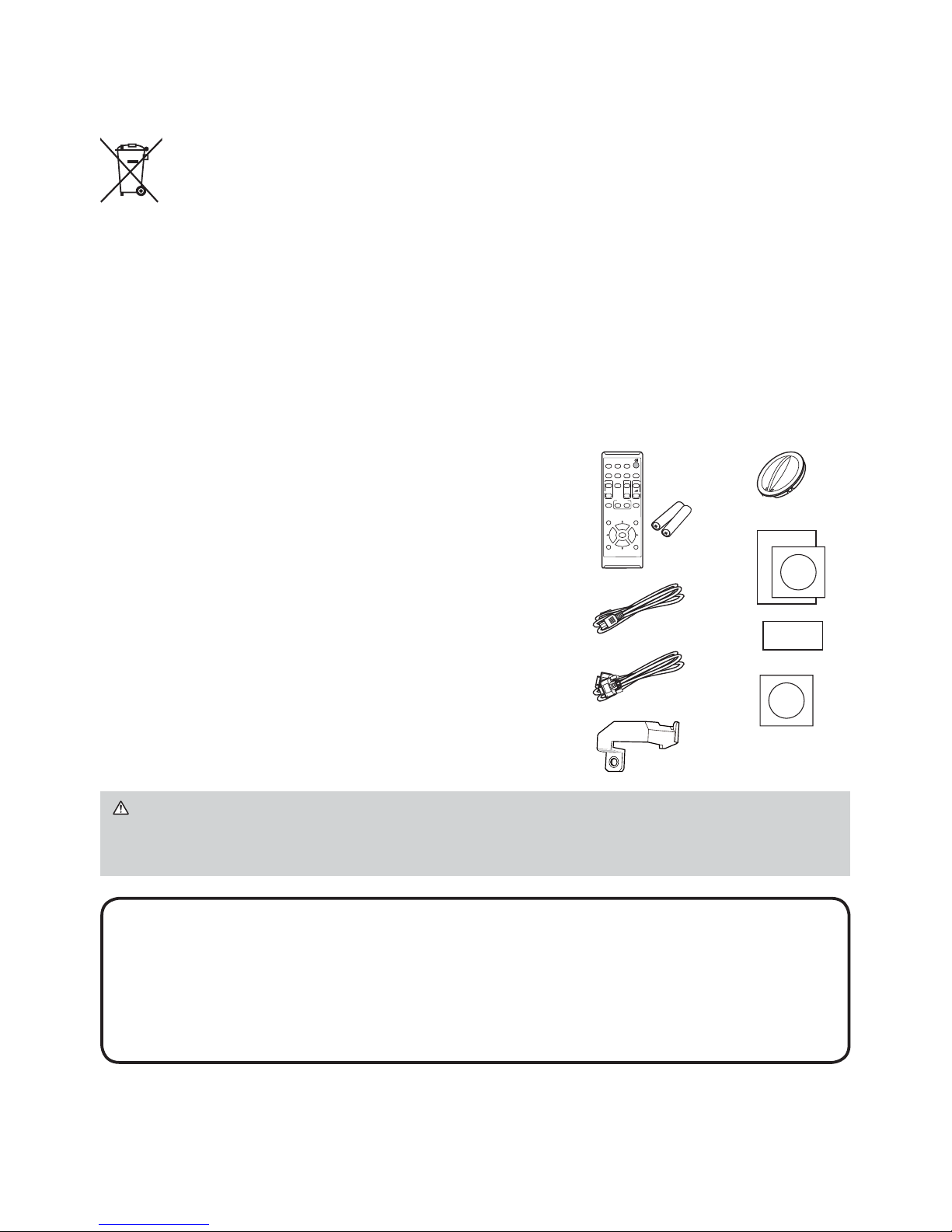

Contents of package

Your projector should come with the items

shown below. Check that all the items are

included. Require of your dealer immediately if

any items are missing.

(1) Remote control with two AA batteries

(2) Power cord

(3) Computer cable

(4) Adapter cover

(5) Lens cover

(6) User’s manuals (Book x1, CD x1)

(7) Security label

(8) Application CD

NOTE • Keep the original packing materials for future reshipment. Be sure

to use the original packing materials when moving the projector. Use special

caution for the lens.

• The projector may make a rattling sound when tilted, moved or shaken, since

a ﬂap to control the air ﬂow inside of the projector has moved. Be aware that

this is not a failure or malfunction.

About Waste Electrical and Electronic Equipment

The mark is in compliance with the Waste Electrical and Electronic

Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment

including any spent or discarded batteries or accumulators as unsorted

municipal waste, but use the return and collection systems available.

If the batteries or accumulators included with this equipment, display

the chemical symbol Hg, Cd, or Pb, then it means that the battery has a

heavy metal content of more than 0.0005% Mercury or more than, 0.002%

Cadmium, or more than 0.004% Lead.

Regulatory notices (continued)

WARNING ►Keep small parts away from children and pets. Take care

not to put in the mouth. If swallowed, consult a physician immediately for

emergency treatment.

(6)

(7)

(2)

(3)

(5)

(1) VIDEO

DOC.CAMERA

KEYSTONE

ASPECT SEARCH BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

࡯

㧗

VOLUME



ENTER

(8)

(4)

ENGLISH

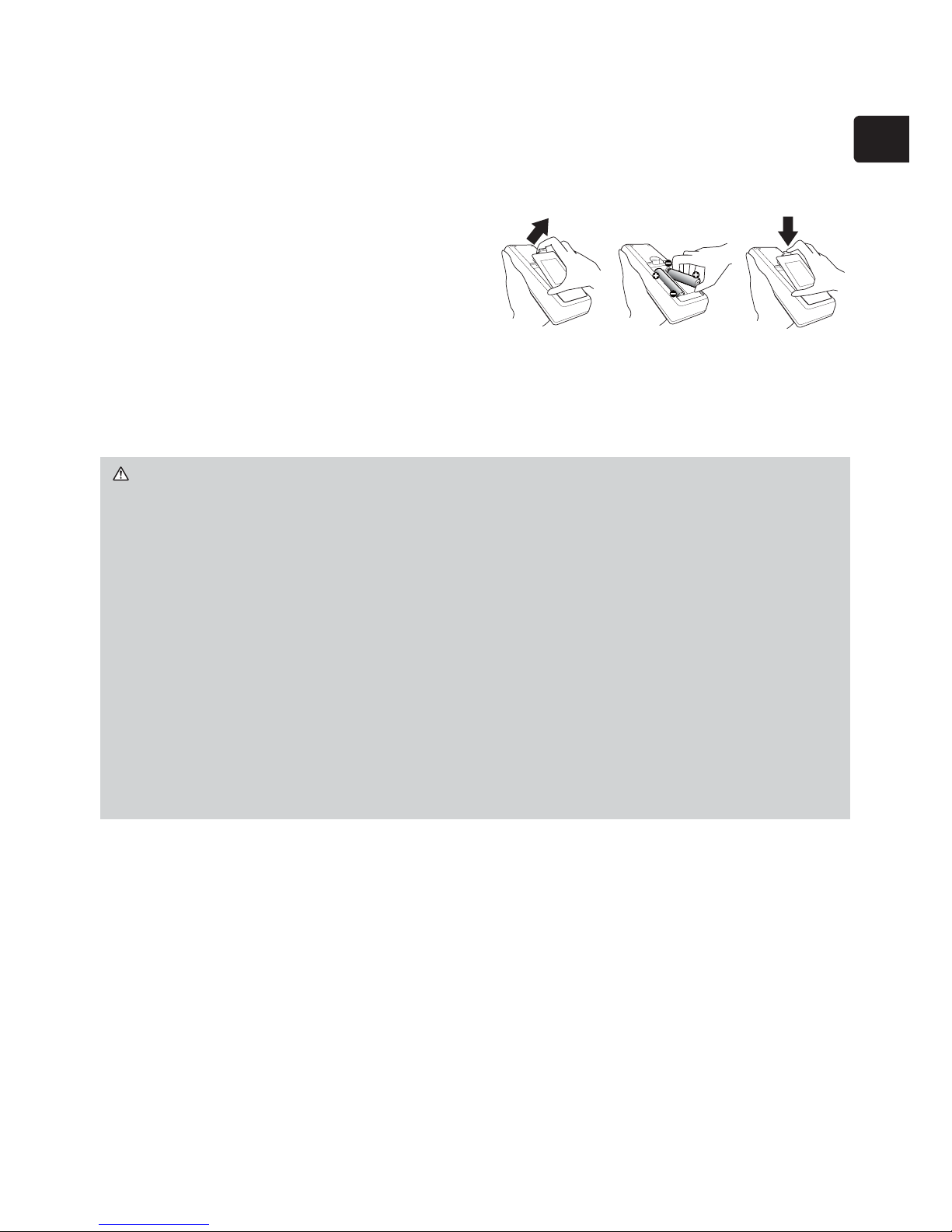

Preparing for the remote control

Please insert the batteries into the remote control before using it. If the remote

control starts to malfunction, try to replace the batteries. If you will not use the

remote control for long period, remove the batteries from the remote control and

store them in a safe place.

1. Holding the hook part of the battery

cover, remove it.

2. Align and insert the two AA batteries

(HITACHI MAXELL, Part No.LR6 or

R6P) according to their plus and minus

terminals as indicated in the remote

control.

3. Replace the battery cover in the direction of the arrow and snap it back into

place.

WARNING ►Always handle the batteries with care and use them only as

directed. Improper use may result in battery explosion, cracking or leakage,

which could result in ﬁre, injury and/or pollution of the surrounding environment.

• When replacing the batteries, replace both of the batteries with new batteries

of the same type. Do not use a new battery with a used battery.

• Be sure to use only the batteries speciﬁed. Do not use batteries of different

types at the same time. Do not mix a new battery with used one.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

•

Do not place a battery in a ﬁre or water. Keep batteries in a dark, cool and dry place.

•

If you observe battery leakage, wipe out the leakage and then replace a battery.

If the leakage adheres to your body or clothes, rinse well with water immediately.

•

Obey the local laws on disposing the battery.

213

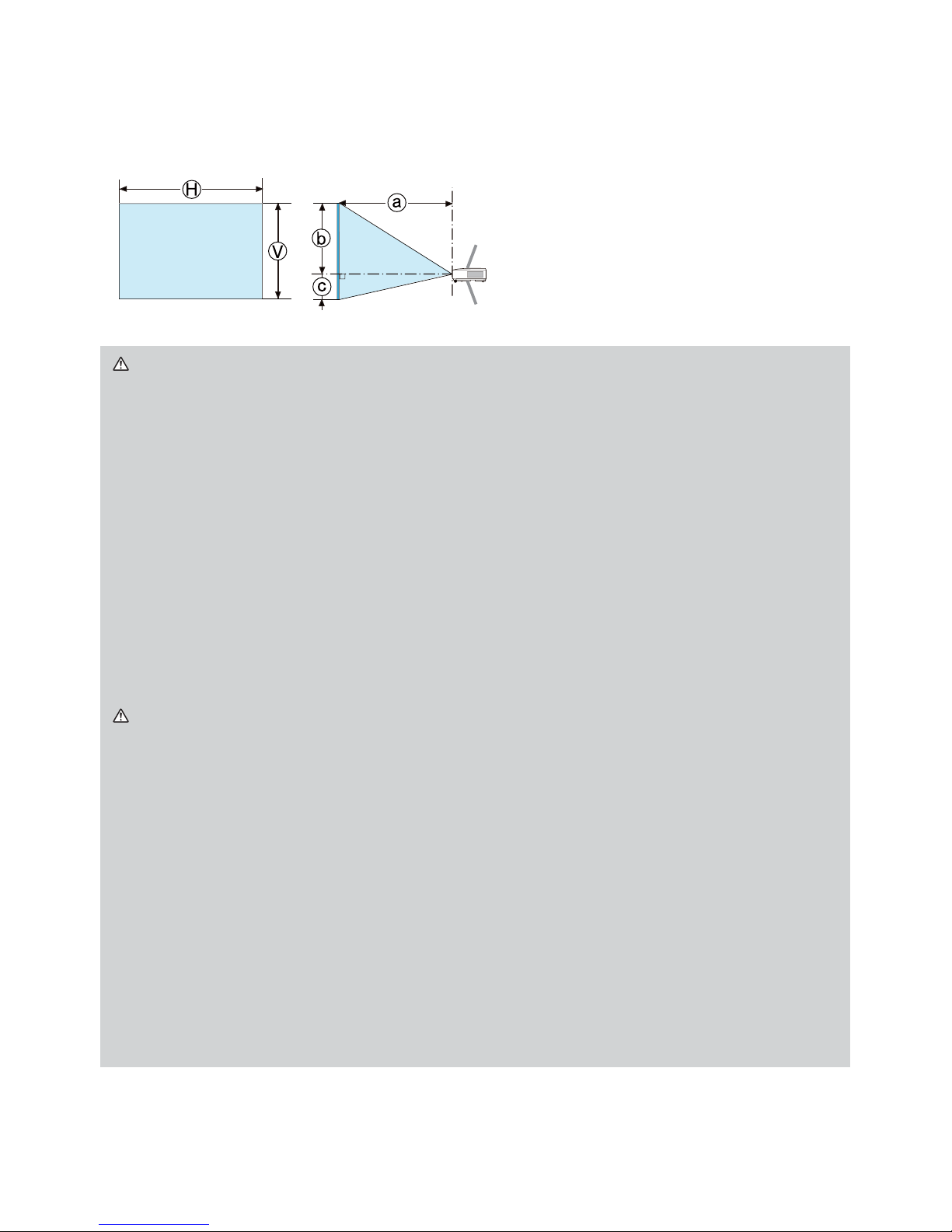

WARNING ►Install the projector where you can access the power outlet

easily.

►Install the projector in a stable horizontal position.

• Do not use any mounting accessories except the accessories speciﬁed by the

manufacturer. Read and keep the manuals of the accessories used.

•

For special installation such as ceiling mounting, be sure to consult your dealer

beforehand. Speciﬁc mounting accessories and services may be required.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise speciﬁed

in the manual.

►Do not install the projector near thermally conductive or ﬂammable things.

►Do not place the projector where any oils, such as cooking or machine oil, are

used.

►Do not place the projector in a place where it may get wet.

CAUTION ►Place the projector in a cool place with sufﬁcient ventilation.

• Keep a space of 30 cm or more between a side of the projector and other

objects such as walls.

• Do not stop up, block nor cover the projector's vent holes.

• Do not place the projector at places that are exposed to magnetic ﬁelds, doing

so can cause the cooling fans inside the projector to malfunction.

►Avoid placing the projector in smoky, humid or dusty place.

• Do not place the projector near humidiﬁers.

NOTICE ►Position the projector to prevent light from directly hitting the

projector’s remote sensor.

►Do not place the product in a place where radio interference may be caused.

►Check and correct the setting for FAN SPEED of SERVICE in the OPTION

menu according to the usage environment. For details, see User’s Manual -

Operating Guide.

Arrangement

Refer to tables T-1 and T-2 at the back of this manual as well as the following to

determine the screen size and projection distance. The values shown in the table

are calculated for a full size screen.

Projector top

Projector bottom

Ⓗ×Ⓥ : Screen size

ⓐ:

Projection distance

(from the projector's end)

ⓑ,ⓒ: Screen height

ENGLISH

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to

conﬁrm that the device is suitable for connecting with this projector and prepare

the required accessories, such as a cable in accord with the signal of the device.

Consult your dealer when the required accessory did not come with the product or

the accessory is damaged.

After making sure that the projector and the devices are turned off, perform the

connection, according to the following instructions. Refer to ﬁgures F-1 to F-4 at the

back of this manual.

For details, see User’s Manual - Operating Guide. Before connecting the projector

to a network system, be sure to read User’s Manual - Network Guide too.

WARNING ►Use only the appropriate accessories. Otherwise it could

cause a ﬁre or damage the projector and devices.

• Use only the accessories speciﬁed or recommended by the projector’s

manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. Be careful not to damage the

accessories. Route a cable so that it is neither stepped on nor pinched out.

CAUTION ►For a cable with a core at only one end, connect the end with

the core to the projector. That may be required by EMI regulations.

►Before connecting the projector to a network system be sure to obtain the

consent of the administrator of the network.

►Do not connect the LAN port to any network that might have the excessive

voltage.

►The designated USB wireless adapter that is sold as an option is required to

use the wireless network function of this projector.

►Before removing the USB storage device from the port of the projector, be

sure to use the REMOVE USB function on the thumbnail screen to secure your

data. Before you insert or pull out the USB wireless adapter from the projector,

turn off the power of the projector and pull out the power cord’s plug from the

outlet. Do not touch the USB wireless adapter while the projector is receiving

AC power.

NOTE • Do not turn on or off the projector while connected to a device in

operation, unless that is directed in the manual of the device.

• Some input ports are selectable in the use. For details, see User’s Manual -

Operating Guide.

• Be careful not to mistakenly connect a connector to a wrong port.

• If an oversized USB storage device blocks the LAN port, use a USB extension

cable to connect the USB storage device.

• If a loud feedback noise is produced from the speaker, move the microphone

away from the speaker.

• This projector doesn't support plug-in power for the microphone.

Connecting power supply

1. Put the connector of the power cord into the

AC IN (AC inlet) of the projector.

2. Firmly plug the power cord’s plug into the

outlet. In a couple of seconds after the power

supply connection, the POWER indicator will

light up in steady orange.

Please remember that when the DIRECT POWER

ON function activated, the connection of the power

supply make the projector turn on.

WARNING ►Please use extra caution when connecting the power cord, as

incorrect or faulty connections may result in ﬁre and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult

your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power

cord. The power outlet should be close to the projector and easily accessible.

Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload

the outlet and connectors, loosen the connection, or result in ﬁre, electric

shock or other accidents.

• Connect the ground terminal for the AC inlet of this unit to the ground terminal

of the building using an appropriate power cord (bundled).

NOTICE ►This product is also designed for IT power systems with a phase-

to-phase voltage of 220 to 240 V.

AC IN

Power

cord

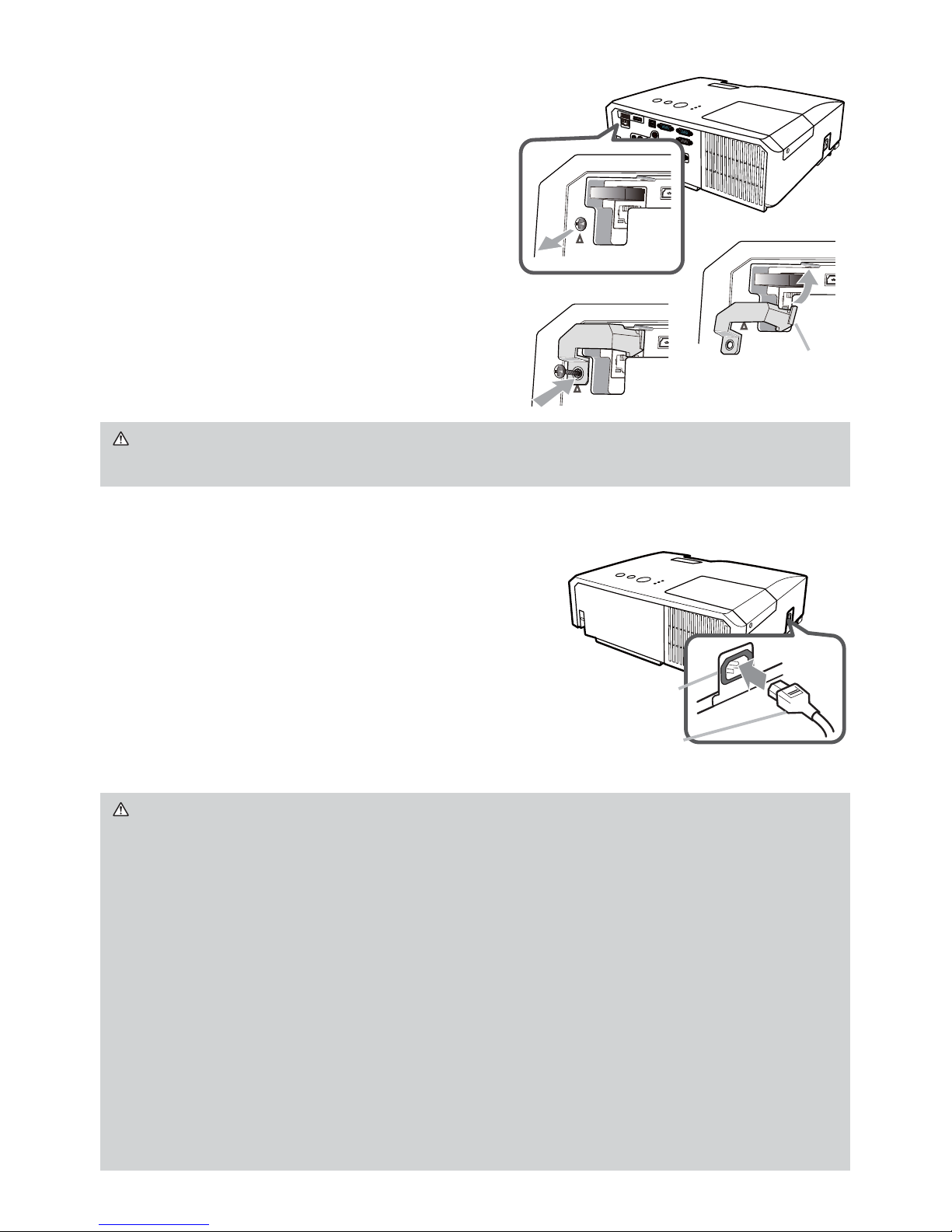

Fastening the adapter cover

Use the supplied adapter cover to prevent the

USB wireless adapter from coming off easily.

1. Loosen the screw (marked with triangle)

on the bottom left of the USB TYPE A

port.

2. Insert the tab of the cover into the hole

at the upper right of the USB TYPE A

port in the direction of the arrow.

Align the screw holes on the projector

and the cover. Then insert the screw

removed from the projector into the hole

and tighten the screw.

WARNING ►Keep small parts away from children and pets. Take care not

to put in the mouth.

Tab

Autres manuels pour ImagePro 8925H-RJ

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dukane Projecteur

Dukane

Dukane ImagePro 8784 Manuel utilisateur

Dukane

Dukane 28A7250 ImagePro Manuel utilisateur

Dukane

Dukane ImagePro 8055 Manuel utilisateur

Dukane

Dukane ImagePro 8070 Manuel utilisateur

Dukane

Dukane ImagePro 8918 Manuel utilisateur

Dukane

Dukane 9080WUSS Manuel utilisateur

Dukane

Dukane ImagePro 8808 Manuel utilisateur

Dukane

Dukane ImagePro 8916 Manuel utilisateur

Dukane

Dukane 6640W Manuel utilisateur

Dukane

Dukane ImagePro 8105H Manuel utilisateur

Dukane

Dukane 8928B Manuel utilisateur

Dukane

Dukane ImagePro 8945 Manuel utilisateur

Dukane

Dukane 8104WB Manuel utilisateur

Dukane

Dukane 9137WU-RJ Manuel utilisateur

Dukane

Dukane 8933B Manuel utilisateur

Dukane

Dukane 6235W Manuel utilisateur

Dukane

Dukane 8142WSS Manuel utilisateur

Dukane

Dukane 8964WUSS Manuel utilisateur

Dukane

Dukane ImagePro 8909 Manuel utilisateur

Dukane

Dukane ImagePro 8043A Manuel utilisateur

Dukane

Dukane ImagePro 8761 Manuel utilisateur

Dukane

Dukane 8527 Manuel utilisateur

Dukane

Dukane 6135W Manuel utilisateur

Dukane

Dukane ImagePro 8077A Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
