Dukane ImagePro 8100 Manuel utilisateur

ENGLISH

Projector

8100

User's Manual (concise)

Thank you for purchasing this product.

Please read the manuals for the product beforehand, in order to use the product safely

and more effectively. To read the manuals in the CD, see the “16. Using the CD

manual” (17).

Contents

1. Checking the contents...................2

2. Arrangement..................................2

3. Connecting with your devices........4

4. Connecting with a power supply....5

5. Using the security bar and slot ......6

6. Using the cable cover....................6

7. Preparing for the remote control....7

8. Starting the projector .....................8

9. Adjusting the projection position....9

10. Operation.....................................9

11. Turning the projector off............. 11

12. Replacing the lamp....................12

13. Maintaining the air-lter .............14

14. Caring for the mirror and lens....15

15. Replacing the clock battery .......16

16. Using the CD manual ................17

17. Regulatory notices.....................18

18. Warranty and after-service ........19

19. Specications ............................20

 

WARNING

■ Before using this product, be sure to read all the manuals for the product. Heed all the

warnings and cautions in the manuals or on the product. Follow all the instructions in the

manuals or on the product. Retain the manuals in a safe place for future reference.

(1) (2)

(3) (4)

(5) (6) (7)

1. Checking the contents

Check that all the following items are included. If any items are missing, tell your dealer

soon.

(1) Projector

(2) Remote control with two batteries

(3) Power cord

(4) Computer cable

(5) Cable cover with a screw

(6) User’s manuals (a booklet, a CD)

(7) Security label

WARNING

■ Keep the original packing materials, and use for transporting this product.

2. Arrangement

Install the projector in a stable, cool, dry and airy place, keeping a space of 30 cm or more

between the sides of the projector and other objects such as walls.

Refer to the following to decide the projection style. Ceiling mount and tabletop use must

be setup with the designated optional accessories. Ask your dealer for details.

(3) Ceiling mount

(1) Usual use

(2) Tabletop use

NOTE

• When installing the projector, confirm that there is nothing that blocks the projection

light between the projector and the screen.

• When installing the projector, check that the remote sensors are not exposed to any

strong ray. (7)

ENGLISH

AC2

WARNING

■ Install the projector only under the specified condition using only the specified

accessory, since others may cause hazards.

■ Do not set the up projector while it is connected to a power supply, to prevent an

electric shock and a fire.

CAUTION

■ Do not block the vents on the projector. Do not place anything such as a piece of paper

that can stick to the intake vents, around the projector.

Table for 4:3 screen

Table for 16:9 screen

NOTE

• It is recommended to adjust the screen size from 60 inch to 100 inch diagonal. The

screen image adjusted out of this range, either smaller or larger, may be deteriorated.

(1)

(2)

(3)

inch cm inch cm inch cm inch cm inch

48 * 0.5 *(0.2) 38.3 15 24.4 10 98.2 39

50 2.0 1 39.8 16 25.2 10 101.9 40

60 9.6 4 47.4 19 28.9 11 120.4 47

70 17.2 755.0 22 32.6 13 139.3 55

80 24.8 10 62.6 25 36.2 14 158.2 62

90 32.4 13 70.2 28 39.9 16 177.1 70

100 39.9 16 77.7 31 43.6 17 196.0 77

120 55.0 22 92.8 37 50.9 20 234.0 92

150 77.7 31 115.5 45 62.0 24 291.0 115

200 115.5 45 153.3 60 80.4 32 385.7 152

(±8%)

inch cm inch cm inch cm inch cm inch

44 * 0.5 *(0.2) 38.3 15 33.6 13 88.9 35

50 5.4 2 43.2 17 37.3 15 99.9 39

60 13.7 5 51.5 20 43.5 17 118.3 47

70 22.0 9 59.8 24 49.6 20 136.8 54

80 30.2 12 68.0 27 55.7 22 155.3 61

90 38.5 15 76.3 30 61.8 24 173.9 68

100 46.6 18 84.4 33 67.9 27 192.3 76

120 63.1 25 100.9 40 80.1 32 229.5 90

150 87.8 35 125.6 49 98.4 39 285.3 112

200 129.0 51 166.8 66 129.0 51 378.2 149

(±8%)

2. Arrangement (continued)

Refer to the following for the projection distance.

The values shown in the table are calculated for a full size screen: 1024x768.

B1 *

MONITOR OUT COMPUTER IN2 COMPUTER IN1

CONTROL

LAN

AUDIO

OUT

S-VIDEO

Y CB/PBCR/PR

VIDEO L R

USB

AUDIO IN3

AUDIO IN

RGB OUT

AUDIO

OUT

AUDIO

OUT

RS-232C

USB-A

Y CB/PBCR/PR

COMPONENT VIDEO OUT

L R

AUDO OUT

L R

AUDO OUT

L R

AUDO OUT

S-VIDEO

OUT

VIDEO

OUT

RGB OUT LAN

AUDIO IN

RGB IN

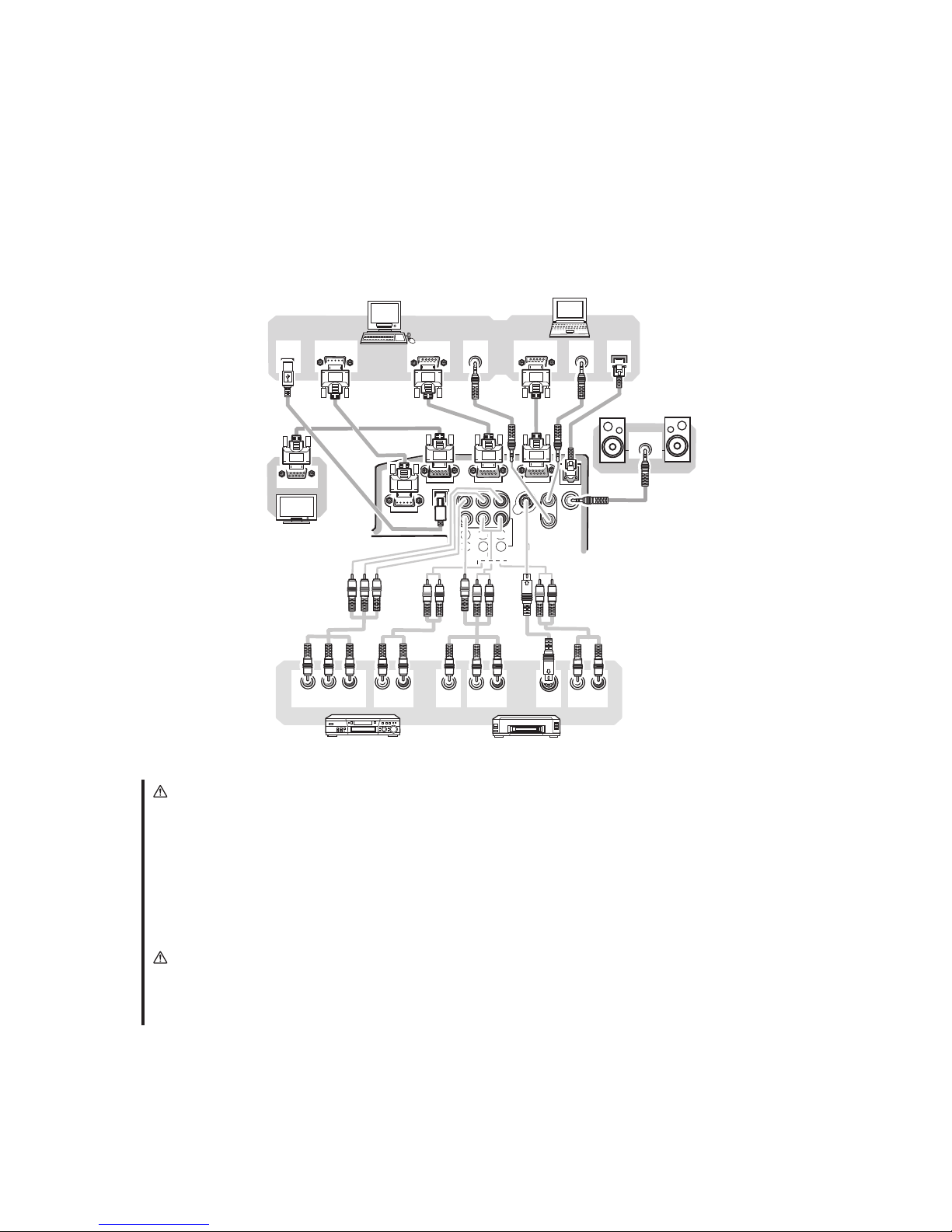

3. Connecting with your devices

Before connecting them, make sure that the devices are suitable to connect with this

projector, and prepare the required signal cables and adapters. Consult your dealer if

the accessory that is not included in this product is required. Refer to the following for

connection. If you want to use the cable cover, see the paragraph “6. Using the cable

cover” (6) beforehand.

WARNING

■ Use only the accessories contained in this product or recommended by your dealer. Do

not modify the projector or accessories.

■ For the cable with a ferrite core only at one end, connect the end with the core to

the projector. The cables may be required a specific length or a ferrite core by the

regulations.

■ Be careful not to damage the cables. Route the cables so that they are not likely to be

walked on or pinched by items placed upon or against them.

CAUTION

■ Do not connect or disconnect the projector with devices while they are connected to a

power supply, except for the cases directed by the manuals.

■ Be careful not to set a connector into a wrong port or with a wrong way.

PCs

Speakers

(with an amplier)

Monitor

VCR/DVD

players

ENGLISH

4. Connecting with a power supply

Before connection, confirm that the power outlet

is suitable for this projector and the power cord.

Then follow the procedure below for connection.

AC Inlet

Power cord

(with the socket)

WARNING

■ Be careful of operation for a power supply not to cause an electric shock or a fire.

• Do not handle the power cord with the wet hand.

• Use this product with only the type of power supply indicated on the projector.

• Use a power outlet that is close to the projector and easily accessible.

• Connect firmly the power cord not to result in loose connection. Do not use a loose or

unsound power outlet.

• Do not overload the outlet, since overloading can result in a risk of fire or electric

shock.

• Use only the power cord contained in this product unless it is damaged. If it is

damaged, consult your dealer to get new one. Do not modify the power cord.

1. Insert the end of the power cord with the

socket into the AC inlet of the projector.

2. Plug the other end of the power cord into a

power outlet.

COMPUTER OUT COMPUTERIN2 COMPUTER IN1

CONTROL

LAN

AUDIO

OUT

S-VIDEO

Y C

VIDEO L R

USB

AUDIO IN3

AUDIO IN

5. Using the security bar and slot

This projector has the security bar for a

commercial anti-theft chain or wire up to 10 mm

in diameter, and also the security slot for the

Kensington lock.

For details, see the manual of the security tool.

Security slot

Security bar

NOTE

• These are not provided as comprehensive theft

preventions but supplemental measures.

WARNING

■ Do not place the anti-theft chain or wire near the projector’s exhaust vents, since the

chain or wire heated by the hot exhaust gas may cause a burn.

■ Do not use the security bar or slot for the purpose of fall prevention, since these are

not designed for it.

6. Using the cable cover

Utilize the cable cover as the guard and blind for the connecting parts.

1. Connect the signal cables and the

power cord to the projector first.

2. Attach the cable cover to the

projector, uniting the interlocking

parts.

3. Tighten the screw to fix the cable

cover.

4. Connect the other ends of the cables

to other devices, and plug the power

cord to the power outlet.

Cable cover

Screw

Interlocking parts

Screw driver

CATION

■ Be careful not to pinch the cables in the cable cover, to prevent damage to the cables.

ENGLISH

7. Preparing for the remote control

The accessory remote control needs batteries. Use the batteries

included in this product or two new batteries of the specified

type: HITACHI MAXELL, part number LR6 or R6P. Follow

the following procedure.

1. Remove the battery cover in the back of the remote

control.

2. Put the batteries into the battery holder, according to the

polarity markings (+) and (-) inside the holder.

3. Put the battery cover back to the former state.

Remote sensors

3 m

(approx.)

NOTE

• Try changing the batteries when the remote control

malfunctions.

• This remote control works with the remote sensors

on the projector using infrared light (Class 1 LED).

The active sensor senses the remote control signal

assigned within 60 degrees to right and left, and

within 3 meters. For details, see the Operating

Guide in the CD.

• Prevent the remote sensors from being hit by a

strong ray. It may cause malfunction of the projector

and remote control.

WARNING

■ Be careful of handling a battery, as a battery can cause explosion, cracking or leakage,

which could result in a fire, an injury, and environment pollution.

• Use only the specified and new battery. Do not use a battery with damage, such as a

scratch, a dent, rust or leakage. Do not mix a new battery with used one.

• When a battery leaked, wipe the leakage out well with a waste cloth. If the leakage

adhered to your body, immediately rinse it well with water. When a battery leaked in

the battery holder, replace the batteries after wiping the leakage out.

• Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Do not work on a battery; for example recharging or soldering.

• Do not keep the batteries put into the remote control when the remote control is not

used for a long while. Keep a battery in a dark, cool and dry place. Never expose a

battery to a fire or water.

• Obey the local laws on disposing a battery.

30º

COMPUTEROUT COMPUTERIN2 COMPUTER IN1

CONTROL

LAN

AUDIO

OUT

S-VIDEO

Y C

VIDEO L R

USB

AUDIOIN3

AUDIOIN

LAMP

TEMP

POWER

STANDBY/ON

INPUT

8. Starting the projector

Turn on the projector and the connected devices. Turn on the projector ahead of other

connected devices, unless mentioned in the manuals.

For this projector, follow the procedure below.

1. Press the side marked " I" of the power switch,

as the power-on position.

The POWER indicator lights up in orange.

NOTE

• For a couple of seconds after the power

indicator lights up, wait to use the control

buttons (on the projector and remote control).

The buttons may not work soon.

2. Confirm that there is nothing that the lens door

hits while opening.

Then, press the STANDBY/ON button (on the

projector or remote control).

The lens door opens, the projection lamp lights

up, and the POWER indicator begins to blink

green.

NOTE

• This projector has the AUTO ON function. For details, see the Operating Guide in the

CD.

POWER indicator

STANDBY/ON button

Power

switch

STANDBY/ON button

WARNING

■ Never look into the projection lens or mirror while the projection lamp lights, since the

projection lamp ray may cause a trouble on your eyes.

CAUTION

■ Be careful not to pinch your finger with the lens door, as it may cause an injury.

When the projector starts completely, the indicator will

turn steady green.

ENGLISH

COMPUTEROUT COMPUTERIN2 COMPUTER IN1

CONTROL

LAN

AUDIO

OUT

S-VIDEO

Y C

VIDEO L R

USB

AUDIOIN3

AUDIOIN

9. Adjusting the projection position

This projector has four elevator feet in the bottom. Use them to adjust the projection

position.

Elevator feet

max. 43 mm

CAUTION

■ Do not lengthen the elevator feet to 43 mm or more. The foot lengthened exceeding

the limit may come off from the projector, and result in an injury.

10. Operation

Displaying and switching the image

Press the

INPUT

button on the projector to display the image from one of active input

ports.

Each time you press the button, the port is switched in turn, when two or more signals are

inputted.

Focusing

Use the

FOCUS +

and

FOCUS – buttons on the projector or remote control to adjust the

screen focus.

INPUT

FOCUS -+FOCUS

VIDEO COMPUTER SEARCH

ASPECT AUTO BLANK

OFF

MAGNIFY

HOME PAGE UP VOLUME

END

PAGE DOWN

MUTE

FREEZE MY BUTTON KEYSTONE

1 2

FOCUS D-ZOOM

- + - +

POSITION MENU

ENTER

ESC RESET

INPUT

button

FOCUS +

button

FOCUS –

button

FOCUS +

button

FOCUS –

button

10. Operation (continued)

Selecting an aspect ratio

Each time you press the ASPECT button

on the remote control, it switches the

aspect ratio of the image, in turn.

Muting the sound

Press the MUTE button on the remote control. To restore the sound, press the MUTE or

VOLUME button.

NOTE

• For details, see the Operating Guide in the CD.

Adjusting the picture position

After pressing the POSITION button on

the remote control, use the ▲, ▼, ◄ and

► buttons. Press the POSITION button

again to finish this operation.

Zooming

Use the D-ZOOM + and D-ZOOM –

buttons on the remote control to adjust the

screen size.

VIDEO COMPUTER SEARCH

ASPECT AUTO BLANK

OFF

MAGNIFY

HOME PAGE UP VOLUME

END

PAGE DOWN

MUTE

FREEZE MY BUTTON KEYSTONE

1 2

FOCUS D-ZOOM

- + - +

POSITION MENU

ENTER

ESC RESET

D-ZOOM + button

D-ZOOM – button

POSITION button

KEYSTONE button

VOLUME button

ASPECT button

MUTE button

Correcting the keystone distortion

After pressing the KEYSTONE button on the remote control, use the ▲ and ▼ buttons.

Press the KEYSTONE button again to finish this operation.

Adjusting the volume

After pressing the VOLUME button on the remote control, use the ▲ and ▼ buttons.

Autres manuels pour ImagePro 8100

Table des matières

Autres manuels Dukane Projecteur

Dukane

Dukane 8107HWI Manuel utilisateur

Dukane

Dukane 28A8945 Manuel utilisateur

Dukane

Dukane ImagePro 8783 Manuel utilisateur

Dukane

Dukane ImagePro 8761 Manuel utilisateur

Dukane

Dukane 9007WU Manuel utilisateur

Dukane

Dukane ImagePro 8900 Manuel utilisateur

Dukane

Dukane ImagePro 8888 Manuel utilisateur

Dukane

Dukane ImagePro 8050 Manuel utilisateur

Dukane

Dukane ImagePro 8915 8915 8915 Manuel utilisateur

Dukane

Dukane ImagePro FastFax 28A8043 Manuel utilisateur

Dukane

Dukane 8133WSS Document technique

Dukane

Dukane ImagePro 8764 Manuel utilisateur

Dukane

Dukane SunSplash SP2127 Manuel utilisateur

Dukane

Dukane CP-RX80 Manuel utilisateur

Dukane

Dukane 6650WSSA Manuel utilisateur

Dukane

Dukane 6647WU Manuel utilisateur

Dukane

Dukane ImagePro 8753A Manuel utilisateur

Dukane

Dukane 8755K Manuel utilisateur

Dukane

Dukane ImagePro 8054 Manuel utilisateur

Dukane

Dukane ImagePro 8755H Manuel utilisateur

Dukane

Dukane ImagePro 7707 Manuel utilisateur

Dukane

Dukane 9126-4K Manuel utilisateur

Dukane

Dukane 7707 Series Manuel utilisateur

Dukane

Dukane ImagePro 8043 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
