Projector

User's Manual (detailed)

Operating Guide

Thank you for purchasing this projector.

►Before using this product, please read all manuals for this

product. Be sure to read Safety Guide rst. After reading them, store them in a

safe place for future reference.

WARNING

• The information in this manual is subject to change without notice.

• The illustrations in this manual are for illustrative purposes. They may differ

slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in

this manual.

• The reproduction, transfer or copy of all or any part of this document is not

permitted without express written consent.

NOTE

Trademark acknowledgment

Various symbols are used in this manual. The meanings of these symbols are

described below.

About this manual

WARNING

CAUTION

This symbol indicates information that, if ignored, could possibly

result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly

result in personal injury or physical damage due to incorrect

handling.

Please refer to the pages written following this symbol.



• Mac® is a registered trademark of Apple Inc.

• Windows®, DirectDraw® and Direct3D® are registered trademarks of Microsoft Corporation

in the U.S. and/or other countries.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

• Blu-ray DiscTM and Blu-rayTM are trademarks of Blu-ray Disc Association.

All other trademarks are the properties of their respective owners.

NOTICE This entry notices of fear of causing trouble.

8934

430-8934-General-00

Contents

Introduction ...............3

Features ......................3

Checking the contents of package

...3

Part names ....................4

Setting up .................7

Arrangement ...................7

Connecting with your devices

.....10

Connecting to a power supply

.....15

Using the security bar and slot ....16

Remote control ............17

Installing the batteries ...........17

About the remote control signal ...18

Changing the frequency of remote

control signal ..................18

Using as a simple PC mouse & keyboard

. . 19

Power on/off ..............20

Turning on the power ...........20

Turning off the power ...........21

Operating ................22

Adjusting the volume ............22

Temporarily muting the sound .....22

Selecting an input signal .........23

Searching an input signal ........24

Selecting an aspect ratio .........25

Adjusting the projector's elevator . . 26

Adjusting the zoom and focus .....26

Using the automatic adjustment feature

...27

Adjusting the position ...........28

Correcting the keystone distortions

. . 29

Using the magnify feature ........30

Temporarily freezing the screen ...31

Temporarily blanking the screen . . 31

Using the menu function ........32

EASY MENU. . . . . . . . . . . . . . . 34

Aspect,

eystone

picture mode,

eco mode, instAllAtion, reset, Filter time,

lAnguAge, AdvAnced menu, exit

PICTURE menu ............36

Brightness, contrAst, gAmmA,

color temp,

color, tint, shArpness,

mymemory

IMAGE menu ..............39

Aspect, over scAn, v position, h position,

h phAse, h size, Auto Adjust execute



INPUT menu ..............42

progressive, video nr, color spAce,

video FormAt, hdmi FormAt, hdmi rAnge,

computer in, FrAme locK, resolution

SETUP menu ..............46

eystone, Auto eco mode, eco mode,

instAllAtion, stAndBy mode, monitor out

AUDIO menu ..............49

volume, speAKer, Audio source

SCREEN menu.............50

lAnguAge, menu position, BlAnK,

Auto BlAnK, stArt up,

MyScreen,

MyScreen Lock

, messAge, source nAme,

templAte, c.c.

OPTION menu .............56

Auto seArch, direct power on,

Auto power oFF, lAmp time, Filter time,

myButton, mysource, service

NETWORK menu ...........66

setup, inFormAtion, projector nAme,

Amx d.d., service

SECURITY menu ...........71

security pAssword chAnge,

MyScreen

pAssword, pin locK,

mytext pAssword, mytext displAy,

mytext writing

Maintenance ..............76

Replacing the lamp .............76

Cleaning and replacing the air lter . . 78

Other care ....................80

Troubleshooting ...........81

Related messages .............81

Regarding the indicator lamps ....83

Resetting all settings ............86

Phenomena that may be easy

to be mistaken for machine defects

...86

Specications .............91



Introduction

• Keep the original packing materials, for future reshipment. Be sure

to use the original packing materials when moving the projector. Use special

caution for the lens.

• The projector may make a rattling sound when tilted, moved or shaken, since

a ap to control the air ow inside of the projector has moved. Be aware that

this is not a failure or malfunction.

NOTE

The projector provides you with the broad use by the following features.

Checking the contents of package

ü This projector has a variety of I/O ports that supposedly cover for any

business scene. The HDMI port can support various image equipment which

have digital interface to get clearer pictures on a screen.

ü This projector can be controlled and monitored via LAN connection.

ü The built-in 16W speaker can deliver sufcient sound volume in a large space

like a classroom without external speakers.

Please see the Contents of package section in the User’s Manual (concise)

which is a book. Your projector should come with the items shown there. Require

of your dealer immediately if any items are missing.

Features

►Keep small parts away from children and pets. Take care

not to put in the mouth. If swallowed, consult a physician immediately for

emergency treatment.

WARNING

Introduction

►Do not open or remove any portion of the product, unless the

manuals direct it.

►Do not subject the projector to unstable conditions.

►Do not apply a shock or pressure to this product.

►Do not look into the lens and the openings on the projector while the lamp is

on.

WARNING

►Do not touch around the lamp cover and the exhaust

vents during use or just after use, since it is too hot.

►Do not attach anything onto the lens because it could damage the lens,

such as melting the lens.

CAUTION

(continued on next page)

Part names

(1) Lamp cover (76)

The lamp unit is inside.

(2) Speaker (22, 49)

(3) Filter cover (78)

The air lter and intake vent are inside.

(4) Elevator feet (x2) (26)

(5) Elevator button (26)

(6) Remote sensor (18)

(7) Lens (80)

(8) Intake vents

(9) Control panel (5)

(10) FOCUS ring (26)

(11) ZOOM ring (26)

(12) AC (AC inlet) (15)

(13) Exhaust vent

(14) Rear panel (5)

(7)

(4)(5)

(6) (8)

(3)

(2)

(12)

(13)

(14) (8)

(9) (1)

(11) (10)

(4)

Introduction

Part names (continued)

Control panel

(1) STANDBY/ON button (20)

(2) INPUT button (23)

(3) MENU button (32)

(4) LAMP indicator (83)

(5) TEMP indicator (83)

(6) POWER indicator (83)

Rear panel (10 ~ 14)

(1) LAN port

(2) USB TYPE B port

(3) HDMI port

(4) AUDIO IN (R,L) ports

(5) AUDIO OUT (R,L) ports

(6) COMPUTER IN1 port

(7) COMPUTER IN2 / MONITOR OUT port

(8) CONTROL port

(9) VIDEO port

(10) Security slot (16)

(11) Security bar (16)

(continued on next page)

(1) (3)(2) (6)

(4)(5)

(7)

(6)

(3)(2)(1)

(4) (10)(5)

(9)

(8)

(11)

Introduction

Part names (continued)

Remote control

(1) VIDEO button (23)

(2) COMPUTER button (23)

(3) SEARCH button (24)

(4) STANDBY/ON button (20)

(5) ASPECT button (25)

(6) AUTO button (27)

(7) BLANK button (31)

(8) MAGNIFY - ON button (30)

(9) MAGNIFY - OFF button (30)

(10) MY SOURCE/DOC.CAMERA button

(24, 60)

(11) VOLUME - button (22)

(12) PAGE UP button (19)

(13) PAGE DOWN button (19)

(14) VOLUME + button (22)

(15) MUTE button (22)

(16) FREEZE button (31)

(17) MY BUTTON - 1 button (59, 60)

(18) MY BUTTON - 2 button (59, 60)

(19) KEYSTONE button (29)

(20) POSITION button (28, 33)

(21) MENU button (32)

(22) ▲/▼/◄/► cursor buttons (32)

(23) ENTER button (32)

(24) ESC button (32)

(25) RESET button (32)

(26) Battery cover (17)

B a c k o f

the remote control

(2)

(1)

(6)

(5)

(16)

(8)

(9)

(19)

(17)

(20)

(22)

(24)

(10)

(4)

(3)

(7)

(12)

(14)

(11)

(13)

(15)

(18)

(21)

(23)

(25)

(26)

VIDEO

DOC.CAMERA

KEYSTONE

ASPECT SEARCH BLANK

MUTE

MY BUTTON

POSITION

ESC

RESET

COMPUTER MY SOURCE/

AUTO

MAGNIFY

PAGE

DOWN

OFF

FREEZE

࡯

㧗

VOLUME



ENTER

Setting up

Install the projector according to the environment and manner the projector will be

used in.

For the case of installation in a special state such as ceiling mount, the specied

mounting accessories (Specications in the User’s Manual (concise)) and

service may be required. Before installing the projector, consult your dealer about

your installation.

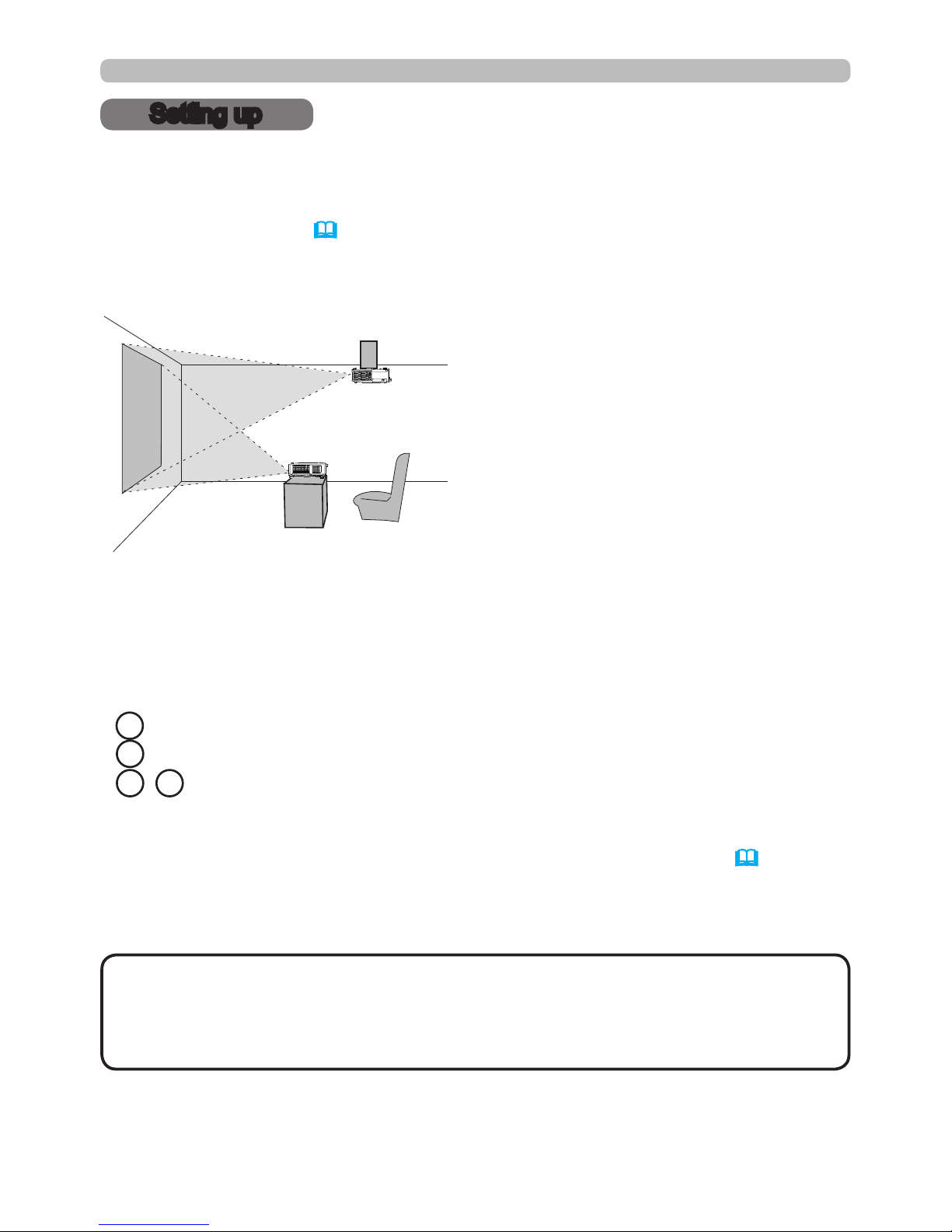

Arrangement

Refer to tables T-1 or T-2 and gures F-1 and F-2 at the end of User’s Manual

(concise) to determine the screen size and projection distance.

The values shown in the table are calculated for a full size screen.

(continued on next page)

• If the projector is used at an altitude of about 1600 m (5250 feet) or higher,

set ALTITUDE of the SERVICE item in the OPTION menu to HIGH (60).

Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may

cause damage to the projector itself or the parts inside.

a Screen size (diagonal)

b Projection distance (±10%, from the projector’s end)

c1 , c2 Screen height (±10%)

• The screen position may shift after installation if the projector is

suspended from the ceiling or other location due to the exibility of the plastic

projector body. If readjustment is necessary, consult with your dealer or service

personnel.

NOTE

Setting up

Arrangement (continued)

WARNING

(continued on next page)

►Install the projector where you can access the power

outlet easily. If an abnormality should occur, unplug the projector urgently.

Otherwise it could cause a re or electric shock.

►Do not subject the projector to unstable conditions. If the projector falls

or topples over, it could result in injury or damage to the projector and the

surrounding things. Using a damaged projector could result in a re and an

electric shock.

• Do not place the projector in unstable places, such as an inclined surface,

places subject to vibration, on top of a wobbly table or cart, or a surface that is

smaller than the projector.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise specied in

the manual.

• Do not use any mounting accessories except the accessories specied by the

manufacturer. Read and keep the manuals of the accessories used.

• For special installation such as ceiling mounting, be sure to consult your dealer

beforehand.

►

Do not install the projector near thermally conductive or ammable

things. Such things when heated by the projector could result in a re and burns.

• Do not place the projector on a metal stand.

►Do not place the projector where any oils, such as cooking or machine

oil, are used. Oil may harm the product, resulting in malfunction, or falling from

the mounted position.

►Do not place the projector in a place where it may get wet. Getting the

projector wet or inserting liquid into the projector could cause a re and an

electric shock, and damage the projector.

• Do not place the projector near water, such as in a bathroom, kitchen, or

poolside.

• Do not place the projector outdoors or by the window.

• Do not place anything containing liquid near the projector.

Setting up

Arrangement (continued)

►Place the projector in a cool place with sufcient

ventilation. The projector may shutdown automatically or may malfunction if its

internal temperature is too high.

Using a damaged projector could result in a re and an electric shock.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

• Do not place the projector where the air from an air conditioner or similar unit

will blow on it directly.

• Keep a space of 30 cm or more between a side of the projector and other

objects such as walls.

• Do not place the projector on carpet, cushions or bedding.

• Do not stop up, block nor cover the projector's vent holes. Do not place

anything around the projector that could be sucked in or stuck to the projector's

intake vents.

• Do not place the projector at places that are exposed to magnetic elds, doing

so can cause the cooling fans inside the projector to malfunction.

►Avoid placing the projector in smoky, humid or dusty place. Placing the

projector in such places could cause a re, an electric shock and malfunction of

the projector.

• Do not place the projector near humidiers. Especially for an ultrasonic

humidier, chlorine and minerals contained in tap water are atomized and could

be deposited in the projector causing image degradation or other problems.

• Do not place the projector in a smoking area, kitchen, passageway

or by the window.

• Position the projector to prevent light from directly hitting the projector's remote

sensor.

• Do not place the product in a place where radio interference may be caused.

• Check and correct the setting for ALTITUDE of SERVICE in the OPTION menu

according to the usage environment (60). If the projector is used with a wrong

setting, it may cause damage to the projector itself or the parts inside.

• Keep heat-sensitive things away from the projector. Otherwise, they may be

damaged by the heat from the projector.

CAUTION

NOTICE

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to

conrm that the device is suitable for connecting with this projector and prepare

the required accessories, such as a cable in accord with the signal of the device.

Consult your dealer when the required accessory did not come with the product or

the accessory is damaged.

After making sure that the projector and the devices are turned off, perform

the connection, according to the following instructions. Refer to the gures in

subsequent pages.

Before connecting the projector to a network system, be sure to read Network

Guide too.

►Use only the appropriate accessories. Otherwise it could

cause a re or damage the projector and devices.

• Use only the accessories specied or recommended by the projector’s

manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. Be careful not to damage the accessories.

Route a cable so that it is neither stepped on nor pinched out.

WARNING

►For a cable with a core at only one end, connect the end

with the core to the projector. That may be required by EMI regulations.

CAUTION

• Do not turn on or off the projector while connected to a device in

operation, unless that is directed in the manual of the device. Otherwise it may

cause malfunction in the device or projector.

• The function of some input ports can be selected according to your usage

requirements. Check the reference page indicated beside each port in the

following illustration.

• Be careful not to mistakenly connect a connector to a wrong port. Otherwise it

may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of

the projector are recessed.

NOTE

(continued on next page)

Autres manuels pour 8934

Table des matières

Autres manuels Dukane Projecteur

Dukane

Dukane ImagePro 8913-W Manuel utilisateur

Dukane

Dukane ImagePro 9017 Manuel utilisateur

Dukane

Dukane ImagePro 8940 Manuel utilisateur

Dukane

Dukane 90006W Manuel utilisateur

Dukane

Dukane ImagePro 8764 Manuel utilisateur

Dukane

Dukane 8975WUA Manuel utilisateur

Dukane

Dukane ImagePro 8700 Manuel utilisateur

Dukane

Dukane ImagePro 8755D Manuel utilisateur

Dukane

Dukane 8931WA Manuel utilisateur

Dukane

Dukane ImagePro 28A8800 Manuel utilisateur

Dukane

Dukane ImagePro 8783 Manuel utilisateur

Dukane

Dukane 9006W Manuel utilisateur

Dukane

Dukane ImagePro 8065 Manuel utilisateur

Dukane

Dukane ImagePro 8746A Manuel utilisateur

Dukane

Dukane ImagePro 8935 Manuel d'utilisation et d'entretien

Dukane

Dukane ImagePro 8775 Manuel utilisateur

Dukane

Dukane 9137WU-RJ Guide de démarrage rapide

Dukane

Dukane ImagePro 8756A Manuel utilisateur

Dukane

Dukane ImagePro 8802 Manuel utilisateur

Dukane

Dukane ImagePro 8783 Manuel utilisateur

Dukane

Dukane 8958H-RJ Manuel utilisateur

Dukane

Dukane ImagePro 8759 Manuel utilisateur

Dukane

Dukane 6660WUSSB Manuel utilisateur

Dukane

Dukane ImagePro FastFax 28A8043 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
