NEC Display Solutions of America, Inc.

M283X/M323X/M363X/M403X Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com 1M283X, M323X, M362X, M403X Page 1 of 6

Contents

Product Description, Lens Specs, Notes and Formulas Pg 1

Diagrams & Distance Charts Pg 2

Cabinet Dimensions Pg 3-4

Ceiling Mount Dimensions Pg 5

Input Panel and Control Codes Pg 6

Product Description

Type: 1 Chip DLP Projector Dimensions: 14.5” (W) x 4.3” (H) x 11.5” (D)

0.55” DMD Weight: 8.0 lbs

Resolution: 1024 x 768

Fan Noise: 6528A: 31dB / 27dB @ 1 meter Brightn 6528A: 2800 Lumens

6532A: 33dB / 27dB @ 1 meter 6532A: 3200 Lumens

6536A/6540A: 39dB / 33dB @ 1 meter 6536A: 3600 Lumens

6540A: 4000 Lumens

Power Consumption: 6528A : 255W (max) BTU’s 6528A: 870 BTU/hour

6532A : 283W (max) 6532A: 965 BTU/hour

6536A : 316W (max) 6536A: 1078 BTU/hour

6540A : 338W (max) 6540A: 1153 BTU/hour

Lens Specifications

Throw Ratio: 1.5 –2.5:1 (for 100” diagonal) Focal Length: 17.09mm –29.05mm

Offset Angle: 10.6° - 18.2° (for 100” diagonal) F/#: 2.4 - 3.1

Screen Sizes: 30” - 300” diagonal (

4:3) Manual Focus/Manual Zoom

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

All calculations are based on a 4:3 aspect ratio.

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.

Formulas

The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width

for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for “W” in

the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2:

Definitions:

W = Image Width

H = Image Height (size)

B = Vertical distance between lens center and screen center

C = Throw distance

D = Vertical distance between lens center and screen top

(screen bottom for desktop application)

www.dukaneav.com 6528A-6532A-6536A-6540A_Installation Guide rev 00 Page 1 of 6

6528A/6532A/6536A/6540A Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

M283X/M323X/M363X/M403X Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com M283X, M323X, M362X, M403X Page 2 of 6

Diagrams and Distance Charts

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of

installation.

Distances are in inches. For millimeters multiply by 25.4.

Ceiling Mounted

Desktop

Distance Chart for popular 4:3 screens

4:3 Screen Formulas:

W = H x 4/3

H = W x 3/4

Screen Diagonal = W x 5/4

Projection Formulas:

B= 0.4875W –0.156

C(wide) = 1.545W –1.976

C (tele) = 2.626W –3.082

D= 0.112W + 0.1726

α(wide) = tanˉ¹ (B/C(wide))

α(tele) = tanˉ¹ (B/C(tele))

Note: For screen sizes not indicated on the projection

tables, use the formulas on page 1.

Diagonal Width(W) Height (H)

inches inches inches inches

30 24 18 12 35 -60 18.2 - 10.9

60 48 36 23 72 -123 17.8 - 10.7

67 54 40.2 26 81 -138 17.8 - 10.7

72 58 43.2 28 87 -148 17.8 - 10.7

84 67 50.4 33 102 -173 17.8 - 10.6

90 72 54 35 109 -186 17.7 - 10.6

100 80 60 39 122 -207 17.7 - 10.6

120 96 72 47 146 -249 17.7 - 10.6

150 120 90 58 183 -312 17.6 - 10.6

180 144 108 70 221 -375 17.6 - 10.6

210 168 126 82 258 -438 17.6 - 10.6

240 192 144 93 295 -501 17.6 - 10.6

270 216 162 105 332 -564 17.6 - 10.6

300 240 180 117 369 -627 17.6 - 10.6

Screen Size (4:3)

inches

w ide - tele

inches

degrees

w ide - tele

Lens Ctr

Screen C tr

Throw D istance

Screen Bottom

2.38"

Throw D istance

Screen Top

Lens O ff set F r om

Mount P ipe

Lens Ctr

Screen C tr

5. 43

5. 56

3. 31

www.dukaneav.com 6528A-6532A-6536A-6540A_Installation Guide rev 00 Page 2 of 6

Dukane AV Division

6528A/6532A/6536A/6540A Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

M283X/M323X/M363X/M403X Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com M283X, M323X, M362X, M403X Page 3 of 6

Cabinet Dimensions

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

2.3 7 8

4.232

2.299

3.839

14.5

11.5

11.3

AC INLET

ZOOM LEVER

FOC U S L EVER

L EN S C EN TER L EN S C O VER

LAMP

AIR IN T AKE

IR R EC EIVER

EXH AU ST

www.dukaneav.com 6528A-6532A-6536A-6540A_Installation Guide rev 00 Page 3 of 6

6528A/6532A/6536A/6540A Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

M283X/M323X/M363X/M403X Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com M283X, M323X, M362X, M403X Page 4 of 6

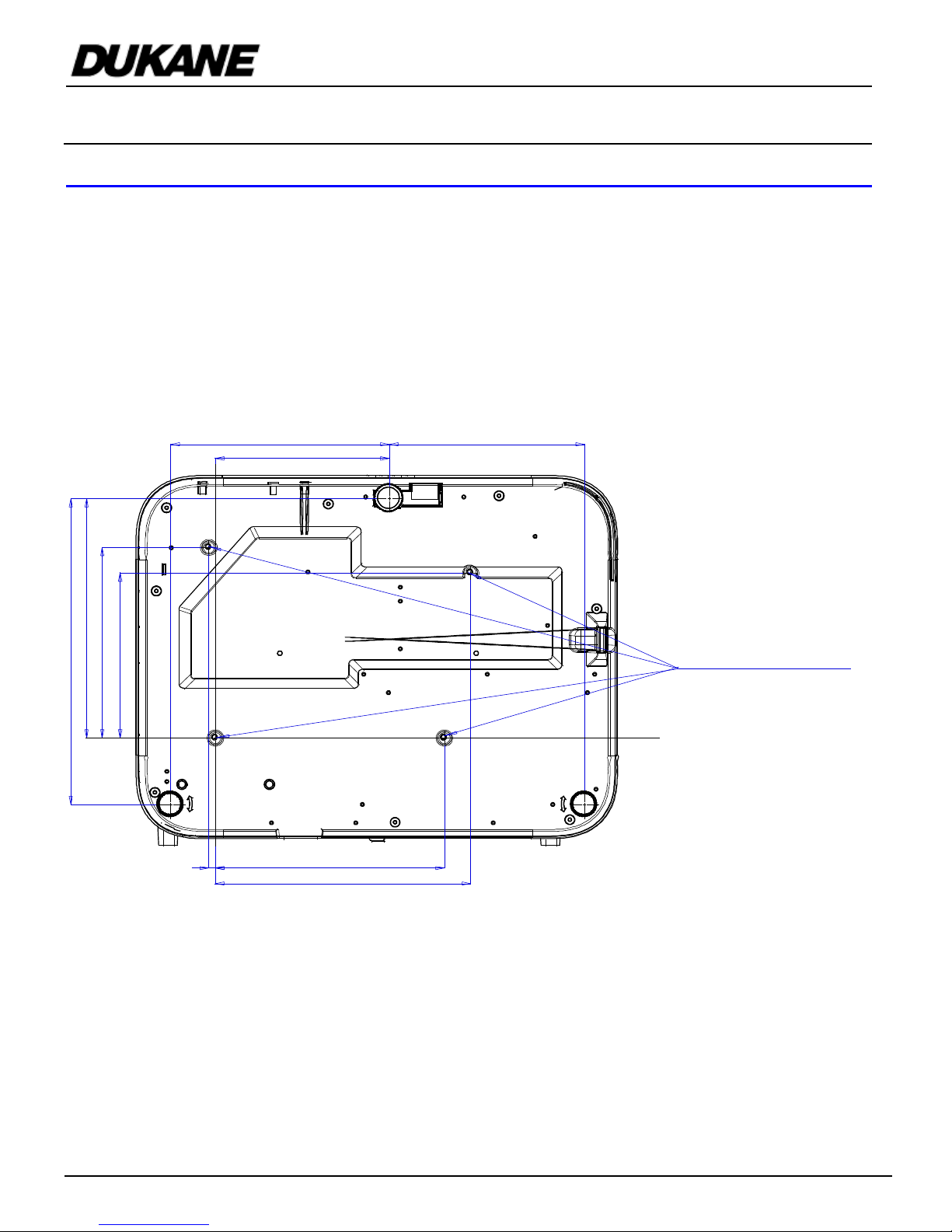

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

5. 232

7.417

6. 571 5. 87

9.484

0. 197

7. 677

6. 89

5.118

5.906

M4 x 8 Depth

FOR CEILING MOUNT KIT

www.dukaneav.com 6528A-6532A-6536A-6540A_Installation Guide rev 00 Page 4 of 6

6528A/6532A/6536A/6540A Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

M283X/M323X/M363X/M403X Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com M283X, M323X, M362X, M403X Page 5 of 6

Optional Ceiling Mount Dimensions (Model #: MP300CM)

The following drawings show the ceiling mount dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

or use universal mount PRG-UNV.

www.dukaneav.com 6528A-6532A-6536A-6540A_Installation Guide rev 00 Page 5 of 6

6528A/6532A/6536A/6540A Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division

NEC Display Solutions of America, Inc.

M283X/M323X/M363X/M403X Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com M283X, M323X, M362X, M403X Page 6 of 6

Input / Output Panel

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER1 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT HDMI 1 02H 03H 00H 00H 02H 01H 1AH 22H

INPUT SELECT HDMI 2 02H 03H 00H 00H 02H 01H 12H AAH

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT VIEWER 02H 03H 00H 00H 02H 01H 1FH 27H

INPUT SELECT NETWORK 02H 03H 00H 00H 02H 01H 20H 28H

INPUT SELECT USB DISPLAY 02H 03H 00H 00H 02H 01H 22H 2AH

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

PROJECTOR INFORMATION REQUEST 00H BFH 00H 00H 01H 02H C2H

ERROR STATUS REQUEST 00H 88H 00H 00H 00H 88H

INFORMATION REQUEST 03H 8AH 00H 00H 00H 8DH

Note: Contact your rep for codes not listed.

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps

Data Length: 8 bits

Parity: No Parity

Stop Bit: One Bit

X on/off: None

Communications: Full duplex

PC Control Connector (D-Sub 9P)

NOTE 1 : Pins 1, 4, 6, and 9 are used inside the projector.

NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.

NOTE 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

12345

67 8 9

To GND of PC

To RxD of PC

To TxD of PC

To CTS of PC

To RTS of PC

www.dukaneav.com 6528A-6532A-6536A-6540A_Installation Guide rev 00 Page 6 of 6

6528A/6532A/6536A/6540A Installation Guide

Ceiling Mounted and Desktop Rev 1.0

Dukane AV Division
