Duerkopp Adler 531 Manuel utilisateur

531

CNC Knopfannähautomat

CNC Automat for Button Sewing

Bedienanleitung / Operating Instructions

Aufstellanleitung / Installation Instructions

Serviceanleitung / Service Instructions

Postfach 17 03 51, D-33703 Bielefeld Potsdamer Straße 190, D-33719 Bielefeld

Telefon +49 (0) 5 21/ 9 25-00 Telefax +49 (0) 5 21/ 9 25 24 35 www.duerkopp-adler.com

Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:

02/2011 Rev. index: 01.0 Printed in Federal Republic of Germany 0791 531001

Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise

Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG

verboten.

Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any

manner, even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.

Foreword

This instruction manual is intended to help the user to become familiar

with the machine and take advantage of its application possibilities in

accordance with the recommendations.

The instruction manual contains important information on how to

operate the machine securely, properly and economically. Observation

of the instructions eliminates danger, reduces costs for repair and

down-times, and increases the reliability and life of the machine.

The instruction manual is intended to complement existing national

accident prevention and environment protection regulations.

The instruction manual must always be available at the machine/sewing

unit.

The instruction manual must be read and applied by any person that is

authorized to work on the machine/sewing unit. This means:

–Operation, including equipping, troubleshooting during the work

cycle, removing of fabric waste,

–Service (maintenance, inspection, repair) and/or

–Transport.

The user also has to assure that only authorized personnel work on the

machine.

The user is obliged to check the machine at least once per shift for

apparent damages and to immediatly report any changes (including the

performance in service), which impair the safety.

The user company must ensure that the machine is only operated in

perfect working order.

Never remove or disable any safety devices.

If safety devices need to be removed for equipping, repairing or

maintaining, the safety devices must be remounted directly after

completion of the maintenance and repair work.

Unauthorized modification of the machine rules out liability of the

manufacturer for damage resulting from this.

Observe all safety and danger recommendations on the machine/unit!

The yellow-and-black striped surfaces designate permanend danger

areas, eg danger of squashing, cutting, shearing or collision.

Besides the recommendations in this instruction manual also observe

the general safety and accident prevention regulations!

General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe all

the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot, needle

plate, feed dog and bobbin) when threading, when the workplace is

left, and during service work, the machine must be disconnected

from the mains by switching off the master switch or disconnecting

the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance unit.

Exceptions to this are only adjustments and functions checks made

by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time as

the entire sewing unit is found to comply with EC directives.

13. The line cord should be equipped with a country-specific mains

plug. This work must be carried out by appropriately trained

technicians (see paragraph 8).

It is absolutely necessary to respect the safety

instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Contents Page:

Part 2: Installation Instructions Class 531 - Original instructions

1 Scope of delivery .............................................. 3

2 General and transport safety devices ................................. 3

3 Installing the support frame and the control cabinet

3.1 Tableplates.................................................. 5

3.2 Fittingthesupportingframeparts..................................... 5

3.3 Completingthetableplate......................................... 6

3.4 Connectingthecontrolboxtothemainswitch............................. 7

3.5 Fittingthereferencevaluetransmitterandthepotentialequaliser................. 8

3.6 Adjustingtheworkingheight........................................ 9

4 Fitting the button sewer

4.1 Fittingtheoilsump.............................................. 10

4.2 Attachingthebuttonbuttonsewer.................................... 11

4.3 Fittingtheoillines.............................................. 12

4.4 Fittingtheoperatingpanel......................................... 12

4.5 Fittingtheprotectivecover......................................... 13

5 Connecting the plug connections to the control box

5.1 Plugconnectionsonthecontrolbox................................... 14

5.2 Layingcables................................................. 15

6 Changing sewing feet and the material support plate ...................... 16

7 Fitting eye guard .............................................. 17

8 Oil lubrication

8.1 Filling with oil ................................................. 18

8.2 Lubricatingthewicksandfeltpart(connectingrod) ......................... 19

8.3 Lubricatingtheshuttlerace........................................ 20

9 Commissioning

9.1 Seriesdelivery ................................................ 20

10 Installing the machine software

10.1 General..................................................... 21

10.2 Loadingtheprogram............................................. 22

10.3 Dongle update via the Internet....................................... 24

11 Sewing test .................................................. 25

12 Additional equipment

12.1 Sewinglight.................................................. 26

1 Scope of delivery

The scope of delivery depends on your order.

Please check that all necessary parts are there before installing.

This description applies to a button sewer whose individual

components are supplied complete by Dürkopp Adler AG.

–1Top part including oil bath

Electrical parts set with:

–2Control panel

–5Mains switch

–6DAC control unit

Dürkopp-Adler accessories kit with:

–3Thread stand

–Protective cover (not illustrated)

–8Supporting frame (optional)

–7Pedal and connecting rod (optional)

–4Table plate (optional)

–9Drawer (optional)

2 General and transport safety devices

CAUTION!

The button sewer may only be operated by qualified staff.

Securing devices for transport

If you have bought a detachable button sewer the following transport

safety devices must be removed:

–Retaining bands and wooden strips on the top of the machine,

table and supporting frame.

Centre punching on the bottom

1 x only in this place

4 Centre punching for

spax screws

3 Fitting the supporting frame and control cabinet

3.1 Table plates

The cutouts on the table plates you have made yourself must be the

size specified in the diagram.

Caution, danger of injury!

The table plates must have the necessary load capacity and strength.

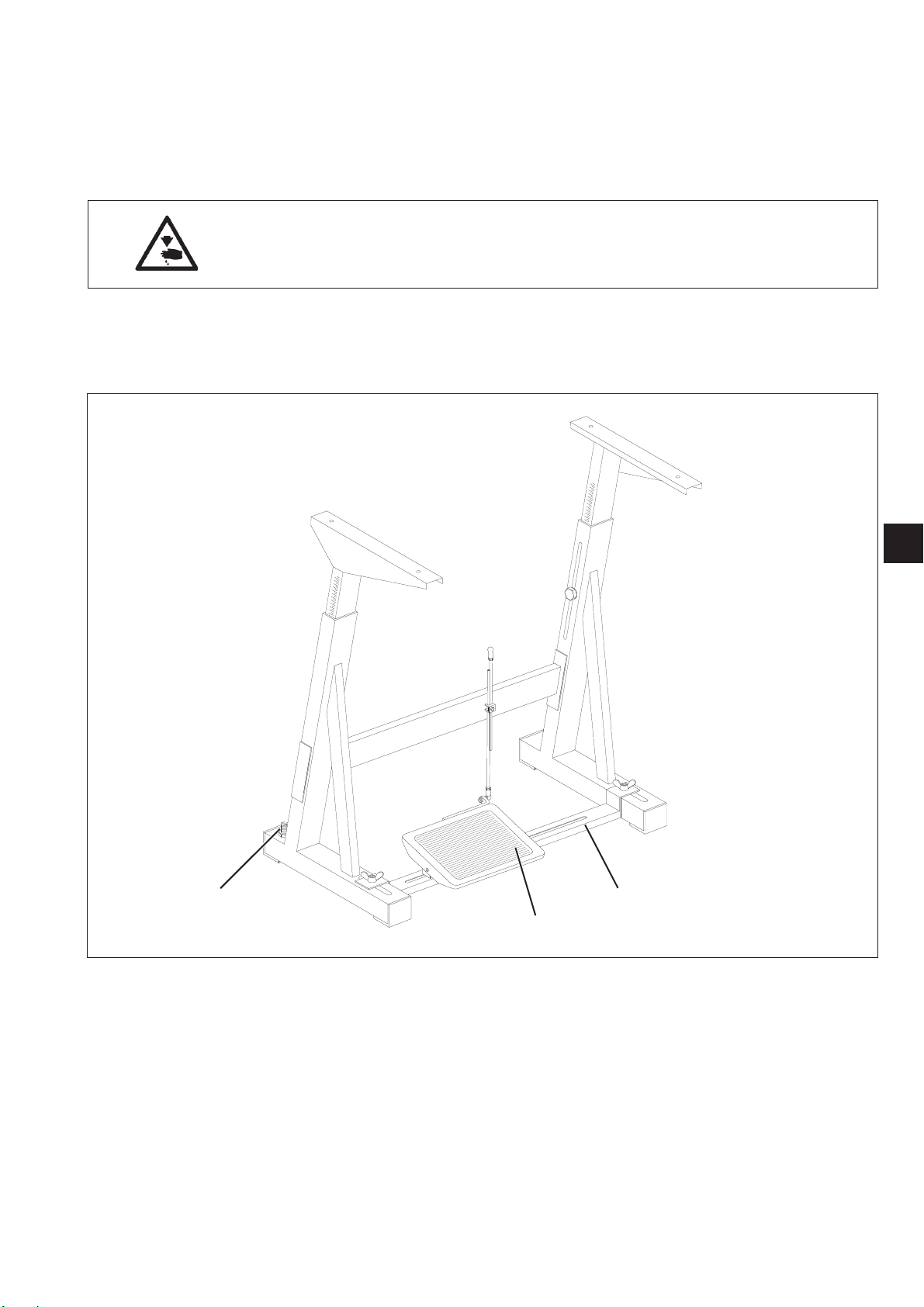

3.2 Fitting the supporting frame parts

–Fit the individual support frame parts as seen on the illustration.

–Turn the adjusting screw 3 so that the frame is level.

The frame must have all four feet on the floor.

–Screw pedal 2 onto the frame strut 1.

–Align the pedal to the side.

Push the pedal to the side so that it is in the middle of the oil bath.

The frame strut has slotted holes to align the pedal.

3.3 Completing the table plate

–Put the table plate upside down on a work surface.

–Screw the main switch 6 on the left onto the bottom of the table

plate.

–Screw the cable channel 5 behind the main switch 6.

–Screw the cable channel 2 on the left next to the grommet.

–Put the connection cable 4 into the cable channel.

–Fix the connection cable 4 with the strain relief 3.

–Put the control box 7 onto the bottom of the table plate and turn it

so that the connection side with the four sockets points to the left

(in the direction of the thread stand pipe).

–Screw the control box onto the punched side on the bottom of the

table plate with four screws.

654321
