Duerkopp Adler 510 Manuel utilisateur

510

CNC automat for bartacking seams

and short seams

Operating Instructions

Installation Instructions

Service Instructions

Postfach 17 03 51, D-33703 Bielefeld Potsdamer Straße 190, D-33719 Bielefeld

Telefon +49 (0) 5 21/ 59 25-00 Telefax+49(0)521/9252435www.duerkopp-adler.com

Ausgabe / Edition: 02/2006 Printed in Federal Republic of Germany Teile-Nr.:/Part-No.: 0791 510001

Summary

Operating Instructions

Installation Instructions

Service Instructions

Interconnection-diagram

9890 510001 B

Foreword

This instruction manual is intended to help the user to become familiar

with the machine and take advantage of its application possibilities in

accordance with the recommendations.

The instruction manual contains important information on how to

operate the machine securely, properly and economically. Observation

of the instructions eliminates danger, reduces costs for repair and

down-times, and increases the reliability and life of the machine.

The instruction manual is intended to complement existing national

accident prevention and environment protection regulations.

The instruction manual must always be available at the

machine/sewing unit.

The instruction manual must be read and applied by any person that is

authorized to work on the machine/sewing unit. This means:

– Operation, including equipping, troubleshooting during the work

cycle, removing of fabric waste,

– Service (maintenance, inspection, repair and/or

– Transport.

The user also has to assure that only authorized personnel work on

the machine.

The user is obliged to check the machine at least once per shift for

apparent damages and to immediatly report any changes (including

the performance in service), which impair the safety.

The user company must ensure that the machine is only operated in

perfect working order.

Never remove or disable any safety devices.

If safety devices need to be removed for equipping, repairing or

maintaining, the safety devices must be

remounted directly after completion of the maintenance and repair

work.

Unauthorized modification of the machine rules out liability of the

manufacturer for damage resulting from this.

Observe all safety and danger recommendations on the machine/unit!

The yellow-and-black striped surfaces designate permanend danger

areas, eg danger of squashing, cutting, shearing or collision.

Besides the recommendations in this instruction manual also observe

the general safety and accident prevention regulations!

General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate

training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe

all the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot,

needle plate, feed dog and bobbin) when threading, when the

workplace is left, and during service work, the machine must be

disconnected from the mains by switching off the master switch or

disconnecting the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance

unit.

Exceptions to this are only adjustments and functions checks

made by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time

as the entire sewing unit is found to comply with EC directives.

It is absolutely necessary to respect

the safety instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Index Page:

Part 3: Service Instructions Class 510

1. General notes ................................................ 3

2. Arm shaft

2.1 Preparatorywork............................................... 4

2.2 Assemblyofthecrank............................................ 5

2.3 Armshaftposition .............................................. 6

2.4 Bevel gear for the handwheel ....................................... 8

2.5 Adjust bobbin winder............................................. 9

2.6 Threadtrimmercam............................................. 10

2.7 Crankshaft drive to the hook shaft ..................................... 11

2.8 Sewingmotorcoupling ........................................... 12

2.9 Referencepositionofthesewingmotor ................................. 13

2.9.1 Positionoftheinitiator............................................ 13

2.9.2 Adjustreferenceposition.......................................... 14

3. Hook, looping stroke and needle bar height

3.1 Drivershaft .................................................. 17

3.2 Gearsegmentonthecamshaft ...................................... 18

3.3 Gearsegmenttothedrivershaft...................................... 19

3.4 Needle bar height............................................... 20

3.5 Distance between hook tip and needle .................................. 21

3.6 Looping stroke and needle protection................................... 22

4. Thread-guiding parts

4.1 Threadcontrollerspring........................................... 23

4.2 Thread regulator ............................................... 25

4.3 Change thread wiper............................................. 26

4.3.1 General notes ................................................. 26

4.3.2 Remove/mount thread wiper ........................................ 27

4.3.3 Threadwiperheight............................................. 27

5. Thread trimmer

5.1 Thread trimmer magnet ........................................... 28

5.2 Position of the hook knife .......................................... 29

5.3 Cutting pressure / Position of the stationary knife ........................... 30

5.4 Thread guiding sheet ............................................ 32

5.5 Threadtrimmer................................................ 33

Index Page:

6. Material feed

6.1 Gauge for reference position ........................................ 34

6.2 Referenceposition.............................................. 35

6.3 Position of the fabric clamps and the rest plate to the needle .................... 37

6.4 Fabricclamplifting.............................................. 38

7. Oil lubrication

7.1 Oilcirculation................................................. 40

7.2 Lubricating oil pump ............................................. 41

8. Exchange the control unit ........................................ 42

9. Maintenance ................................................. 42

1. General notes

The service instructions on hand describe the adjustment of the

automatic bartacker 510.

ATTENTION !

The operations described in the service instructions may only be

carried out by qualified staff or other appropriately trained persons!

Caution: Danger of injury !

In case of repair, alteration and maintenance work switch off main

switch.

Carry out adjusting operations and functional tests of the running

machine only under observation of all safety measures and with

utmost caution.

These service instructions describe the adjustment of the automatic

bartacker in a logical order. Please observe in this connection that

various setting positions are interdependent. The adjustment process

must therefore be carried out int the order given.

For all setting operations of parts involved in the stitch formation a new

needle without any damage has to be inserted.

2. Arm shaft

2.1 Preparatory work

Some of the adjustments at the arm shaft 1 can be carried out easier if

the thread trimming mechanism 3 is removed before.

Caution: Danger of injury !

Switch off main switch.

Remove and mount thread trimming mechanism only when the

automatic bartacker is switched off.

Remove mechanism

–Unscrew arm cover.

–Loosen screw 4 at the thread trimmer magnet.

–Unscrew screws 2 and 5 and take off thread trimming

mechanism 3.

Mount mechanism

–Push thread trimming mechanism 3 on the magnet and place it on

the machine head.

–Insert screws 2 and 5 and screw tight.

–Tighten screw 4 at the thread trimmer magnet.

–Adjust thread trimmer (see chapter 5).

5432

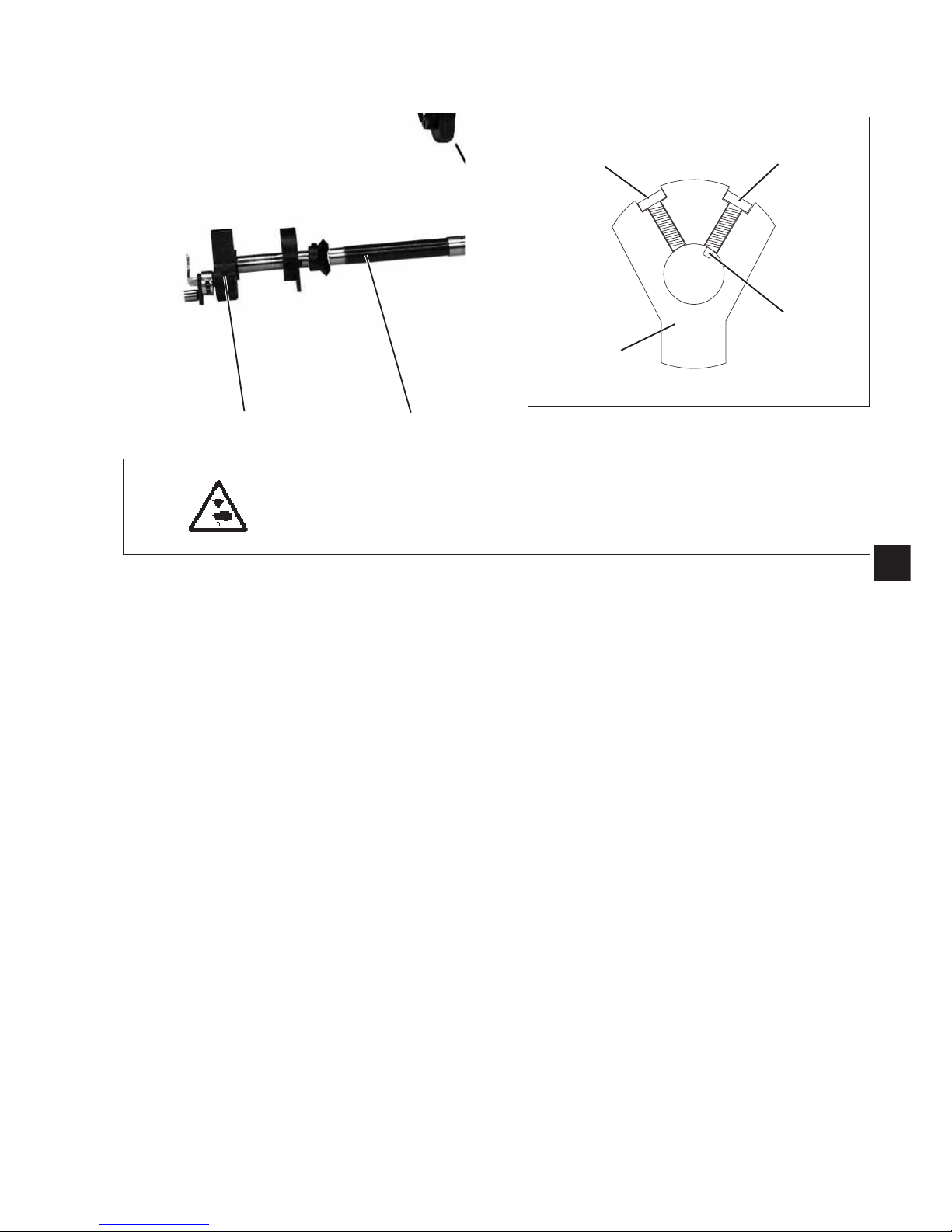

2.2 Assembly of the crank

Caution: Danger of injury !

Switch off main switch.

Remove and mount crank only when the automatic bartacker is

switched off.

Standard

The crank 4 has to be mounted on the arm shaft 1 in such a way that

the pivot 3 of the screw 2 reaches into the drill-hole on the arm shaft.

The screw 2 is the first screw in the direction of rotation.

Assembly

–Push crank 4 on arm shaft 1.

–Twist crank 4 in such a way that its first drill-hole in the direction of

rotation lies above the drill-hole in the arm shaft 1. Insert screw 2

with pivot 3 and screw tight.

–Insert screw 5 and tighten.

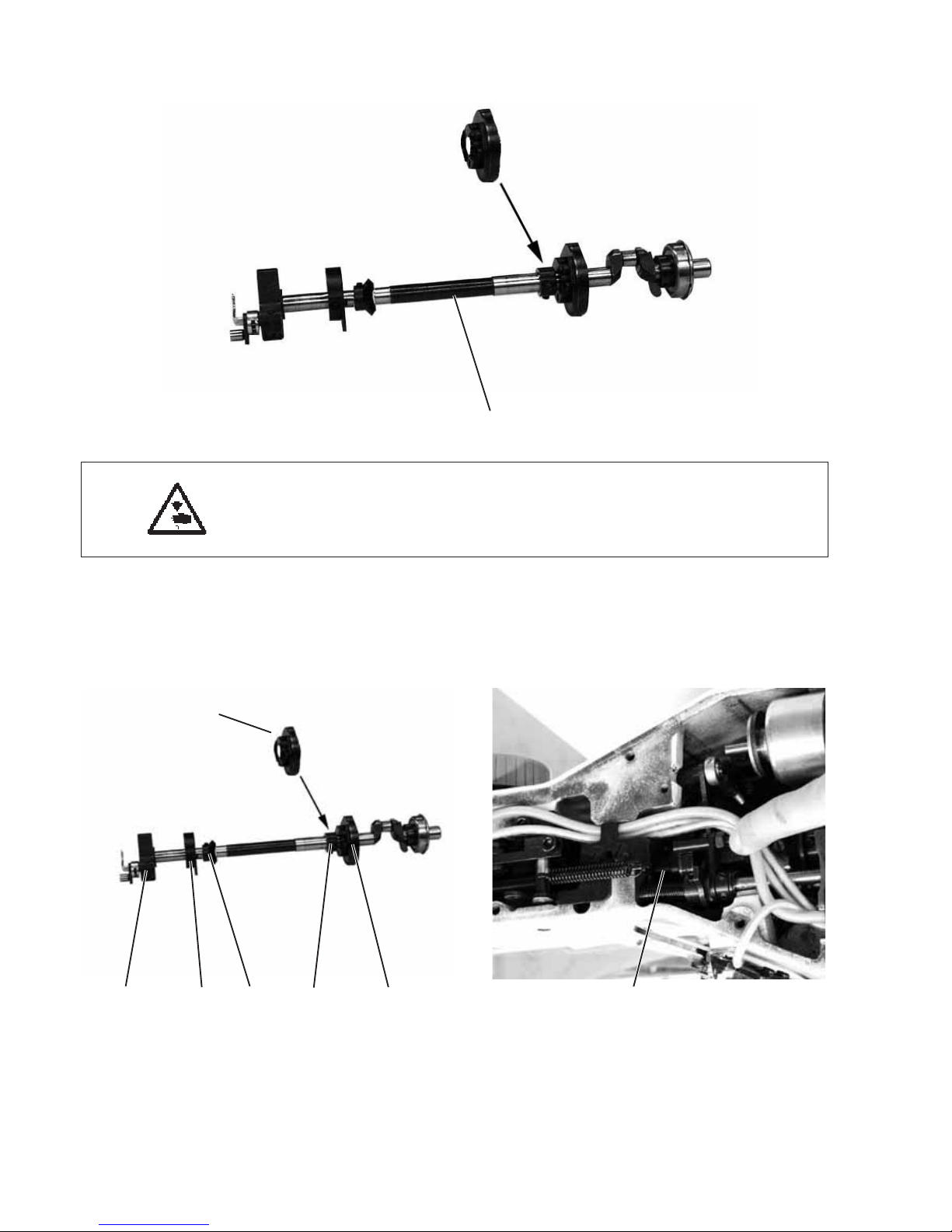

2.3 Arm shaft position

Caution: Danger of injury !

Switch off main switch.

Check and adjust position of the arm shaft only when the automatic

bartacker is switched off.

Standard checking

The arm shaft 1 should have no axial backlash, but it must not move

too heavy.

–Check the arm shaft with regard to axial backlash and rough

running.

Correction

–Loosen screws at the thread trimmer cam 2.

–Loosen screws at the adjusting ring 3 or tension release cam 8.

–Loosen screws at the bevel gear 4.

–Loosen screws at the bobbin winder wheel 5.

6 543 2 3

Autres manuels pour 510

Table des matières

Autres manuels Duerkopp Adler Machine à coudre

Duerkopp Adler

Duerkopp Adler 271 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 271 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 510 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 743-105 s Mode d’emploi

Duerkopp Adler

Duerkopp Adler 743-121 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 506-3 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 527 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 975-1-1 Mode d’emploi

Duerkopp Adler

Duerkopp Adler 550-16-23 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 204-102 Mode d’emploi

Duerkopp Adler

Duerkopp Adler 1183i-7 Guide de dépannage

Duerkopp Adler

Duerkopp Adler 868 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 745-34 Mode d’emploi

Duerkopp Adler

Duerkopp Adler 744-122 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 550-10-1 Mode d’emploi

Duerkopp Adler

Duerkopp Adler 511 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 4220i-6 Guide de dépannage

Duerkopp Adler

Duerkopp Adler 204-370 Mode d’emploi

Duerkopp Adler

Duerkopp Adler 275 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 744-122 Manuel utilisateur

Duerkopp Adler

Duerkopp Adler 527-101 Mode d’emploi

Duerkopp Adler

Duerkopp Adler 69-373 Mode d'emploi

Duerkopp Adler

Duerkopp Adler 741 Mode d’emploi

Duerkopp Adler

Duerkopp Adler 743-221 Manuel utilisateur

Manuels Machine à coudre populaires d'autres marques

Riccar

Riccar RL634DE Manuel utilisateur

Singer

Singer 2517 Manuel utilisateur

Pfaff

Pfaff 3307-1 SERIES Manuel utilisateur

Janome

Janome Quilt Maker Pro 18 VERSA Manuel utilisateur

Siruba

Siruba C007JP Manuel utilisateur

Husqvarna Viking

Husqvarna Viking Designer SE Manuel utilisateur

Singer

Singer 148-5 Manuel utilisateur

IKEA

IKEA SY Manuel utilisateur

Pfaff

Pfaff 571 Manuel utilisateur

Singer

Singer 15-91 Manuel utilisateur

Brother

Brother BB370 Manuel utilisateur

Pegasus

Pegasus WT100 Series Manuel utilisateur

Reliable

Reliable 7100DB Manuel utilisateur

Pfaff

Pfaff 937 Manuel utilisateur

Singer

Singer 6038 Manuel utilisateur

Singer

Singer 413K Manuel utilisateur

Pfaff

Pfaff 1471 E1 Manuel utilisateur

Kenmore

Kenmore 16677 - Serger Sewing Machine Manuel utilisateur
