Duerkopp Adler 510 Manuel utilisateur

510

CNC automat for bartacking seams

and short seams

Operating Instructions

Installation Instructions

Service Instructions

Postfach 17 03 51, D-33703 Bielefeld Potsdamer Straße 190, D-33719 Bielefeld

Telefon +49 (0) 5 21/ 59 25-00 Telefax+49(0)521/9252435www.duerkopp-adler.com

Ausgabe / Edition: 02/2006 Printed in Federal Republic of Germany Teile-Nr.:/Part-No.: 0791 510001

Summary

Operating Instructions

Installation Instructions

Service Instructions

Interconnection-diagram

9890 510001 B

Foreword

This instruction manual is intended to help the user to become familiar

with the machine and take advantage of its application possibilities in

accordance with the recommendations.

The instruction manual contains important information on how to

operate the machine securely, properly and economically. Observation

of the instructions eliminates danger, reduces costs for repair and

down-times, and increases the reliability and life of the machine.

The instruction manual is intended to complement existing national

accident prevention and environment protection regulations.

The instruction manual must always be available at the

machine/sewing unit.

The instruction manual must be read and applied by any person that is

authorized to work on the machine/sewing unit. This means:

– Operation, including equipping, troubleshooting during the work

cycle, removing of fabric waste,

– Service (maintenance, inspection, repair and/or

– Transport.

The user also has to assure that only authorized personnel work on

the machine.

The user is obliged to check the machine at least once per shift for

apparent damages and to immediatly report any changes (including

the performance in service), which impair the safety.

The user company must ensure that the machine is only operated in

perfect working order.

Never remove or disable any safety devices.

If safety devices need to be removed for equipping, repairing or

maintaining, the safety devices must be

remounted directly after completion of the maintenance and repair

work.

Unauthorized modification of the machine rules out liability of the

manufacturer for damage resulting from this.

Observe all safety and danger recommendations on the machine/unit!

The yellow-and-black striped surfaces designate permanend danger

areas, eg danger of squashing, cutting, shearing or collision.

Besides the recommendations in this instruction manual also observe

the general safety and accident prevention regulations!

General safety instructions

The non-observance of the following safety instructions can cause

bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

instruction book and operated by persons with appropriate

training.

2. Before putting into service also read the safety rules and

instructions of the motor supplier.

3. The machine must be used only for the purpose intended. Use of

the machine without the safety devices is not permitted. Observe

all the relevant safety regulations.

4. When gauge parts are exchanged (e.g. needle, presser foot,

needle plate, feed dog and bobbin) when threading, when the

workplace is left, and during service work, the machine must be

disconnected from the mains by switching off the master switch or

disconnecting the mains plug.

5. Daily servicing work must be carried out only by appropriately

trained persons.

6. Repairs, conversion and special maintenance work must only be

carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the

machine from the compressed air supply system (max. 7-10 bar).

Before disconnecting, reduce the pressure of the maintenance

unit.

Exceptions to this are only adjustments and functions checks

made by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by

electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted,

except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time

as the entire sewing unit is found to comply with EC directives.

It is absolutely necessary to respect

the safety instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Index Page:

Part 2: Installation Instructions cl. 510 (DAC III)

1. Scope of delivery.............................................. 3

2. General notes and transport securing devices .......................... 3

3. Mount stand and control circuitry cabinet

3.1 Tabletops................................................... 5

3.2 Mount the stand parts............................................ 5

3.3 Completethetabletop........................................... 6

3.4 Connect the control box to the main switch............................... 7

3.5 Mount the reference value transmitter and the potential compensation .............. 8

3.6 Adjustworkingheight............................................ 9

4. Assembly of automatic bartacker

4.1 Mount the oil pan .............................................. 10

4.2 Setuptheautomaticbartacker...................................... 11

4.3 Mount the oil lines .............................................. 12

4.4 Mount the control panel .......................................... 12

4.5 Mount the covering cap .......................................... 13

5. Connect the plug connections to the control box

5.1 Plug connections at the multiple pin strip (4-fold) ........................... 14

5.2 Plug connections at the multiple pin strip (15-fold) .......................... 15

5.3 Cablelaying ................................................. 16

6. Change sewing feet and fabric support plate............................ 17

7. Fit eye protection ............................................. 18

8. Convert automatic bartacker 510-213 to thick fabrics

8.1 General notes ................................................ 19

8.2 Adjustclampheight............................................. 20

8.3 Change thread wiper ............................................ 20

8.4 Change stop position ............................................ 20

9. Oil lubrication

9.1 Fillupoil ................................................... 21

9.2 Oilwicksandfeltpartintheoilpan ................................... 22

9.3 Oil hook path ................................................. 23

10. Putting into operation

10.1 Standard delivery .............................................. 23

10.2 Softwareinstallationl............................................ 24

10.2.1 General .................................................... 24

10.2.2 Loading the program ............................................ 24

10.2.3 Dongle-Update via internet ........................................ 26

10.3 Sewingtest.................................................. 27

11. Optional equipment

11.1 Sewinglight ................................................. 28

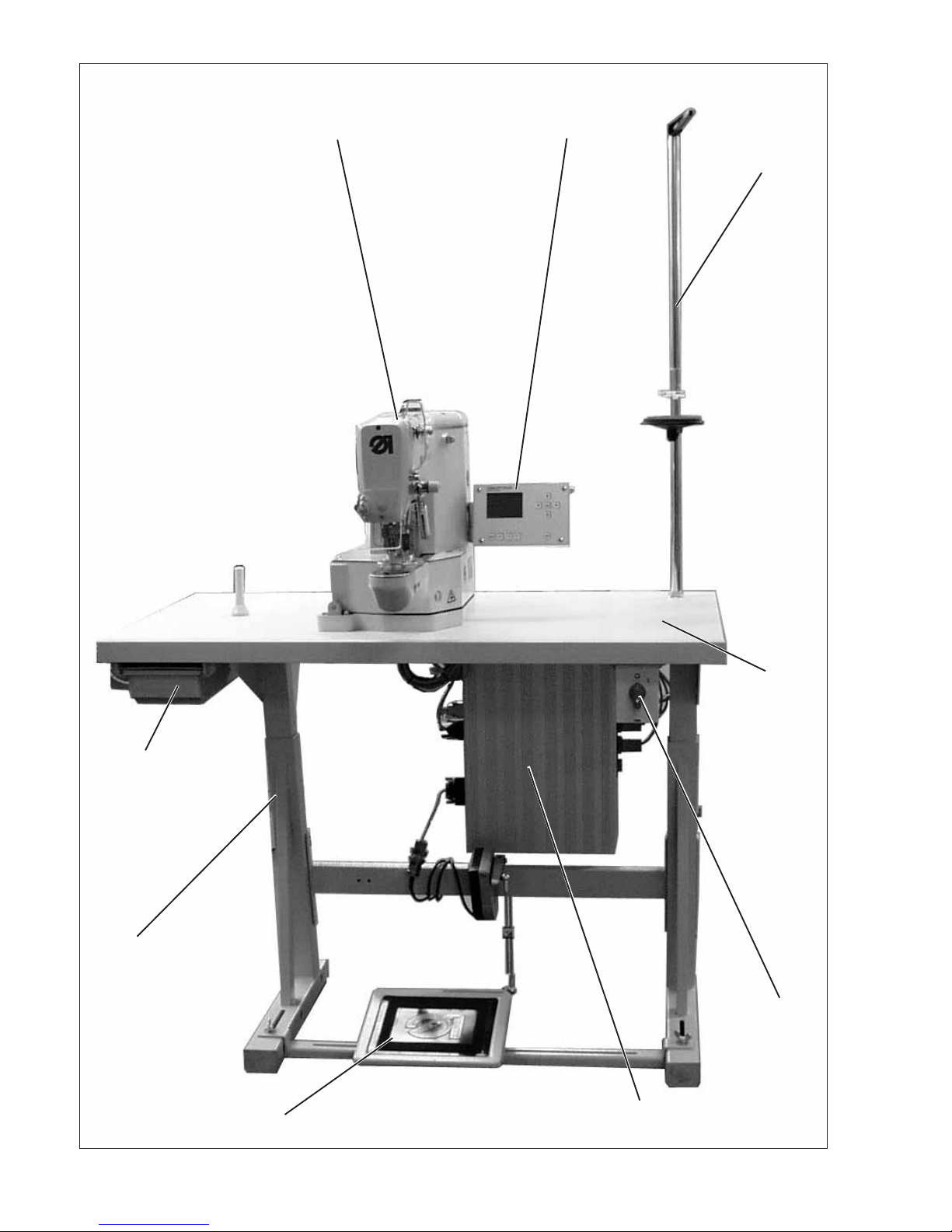

1. Scope of delivery

What items are supplied dependens on your order.

Please check before the installation whether all required parts are

available.

This description refers to an automatic bartacker the individual

components of which are completely delivered by Dürkopp Adler AG.

–1Machine head incl. oil pan

Setofparts“Electro”with:

–2Control panel

–5Main switch

–6DAC control

Dürkopp-Adler accessories with:

–3Yarn stand

–Protection cover (not shown)

–8Stand (optional)

–7Pedal and bars (optional)

–4Table top (optional)

–9Drawer (optional)

2. General notes and transport securing devices

ATTENTION !

The automatic bartacker must only be installed by trained

specialist staff.

Transport securing devices

If you have bought an assembled automatic bartacker, the following

transport securing devices have to be removed:

–Securing tapes and wood battens at machine head, table and

stand.

Punch-marks from the

underside (8 x)

Screwed nut (4 x)

from the underside

M6 x 20; observe DIN 7965

3. Mount stand and control circuitry cabinet

3.1 Table tops

The cutouts of self-manufactured table tops must have the dimensions

indicated in the sketch.

Caution: Danger of injury !

The table tops must have the required load-carrying capacity and

strength.

3.2 Mount the stand parts

–Mount the individual parts of the stand as shown in the illustration.

–Set the adjusting screw 3 to ensure the stability of the stand.

All four feet of the stand must touch the floor.

–Screw pedal 2 on the stand strut 1.

–Align pedal laterally.

Shift the pedal sideways so that it is positioned centrally to the oil pan.

The stand strut is provided with slotted holes for aligning the pedal.

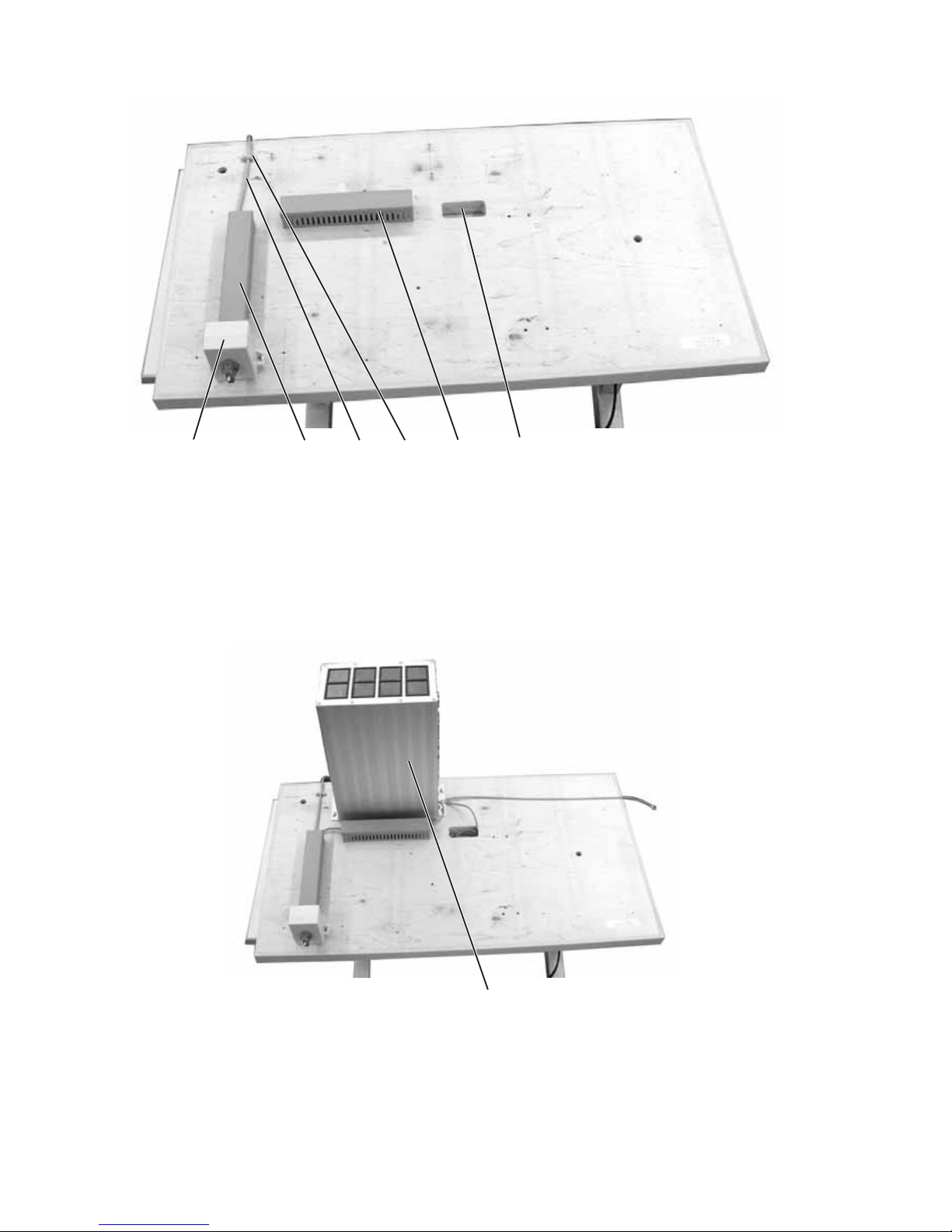

3.3 Complete the table top

–Place the table top on a worktop upside down.

–Screw the main switch 6 on the underside of the table top on the

left.

–Screw cable duct 5 tight behind the main switch 6.

–Screw cable duct 2 tight to the left of the lead-through 1.

–Put the access line 4 in the cable duct.

–Fasten the access line 4 by means of strain relief 3.

–Place the control box 7 on the underside of the table top and

position it in such a way that the side with the 4 sockets points to

the left (towards the thread reel holder).

–Screw the control box with four screws on the punch-marked spot

at the underside of the table top.

654321
