Configure the Vigor 130 modem for Bridge Mode

Click here to return to your search results

Products: Vigor 130

Keywords: BT TV Bridge FTTC IPTV Show all

The Vigor 130 is a pre-configured VDSL2 / ADSL2+ modem that takes a VDSL2 or ADSL2+ connection and performs PPPoE pass-through to the LAN / Ethernet

port, which can then be used by a device such as a router to connect directly to the internet.

If required, the Vigor 130 can be easily reconfigured into Bridge Mode so that it behaves in a similar way to the Openreach FTTC (Fiber To The Cabinet) modem.

This configuration can sometimes be more suitable if the Internet connection is also being used for IPTV services such as YouView or BT TV with a connected router

.When configuring a connected router to use IPTV, it will be necessary to enable your router manufacturer's equivalent of IGMP Proxy.

Once in bridge mode, the router being connected to the Vigor 130 should usually be configured to use PPPoE (depending on ISP).

Setup Procedure:

Connect the RJ-11 port (marked 'DSL') on the Vigor 130 to the VDSL or ADSL line.

Connect the RJ-45 Ethernet port on the Vigor 130 to the WAN ethernet port of your router (or PC).

Configure the WAN interface on your router to use PPPoE and enter the username and password details for the internet connection.

Connect a computer directly to the Vigor 130 modem's LAN port and the PC should receive an IP address in the 192.168.2.x range (if not, set the PC's IP address to

192.168.2.10).

With that connected, the Vigor 130 modem's web interface can be accessed on http://192.168.2.1 with a username of "admin" and a password of "admin" by default.

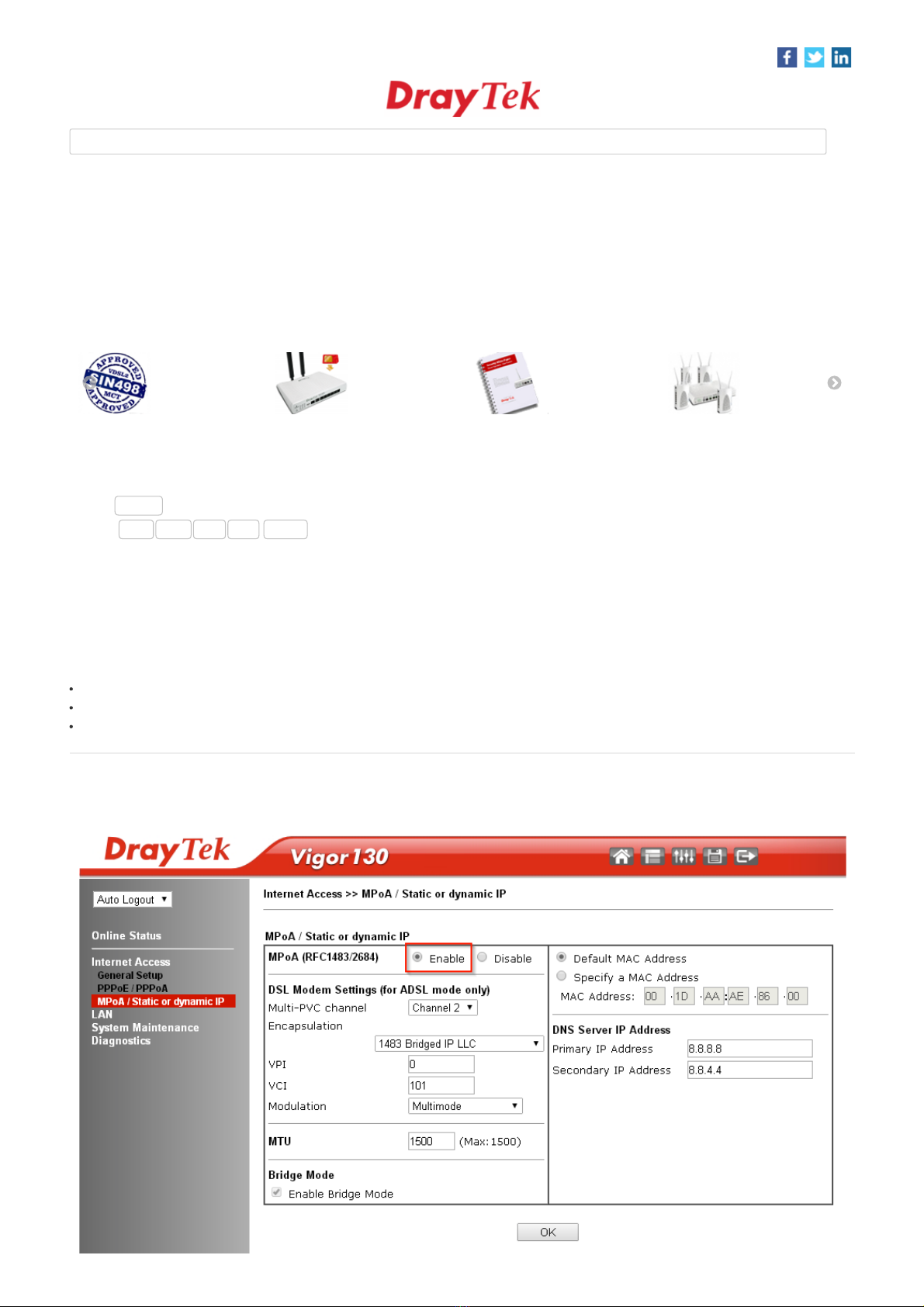

In the modem's web interface, go to [Internet Access] > [MPoA / Static or dynamic IP], on that page, select Enable for that connection type like so:

DrayTek SIN 498

MCT Approval

New Vigor

2860Ln

3G/4G/LTE

Router Best

Practice Guide

DrayTek

Wireless

Management

← →

25/08/2017 Configure the Vigor 130 modem for Bridge Mode

https://www.draytek.co.uk/support/guides/kb-vigor-130-bridge?highlight=WyJJUFRWIl0=&return=9962550 2/2

DrayTek is the leading

manufacturer of business

class broadband and

networking solutions.

These help consumers and

businesses save money

and improve efficiency by

exploiting the full potential

of the Internet. The product

range includes routers,

firewalls, PBXs, IP Phones,

switches and wireless

access points.

Customer Service

Products

Support

Information

Knowledgebase

Users forum

Partner portal

Where to buy

may not be copied or re-published in part or full

without permission. All trademarks are the

property of their respective owners. All

specifications are subject to change at any time

without notice. E&OE.

Click OK on that page to apply that change, at which point the modem will need to restart, so click OK on the restart page to restart it.

When the modem is back online, it will be operating in bridge mode, which can pass-through PPPoE or IPoE connections to the router or device(s) connected to the

Vigor 130's LAN port.

How do you rate this article?

First Published: 13/01/2015

Last Updated: 13/01/2017
