Dormakaba ITS9613 Manuel utilisateur

ITS9613 and ITS9625

Closer in frame, track in door

(Metal door and frame)

Installation instructions

08279641 – 02-2020

| EN |

2ITS96 Concealed in Door Closers 02-2020

08279641

dormakaba ITS9613 and ITS9625 (Metal door)

Installation Instructions

Table of Contents

Table of contents

1 Technical specifications 3

. Overview 

. Tools recommended 

. Handing the door 

2 Installation instructions 4

. Installing closer in frame 

. Install track 

. Secure arm to track 

3 Adjustments 6

. Adjust deadstop 

. Adjust sweep and latch 

. Adjust hold open 

. Adjust spring force 

dormakaba ITS9613 and ITS9625 (Metal door)

Installation Instructions

08279641 02-2020ITS96 Concealed in Door Closers 3

Technical specifications

1 Technical specifications

. Overview

Caution: sex nuts are required for attachment

of components to unreinforced doors and to

wood or plastic faced composite type fire doors,

unless an alternative method is identified in the

individual door manufacturer’s listings.

Maximum door opening degree is 120°.

Know the swing of the door which is being

installed prior to installation.

Verify closer spring size prior to installation.

Make sure door efficiently operates prior to

installing closer.

Drill bits: # Phillips screwdriver

Metal: /” drill bit; /-

tap

/” flat head screwdriver

Wood: /” and /” bit mm ,mm, mm hex keys

/” box wrench /” box wrench

. Tools recommended

Table 

. Handing the door

Fig.

Hinge Hinge

Exterior side of door

Interior side of door

Left hand door (LH) Right hand door (RH)

dormakaba ITS9613 and ITS9625 (Metal door)

Installation Instructions

08279641 02-2020ITS96 Concealed in Door Closers

Closer

Track

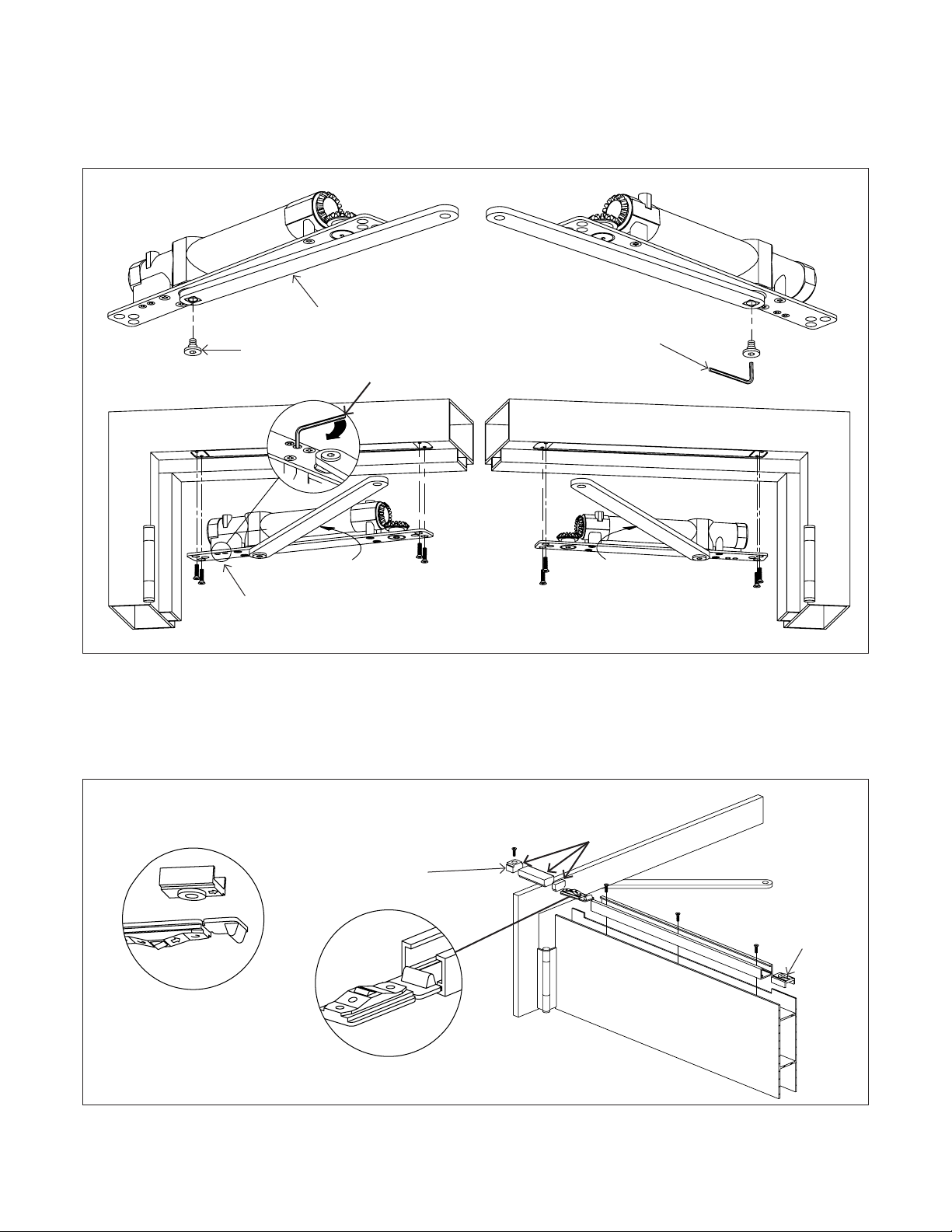

. Installing closer in frame

2 Installation instructions

.. Place arm on closer according to hand of door.

.. Secure arm with pinion screw.

.. Close valve by turning completely clockwise.

.. Rotate arm ° to preload.

Fig.

Pinion

screw

Arm

Right hand

door

Left hand

door

mm hex

key

45°

120°-0°

45°

7°-0°

Valve

Right hand

door

Left hand

door

mm hex

key

. Install track

Fig.

.. Thread screw a few turns into deadstop block.

.. Insert components into track.

.. Fasten track to door.

Deadstop

block

Deadstop

assembly

Slide

shoe

Hold open

(optional)

NOTE: Arrows on hold open and

slide shoe, must point away from

hinge when installing in track.

dormakaba ITS9613 and ITS9625 (Metal door)

Installation Instructions

08279641 02-2020ITS96 Concealed in Door Closers 5

Main arm

. Secure arm to track

Fig.

.. Align hole in arm with slide shoe. .. Attach with screw provided.

6mm hex key on

hold open units only

mm hex

key

Screw

Arm

dormakaba ITS9613 and ITS9625 (Metal door)

Installation Instructions

08279641 02-2020ITS96 Concealed in Door Closers

Adjustments - deadstop

Adjustments - closing speeds

3 Adjustments

. Adjust deadstop

. Adjust sweep and latch

Fig.

Fig.

.. Open door to desired opening between ° and

°.

.. Tighten deadstop block.

NOTE: The deadstop helps to prevent damage to the

door and wall when the door is opened normally. The

deadstop is not abuse resistant, and cannot replace a

door stop in many situations. Deadstop is adjustable

between 80° and 120° maximum.

120°-0°

7°-0°

120°-0°

CAUTION:

DO NOT REMOVE VALVES

Increase

only

Sweep

range

(°-°)

mm

hex key

Latch Latch

range

(°-°)

mm

hex key

dormakaba ITS9613 and ITS9625 (Metal door)

Installation Instructions

08279641 02-2020ITS96 Concealed in Door Closers 7

Adjustments - hold open

Adjustments - spring force

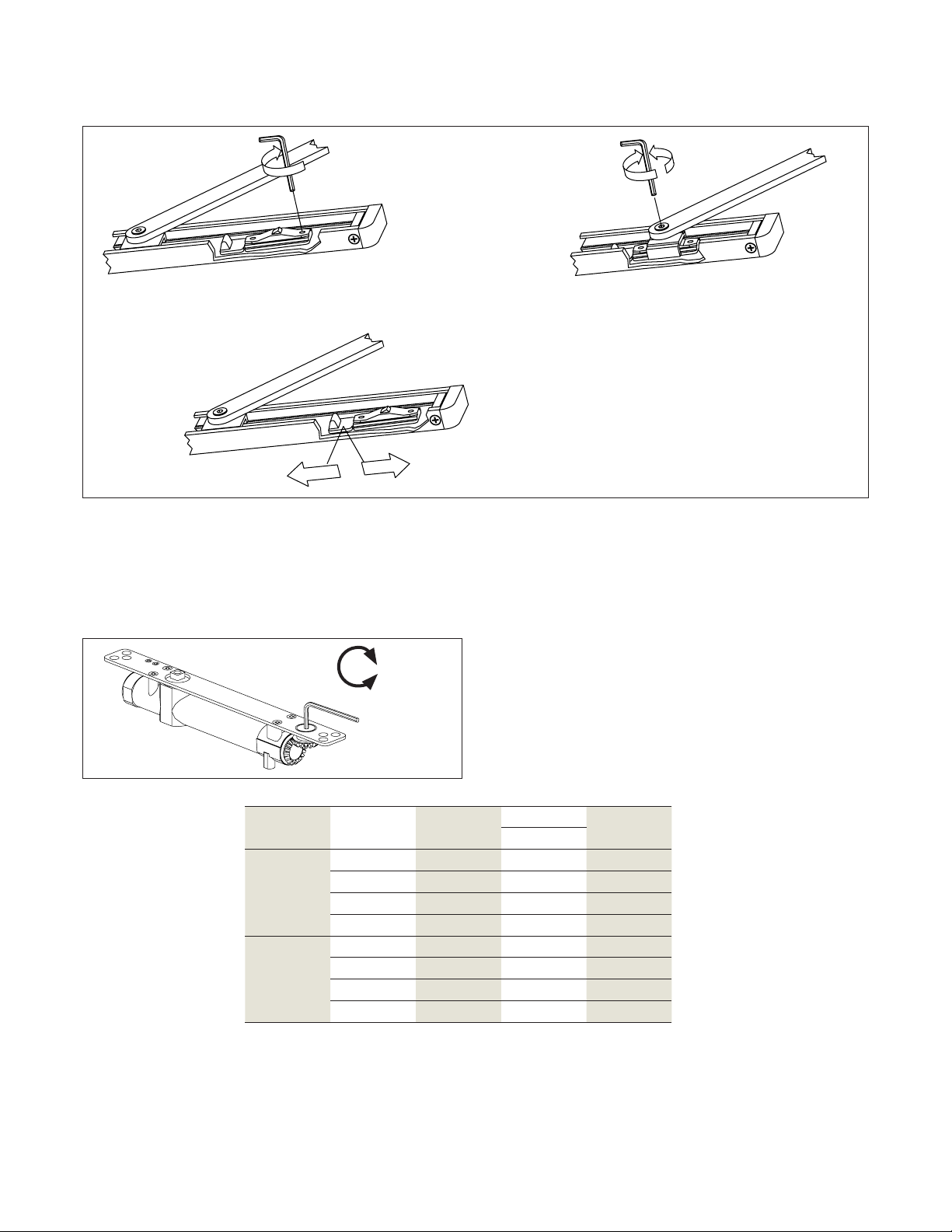

. Adjust hold open

Fig.

Fig.

Increase

Decrease

Barrier free openings: Adjust only if more tension is

required to close and latch the door. Depending on

opening conditions, a door adjusted to meet barrier-

free forces may not have sufficient power to reliably

close and latch the door.

• Decrease force: turn counter-clockwise

• Increase force: turn clockwise

• Max turns - 

Closer size Max door

weight (lbs)

Door width Full turns

Interior



  '" 

  ' 

  '" NA

  ' NA



  ’” NA

  ’ -

  ’” 

  ’ 

. Adjust spring force

OFF

.. Place the hold open mechanism in desired

position and tighten screw.

.. To adjust hold open force:

• To increase = turn CW

• To decrease = turn CCW

.. To enable: push white slide into hold open

mechanism.

.. To disable: pull white slide away from hold open

mechanism.

www.dormakaba.us

dormakaba

DORMA USA, Inc.

T: 800-523-8483
