Important: Place in owner's manual

SKYSCREEN

ROLLER CONCEALED 2

(Including Trims)

Fitting Instructions

Please read before beginning installation

Unit must be Installed so that it can be

Removed for Servicing

Model No:

Date:

...................................

Page 2 of 8© Dometic Uk Blind Systems Ltd 2019

Upper and Lower Trim

• Fit the upper trim rst.

• Locate the blind around the upper trim sitting the bottom edge of the upper trim on the top lip on the

inner face of the side rails.

• The blind cassette and upper trim is then held in position using 4 screws, one in each corner

(Hole A).

• The blind must not be distorted when installed as this can cause excess friction and might make the

blind jam.

• Ensure that the lower edge of the upper trim and the upper edge of the lower trim are square to the

blind and the correct length.

• Cut a recess for the button housing in the lower trim using the information provided on pages 5 or 6

(trims supplied by Oceanair are pre-cut)

• The ange on the button housing should sit against the inside face of the lower trim.

• Fit the headlining to the lower ange of the side rails (Face B) using Velcro or other xings. If the

headlining is lower than the ange then use spacers as necessary.

• Fit the lower trim aligning the cutouts with the button housings and sitting the upper edge to the

lower lip on the side rails.

• An alternative method is the optinal “Wood lower trim secret xing kit” which suspends the lower trim

from the button housings. (page 4)

• IMPORTANT: The unit must be installed in such a way that it can be removed for servicing.

• Do not screw into the roller housing for any reason as this will damage the fabric.

Fitting, Care & Maintenance Instructions

Installation

Lower Trim Button Housing

Roller housing

Headlining

Roller cover section

Fixing hole A

Side Rail

Face B

Side railUpper trim

Side rail lips

Flange

Page 3 of 8© Dometic Uk Blind Systems Ltd 2019

• To unlock - push the button which will eject the crossbar enabling you to operate the blind using the

handle slots in the crossbar.

• Draw the blind or yscreen to the opposite side until the magnets on the crossbars touch and hold

together

• To open - push crossbars apart which will force the magnets apart and enable the blind or yscreen

to be returned to its recess – should you let go of a crossbar the springs in the ends will give a

cushioned landing. The crossbars require pushing back into their recesses against the springs to

lock them home ush.

Operation

• Light lubrication of the runners ensure a smooth operation - never use a grease or oil - a silicon

spray is ideal.

• The fabric is a coated polyester woven fabric. If it gets wet pull out the blind and leave to dry

naturally. Small marks can be removed using an eraser.

• In the event of either the blind or the screen being damaged either part may be replaced. For

spare parts see parts list on page 7.

• Instructions are available for servicing and re-tensioning (which involves disassembly)

from Oceanair.

• For further information or installation assistance, please contact your local distributor.

Care & Maintenance

Page 4 of 8© Dometic Uk Blind Systems Ltd 2019

Wood Lower Trim Secret Fixing Kit

Step 3 t button housing

Screw cap

Lower trim

Button housing

Screw

Secret xing

bracket

Screw

Headlining

Upper trim

Roller cover

Side rail

Step 1 t secret xing bracket to lower trim

Step 2 position lower trim

Page 5 of 8© Dometic Uk Blind Systems Ltd 2019

Wood trim cut out dimensions and positioning for single Button

Housing (blinds under 800mm)

R10

R3/8”

R10

R3/8”

56mm

23/16”

17mm

11/16”

56mm

23/16”

17mm

11/16”

Page 6 of 8© Dometic Uk Blind Systems Ltd 2019

R10

R3/8”

56mm

23/16”

17mm

11/16”

R10

R3/8”

56mm

23/16”

17mm

11/16”

215mm

8 7/16”

215mm

8 7/16”

215mm

8 7/16”

215mm

8 7/16”

800 - 1200mm

31 - 47”

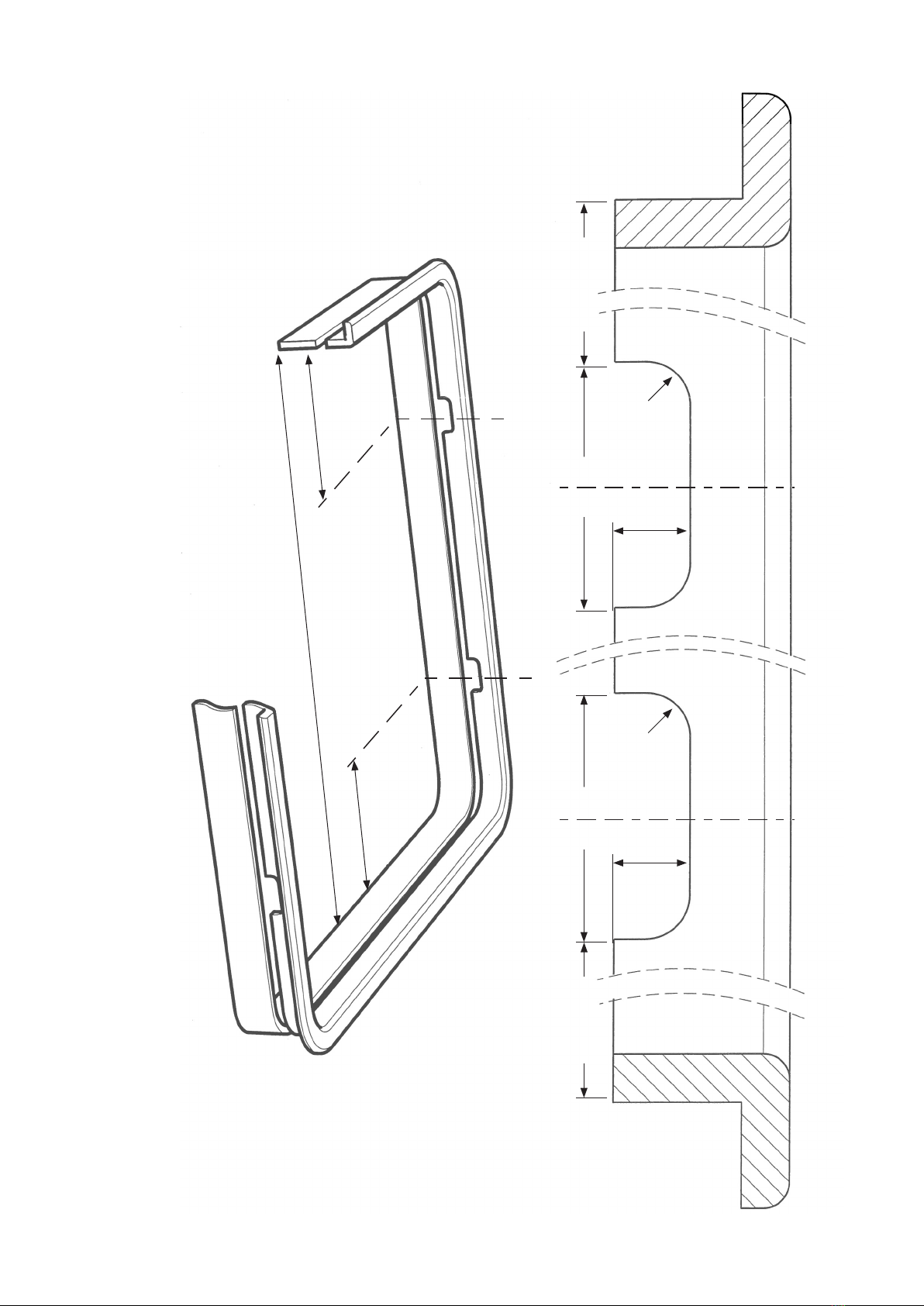

Wood trim cut out dimensions and positioning for two button housings

(blinds over 800mm)

Page 7 of 8© Dometic Uk Blind Systems Ltd 2019

No. Part No. Description

1 12828960005 Roller Cover

2 11808770005 Side Rail

3 10053150000 Roller

4 11872660005 Crossbar

5 11808600000 Magnet

6 11808830004 Brush Strip (please specify length)

7 400000526 Cloth Strip

8 50020520000 Double sided Tape

9 41860030000 LH Endplate

10 41860040000 RH Endplate

11 40065410000 Spring

12 41872360003 Button Housing (White)

41866590003 Button Housing (Dark Grey)

400000173 Button Housing (Chrome)

13 41872360003 Button Housing Screw Cap (White) (4 off)

41866590003 Button Housing Screw Cap (Dark Grey) (4 off)

14 41872380003 Button

No. Part No. Description

15 41872380003 Plate Bearing

16 41872380003 LH Pusher

17 41872380003 RH Pusher

18 41872370003 LH Crossbar End cap

19 41872370003 RH Crossbar End cap

20 41872370003 Hook

21 400001890 Roller Bearing

22 4180950000 Hook Spring

23 41814310000 Pusher Spring (4 off)

24 43668490000 M4 Clinch Nut (4 off)

25 400000625 M3 x 4 mm Screw (8 off)

26 41872550000 M4 x 12 mm Screw (4 off)

27 40062100000 No. 6 x 19mm Screw (16 off)

28 10104970001 Flyscreen Fabric (1 off)

29 See Fabric Collection Blackout Fabric (1 off)

30 Build Dependant Aluminium Liner (1 off)

31 Build Dependant Wood Liner (1 off)

• All Parts 2 off unless stated

• For SKYSCREEN with Wood trim omit item 30.

• For SKYSCREEN with Aluminium Liner, omit item 29.

19 2

115

Parts List

700000058 Issue 03 February 2019

www.dometic.com

blindsyst[email protected]
