Dometic Coolmatic CD 30 Manuel utilisateur

CD30

Drawer Fridge

Operating manual

REFRIGERATION

COOLMATIC

CD30-O-AU.book Seite 1 Mittwoch, 2. November 2016 3:03 15

CD30

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is passed on to

another person, this operating manual must be handed over to the user

along with it.

The manufacturer cannot be held liable for damage resulting from improper usage

or incorrect operation.

Contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

8 Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

CD30-O-AU.book Seite 2 Mittwoch, 2. November 2016 3:03 15

CD30 Explanation of symbols

1 Explanation of symbols

2 Safety instructions

2.1 General safety

!WARNING!

•Do not operate the device if it is visibly damaged.

•If this device's power cable is damaged, it must be replaced by the

manufacturer, customer service or a similarly qualified person in order

to prevent safety hazards.

•This device may only be repaired by qualified personnel. Improper

repairs can lead to considerable hazards.

•This device can be used by children aged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and/or knowledge, providing they are supervised

or have been taught how to use the device safely and are aware of the

resulting risks.

•Cleaning and user maintenance must not be carried out by children

without supervision.

•Children must not play with the device.

•Children must be supervised to ensure that they do not play with the

device.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

CD30-O-AU.book Seite 3 Mittwoch, 2. November 2016 3:03 15

Safety instructions CD30

•Always keep and use the device out of the reach of children under the

age of 8 years.

•Do not store any explosive substances such as spray cans with a

flammable propellant in the device.

!CAUTION!

•Disconnect the device from the power supply

– before each cleaning and maintenance

– after every use

•Food may only be stored in its original packaging or in suitable

containers.

ANOTICE!

•Check that the voltage specification on the type plate corresponds to

that of the energy supply.

•Only connect the device to a DC plug socket in the vehicle (e. g.

cigarette lighter) with the DC cable.

•Never pull the plug out of the socket by the cable.

•Disconnect the cooler and other power consuming devices from the

battery before connecting the quick charging device.

•Disconnect the cooler or switch it off when you turn off the engine.

Otherwise you may discharge the battery.

•The cooling device is not suitable for transporting caustic materials or

materials containing solvents.

•The cooling device contains inflammable cyclopentane in the

insulation. The gases in the insulation material require special disposal

procedures. Deliver the device at the end of its life-cycle to an appro-

priate recycling.

2.2 Operating the device safely

!CAUTION!

•Before starting the device, ensure that the power supply line and the

plug are dry.

ANOTICE!

•Do not use electrical devices inside the cooler unless they are

recommended by the manufacturer for the purpose.

•Do not place the device near naked flames or other heat sources

(heaters, direct sunlight, gas ovens etc.).

CD30-O-AU.book Seite 4 Mittwoch, 2. November 2016 3:03 15

CD30 Scope of delivery

•Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that

arises during operation does not build up. Make sure that the device

is sufficiently far away from walls and other objects so that the air can

circulate.

•Ensure that the ventilation openings are not covered.

•Do not fill the inner container with ice or fluid.

•Never immerse the device in water.

•Protect the device and the cable against heat and moisture.

•For HGV operation:

Empty the coolbox and switch the device off (see chapter “Switching

off the coolbox” on page 9), before the driver's cabin is tipped up.

3Scopeofdelivery

4Properuse

The drawer cooler CD30 is suitable for use in HGVs, boats or caravans and has been

designed for a maximum permanent inclination of 30°.

An optimum cooling capacity is guaranteed at ambient temperatures between

+16 °C and +32 °C and at a maximum air humidity of 90 %.

Quantity Description

1 Drawer coolbox

4 Mounting bracket

1 Operating instructions

CAUTION! Health hazard!

•Please check if the cooling capacity of the device is suitable for

storing the food or medicine you wish to cool.

•Food may only be stored in its original packaging or in suitable

containers.

NOTE

Before exposing the cooling device to extreme conditions, please

contact the manufacturer.

CD30-O-AU.book Seite 5 Mittwoch, 2. November 2016 3:03 15

Technical description CD30

5 Technical description

The cooling devices can cool goods or keepgoods cool at a temperature range from

–2 °C to +12 °C.

The coolbox is equipped with a battery monitor which switches the compressor off

and on again and thereby protects both the battery and compressor against

damage. The switch-off and switch-on points measured at the connection terminals

of the compressor are listed in the chapter “Technical data” on page 14.

5.1 Control elements

6 Installation

No. Explanation

1 Thermostat

NOTICE!

•Ensure that the positive cable is connected to the positive terminal

and the negative cable to the negative terminal.

•When choosing the installation location, ensure that the air heated

by the liquefier can be drawn off.

NOTE

To avoid voltage loss and therefore a drop in performance, the cable

route should be kept as short as possible and should not be interrupted

if this is possible. For this reason avoid additional switches, plug or

power strips.

CD30-O-AU.book Seite 6 Mittwoch, 2. November 2016 3:03 15

CD30 Installation

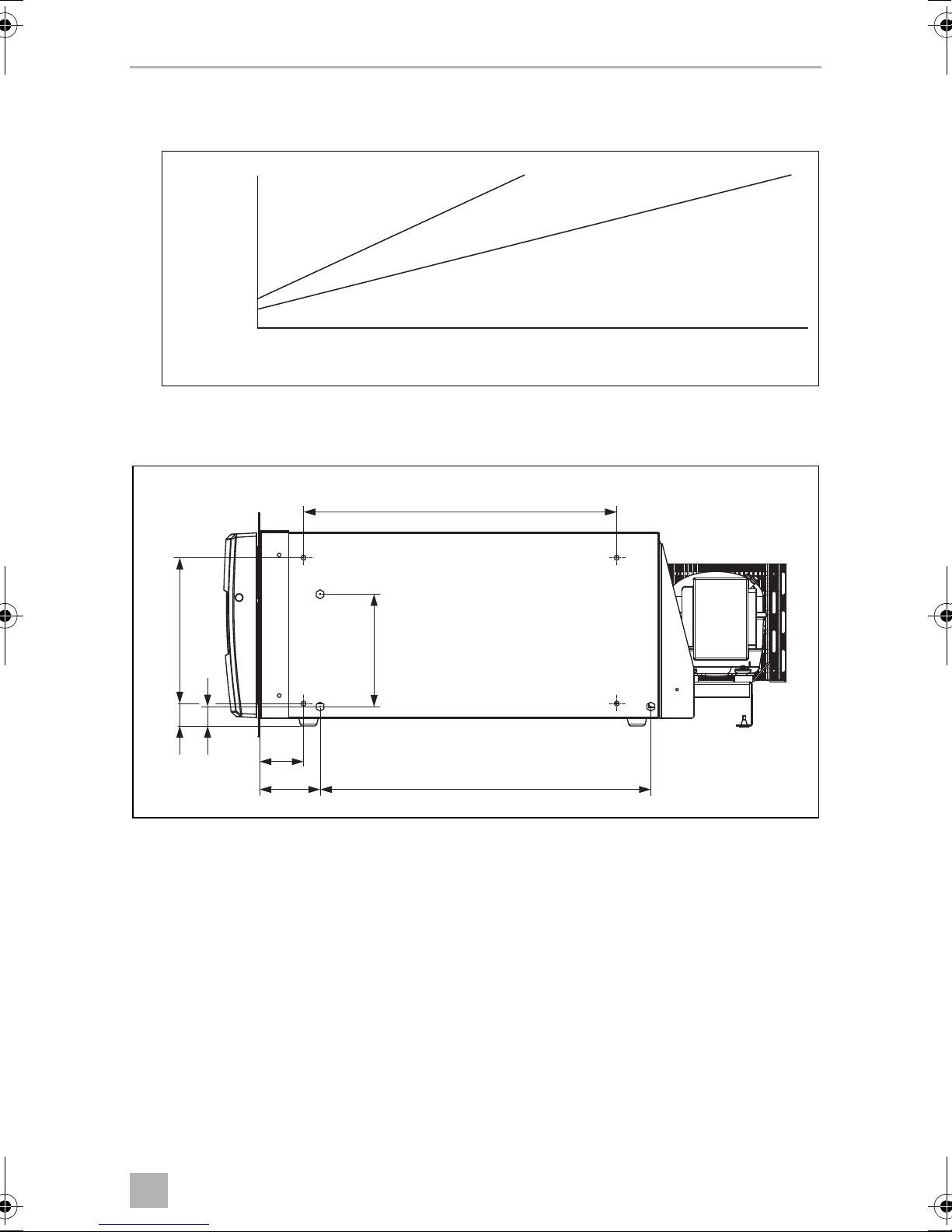

➤Determine the necessary cable cross section of the intake line using the diagram

below:

➤Connect your cooling device as directly as possible to the battery terminal or to

an outlet with a fuse of at least 15 A (12 V) or 7.5 A (24 V).

➤To screw the device in place use the screwing holes provided on the side of the

device.

0262422201816141210862842

24 V devices

12 V devices

Cable cross section (mm²)

Metres of cable (m)

404

18829

427

145

CD30-O-AU.book Seite 7 Mittwoch, 2. November 2016 3:03 15

Operation CD30

You can detach the compressor from the cooling device and mount it in another

place on the cooling device or separately from it:

Make sure that the refrigerant line is 1.5 m long.

7Operation

7.1 Energy saving tips

•Choose a well ventilated installation location which is protected against direct

sunlight.

•Allow warm food to cool down first before placing it in the cooling device to

keep cool.

•Do not open the cooling device more often than necessary.

•Do not leave the cooling device open for longer than necessary.

•Defrost your cooling device as soon as a layer of ice forms.

•Avoid unnecessarily low temperatures.

•Clean the condenser of dirt (dust etc.) at regular intervals.

NOTE

Before starting your new cooling device for the first time, you should

clean it inside and outside with a damp cloth for hygienic reasons

(please also refer to the chapter “Cleaning and care” on page 10).

L = 1,5 m

CD30-O-AU.book Seite 8 Mittwoch, 2. November 2016 3:03 15

CD30 Operation

7.2 Switching on the coolbox

➤Open the coolbox drawer.

➤To switch on the coolbox, turn the thermostat knob clockwise (fig. 11, page 6).

✓The coolbox starts cooling the interior.

7.3 Selecting the temperature

The switch on the thermostat (fig. 11, page 6) displays the selected temperature.

➤If you wish to set the temperature to cooling, turn the thermostat knob (fig. 11,

page 6), to the desired temperature range.

7.4 Switching off the coolbox

➤Open the coolbox drawer.

➤To switch off the coolbox, turn the thermostat knob (fig. 11, page 6) to the

“0” position.

✓The coolbox is switched off.

➤If you wish to stop using the coolbox, disconnect the connecting cable from the

battery.

NOTE

Ensure that the objects placed in the coolbox are suitable for cooling/

warming to the selected temperature.

Switch position Temperature range (dependent of ambient temperature)

MAX approx. –2 °C in interior

MIN approx. +12 °C in interior

NOTE

If you wish to leave the cooling device switched off for a longer period,

clean it and leave the drawer slightly open. This will prevent unpleasant

odours from forming.

CD30-O-AU.book Seite 9 Mittwoch, 2. November 2016 3:03 15

Cleaning and care CD30

7.5 Defrosting

Humidity can form frost in the interior of the cooling device. This reduces the cooling

capacity. Defrost the device in good time to avoid this.

➤Take the food or other objects out of the device and place it in another cooling

device to keep it cool, if necessary.

➤Switch the cooling device off (see chapter “Switching off the coolbox” on

page 9) and leave the drawer open.

➤Wipe off the water resulting from defrosting or – if present – empty the collecting

tray.

8 Cleaning and care

➤Occasionally clean the device interior and exterior with a damp cloth.

➤Make sure that the air inlet and outlet vents on the device are free of any dust and

dirt, so that heat can be released and the device is not damaged.

NOTICE!

Do not remove the layer of ice with hard or sharp tools. These can

damage the plastic of the vaporiser.

WARNING!

Always disconnect the device from the power supply before you clean

and service it.

NOTICE! Risk of damage

•Never clean the cooler under running water or in dish water.

•Do not use abrasive cleaning agents or hard objects during cleaning

as these can damage the cooler.

CD30-O-AU.book Seite 10 Mittwoch, 2. November 2016 3:03 15

Autres manuels pour coolmatic CD 30

Table des matières

Autres manuels Dometic Réfrigérateur

Dometic

Dometic RML9336 Manuel utilisateur

Dometic

Dometic RM1350 Elite Manuel utilisateur

Dometic

Dometic RML9430 Manuel utilisateur

Dometic

Dometic DESIGN DM50C D Manuel utilisateur

Dometic

Dometic RM 5310 Manuel utilisateur

Dometic

Dometic CoolMatic CD30DC Manuel utilisateur

Dometic

Dometic REFRIGERATION 10-Series Manuel utilisateur

Dometic

Dometic CFX3 25 Manuel utilisateur

Dometic

Dometic RM1303 and Manuel utilisateur

Dometic

Dometic MYFRIDGE DX 1280 Manuel utilisateur

Dometic

Dometic CDF2 Manuel utilisateur

Dometic

Dometic DM20F Manuel utilisateur

Dometic

Dometic RMSL 8 Series Manuel utilisateur

Dometic

Dometic CoolMatic CRX 65DS Manuel utilisateur

Dometic

Dometic ECOLINE RH 430NTE Manuel utilisateur

Dometic

Dometic CoolMatic CD Series Manuel utilisateur

Dometic

Dometic RM 2820 Manuel utilisateur

Dometic

Dometic WA3200 Manuel utilisateur

Dometic

Dometic RM2191 Manuel utilisateur

Dometic

Dometic NRX0050 Manuel utilisateur

Dometic

Dometic NDR1492 Manuel utilisateur

Dometic

Dometic SILENCIO HC Manuel utilisateur

Dometic

Dometic 5 Series Manuel utilisateur

Dometic

Dometic REFRIGERATION 10-Series Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Dometic coolmatic CD 30 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques
