Dolby® CAT862 Replacement and Connections

1

CAT862 Replacement and

Connections

Version 2.0

Caution:

Use anti-static discharge protection when

working with electronics.

Dolby® CAT862 Replacement and Connections

2

Table of Contents

Section 1: Card Removal/Replacement 1-1

Section 2: Connections 1-2

Section 3: Troubleshooting 1-3

Dolby® CAT862 Replacement and Connections

3

1-1 Card Removal/Replacement

Unplug the power cables from the DSS200 and remove the top cover by

pressing down on the two locking buttons on the lid and pushing the cover

to the back of the unit.

Dolby® CAT862 Replacement and Connections

4

1-1 Card Removal/Replacement

Remove the two fans at the back of the DSS200:

Remove these 2 screws:

2 Screws

Dolby® CAT862 Replacement and Connections

5

1-1 Card Removal/Replacement

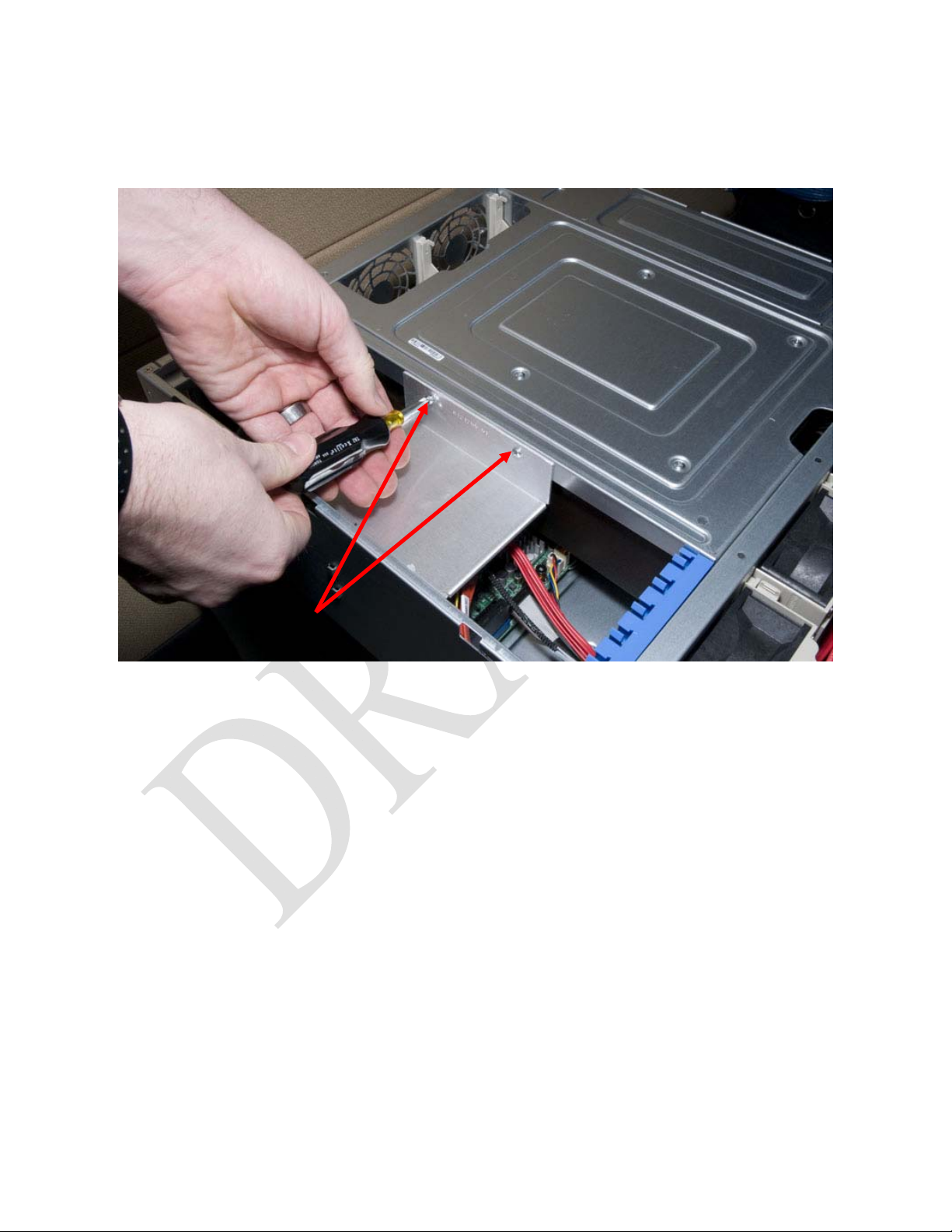

Remove the 2 screws on the CAT862 board cover.

2 Screws

Dolby® CAT862 Replacement and Connections

6

1-1 Card Removal/Replacement

With the 4 screws removed, carefully lift the CAT862 from the DSS200.

One card, along with some cabling will come out as well:

Dolby® CAT862 Replacement and Connections

7

1-1 Card Removal/Replacement

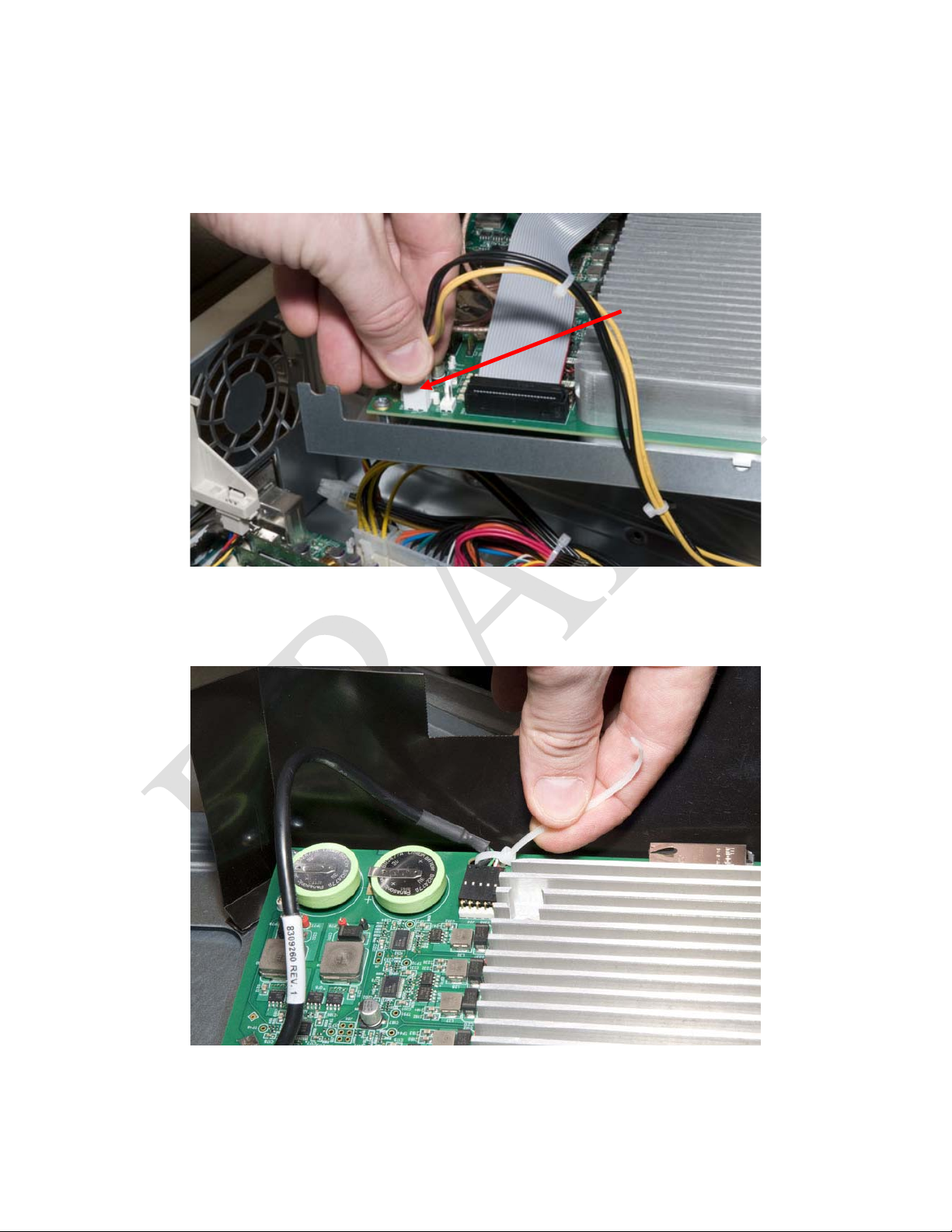

Unplug the power cable to allow you to remove the CAT862 assembly from the

DSS200:

You may now move the cables from the old CAT862 to the new CAT862. Replace any

cable ties/strain relief that you remove:

Power Cable

Dolby® CAT862 Replacement and Connections

8

1-1 Card Removal/Replacement

The SMB connectors are labeled as to function:

You may have to move the large mounting bracket from the old CAT862 to the new

unit. Locate and remove the 4 screws at the corners of the CAT862:

Dolby® CAT862 Replacement and Connections

9

1-1 Card Removal/Replacement

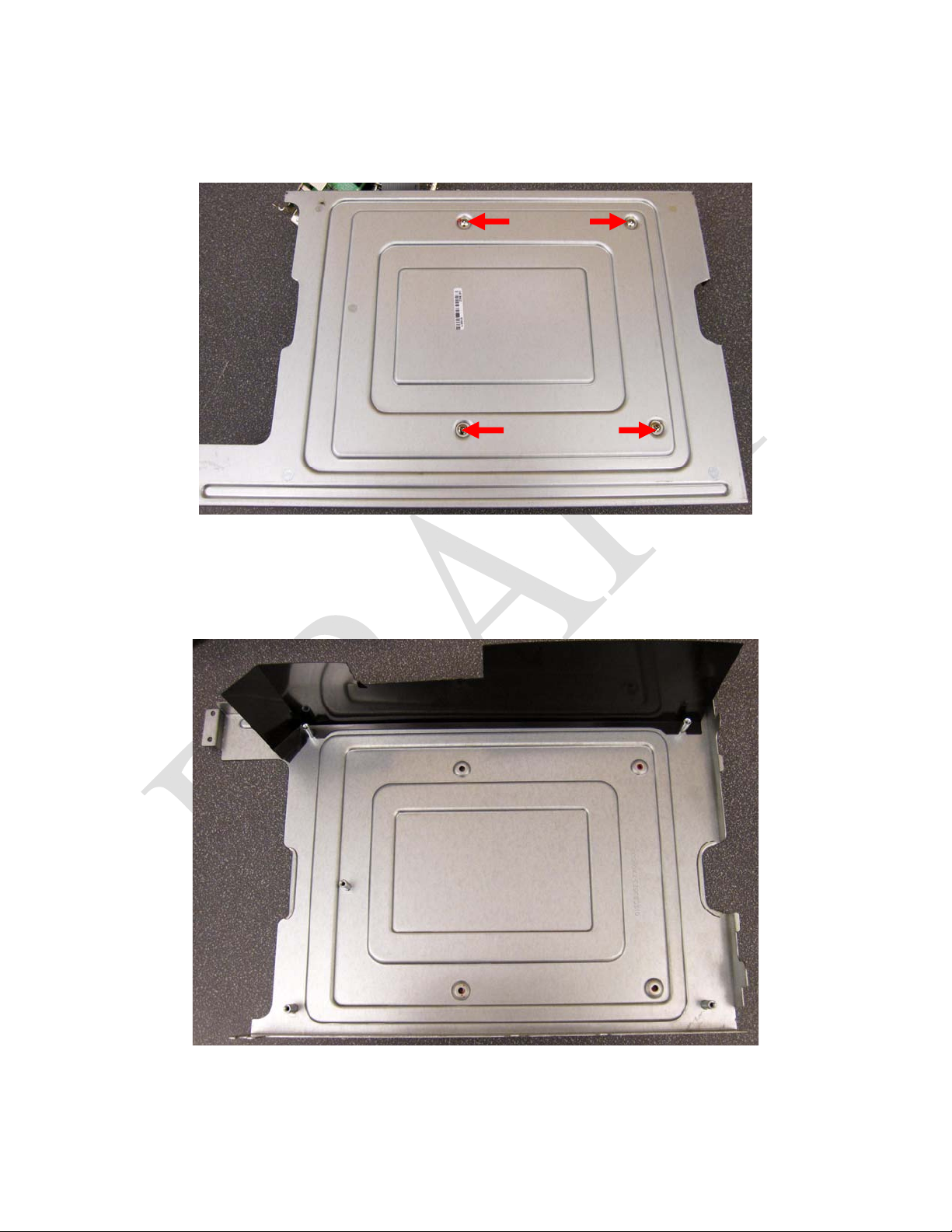

Carefully turn the CAT862 over and locate the 4 screws on the mounting plate:

These screws may have RED Loctite sealant applied to the screw threads. Be careful

not to strip the Phillips screw heads. Once the screws have been removed, you can lift

the mounting hardware away from the CAT862:

Install the mounting hardware onto the new CAT862 and reassemble.

Dolby® CAT862 Replacement and Connections

10

1-2 Card Connections

Ethernet/USB/Audio Board:

On the CAT862:

Audio

Out

USB

Port

USB

Port

Audio

Out

Ethernet

USB

Port

Ethernet
