XTLtouch™ International Series

Installation Guide

TABLE OF CONTENTS

About the XTLtouchINT ....... 1

Install the XTLtouchINT........2

Wall Mount (XTLtouch)................... 2

Desk Stand (XTLtouchUSB) .......... 2

Wall Mount .............................3

Mount the Backplate ........................ 3

Wire for Power.................................... 5

Desk Stand..............................8

Install the Desk Stand Legs ...........8

Power the XTLtouchINT..................9

Additional Information ....... 10

Secondary Power Supply ............. 10

Replace the Battery ........................ 10

Update Panel Firmware ................. 12

Add a Custom Dealer Logo .......... 13

Add Dealer Info ................................. 13

Accessories............................13

Transformer......................................... 13

Batteries.............................................. 13

Certiﬁcations.........................14

FCC .........................................15

Industry Canada....................17

Digital Monitoring Products | XTLtouchINT Installation Guide1

ABOUT THE XTLtouchINT™

The XTLtouchINT oers ﬂexible features and functionality. It contains an XTLplus

control panel with an integrated graphic touchscreen keypad, providing one

device to control and operate a system. The XTLtouchINT has an LTE cellular

communicator pre-installed for cellular use. The XTLtouchINT can be mounted to

a wall or can be used for tabletop use. The XTLtouchINT provides the following

features:

▶5” graphic touchscreen screen

▶Three-part housing (cover, base, and backplate)

▶On-board proximity reader for DMP, HID, and Farpointe credentials

▶On-board Wi-Fi

▶Z-Wave Plus™ support

▶800 mAh battery backup

▶Two-way communication using 868 MHz frequency hopping spread-

spectrum technology

▶1100INT Series Wireless support

▶Wall and Case Tamper

INSTALL THE XTLtouchINT

Wall Mount (XTLtouchINT)

For wall mount installations, use the included backplate to mount the

XTLtouchINT to a wall.

Note: Install the XTLtouchINT near a wall outlet for the plug-in power supply.

The power supply should be located within 100 feet of the XTLtouchINT using

22 AWG wire.

Desk Stand (XTLtouchINTUSB)

For desk stand installations, use the included legs for tabletop use.

Digital Monitoring Products | XTLtouchINT Installation Guide 2

Digital Monitoring Products | XTLtouchINT Installation Guide3

WALL MOUNT

Mount the Backplate

1. Press the tab and remove the backplate from the XTLtouchINT.

See Figure 3.

Figure 3: Removing the Backplate

Backplate

Tab

Digital Monitoring Products | XTLtouchINT Installation Guide 4

2. Use the level and the included #6 screws to mount the backplate to the

wall. See Figure 4 for mounting hole locations.

Tamper

Figure 4: Mounting Hole Locations

Level

Digital Monitoring Products | XTLtouchINT Installation Guide5

Wire for Power

See Figure 5 for wire routing instructions before wiring the XTLtouchINT for

power.

1. Connect the XTLtouchINT +DC terminal to the positive terminal on

the power supply.

2. Connect the XTLtouchINT -DC terminal to the negative terminal on

the power supply.

3. Plug the power supply into a 120 VAC 50 Hz dedicated outlet that’s

not controlled by a switch.

4. Replace the XTLtouchINT on the mounted backplate.

5. Insert the included set screw to secure the XTLtouchINT to the

mounted backplate. See Figure 6.

Digital Monitoring Products | XTLtouchINT Installation Guide 6

- 12V +

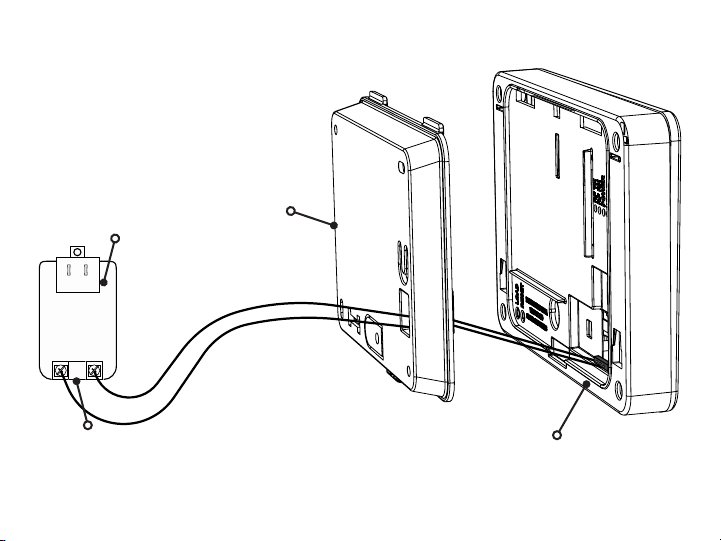

Figure 5: Routing Wires

Power Supply

Mounted Backplate

DC terminals

Digital Monitoring Products | XTLtouchINT Installation Guide7

Figure 6: Securing the XTLtouchINT

with the Set Screw
