Dji PHANTOM 3 PROFESSIONAL Manuel utilisateur

PHANTOM 3

V1.0

2015.04

User Manual

Standard

Using this manual

Legends

Warning Important Hints and Tips Reference

Read Before the First Flight

Read the following documents before using the Phantom 3 Standard:

1. In the Box

2. Phantom 3 Standard User Manual

3. Phantom 3 Standard Quick Start Guide

4. Phantom 3 Standard Guidelines and Disclaimer

5. Phantom 3 Standard Intelligent Flight Battery Safety Guidelines

We recommend that you watch all tutorial videos on the ocial DJI website and read the Disclaimer before you y.

Prepare for your rst ight by reviewing the Phantom 3 Standard Quick Start Guide and refer to the User Manual

for more detailed information.

Video Tutorials

Please watch the tutorial videos at the link below, which demonstrates how to use Phantom 3 Standard aircraft

http://www.dji.com/product/phantom-3/video

Download the DJI Pilot app

Download and install the DJI Pilot app before using the aircraft. Scan the QR code to the right

to download the latest version.

The Android version of the DJI Pilot app is compatible with Android 4.1.2 or later.

The iOS version of the DJI Pilot app is compatible with iOS 8.0 or later.

Contents

Using this manual

Legends 2

Read Before the First Flight 2

Video Tutorials 2

Download the DJI Pilot app 2

Product Prole

Introduction 6

Feature Highlights 6

Preparing the Aircraft 7

Aircraft Diagram 8

Remote Controller Diagram 8

Aircraft

Flight Controller 11

Flight Mode 11

Flight Status Indicator 11

Return-to-Home (RTH) 12

Smart RTH 12

Low Battery RTH 13

Failsafe RTH 14

Vision Positioning System 14

Flight Recorder 16

Attaching and Detaching the Propellers 16

DJI Intelligent Flight Battery 17

Remote Controller

Remote Controller Prole 23

Using the Remote Controller 23

Remote Controller Status LED 27

Linking the Remote Controller 28

Remote Controller Compliance Version 29

Camera and Gimbal

Camera Prole 31

Gimbal 32

DJI Pilot App

Camera 35

Director 38

Store 38

Discovery 38

Flight

Flight Environment Requirements 40

Flight Limits and No-Fly Zones 40

Preight Checklist 44

Calibrating the Compass 44

Auto Takeo and Auto Landing 45

Flight Test 46

Starting/Stopping the Motors 46

Troubleshooting (FAQ)

Appendix

Specications 53

Intelligent Orientation Control (IOC) 55

FCC Compliance 56

Product Prole

This section introduces the Phantom 3

Standard and lists the components of the

aircraft and remote controller.

Product Profile

Product Prole

Introduction

The Phantom 3 Standard represents the next generation of DJI quadcopters. It is capable of capturing 1080P

video and video signal out of the box. The built-in camera has an integrated gimbal to maximize stability while

minimizing both weight and size.

Feature Highlights

Camera and Gimbal: With the Phantom 3 Standard, you’re shooting 1080p video and capturing 12 megapixel pho-

tos that look crisper and cleaner than ever. An enhanced sensor gives you greater clarity, lower noise, and better

pictures than any previous ying camera.

DJI Intelligent Flight Battery: The 4480 mAh DJI Intelligent Flight Battery features upgraded battery cells and an

advanced power management system.

Built-in WiFi Extender: The wi extender is integrated into the remote controller to allow a easy connection to teh

aircraft.

Flight Controller: The next-generation ight controller has been updated to provide a safer, more reliable ight

experience. A newly implemented ight recorder stores critical data from each ight.

Product Profile

Phantom 3 Standard User Manual

Preparing the Aircraft

Removing Gimbal Clamp

Remove the gimbal clamp by sliding it to the right (when facing the nose of the aircraft), as shown below.

Attaching the Propellers:

Mount the propellers with black dots on to motors with black axes and spin counter-clockwise to secure.

Mount the propellers with sliver dots on to motors with sliver axes and spin clockwise to secure. Be sure

all propellers are securely in place.

Preparing the Remote Controller:

1. Twist the Phone Holder to face outwards and x in position.

2 . Ensure the battery is fully charged.

3. Be sure S1 and S2 are switched to the upper most position. The LED will go green if the Remote Controller is

functioning.

Place all propellers onto the correct motors and tighten by hand to lock them in position.

S1S2

Product Profile

Phantom 3 Standard User Manual

Aircraft Diagram

[1] Gimbal and Camera

[2] [Camera Micro-SD Card Slot

[3] Aircraft Micro-USB Port

[4] Front LED Indicator

[5] Landing gear

[6] Motor

[7] Rear LED Indicator

[8] Antennas

[10]

[11]

Product Profile

Phantom 3 Standard User Manual

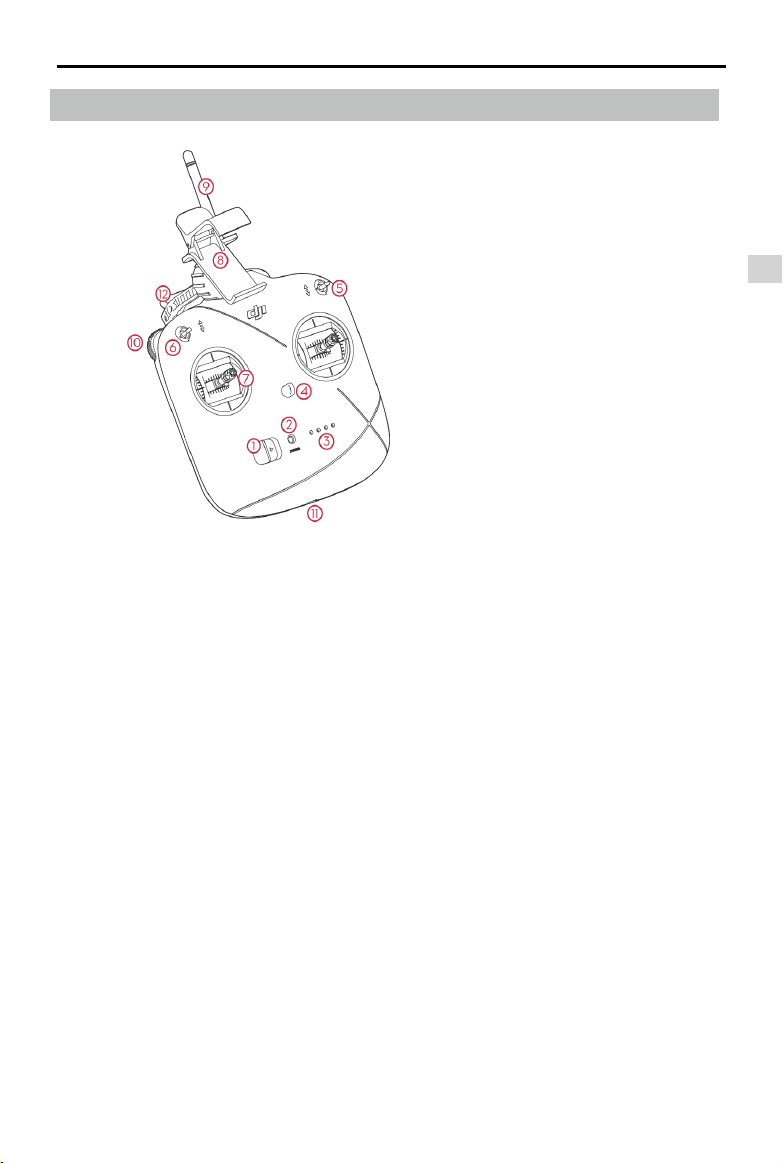

Remote Controller Diagram

[1] Power Button

[2] Status LED

[3] Battery Level LEDs

[4] Neck Strap Securing Hole

[5] S1 Switch

[6] S2 Switch

[7] Control Stick

[8] Phone Holder

[9] Antennas

[10] Gimbal Dial

[11] Charging Port

Aircraft

This section introduces the features of

the Flight Controller, Vision Positioning

System, and the Intelligent Flight Battery
