Dji Phantom 3 SE Manuel utilisateur

V1.0

2017.07

User Manual

Using this manual

Legends

Warning Important Hints and Tips Reference

Read Before the First Flight

Read the following documents before using the PHANTOMTM 3 SE:

1. In the Box

2. Phantom 3 SE User Manual

3. Phantom 3 SE Quick Start Guide

4. Phantom 3 Disclaimer and Safety Guidelines

5. Phantom 3 Intelligent Flight Battery Safety Guidelines

We recommend that you read the Disclaimer before you y. Prepare for your rst ight by reviewing the

Phantom 3 SE Quick Start Guide and refer to the User Manual for more detailed information.

Download the DJI GO App

Be sure to use the DJI GOTM app or other apps compatible with DJI aircraft during ight.

Scan the QR code to the right to download the latest version.

The Android version of the DJI GO app is compatible with Android 4.1.2 or later.

The iOS version of the DJI GO app is compatible with iOS 8.0 or later.

Searching for Keywords

Search for keywords such as “battery” and “install” to nd a topic. If you are using Adobe Acrobat

Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search.

Navigating to a Topic

View a complete list of topics in the table of contents. Click on a topic to navigate to that section.

Printing this Document

This document supports high resolution printing.

* For increased safety, the ight is restricted to a height of 30 m and distance of 50 m when not connected

or logged into the app during ight, including DJI GO and all apps compatible with DJI aircraft.

Contents

Using this manual 2

Legends 2

Read Before the First Flight 2

Download the DJI GO App 2

Product Prole 6

Introduction 6

Feature Highlights 6

Preparing the Aircraft 6

Aircraft Diagram 8

Remote Controller Diagram 8

Aircraft 11

Flight Controller 11

Flight Mode 11

Flight Status Indicator 11

Return-to-Home (RTH) 12

Smart RTH 12

Low Battery RTH 13

Failsafe RTH 14

Vision Positioning System 15

Flight Recorder 16

Attaching and Detaching the Propellers 16

DJI Intelligent Flight Battery 18

Remote Controller 23

Remote Controller Prole 23

Using the Remote Controller 23

Linking the Remote Controller 28

Remote Controller Compliance Version 28

Camera and Gimbal 30

Camera Prole 30

Gimbal 31

DJI GO App 34

Equipment 34

Editor 36

SkyPixel 36

Me 36

Flight 38

Flight Environment Requirements 38

Flight Limits and No-Fly Zones 38

Preight Checklist 40

Calibrating the Compass 40

Auto Takeoff and Auto Landing 41

Flight Test 42

Starting/Stopping the Motors 42

Appendix 45

Specications 45

Firmwares Update 47

Intelligent Flight Mode 47

After-Sales Information 47

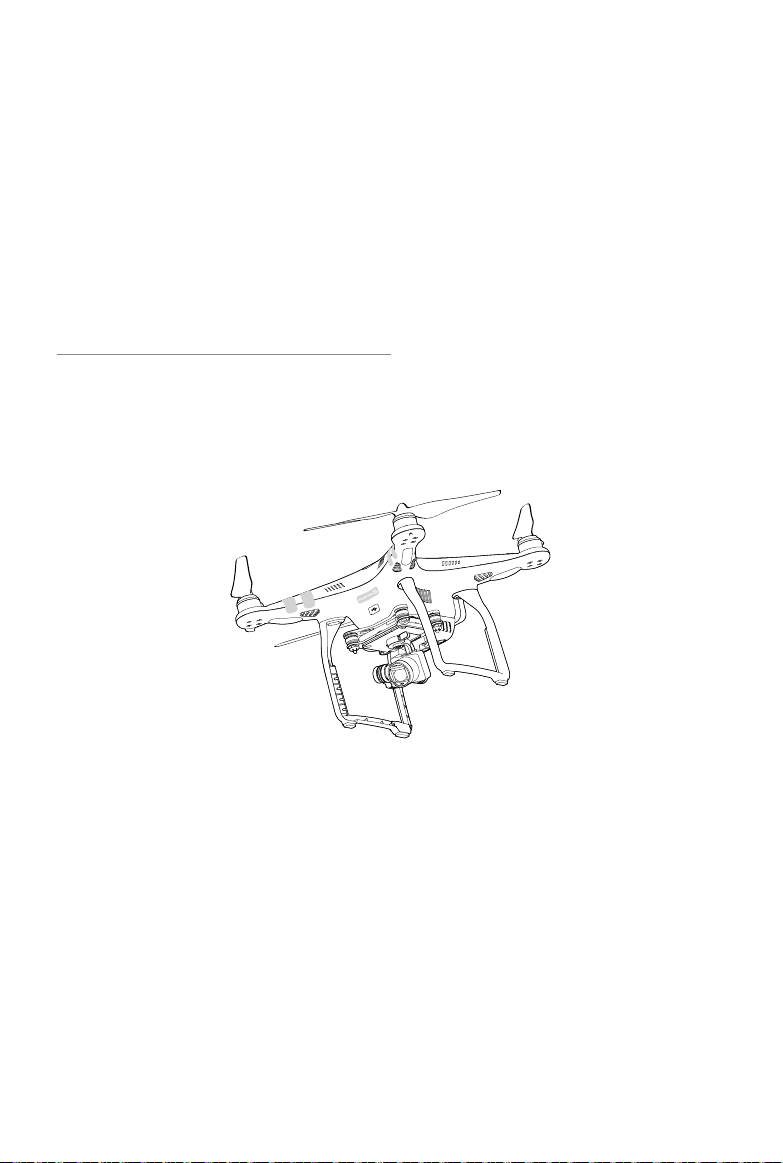

Product Prole

This section introduces the Phantom 3 SE

and lists the components of the aircraft

and remote controller.

Product Profile

Product Prole

Introduction

The Phantom 3 SE represents the next generation of DJI quadcopters. It is capable of capturing 4K

video and transmitting an HD video signal out of the box. The built-in camera has an integrated gimbal to

maximize stability while minimizing both weight and size. Even when no GPS signal is available, the Vision

Positioning System allows the aircraft to hover accurately in place.

Feature Highlights

Camera and Gimbal: With the Phantom 3 SE, you’re shooting 4K video at up to 30 frames per second and

capturing 12 megapixel photos that look crisper and cleaner than ever. An enhanced sensor gives you

greater clarity, lower noise, and better pictures than any previous ying camera.

Wi-Fi Video Downlink: Live HD video is streamed from the camera to the DJI GO app over Wi-Fi as you

y. A Wi-Fi range extender is built into the remote controller.

DJI Intelligent Flight Battery: The 4480 mAh DJI Intelligent Flight Battery features upgraded battery cells

and an advanced power management system.

Flight Controller: The next-generation ight controller has been updated to provide a safer, more reliable

ight experience. A newly implemented ight recorder stores critical data from each ight and the Vision

Positioning System enhances hovering precision when ying indoors or in environments where GPS is

unavailable.

Preparing the Aircraft

Removing Gimbal Clamp

Remove the gimbal clamp by sliding it to the right (when facing the nose of the aircraft), as shown below.

Product Profile

Phantom 3 SE User Manual

Attaching the Propellers

Mount the propellers with black nuts on to motors with black dots and spin counter-clockwise to secure.

Mount the propellers with sliver nuts on to motors without dots and spin clockwise to secure. Be sure all

propellers are securely in place.

Preparing the Remote Controller

The mobile device holder is designed for securing tablet or mobile device. Tilt the mobile device holder to

the desired position.

1. Press the button on the top right side of the mobile device holder to release the clamp, then adjust the

clamp to t the size of your mobile device.

2. Secure your mobile device in the clamp by pressing down.

Place all propellers onto the correct motors and tighten by hand to lock them in position.

Battery Installation

Slide battery into the battery compartment according to the arrow’s direction shown below. Make

sure that you hear a click sound indicates the battery is rmly installed. Failure to do so may affect

the ight safety of your aircraft.

Product Profile

Phantom 3 SE User Manual

Aircraft Diagram

Remote Controller Diagram

[1] GPS

[2] Propeller

[3] Motor

[4] Front LED Indicator

[5] Landing Gear

[6] Gimbal and Camera

[7] Camera Micro SD Card Slot

[8] Camera Status Indicator

[9] Aircraft Micro USB Port

[10] Aircraft Status Indicator

[11] Intelligent Flight Battery

[12] Vision Positioning Sensors

[13] Antennas

[14] Camera Micro USB Port

[15] Link Button

[1] Mobile Device Holder

[2] Switch S1

[3] Lanyard Loop

[4] Battery Level LEDs

[5] Status LED

[6] Micro USB Port

[7] Power Switch

[8] Control Sticks

[9] Gimbal Dial

[10] Switch S2

[1]

[2]

[3]

[4]

[5]

[10]

[13]

[11]

[12]

[14]

[6]

[7]

[9]

[8]

[15]

[1]

[2]

[3]

[4]

[5]

[6]

[10]

[9]

[8]

[7]

Product Profile

Phantom 3 SE User Manual

[11]

[12]

[11] Built-in Antennas

[12] Handle Bar

Aircraft

This section introduces the features of

the Flight Controller, Vision Positioning

System, and the Intelligent Flight Battery
