Dixon ZTR 5601 Manuel utilisateur

IMPORTANT -READ CAREFULLY

The Dixon®ZTR®Mower is both easy and fun to operate. However, any power mower must

be operated properly to be safe. It is not a toy or a recreational vehicle. Before you start to use

the mower, read the operator's manual carefully and become completely familiar with the

controls.

The information in this operator's, manual applies to all Dixon®ZTR®5000 Series Model

Mowers. Your Dixon dealer will gladly provide a check-out ride and answer any questions.

See your dealer for warranty service, parts and repairs.

Dixon Industries, Inc.

A BLOUNT International, Inc. Company

P.O.Box 1569

Coffeyville, KS 67337-0945

316-251-2000

Part No. 8965

September 1996

INDEX

SAFETY...............................................................Pages 1 -6

WARRANTY POLICY ..........................................Page 7

SPECIFICATIONS ...............................................Page 8-10

SEAT ADJUSTMENT...........................................Page 11

CONTROLS.........................................................Pages 12-15

OPERATION INSTRUCTIONS.............................Pages 16-23

CARE AND MAINTENANCE ................................Pages 24-38

STANDARD SERVICE PARTS LIST .....................Page 39 -40

TROUBLESHOOTING .........................................Pages 41 -43

DIAGRAMS..........................................................Pages 44-62

RIDING LAWNMOWERS, IF IMPROPERLY OPERATED,

CAN CAUSE SERIOUS INJURY OR DEATH

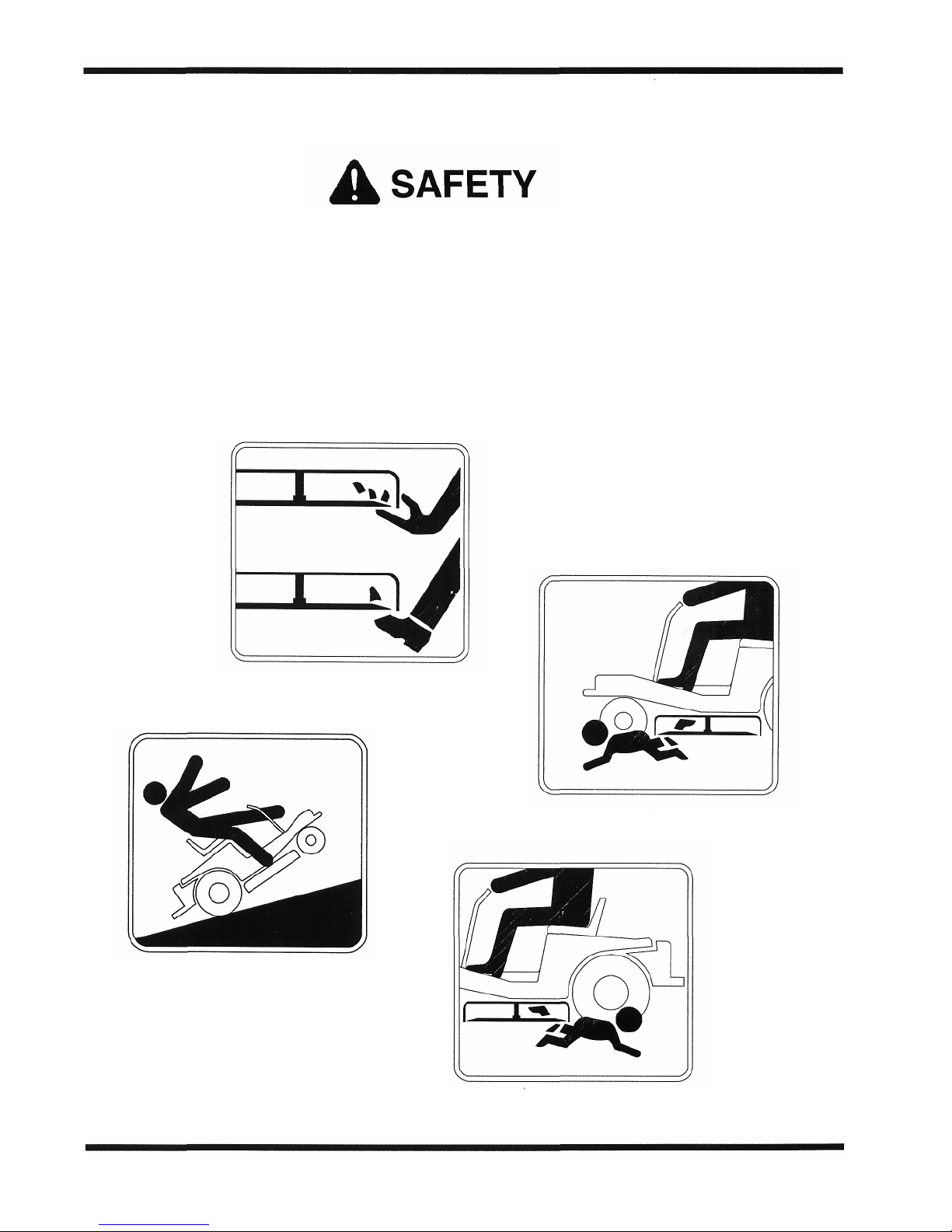

The most common causes of injury to the operator or bystander...

TIP-OVER

RUN-OVER

Page 1

BLADE CONTACT

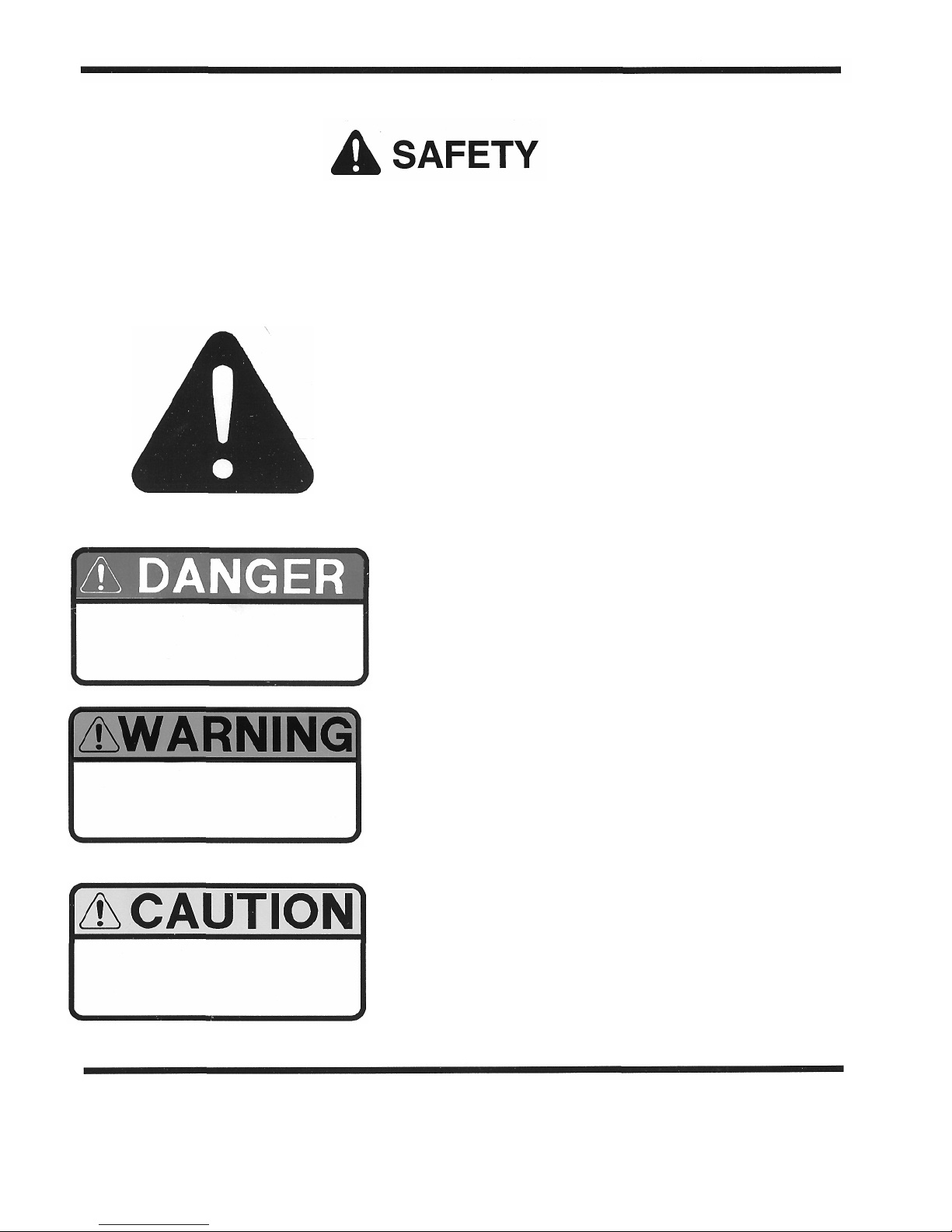

SAFETY SYMBOLS:

SAFETY ALERT SYMBOL -

When you see this symbol,

BE ALERT to the potential for injury.

Follow recommended safety precautions and safe

operating practices.

Danger indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

Warning indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

Caution indicates a potentially hazardous

situation which, if not avoided, may result in minor

or moderate injury. It may also be used to alert

against unsafe practices.

Page 2

This cutting mower is capable of amputating hands and feet, and throwing objects.

Failure to observe the following safety instructions could result in

serious injury or death.

GENERAL OPERATION:

•Read, understand, and follow all instructions in the manual and on the mower before starting.

•Only allow responsible adults, who are familiar with the instructions, to operate the mower.

•Clear the area of objects such as rocks, toys, wire, etc., which could be picked up and thrown

by the blade.

•Be sure the area is clear of other people before mowing. Stop mower if anyone enters the

area.

•Never carry passengers.

•Do not mow in reverse unless absolutely necessary. Always look down and behind before

and while backing.

•Be aware of the mower discharge direction and do not point it at anyone. Do not operate the

mower without either the entire grass catcher or the deflector in place.

•Slow down before turning.

•Never leave a running mower unattended. Always turn off blades, set parking brake, stop

engine, and remove key before dismounting.

•Turn off blades when not mowing.

•Stop engine before removing grass catcher or unclogging chute.

•Mow only in daylight or good artificial light.

•Do not operate the mower while under the influence of alcohol or drugs.

•Watch for traffic when operating near or crossing roadways.

•Use extra care when loading or unloading the mower into a trailer or truck. Do not ride the

mower when loading & unloading.

The Engine Exhaust from this product contains chemicals known to the

State of California to cause cancer, birth defects or other reproductive harm.

Page 3

SLOPE OPERATION:

Slopes are a major factor related to loss-of-control and tip-over accidents,

which can result in severe injury or death.

All slopes require extra caution.

If you cannot back up the slope or if you feel uneasy on it, do not mow it.

Mow across the slope with your Dixon ZTR -never up or down.

Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts or bumps. Uneven terrain could overturn the mower. Tall grass can hide

obstacles.

Use slow speed.

Use extra care with grass catchers or other attachments. These can change the stability of the

mower.

Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or

direction.

Avoid starting or stopping on a slope. If tires lose traction, disengage the blades and proceed

slowly down the slope.

DO NOT

Do not turn on slopes unless necessary, and then, turn slowly and gradually downhill, if possible.

Do not mow near drop-offs, ditches, or embankments. The mower could suddenly turn over if

a wheel is over the edge of a cliff or ditch, or if an edge caves in.

Do not mow on wet grass. Reduced traction could cause sliding.

Do not try to stabilize the mower by putting your foot on the ground.

Do not use grass catcher on steep slopes.

Page 4

CHILDREN:

Tragic accidents can occur if the operator is not alert to the

presence of children.

Children are attracted to lawn mowers and the mowing activity.

NEVER assume children will stay where they were last seen.

Be alert to avoid accidents.

•Keep children out of the mowing area and under the watchful care of another responsible adult.

•Be alert and turn mower off if a child enters the area.

•Before and during backing, look behind and DOWN for small children.

•Never carry children. They may fall off and be seriously injured or interfere with safe mower

operation.

•Never allow children to operate the mower.

•Use extra care when approaching blind corners, shrubs, trees, or other objects that may

obscure vision.

Page 5

SERVICE:

•Use extra care in handling gasoline and other fuels. They are flammable and vapors are

explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine running. Allow engine to cool before

refueling. Do not smoke.

Never refuel the mower indoors.

Never store the mower or fuel container inside a building where there is an open flame.

•Never run a mower inside a closed area.

•Keep nuts and bolts, especially blade attachment bolts, tight and keep equipment in good

condition.

•Never tamper with safety devices. Check their proper operation regularly.

•Keep mower free of grass, leaves, or other debris buildup. Clean up oil or fuel spillage.

Allow mower to cool before storing.

•Stop and inspect the equipment if you strike an object. Repair, if necessary, before

restarting.

'; :,'

•Never make adjustments or repairs with the engine running.

•Grass catcher components are subject to wear, damage, and deterioration, which could

expose moving parts or allow objects to be thrown. Frequently check components and

replace with original equipment parts, when necessary.

•Mower blades are sharp and can cut. Wrap the blade(s) or wear gloves, and use extra

caution when servicing them.

•Batteries contain sulfuric acid. To prevent burns avoid contact with skin, eyes and clothing.

To prevent a fire or explosion keep sparks and open flames away from battery.

Before disconnecting the negative (-) ground cable, make sure all switches are OFF.

•Check to assure that the drive chains are properly adjusted. A loose chain may come off

causing loss of control. This statement applies to chain drive models 2301, 3000 & 4000

Series.

Page 6

DIXON LIMITED WARRANTY POLICY-- HYDRO-GEAR MODELS

This warranty policy applies to all HydroGear mowers or any 50" model, purchased on or after March 1,1990.

WARRANTY: Dixon Warranty term is for a period of one (1) year from date of purchase or 400 hours of use, whichever

occurs first. Mowers used for residential homeowner applications (used only at owner's primary place of residence) are

warranted for two (2) years from date of purchase or 400 hours of use, whichever occurs first. DIXON ZTR MOWERS

ARE WARRANTED AGAINST DEFECTS IN MATERIALS AND WORKMANSHIP AND PROVIDES FOR REPLACEMENT

OR REPAIR OF PARTS INCLUDING LABOR COSTS. THIS WARRANTY IS SUBJECT TO THE FOLLOWING

CONDITIONS AND LIMITATIONS:

1. Warranty applies only to original retail purchaser of new and unused mowers and accessories.

2. All Dixon warranty must be accomplished by authorized Dixon dealers and in accordance with Dixon warranty policy and

allowances. All warranty claims must be approved by Dixon Industries, Inc.

3. Battery warranty: Limited to 90 days from date of purchase.

4. Accessories Warranty (Grass Catchers, Snow Blades, Tine Rakes, Covers, etc.): Limited to 90 days from date of purchase.

5. Warranty does not apply to damage in transit or incidents of misuse, negligence, accidents, or alteration. The use of parts

or components other than those supplied by Dixon Industries, Inc. VOIDS ALL WARRANTY.

6. The following items are noLcovered by this warranty policy:

(a) Pick up and delivery charges for transportation of mower to and from an Authorized Dixon Dealer's place of business.

(b) Routine maintenance or adjustments.

(d) Engines -- All engines used on Dixon ZTR mowers are warranted by each individual engine manufacturer.

(e) Any costs or expense of providing substitute equipment while repair work is being performed on a warranted mower.

There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular

purpose, are limited to the same duration of the express warranty, and to the extent permitted by law any and all implied

warranties are excluded. Liabilities for consequential damages under any and all warranties are excluded.

WARRANTY VALIDATION: At the time of sale, selling dealer must review each portion of this warranty document, complete the

information section below, secure customer's signature and send copy to Dixon Industries, Inc.

DATE OF PURCHASE

_______________________

Model

________________

S/N

____________

SEE DEALER FOR DETAILS

Page 7

(Owner's Name)

(Dealership)

(Address)

(Dealer's Signature)

(Owner's Signature)
