OPERATOR’S MANUAL

IMPORTANT

The Dixon ZTR mower is both easy and fun to

operate.

However, any power mower must be operated

properly to be safe. It is not a toy or a recreational

vehicle. Before you start to use the

mower, read the

operator's manual carefully, and

become completely

familiar with the controls. Your Dixon dealer will

gladly provide a check-out ride, and answer any

questions.

READ CAREFULLY

You have purchased a top quality lawn mower that has

been carefully inspected and adjusted at the factory. This lawn

mower is warranted for 1 year from date of delivery against all

defects in materials and workmanship. Lawn mowers used for

commercial service are warranted for 30 days from date of

delivery. SEE YOUR DEALER FOR WARRANTY SERVICE

FOR PARTS.

ONE-YEAR LIMITED WARRANTY

This lawn mower is warranted for one (1)year from date of delivery against all defects in materials and workmanship. Lawn

mowers used for commercial service are warranted for 30 days from date of delivery. (Lawn mowers other than those used only

at residence of owner are considered as commercial service.)

Each new mower is warranted against manufacturing defects in material and workmanship under normal use and service. Our

obligation, under this warranty, shall be limited to the replacement to the original retail purchaser of any part or parts, which,

within the warranty period, shall be shown to be defective due to faulty workmanship or materials at the factory. All parts

claimed defective must be returned to the factory for inspection, repair, or replacement with transportation charges

prepaid.

This warranty does not apply to damage in transit or damage caused by misuse, negligence or accident, to alterations or

repairs done outside the factory or authorized service stations, nor does it obligate us to assume any transportation charges in

connection with the replacement of parts claimed to be defective.

Our warranty does not apply to the blades or belts on our mowers due to the very nature Of the function they perform and to

the elements they are exposed to. "

The warranty specifically excludes engines and tires which are warranted separately by their respective manufacturers. All

claims for defective engines or engine parts must be made in accordance with the engine manufacturer's warranty.

We reserve the right to make changes in design and changes or improvements on our product without imposing any

obligation upon ourselves to install the same on products heretofore manufactured.

This warranty is null and void if any pa rts other than original manufacturer's parts are used. There is no other express

warranty.

IMPLIED WARRANTIES, including those of merchantability and fitness for a particular purpose, are limited to one (1) year

from purchase and, to the extent permitted by law, any and all implied warranties are excluded.

•

SERIAL NUMBERS

The lawn mower has three serial numbers:

Mower Number —Located on frame at right rear transaxle mount. Transaxle Number —Located on transaxle. Engine

Number —Located on engine. When referring to serial number on Warranty Registration, etc., use Mower Serial Number

located on frame.

SAFETY INSTRUCTIONS

BEFORE MOWING

1. Read these safety instructions and engine manufacturer's

operating and maintenance instructions that are furnished

with the mower.

2. Discuss proper maintenance with your Dixon dealer, to

save money and prevent injury. Consult your dealer before

removing any parts.

3. Don't allow anyone to operate your Dixon mower without

proper instruction. Young children should never be allowed

to operate any power mower, riding or walking.

4. Before mowing, pick up all debris—particularly stones and

sharp objects.

5. Before starting the engine, make sure the gas cap is in

place.

DURING MOWER OPERATION

1. The revolutionary Dixon mower att racts many admiring

neighbors. But when mowing, all persons —especially

children —and pets should be cleared from the mowing

area.

2. Wear appropriate, safe clothing when mowing —close-

fitting jeans or slacks and heavy leather or safety shoes

with rough soles. Never use any kind of mower with bare

feet or open sandals, not even an old push-type model!

3. When grass is wet or slippery, do not use any riding mower.

4. Always mow at the slowest speed that will cut satisfacto

rily.

5. Keep hands and feet away from the blade at all times.

6. Although the Dixon mower is equipped with a missile

deflector, keep persons clear of the discharge chute. Do not operate mower unless deflector is in place.

7. Use extreme caution when mowing hills or slopes with any

mower.

8. Always disengage blades before taking the mower across

walks or objects that project above the surface.

9. When the mower is not in use, turn the engine off; never

leave the engine running unattended. Your Dixon mower is

equipped with a weight-sensitive switch that kills the engine

when operator leaves the seat while blades are engaged.

Test this important safety feature before each time mower is

used. This may be done by starting engine, engaging blades

and then rising slightly from seat. If engine does not stop,

see your dealer for necessary repair.

10. Before adjusting your mower or adding fuel, turn the en -

gine off. Let it cool, and disconnect the spark plug so the

engine cannot start by accident. Be sure all moving parts

are stopped.

11. Never run the engine indoors; the fumes are dangerous.

12. Before backing your Dixon mower, stop, turn around, and

look.

13. Gasoline fumes are explosive; use only approved gasoline

containers to store small amount of fuel. No special oil/gas

mixtures are needed for your Dixon mower.

14. If the mower should start vibrating, stop the engine imme -

diately and check for damage or loose parts. Vibration is

usually the warning of trouble.

15. Never lift lawn mower by the body; lift only by the frame.

16. Never carry passengers.

ALWAYS SET PARKING BRAKE AND DISENGAGE BLADE OPERATION BEFORE DISMOUNTING.

IMPORTANT OPERATING INSTRUCTIONS

Dixon ZTR

mowers offer a new concept in mowing, providing

unique maneuverability and ease. The following procedures will

allow one to become familiar with the unique method of control

very easily.

1. SET PARKING BRAKE

—Be sure that drive levers are

free and in the neutral position. (When drive levers are

released, they should return to neutral position.)

2. "Blade Operation" lever is to be set in the "Disengage"

position.

3. Move throttle control to "Choke" position.

4. To start models with electric starting, simply insert ignition

key and turn to the far right position. When the engine

starts, release the ignition key and it will remai n in the

"RUN" position. To stop the engine simply turn the key to

the "OFF" position.

NOTE: Some electric start models are also equipped with

manual start provision. To start engine manually

turn switch to "RUN" and pull the starter rope.

5. Set engine to desired speed by adjusting throttle control.

(Suggest set at slow speed during initial operation.)

6. NOTE SAFETY FEATURE: Safety switches stop engine

when operator leaves seat while blades are engaged, and

engine cannot be started when blades are engaged . OP-

ERATOR SHOULD TAKE PRECAUTIONS AND NOT RELY

ON SAFETY SWITCHES.

7. This unit is equipped with a unique transaxle that requires

only two drive levers to control braking, turning, direction

and acceleration.

TO GO FORWARD

From neutral position gently push both drive levers for

ward;

to increase speed move levers further forward.

TO GO BACKWARD

From neutral position gently pull both drive levers

rearward.

TURNING

Turning is controlled by moving one drive lever slightly

forward or rearward of the other. To turn left, move left lever

rearward of right lever. To turn "square corners" move

lever of desired direction to neutral. To turn on mower's

own axis (Zero Radius) reduce speed and move one lever

to reverse position and the other to forward position.

BRAKING

To brake mower, move both levers in direction opposite of

travel, release levers to neutral, set parking brake. When

stopping on incline, it may be necessary to hold slight

pressure on levers in direction opposite of slope, until

parking brake is set.

ALWAYS SET PARKING BRAKE BEFORE DISMOUNTING.

INITIAL OPERATION

It is recommended that first operation of mower be done at a

slow throttle setting with mower blades disengaged until

operator is thoroughly familiar with the unit.

You may have a tendency to "over control" mower

at first. Slight movement -fingertip control —is all

that's necessary for easy operation.

8. Mower Blade operation:

•Cutting height is set by positioning the adjustment lever.

Push button knob on top of lever, set desired cutting

height, lock in to position by releasing button knob.

•To start mower blades, move lever on floor to "engage"

position. To stop mower blades, move lever to "disen-

gage" position.

ALWAYS DISENGAGE BLADE OPERATION BEFORE

DISMOUNTING.

9. Parking Brake:

Parking brake is on right hand side of floor area and is

engaged by pushing full forward with foot. To disengage,

pull lever back toward operator by hand. In emergency

situations, brake may be used in conjunction with the

natural braking of the transaxle by applying pressure with

foot. Always set parking brake before dismounting. Be sure

that parking brake is disengaged before moving.

MAINTENANCE

BEFORE PERFORMING ANY MAINTENANCE, SHUT

OFF ENGINE, ALLOW TO COOL AND DISCONNECT

SPARK PLUG.

ENGINE

For complete engine operating and maintenance informa-

tion, refer to engine operating and maintenance instructions

furnished by the engine manufacturer and supplied

with

each mower.

BATTERY

Procedure for initial activation of battery:

1. Fill with electrolyte solution to lower ring of battery.

2. Let stand for 30 minutes.

3. Charge at 4 amps for 3 hours or 1 amp for 12 hours.

4. After initial filling, fluid level may be maintained with distilled

water.

Procedure for off-season storage:

1. Charge battery.

2. Disconnect cables from battery terminals. Identify cables so

that they may be easily reconnected to the correct

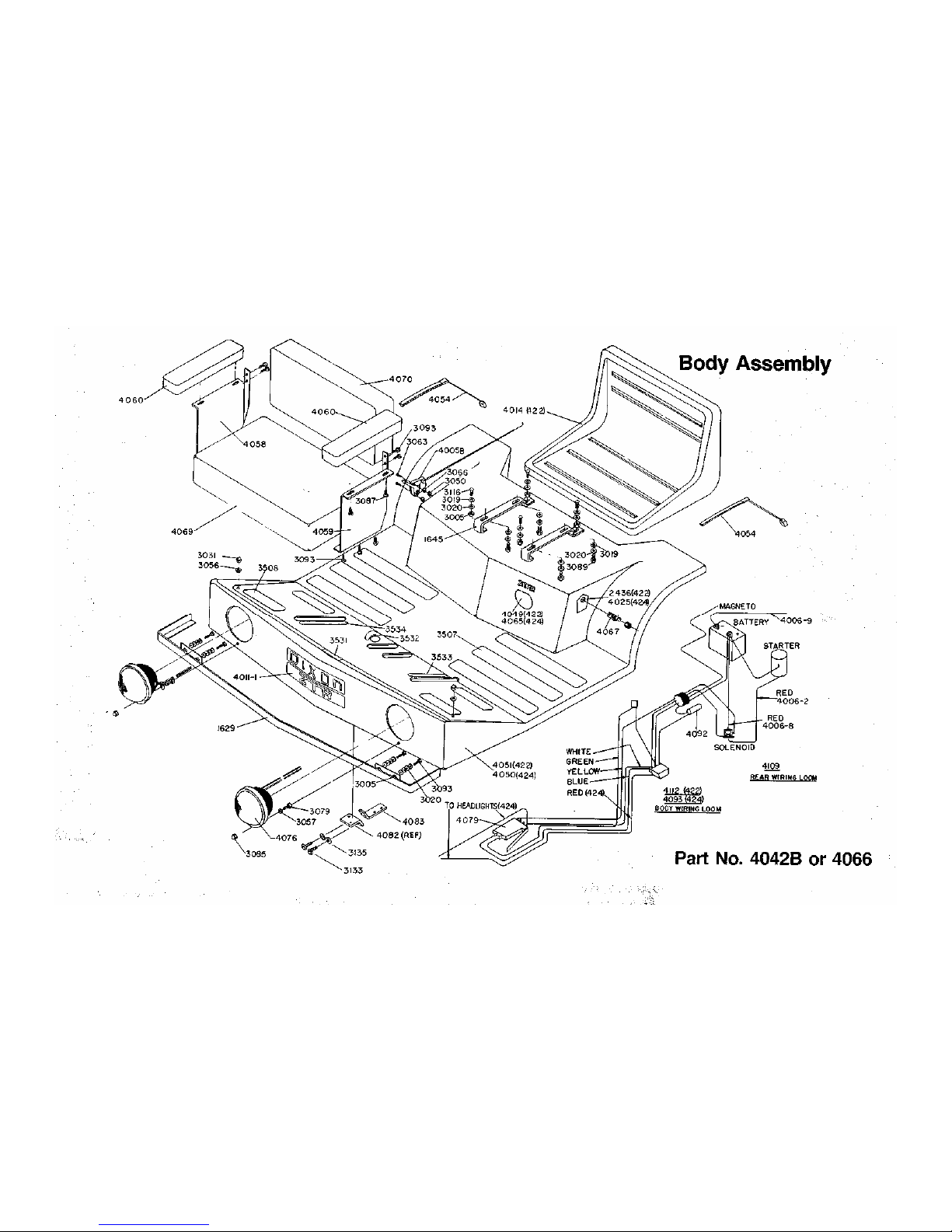

terminal. (See also wiring diagram shown on Body Assembly

illustration.)

3. Clean top of battery and terminals.

4. Do not remove battery from mower.

5. To reactivate, reconnect cables to correct terminals and

charge battery if needed.

BELT ADJUSTMENT

The best tension for a V-belt drive is the lowest tension at

which the belts will not slip under normal load condition. Check

the tension on a new belt frequently during first hours of

operation and every 10-15 hours or monthly thereafter. Too

much tension shortens belt and bearing life. Too little tension

causes slippage and loss of power. Be sure that belts and

pulleys are kept free of foreign material. If belt slippage occurs,

tighten it just enough to prevent slippage.

TRANSAXLE DRIVE BELT

To adjust tension, loosen four (4) bolts which hold engine to

mount and belt keeper in place. Adjust tension bolt (located at

rear of chassis) until desired tension is achieved. Do not over

tighten. Tighten four (4) bolts holding engine.

MOWER DRIVE BELT

Belt tension for mower drive belt is adjusted by loosening nut

on mower deck turnbuckle assembly and turning turnbuckle to

achieve desired tension. Retighten nut. Tension should be

checked with belt in engaged position.

REPLACE BELTS WHEN ADJUSTMENT CAN NO

LONGER BE MADE SATISFACTORILY OR IF BELTS BE-

COME WORN.

BODY ROMOVAL ZTR 422 -424

1. Disconnect throttle cable from engine.

2. Remove four (4) control lever bolts and remove upper

control

levers.

3. Remove engaging handle by removing bolt and nut under

handle.

4. Remove the two (2) attach nuts on floor of body and two (2)

sheet metal screws at the rear of body.

5. Disconnect the rear wiring loom from the body by lightly

squeezing the Econo-Seal plug. This plug is located at the

left rear of the body.

6. Note: Loosen bolts that hold safety switch (P/N 4079) mount

plate and slide switch away from engaging rod. Tighten one

bolt just enough to hold switch in this position

until body is

reassembled.

7. Place height adjustment lever in vertical position and care-

fully lift body up and off of chassis.

8. Reverse the above procedure for assembly.

Note: With the mower deck in the engaged position slide

the switch bracket toward the engag ing rod (P/N 6087-1)

until the switch leaf just makes contact with the switch

button. Tighten both bolts in switch bracket. With the

mower

deck engaged, attempt to start engine in all cutting height

positions. If engine starts in any cutting height positio n

readjust the switch. Disengage the mower deck and start

the engine in each cutting height position. If engine fails to

start in any cutting height position readjust switch. With

operator in normal mowing position engage mower deck

and remove weight from seat. The engine should die.

Repeat this procedure in each cutting height

position.

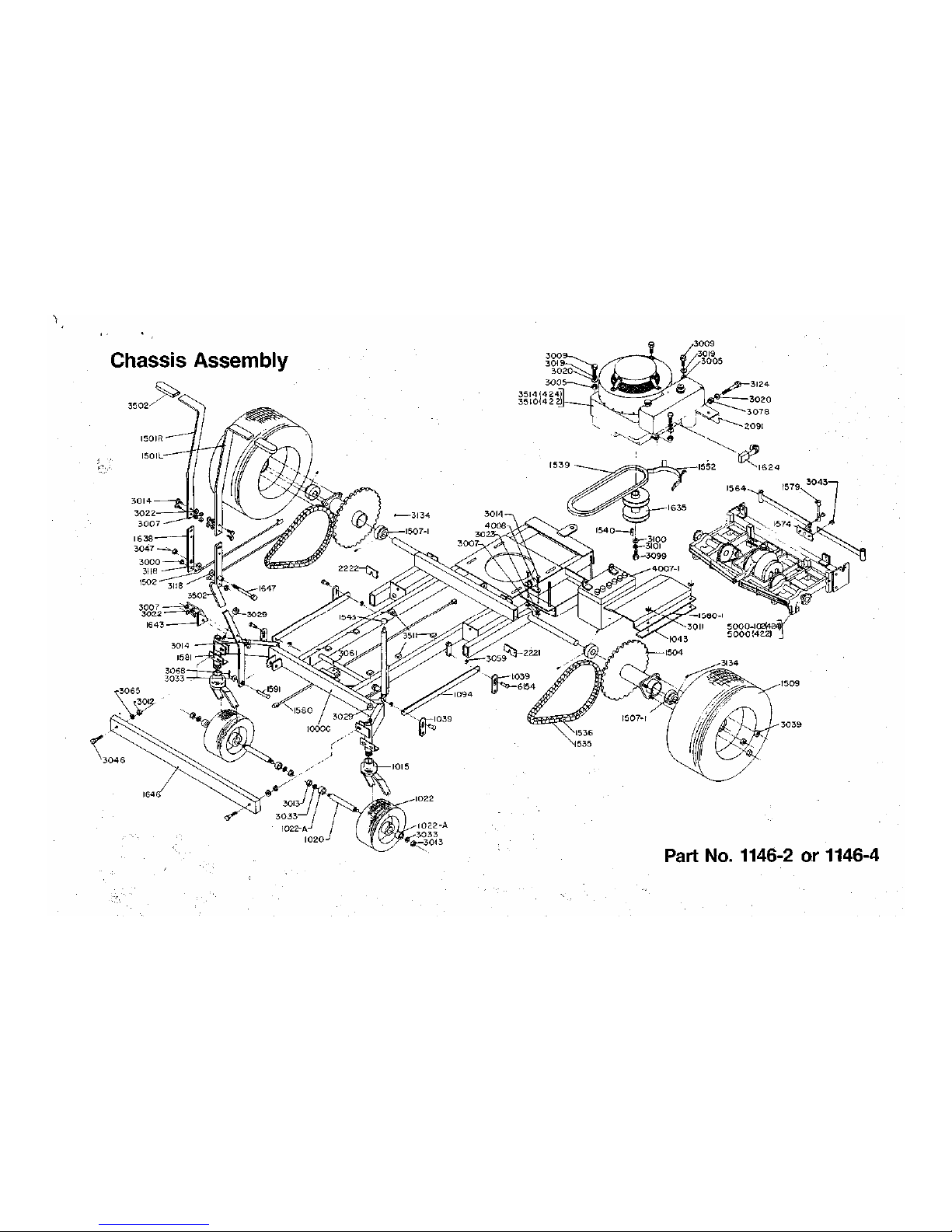

CHAIN DRIVES

ADJUSTMENT

To adjust the drive chains, the body must be removed and

shims added behind the transaxle. Loosen 4 bolts which

hold the transaxle to the frame. Insert shims as needed for

adjustment between transaxle and mount plates. When

properly adjusted, the slack span at the mid -point of the

chain should have a total possible movement perpendicular

to the chain of about 9/16". Tighten the 4 bolts which hold

the transaxle to the frame. Replace chain when rollers

become loose, chain breaks, or chain fails to operate pro -

perly.

LUBRICATION

1. Chains: Proper lubrication is important for effective

roller chain operation. Use high quality lubricating oil (do

not use grease or extra heavy oil) and apply drops of oil

to the chain joints every 10-15 hours of operation.

2. Front Caster Assembly: Each caster assembly has a

grease fitting located on the underside of the bearing.

For best results, use any good multi-purpose grease

every 10-15 hours of operation.

3. All other Bearings: All other bearings on your mower

are sealed and require no lubrication.

WHEELS AND TIRES

Correct tire pressure is essential to the correct operation of

the machine. The correct pressure for the drive tires is 8-10

Ibs. The front tires should be inflated to 20-24 Ibs. Lug nuts

should be checked periodically.

ELECTRICAL SYSTEMS

Keep ail connections clean and tight. Maintain the fluid in the

battery at correct level.

BODY

The body may be washed with a mild detergent and waxed

with any automotive type wax.

TRANSAXLE

For adjustment or repair confer with authorized Dixon

dealer

service department. Adjustment or repair by other

than

authorized dealer voids warranty.

SPARE PARTS

See your dealer for ordering spare parts or warranty service.

INSTALLING AND REMOVING MOWER

DECK FROM FRAME

1. Attach stabilizer arms to mower deck with pins

and clips as shown on drawing.

2. Attach the Vz" dia. engaging rod with a rollpin

through the engaging cam.

3. Position the drive belt on pulleys.

4. Place mower deck under unit in approximate

operating position with engaging rod through

hole in the floor.

5. Connect drive belt to lower engine pulley, being

certain that belt is inside of belt guides. Loosen

belt keeper by loosening the two rear engine

mount bolts; this will allow belt to be placed on

motor pulley. Retighten engine mount

bolts.

6. Attach lift linkage to mower deck on the inside

of the attaching lugs as shown on drawing with

pins and clips. (4

places)

7. Attach stabilizer arms to pivot point on the inside

of attaching bracket with pins and clips.

8. Place engaging handle on engaging rod and fasten with bolt

and locknut.

9. After installing pin clips, rotate pins so that open end of clip

is down.

Autres manuels pour ZEETER 422 & 424

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dixon Tondeuse à gazon

Dixon

Dixon ZTR 311 Manuel d'instructions

Dixon

Dixon ZTR 5000 Series 2000 Manuel utilisateur

Dixon

Dixon ZTR 1001 Manuel utilisateur

Dixon

Dixon D2548YT Manuel utilisateur

Dixon

Dixon SPEEDZTR ZTR 42 Manuel d'installation

Dixon

Dixon BLOUNT 3301 Manuel d'instructions

Dixon

Dixon SpeedZTR 30 CE Manuel utilisateur

Dixon

Dixon ZTR 700 Series Manuel utilisateur

Dixon

Dixon SpeedZTR 30 ZTR Manuel d'exploitation et d'entretien

Dixon

Dixon ZTR 7525 Manuel utilisateur

Dixon

Dixon Speedztr 44/968999538 Manuel utilisateur

Dixon

Dixon D26KH54 Manuel du propriétaire

Dixon

Dixon ZTR 4500 Series Manuel utilisateur

Dixon

Dixon BLOUNT 3O4 Manuel d'instructions

Dixon

Dixon TECHNICAL DATA BROCHURE ZTR 308-311 Manuel d'instructions

Dixon

Dixon 7000 Manuel utilisateur

Dixon

Dixon Mower Manuel utilisateur

Dixon

Dixon SPEEDZTR 44/965981001 Manuel utilisateur

Dixon

Dixon DX254 / 966651201 Manuel utilisateur

Dixon

Dixon Zeeter Zero-Turn Riding Mower Mode d’emploi

Dixon

Dixon ZTR Zero Turn Riding Mower Manuel utilisateur

Dixon

Dixon D22KH46 Manuel utilisateur

Dixon

Dixon ZTR 3500 Series Manuel utilisateur

Dixon

Dixon Ultra 52 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
